Monday Kids Photosensitive Sound Light Alarm DIY Kit Electronic Production Invention Assembly Sound and Light Sensor Module Device Suite

Be the first to review this product

$1.25

Availability: In stock

SKU

RY-ES-204

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Type: Voltage Regulator
Condition: New
Supply Voltage: 3-5V
Model Number: Sound and Light Sensor Module
is_customized: Yes
Application: Other

Description:

Note:This module is DIY Kit ,Not a finished product.

Function introduction:

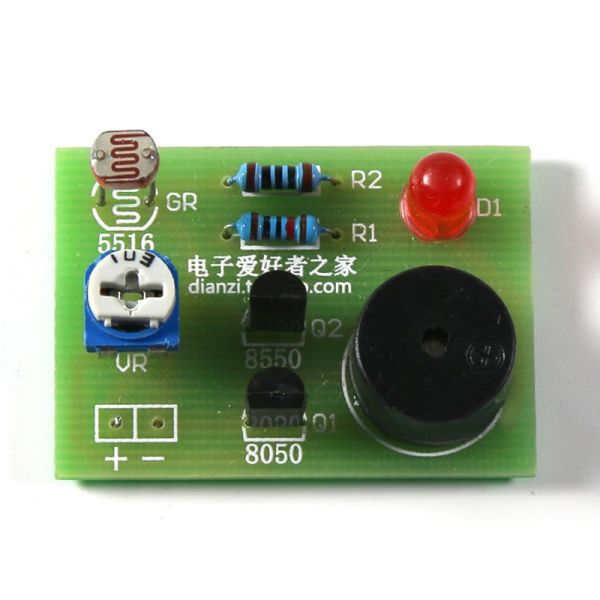

This circuit is used to detect ambient light. When the light is bright, it will sound and light alarm, the LED will light up, and the buzzer will sound. The sensitivity can be adjusted by a potentiometer. For an example of application: Tianliang alarm to get up.

Parameter:

Supply voltage: DC 3V-5V

Board size: 2.5*3.5cm

Note:

1. Note that the components on the board are welded from a small volume and then soldered to a large one.

2. Individual components such as resistors and capacitors are temporarily out of stock. We will replace the components of the symbolic circuit with the nearby values. The blue metal film resistors may be replaced with gray carbon film resistors, and the gray carbon film resistors. It is also possible to replace it with a blue metal film resistor. It is the same effect.

3. After welding, please self-test, if the welding is not wrong, it can be successful. If the welding fails, we can only help you to check the problem. We can't guarantee that you can succeed in welding. This is why the factory production line needs maintenance. For the reason of the work, the electronic products are broken due to static electricity, because the positive and negative poles of the power supply are connected to the wrong burnt, because of the chance of problems caused by the soldering, the wrong position of the components, etc., etc., don’t always say that the board line is problematic. This board sells tens of thousands of people, and dozens of people have problems! We promise to do our best to provide good after-sales service and try our best to help all friends to complete the production. Therefore, when encountering the finished product does not achieve the effect we have described, please do not rush to give us an evaluation, remember to contact our after-sales service, we will do our best. Thank you for your cooperation and I wish you all a happy shopping!

Package include:

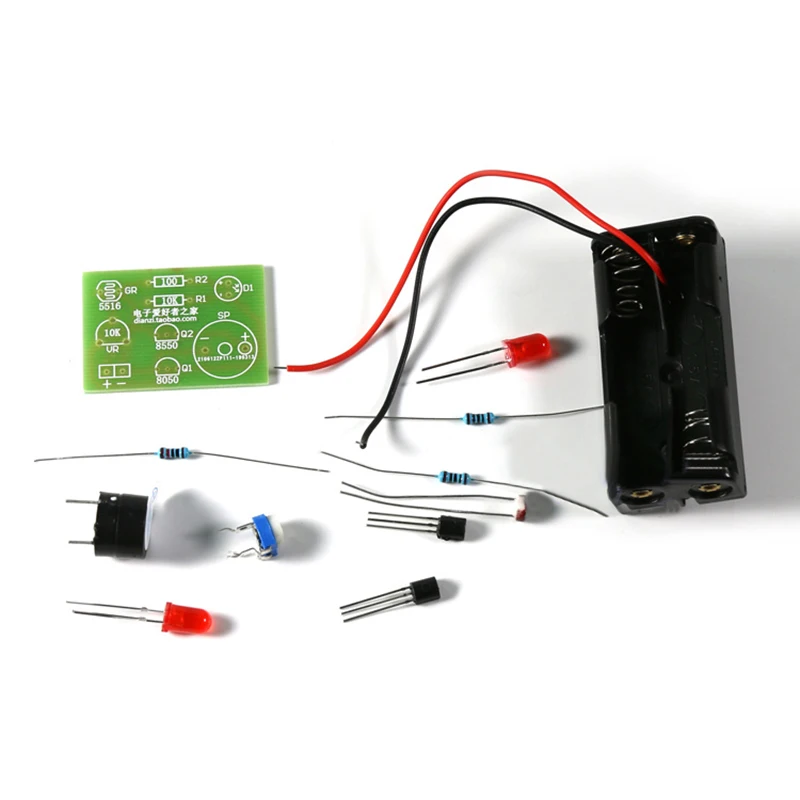

1 * Photosensitive Sound Light Alarm DIY Kit

Schematic:
