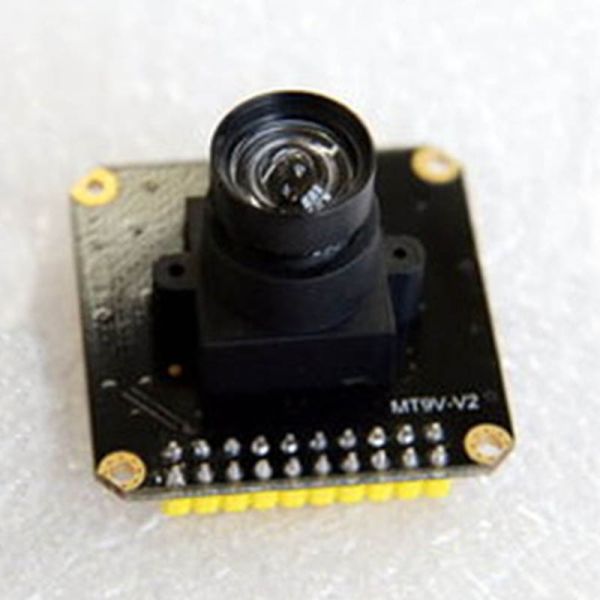

Monday Kids Mt9v034 Mt9v032 Wide Dynamic Industrial CMOS Module

Description:

Customer First is our aim, sincerely welcome new and old customers letter,we are ready to serve you!Our advantage is: a good reputation, good price, good quality Direct supply of inventory, fast delivery.

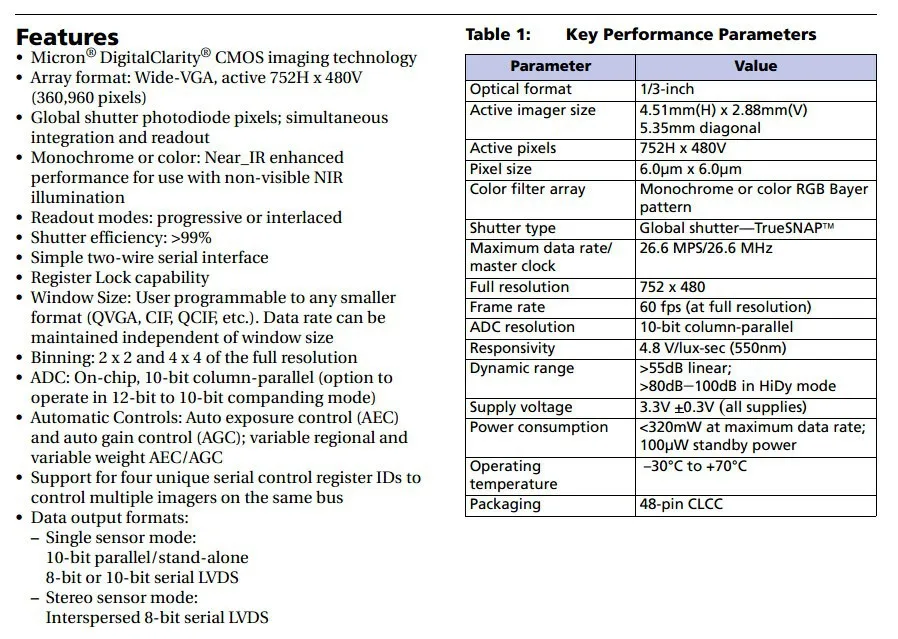

The main parameters of module :

1) the sensitive area is 1/3 inches , the pixel is Wide-VGA , 752*480 , when input 27M clock, it full frame output speed of 60 frame / s. .

2) shutter ; there are generally two ways of CMOS shutter , rolling shutter and the global shutter , this module is

Global shutter .

3) sensitivity; 4.8V/lux-sec, Is the unit of light intensity on the sensor for 1 seconds , the sensor can output voltage 4.8V . General CMOS has 0.5V or 0.7V, most is 1.0V, and 2.1V, 4.8V is absolute the highlights of the CMOS, it can have the clear image in very dark light .

4) dynamic range; >55dB linear ;

>100dB - 110dB in HiDy mode ;

The module supports super wide dynamic .

5) interface: 10Bit parallel port ;

LVDS support stereo (binocular ) vision.

Recommend the use of occasions: The occasion of the large ratio of environmental light and shade ( such as night Lane monitoring, backlighting film ) , dark places, machine vision, binocular vision, wide temperature industrial applications etc. .

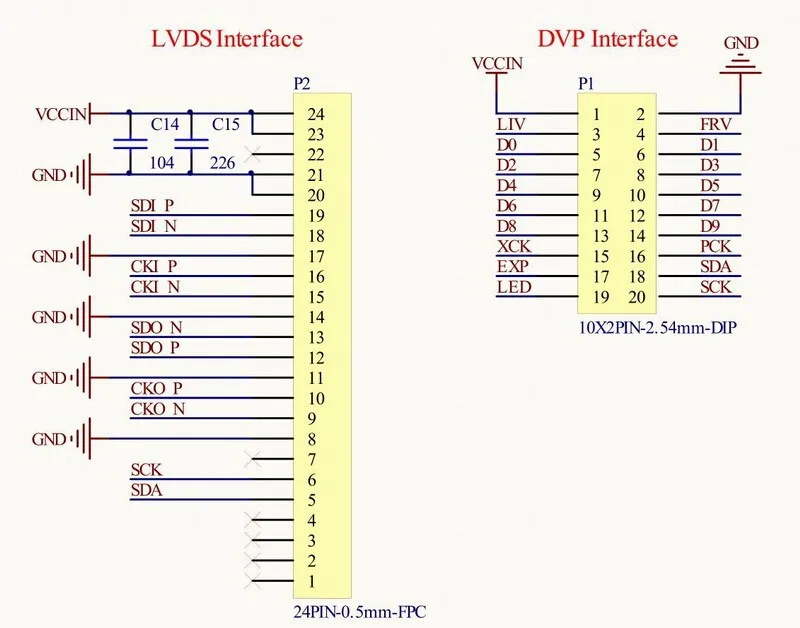

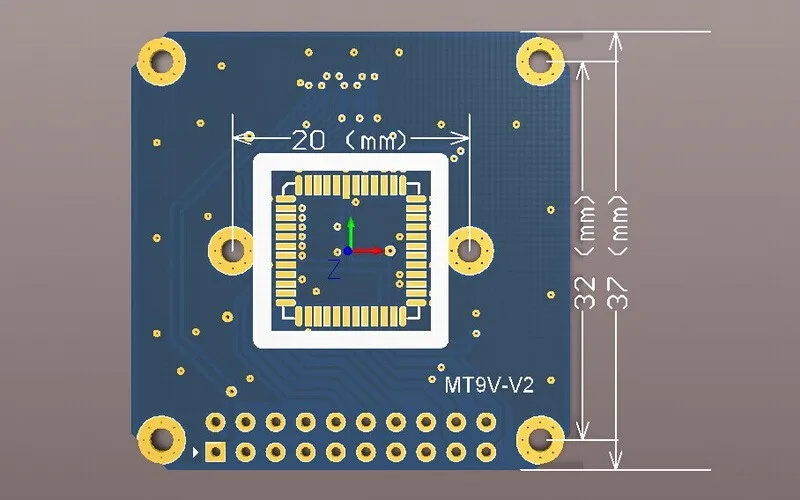

Below is the interface definition and dimensions of machine module, in order to facilitate to use, module reserved

Package Included:

1 * Industrial CMOS module
