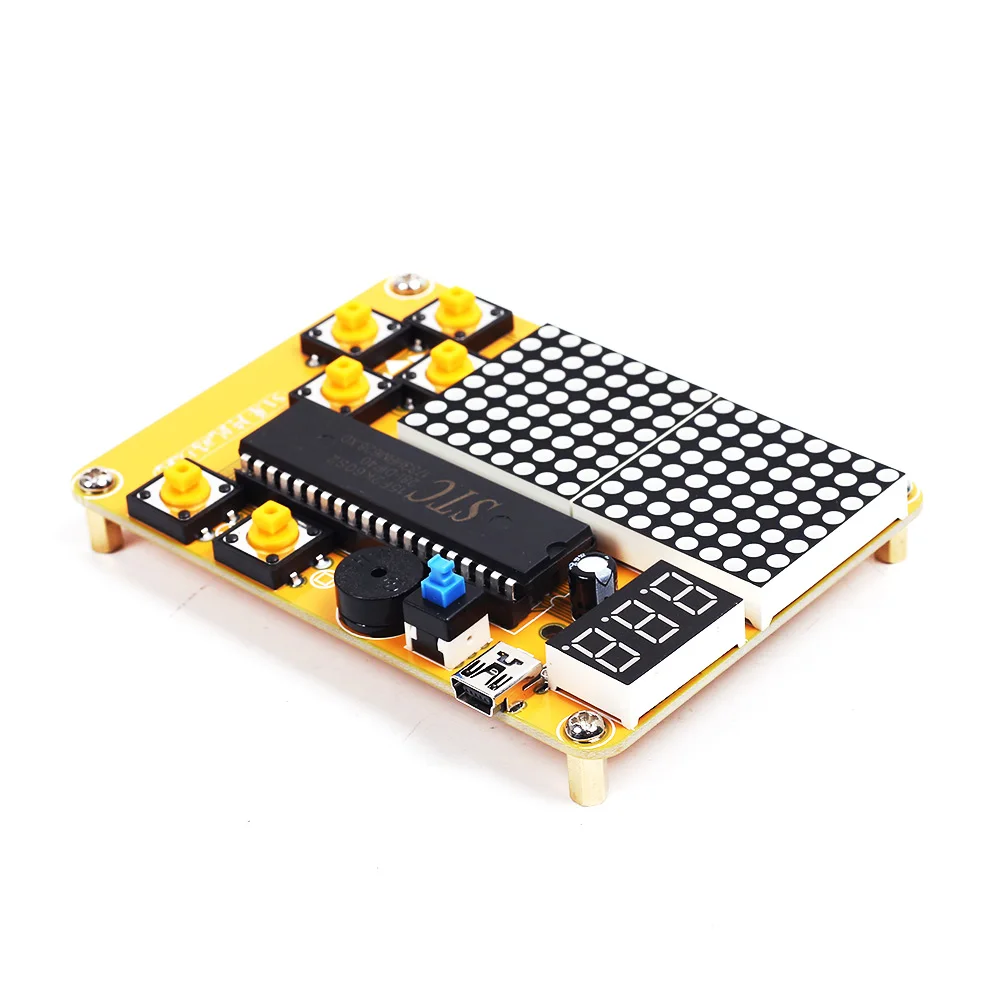

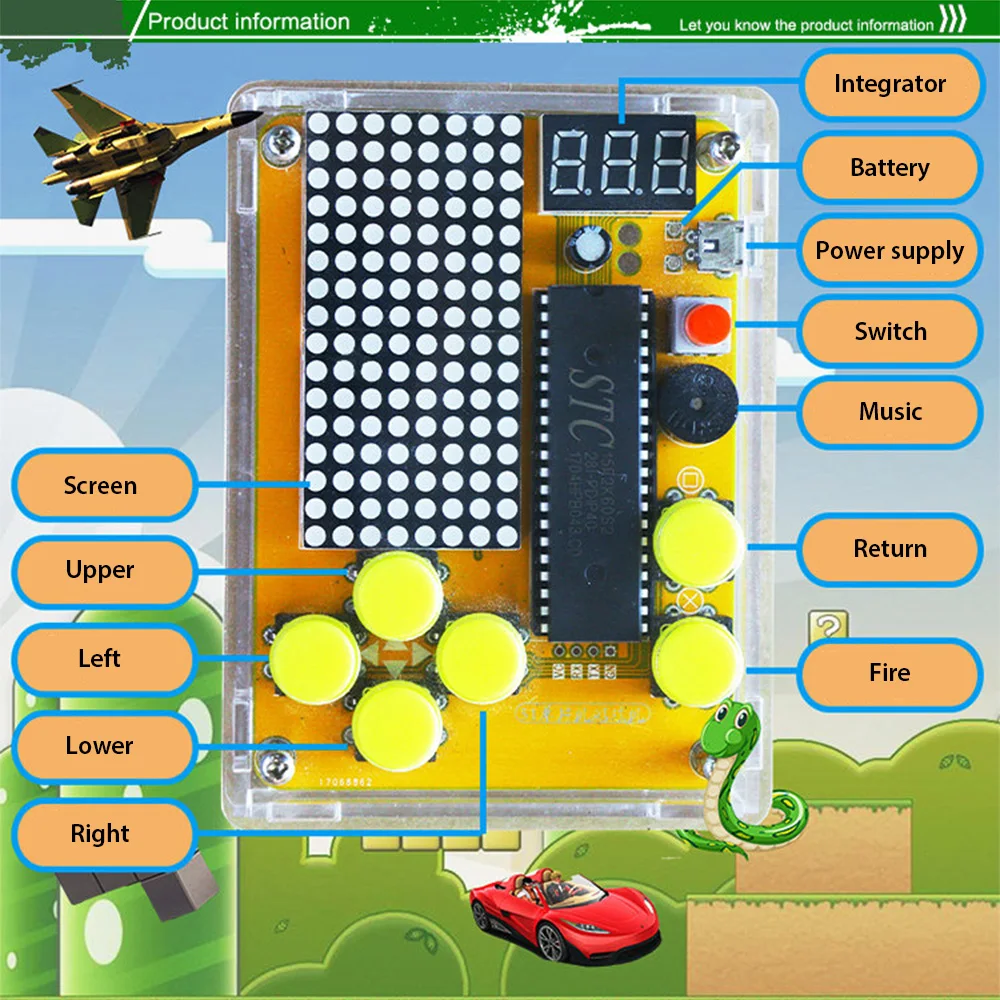

Monday Kids DIY Kit Tetris/Snake/Plane/Racing Game Kit DIY Electronics Experiment Kit with Shell Button Control MCU Computer Game Machine

$12.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Application: Computer
  • Supply Voltage: none
  • Operating Temperature: none
  • Type: Logic ICs
  • Condition: New
  • Model Number: MCU computer game machine
  • Dissipation Power: none
  • is_customized: Yes
  • Voltage and current: 5V-100mA

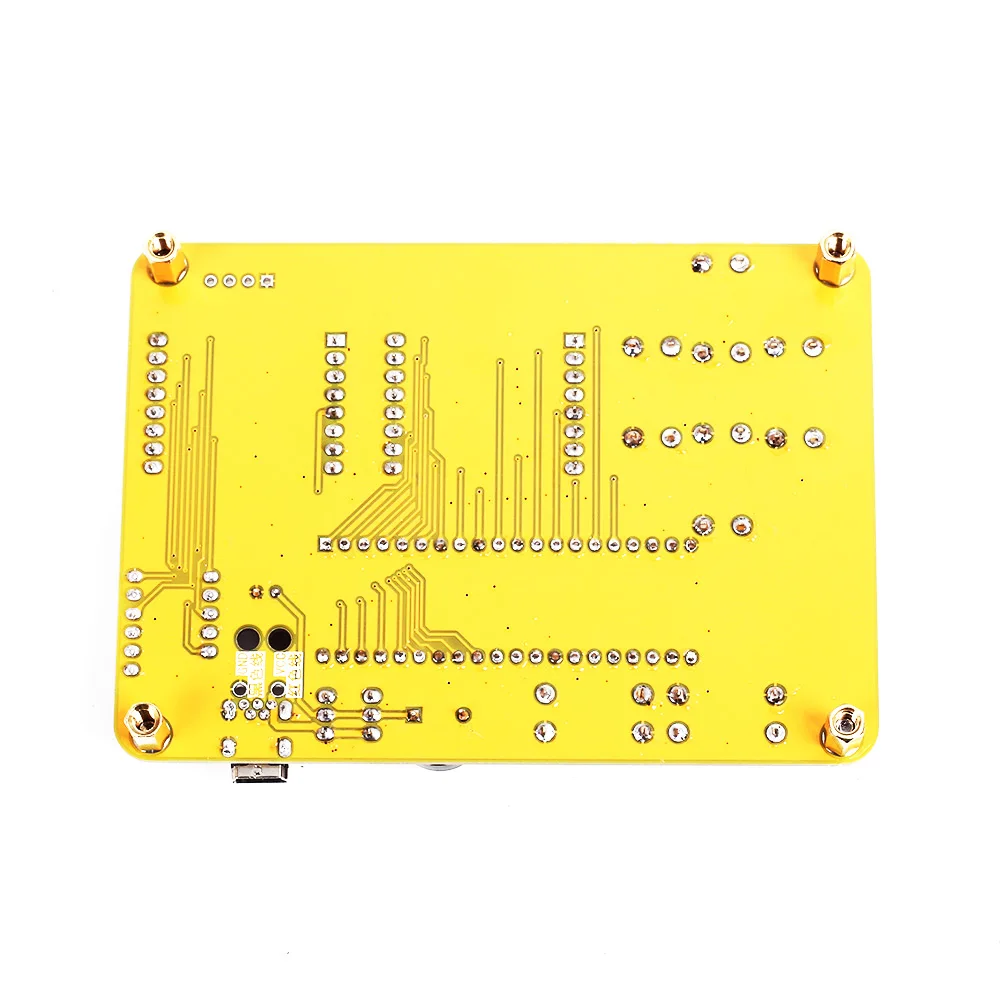

  • PCB material: Golden military grade FR4

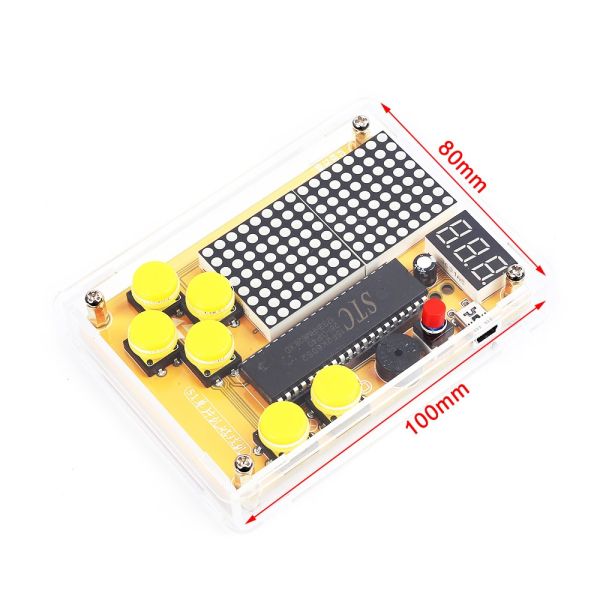

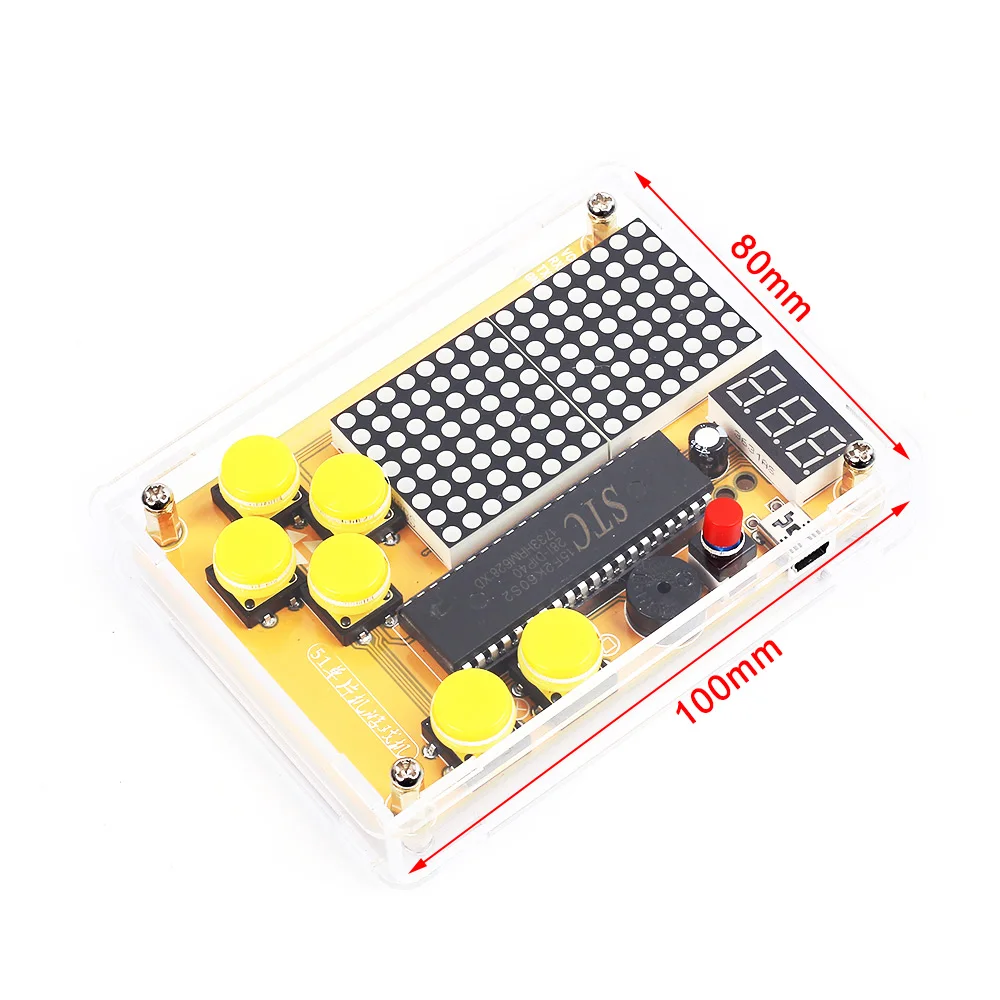

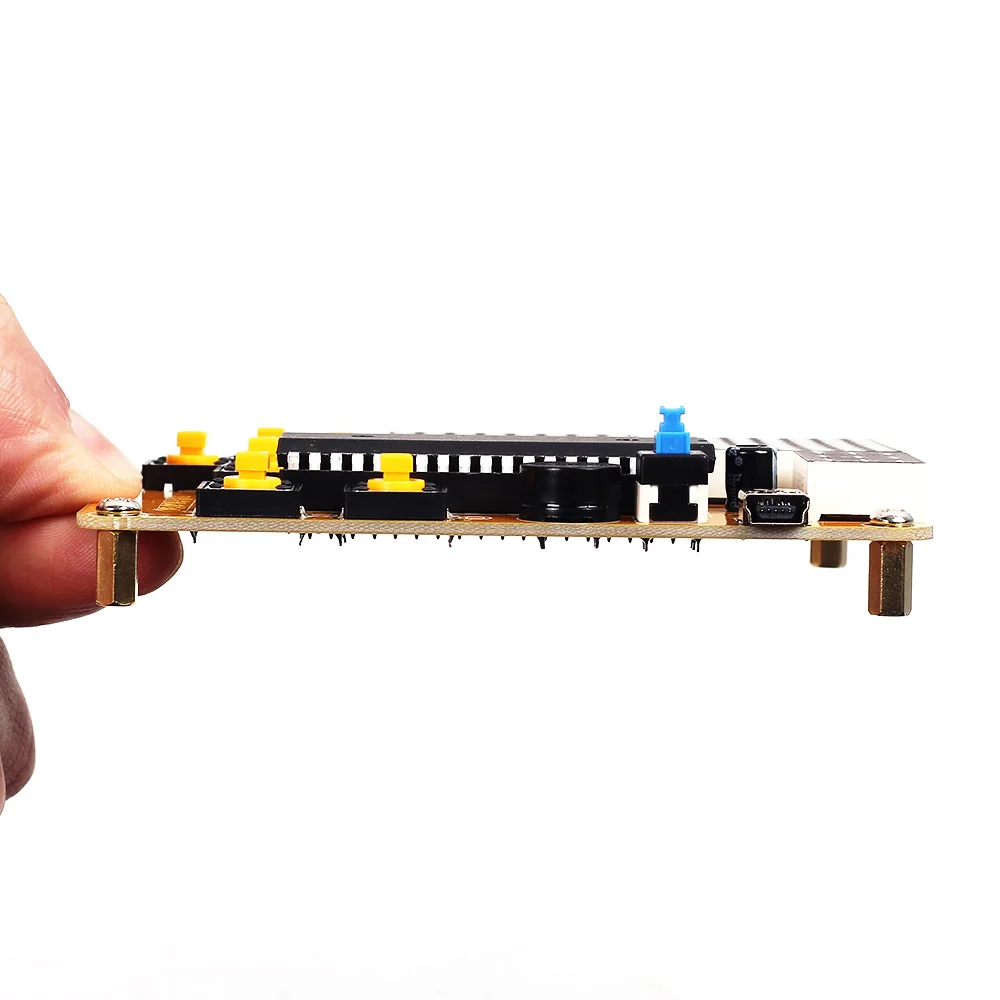

  • Shell size: 100mm*80mm(with shell)
  • Key cap: With

1. Parameters:

No.

Parameter

Value

1

Product name

MCU computer game machine

2

Model

CZL--YXJ01

3

Voltage and current

5V-100mA

4

Power supply interface

Portable charger, power adapter, computer USB, battery box power supply

5

Control mode

Large size button control

6

PCB material

Golden military grade FR4

7

Shell size

100mm*80mm(with shell)

8

Key cap

With

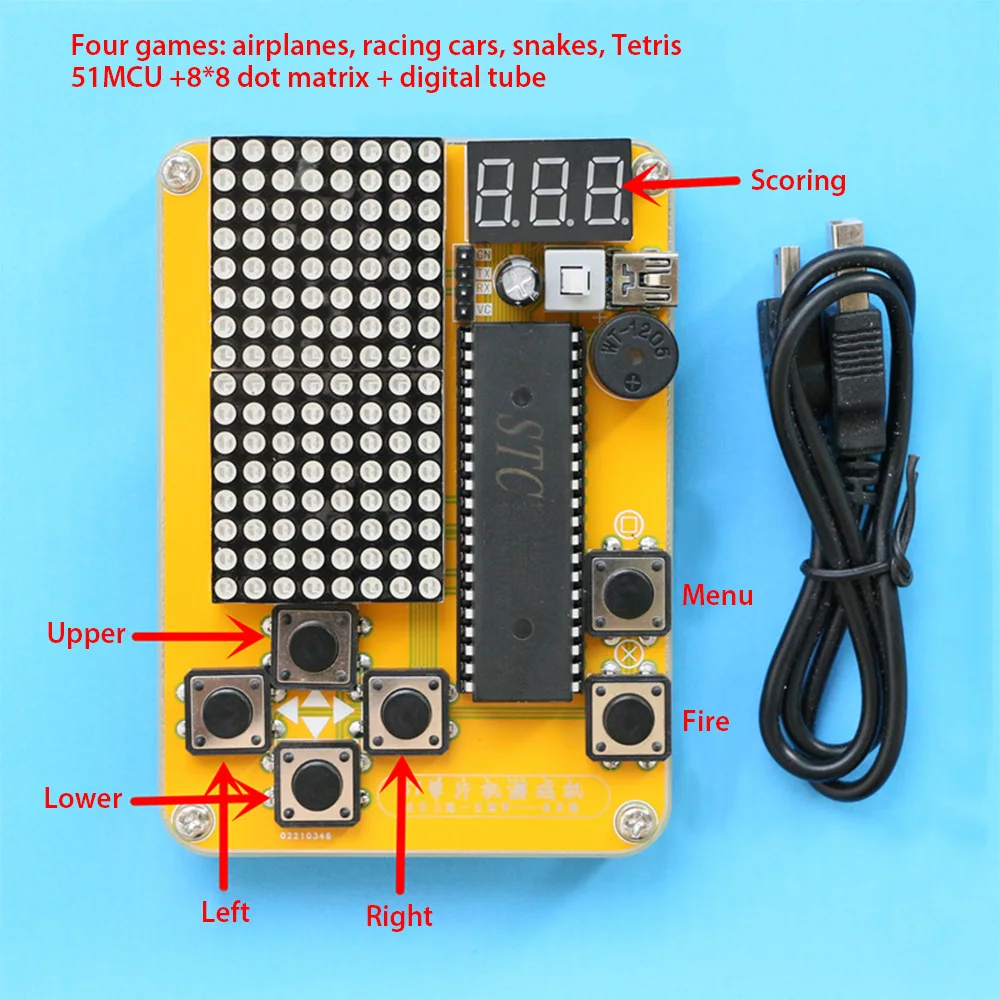

2. Features:

1>. With the dot matrix of 16*8.


2>. All copper mini USB, 3 bit mini digital tube.


3>. Golden PCB looks more exquisite.


4>. STC12C5A60S2 high speed and high speed.


5>. Humanized keypad arrangement.


6>. 12mm big button, better feel.


7>. Corner treatment is better.

3. Components list:

No.

Name

Specs.

Packaging

Tag No.

Qty

Remark

1

Buzzer

12mm5V passive

BEEP-12MM

B1

1

In no particular direction

2

Electrolytic Capacitor

16V_220UF

RB_01_6.3X5

C2

1

Long pin is positive

3

Micro USB

USB_2PIN

USB-micro

J1

1

solder in accordance with the silk-screen

4

White Switch

SWITCH_2X2

KTF_8MM0

S1

1

solder in accordance with the silk-screen

5

Touch Switch

12x12

12x12

S2,S3,S4,S5,S6,S7,S8

6

solder in accordance with the silk-screen

6

Lattice

3x8

0.26

L1,L2

2

solder in accordance with the silk-screen

7

Nixie Tube

8x8

30mm

SEG1

1

solder in accordance with the silk-screen

8

Copper Cylinder

M3*12+6 single pass

4

Fittings

9

Bolt

M3x5

4

Fittings

10

Power line

Micro USB line

1

Fittings

11

PCB

CZL-YXJ01

1

Main part

12

IC Base

40p

DIP-40-W

1

solder in accordance with the silk-screen

13

SCM

STC15F2K60S2

U1

Insert it into IC Base

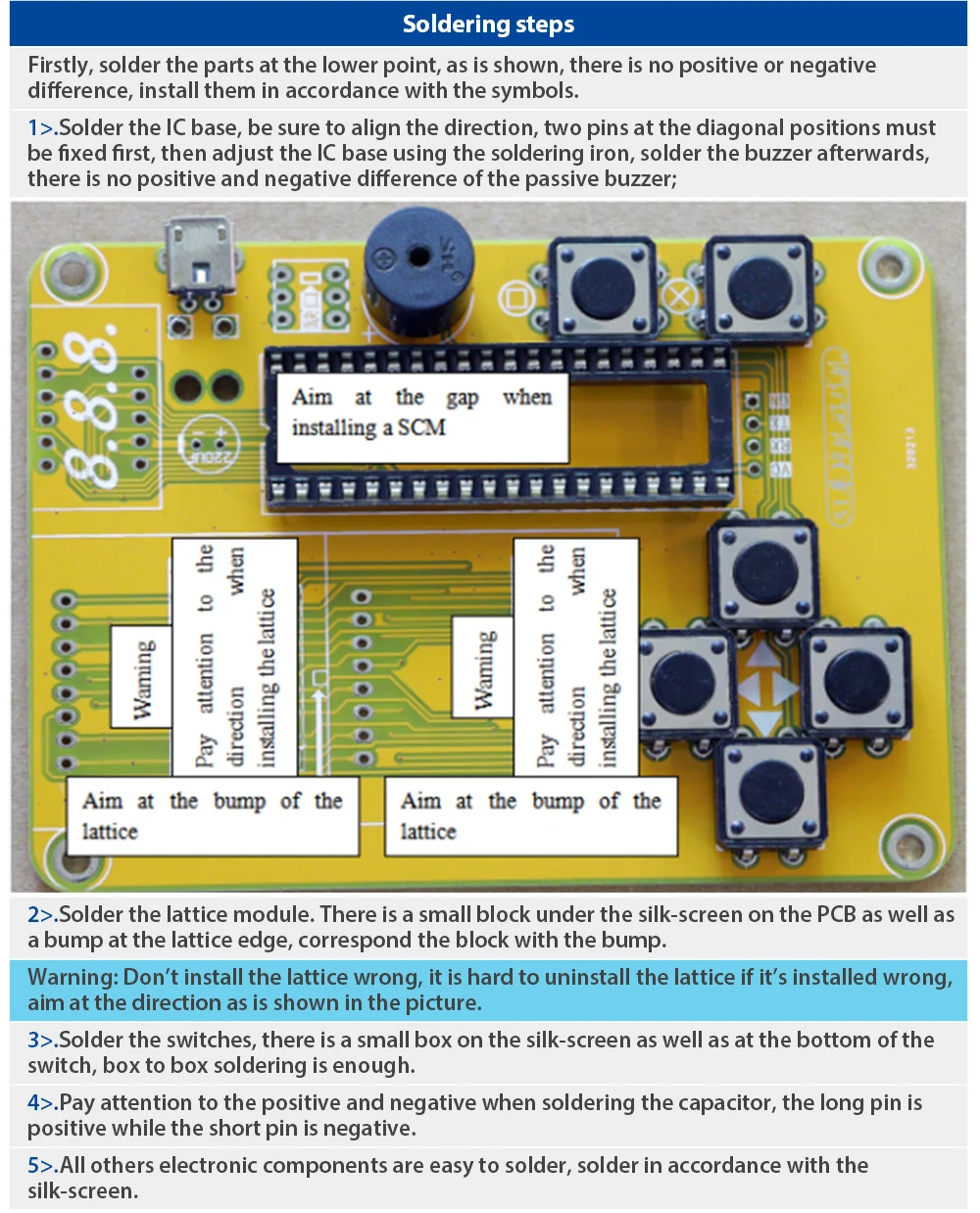

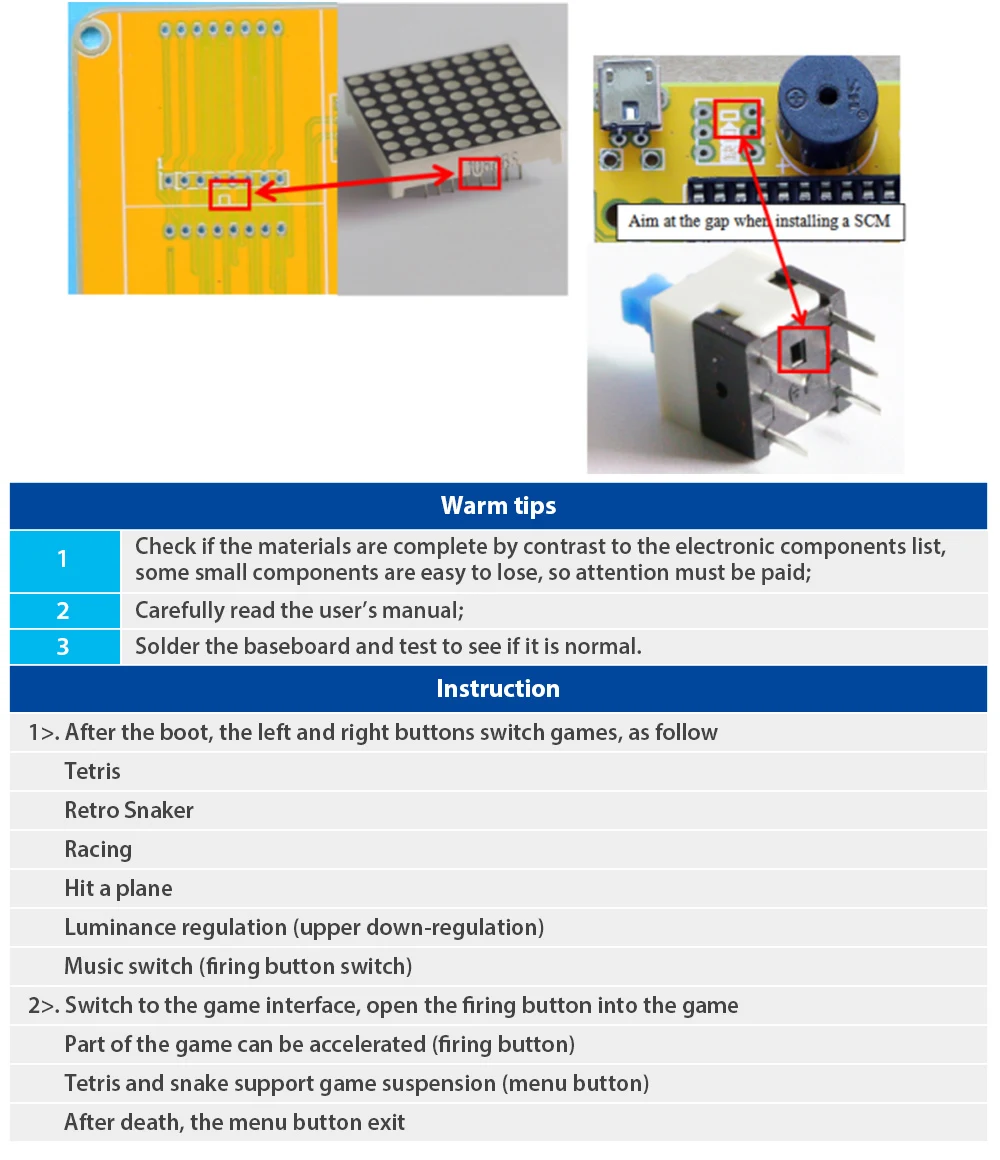

4. Soldering steps:

Firstly, solder the parts at the lower point, as is shown, there is no positive or negative difference, install them in accordance with the symbols.

1>.Solder the IC base, be sure to align the direction, two pins at the diagonal positions must be fixed first, then adjust the IC base using the soldering iron, solder the buzzer afterwards, there is no positive and negative difference of the passive buzzer;

  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
