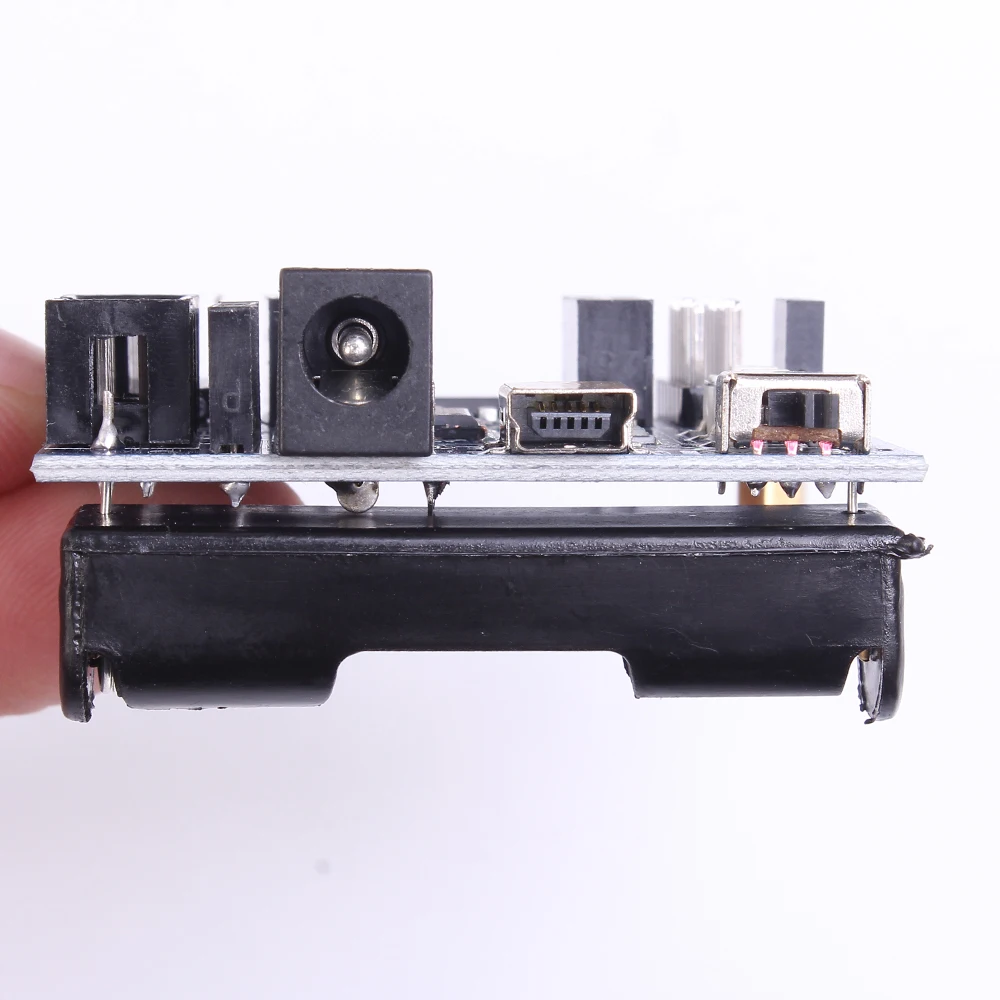

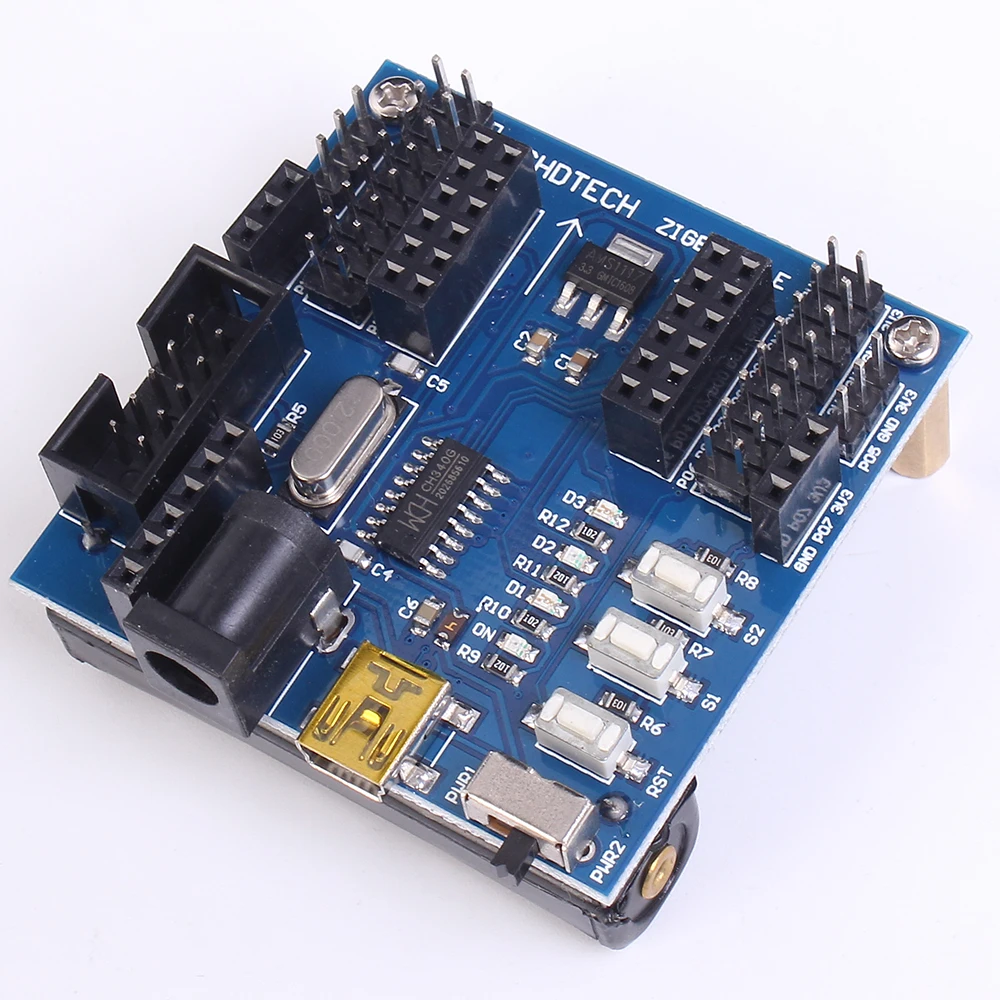

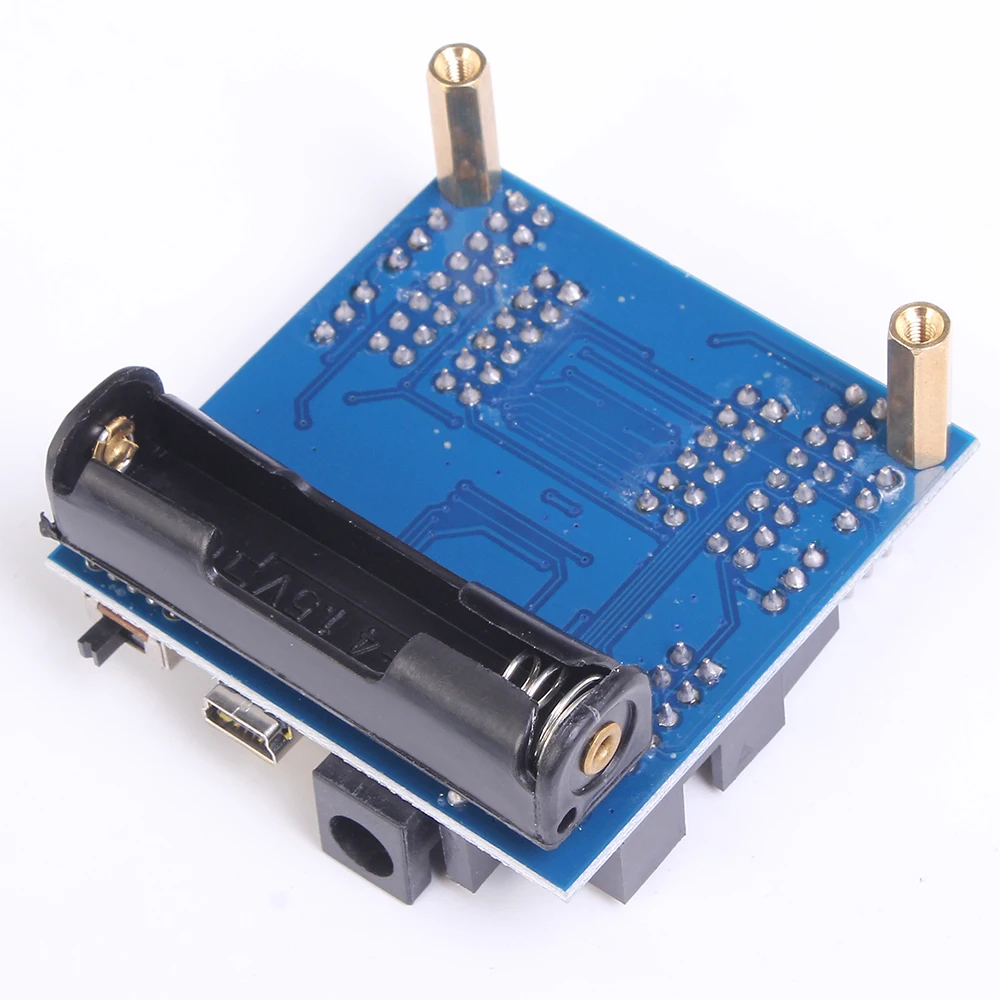

Monday Kids ZigBee CC2530 Sensor Node Baseboard Functional Module Expansion Board USB Port 24MHz 256KB
$8.89
Availability:
In stock
SKU
EK554
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Operating Temperature: -40~125 celsius
- Type: Logic ICs
- is_customized: Yes
- Supply Voltage: 3.6V
- Model Number: ZigBee CC2530 Sensor
- Application: ZigBee CC2530 Sensor
NOTE : we have documents of most of products in our store If you need it , contact us :) | |
|
Product Introduction:
1.Frequency:24MHz
2.Flash:Up to 256KB
3.SRAM:8kB
4.GPIO:21
5.SPI:1
6.UART:1
7.ADC:12-bit,8 channel
8.Min VCC:2V
9.Max VCC:3.6V
10.Standby Power:0.4uA
11.Wakeup Time From Standby:500us
12.Operating Temperature Range:-40℃~125℃
13.RF Standard Supported:ZigBee/6LoWPAN/802.15.4 MAC
14.CPU Core:8051
15.Security:128-bit AES
16.Antenna Connection:yes
17.RX Current:20.5mA (Lowest)
18.Frequency Bands:2394-2507MHz
19.Size:54.12*52*23.83mm
Features:
1.RF/Layout
2.2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
3.Excellent Receiver Sensitivity and Robustness to Interference
4.Programmable Output Power Up to 4.5 dBm
5.Very Few External Components
Key Applications:
1.2.4-GHz IEEE 802.15.4 Systems
2.RF4CE Remote Control Systems (64-KB Flash and Higher)
3.ZigBee Systems (256-KB Flash)
4.Home/Building Automation
5.Lighting Systems
6.Industrial Control and Monitoring
7.Low-Power Wireless Sensor Networks
8.Consumer Electronics
9.Health Care
- Unit Type: piece
- Package Weight: 0.06kg (0.13lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
