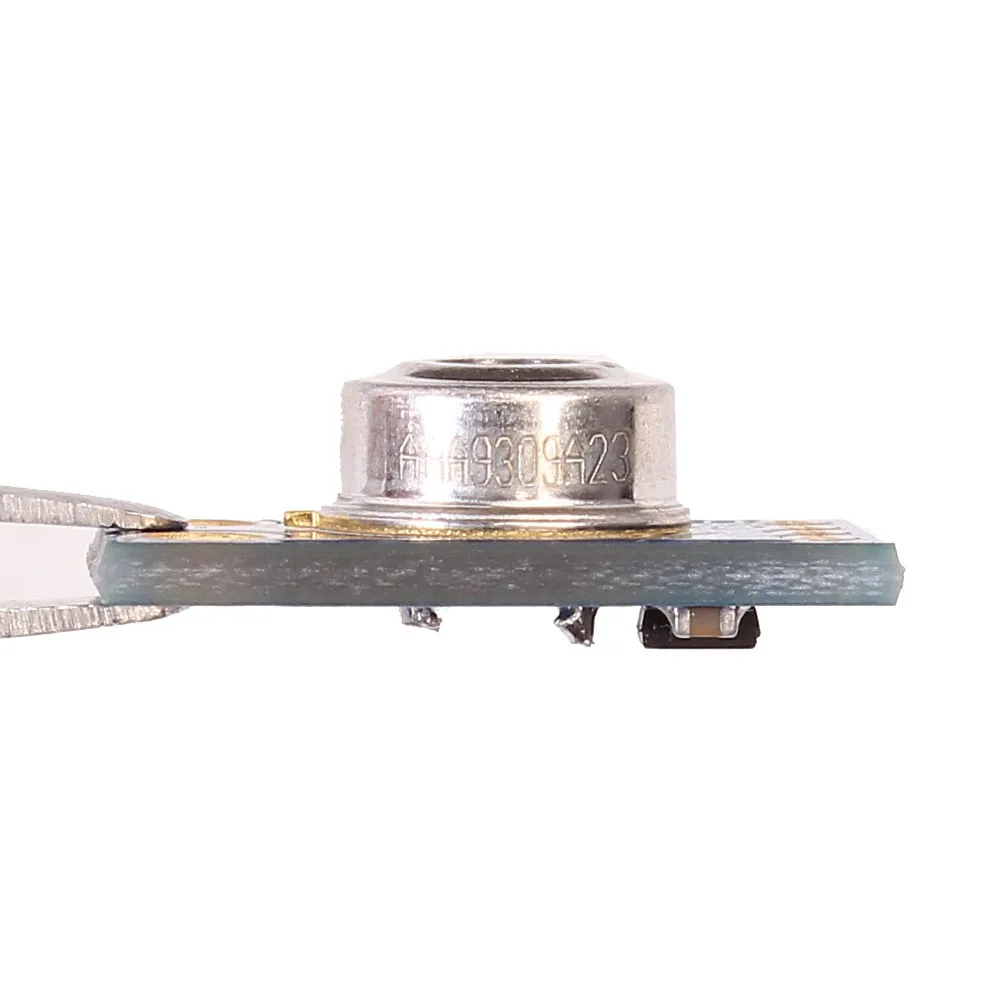

Monday Kids MLX90614ESF Human Body Infrared Temperature Sensor AAA Non-Contact Contactless IR Temperature Measurement Module

NOTE : we have documents of most of products in our store If you need it , contact us :)

Features And Benefits:
1.Small size,low cost
2.Easy to integrate
3.Factory calibrated in wide temperature range: -40 Celsius to 85 Celsius for sensor temperature and -70 Celsius to 380 Celsius for object temperature
4.High accuracy of 0.5 Celsius over wide temperature range (0-50 Celsius for both Ta and To)
5.High (medical) accuracy calibration
6.Measurement resolution of 0.02 Celsius
7.Single zone version
8.SMBus compatible digital interface
9.Customizable PWM output for continuous reading
10.Voltage 5V
11.Simple adaptation for 8 to 16V applications
12.Power saving mode
13.Different package options for applications and measurements versatility
14.Automotive grade
15.Board Size:19.38*11.2mm

Applications:
1.High precision non-contact temperature measurements
2.Thermal Comfort sensor for Mobile Air Conditioning control system
3.Temperature sensing element for residential commercial and industrial building air conditioning;
4.Windshield defogging
5.Automotive blind angle detection
6.Industrial temperature control of moving parts
7.Temperature control in printers and copiers
8.Home appliances with temperature control
9.Healthcare
10.Livestock monitoring
11.Movement detection
12.Multiple zone temperature control up to 100 sensors can be read via common 2 wires
13.Thermal relay/alert
14.Body temperature measurement

C1 value and type may differ in different applications for optimum EMC
