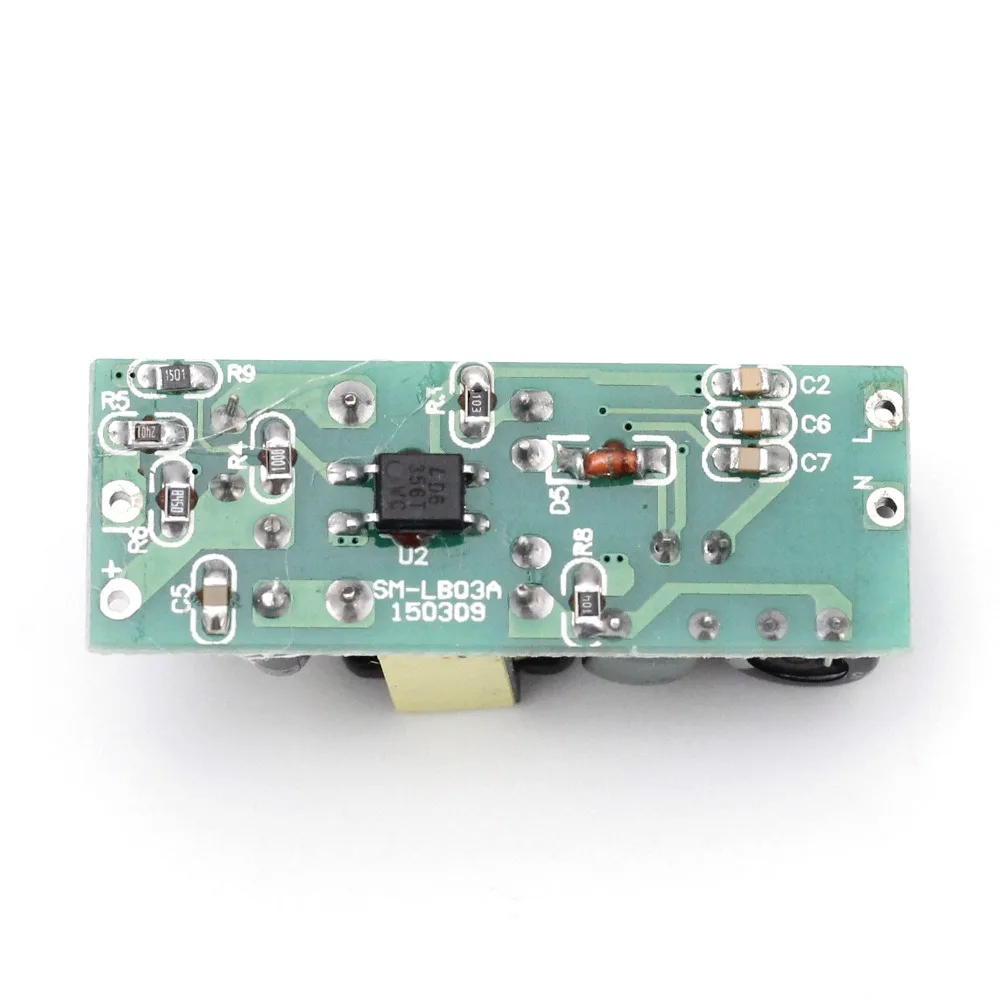

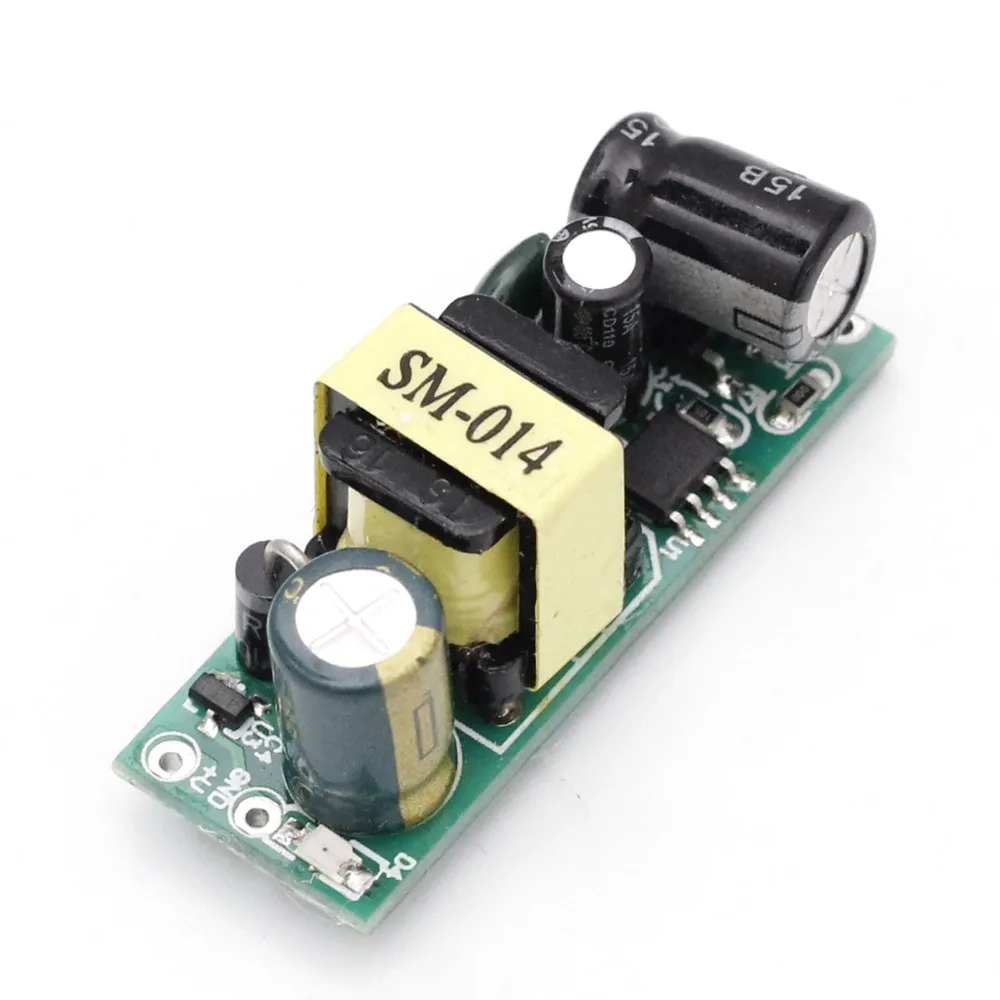

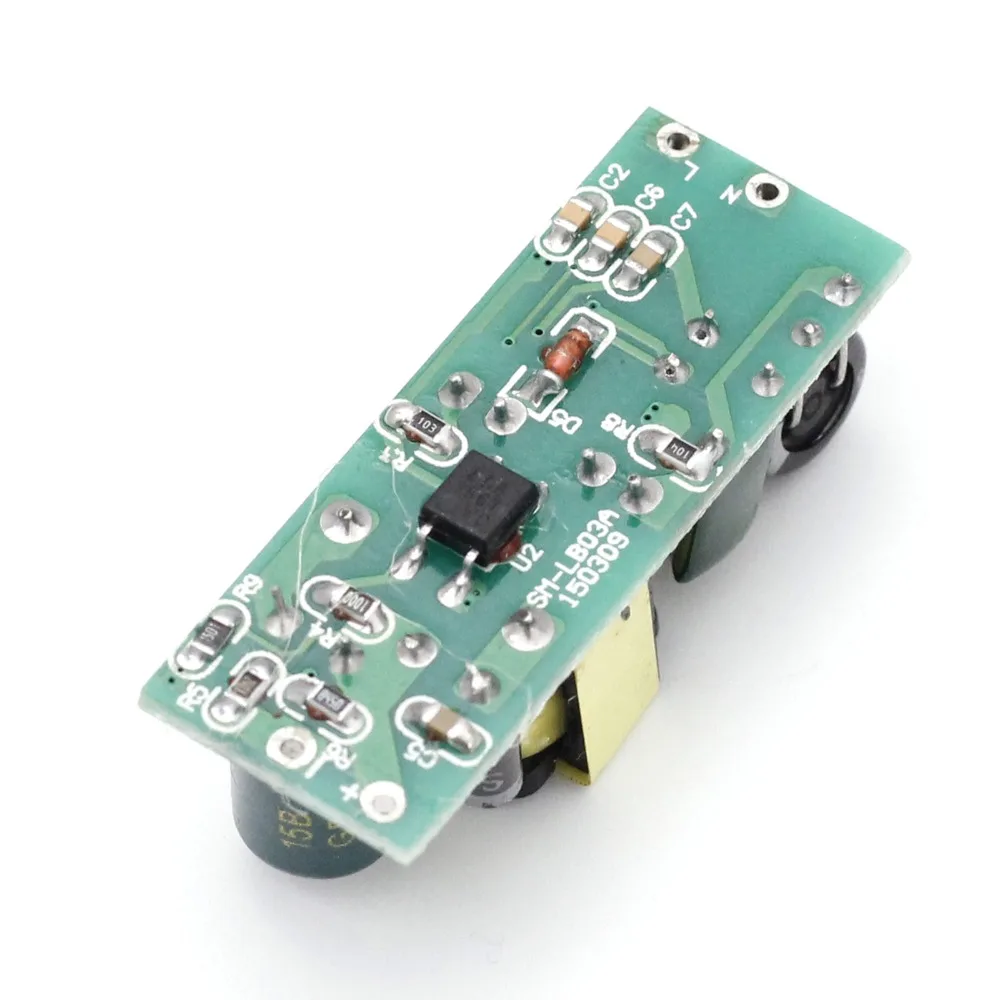

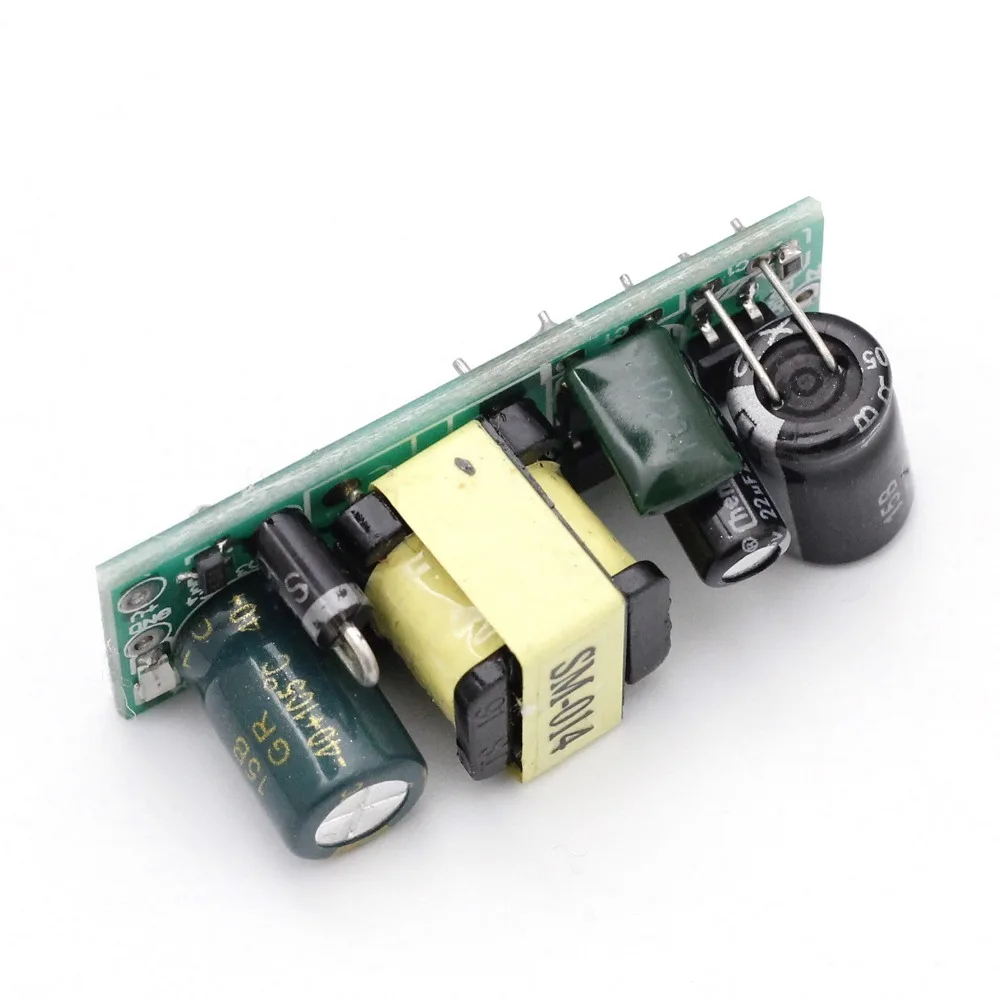

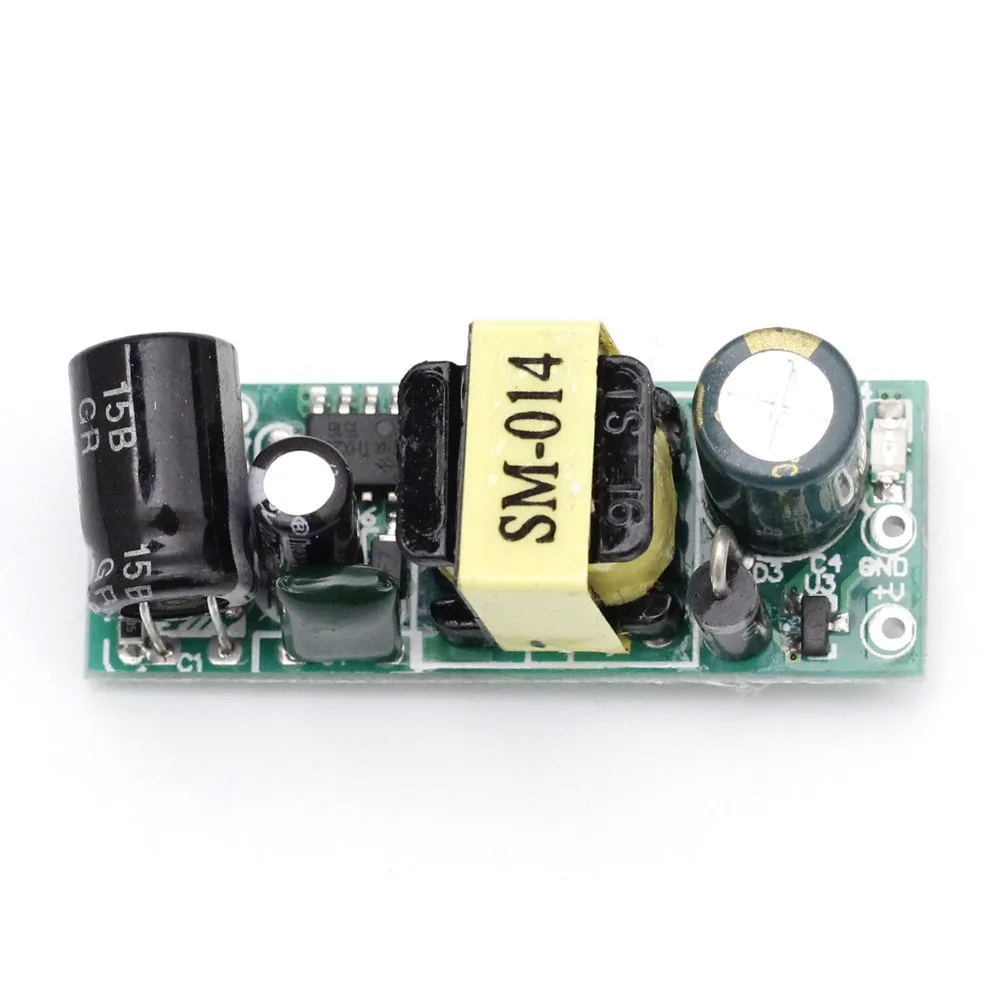

Monday Kids 220V to 3.3V 500mA 3.5W AC-DC Power Supply Buck Converter Isolated Power Module

Be the first to review this product

$2.50

Availability: In stock

SKU

EK828

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Condition: New
Operating Temperature: -20 to 60 Celsuis
Type: Voltage Regulator
Dissipation Power: 2W
is_customized: Yes
Model Number: AC-DC Buck Converter
Supply Voltage: AC 90-240V
Application: Power Module
Output voltage: DC 3.1 ~ 3.5V
Output current: 0 to 500mA
Output efficiency: 85%
Output ripple: 150mv
Power: 2W (Max 2.5W)
Switch overshoot: 10%

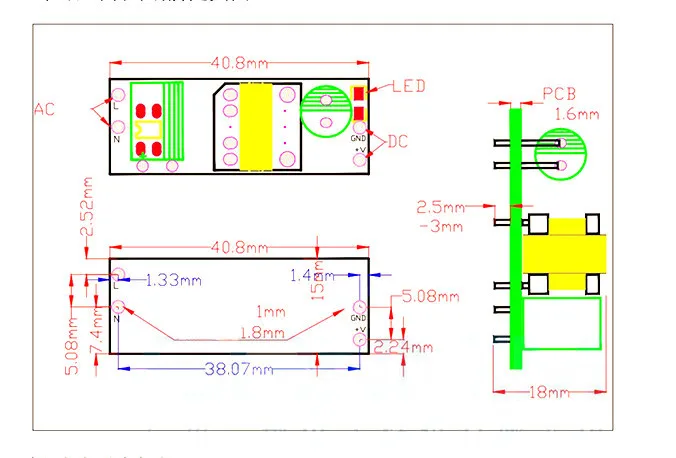

Size: 4*1.5*1.8mm
Input voltage range: AC 90 ~ 240V
Input surge current: 20A

Use environment:

1. Working temperature: -20 to 60 Centigrade
2. Relative humidity: 40 to 90% RH

Input characteristics

1. Input voltage range: 90 Vac to 240Vac (under full load conditions) or DC100v-370v
2. Input Current: 0.0273 (AC110V) 0.014 (AC220V)
3. Input surge current: 20A (full load)

Output Characteristics

1. Output voltage range: 3.1 ~ 3.5V
2. Output Current Range: 0A to 500mA, the peak current of 600mA
3. Output power: 2w maximum of 2.5W.
4. Output efficiency: 85%
5. Output ripple: 150mv
6. Switching Overshoot: 10%
7. Output Rise Time: 100ms

Protection:

1. Output Over Power protection: YES. Recovery characteristics: lock, after re-starting recovery
2. Short circuit protection: YES. Recovery characteristics: lock, after re-starting recovery
3. Temperature protection: YES. Recovery characteristics: lock, after re-starting recovery
4. Overcurrent protection: YES. Recovery features: lock, after re-starting recovery
