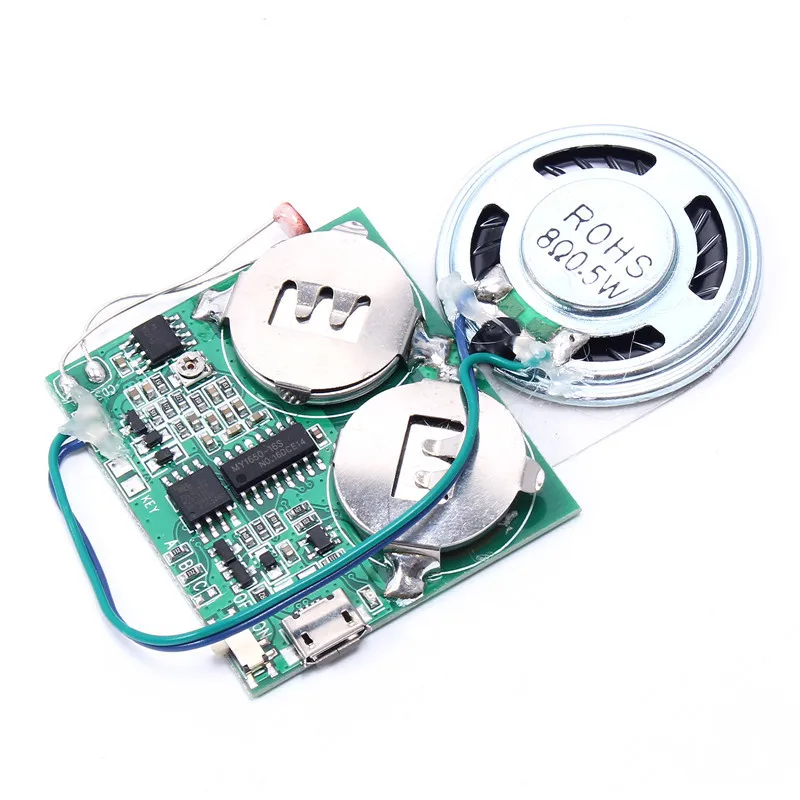

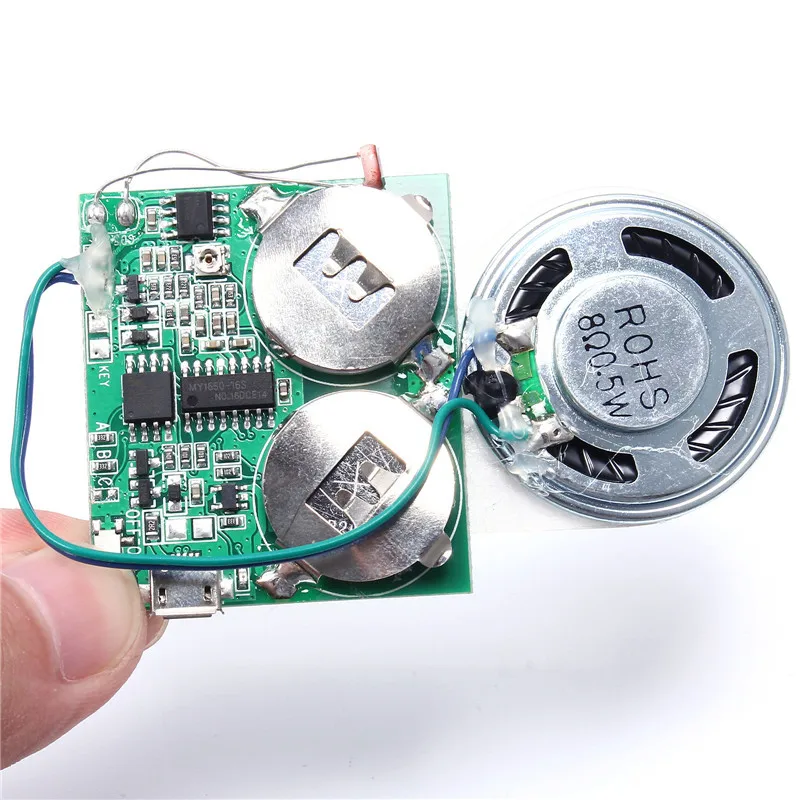

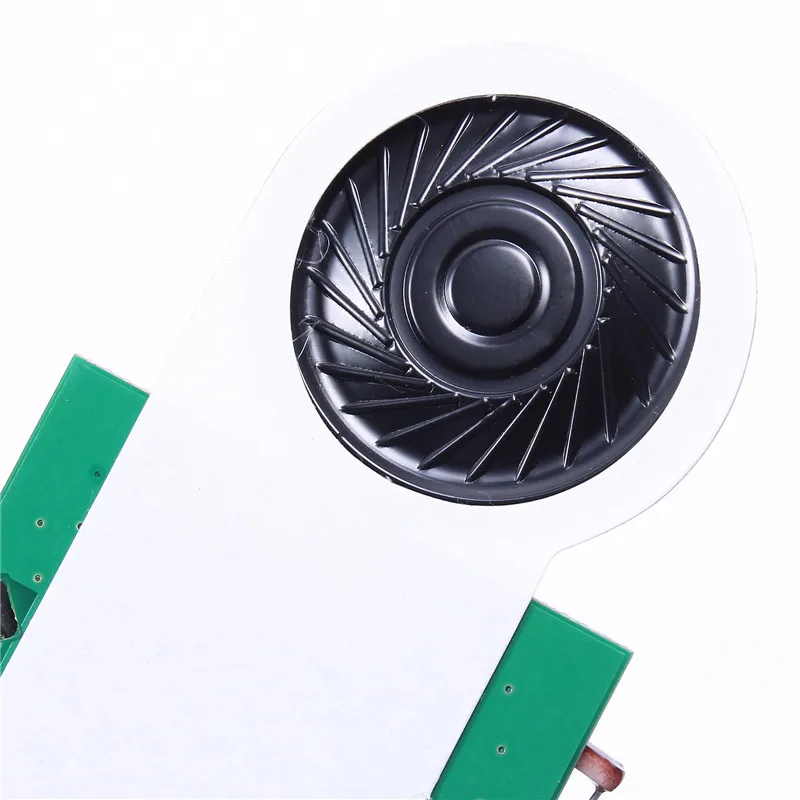

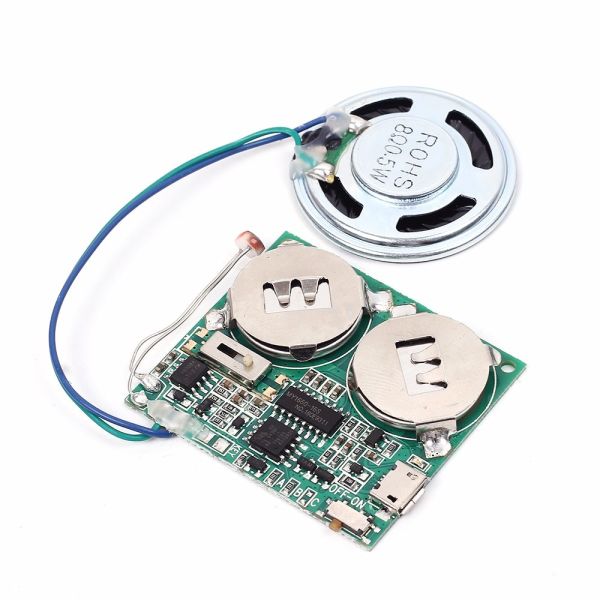

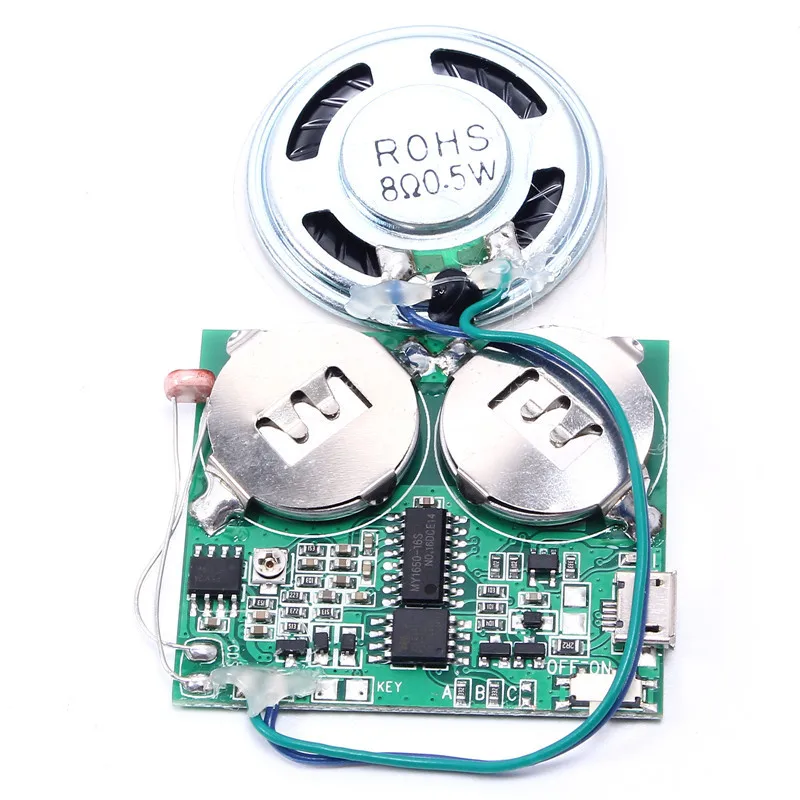

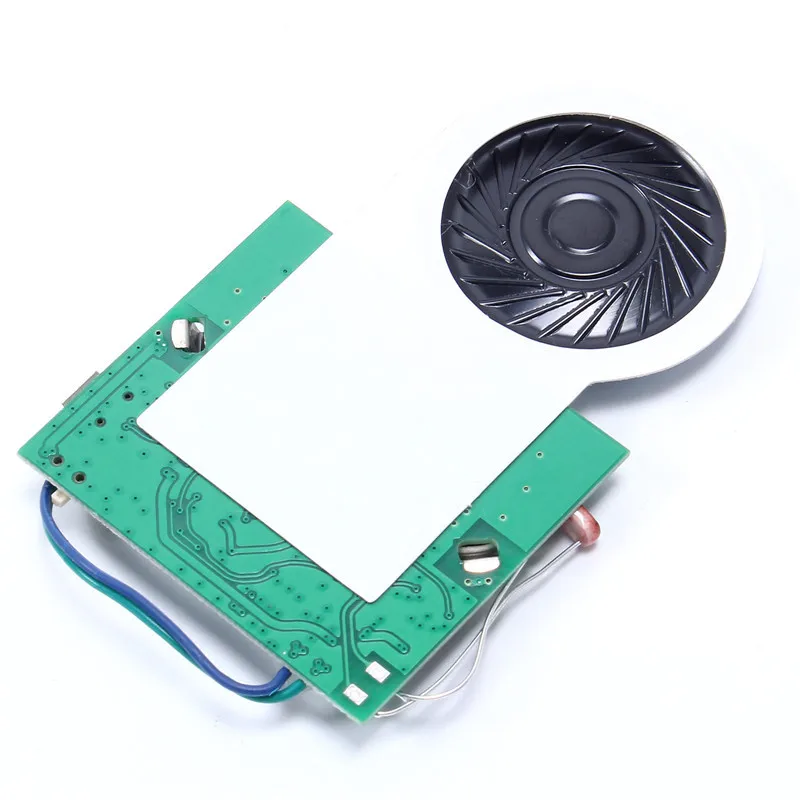

Monday Kids DIY Music Module For Greeting Cards Gift Box Light Chargeable/Volume Adjusting USB Download Movement Control RAM 8M

$6.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: none
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Model Number: Voice Module
  • Operating Temperature: -30-85 Celsuis
  • is_customized: Yes
  • Application: Voice Module
  • Output: 0.5-1W
  • Size: 45*40mm
  • Speaker Size: D36mm
  • Control mode: button and light

1.Introduction

Voice playback module, download voice by USB, control playback with light.

2.Feature

1>.Built-in default test sound.Test and then delete.

2>.Recommend using windows computer and not for MAC.

3>.Memory:4M Byte

3.Parameters

1>.Power Supply Voltage:2pcs 3.6V button cell

2>.RAM:8M

3>.Output:0.5-1W

4>.Size:45*40mm

5>.Speaker Size:D36mm

6>.Control mode:button and light

4.Function:

1>.Download music with Micro USB cable;

2>.Built-in 3.7V button cell.It can be charged by Micro USB cable;

3>.Adjustable volume:Sliding toggle switch;

4>.Play mode:Single play.Play once automatically and then stop;It will stop when reduced brightness during playing.

5.Instructions

1>.Test:Switch ON button next to the micro USB.

2>.Connect module to computer by USB cable;

3>.The instruction is similar to U disk;

4>.Copy MP3 file to it;

5>.Adjust volume by potentiometer next to battery socket.

6.Audio file updating instructions


1>.Use the USB cable connect the module and the computer, then the computer will display a removable disk.
2>.Copy the audio file to this disk to finish the updating process.(you need to delete the default audio file, this module only support the MP3 type file)
That will let you add your own custom audio to the machine.

7.Application:

1>.DIY greeting card

2>.Music Box

3>.Gift Boxes

4>.Cake box

5>.Toy

6>.Memorial album

8.Note:

1>.The two pins of the photoresistor cannot touch each other, resulting in a short circuit.

2>.The photoresistor must be installed in a position where it can be exposed to light, otherwise it may not work.

9.Frequently asked questions

1>.It came with Micro USB cable?

A : No,It came without Micro USB cable.User need to prepare USB cable.

2>.It came with battery?

A : Yes,It came with battery.

  1. .Does it support key recording?

A : No,It does not.It just support USB,Download voice by micro USB.

4>.Is there a default voice?

A : Yes.User can format memory to clear this voice if you don’t need it.

5>. Does it already have a power source?

A : It includes the power source.

6>.Can it play more than one file? E.g, can we load 5 files on it, and it plays them one at a time for each time I push the button?

A : Sorry.it can not .

7>. My computer does not recognize the device when i plug in the usb cable. the charging light comes on but nothing else. what can i do?

A : Please try use another USB cable or PC to test it.Recommend using windows.

  • Unit Type: piece
  • Package Weight: 0.038kg (0.08lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
