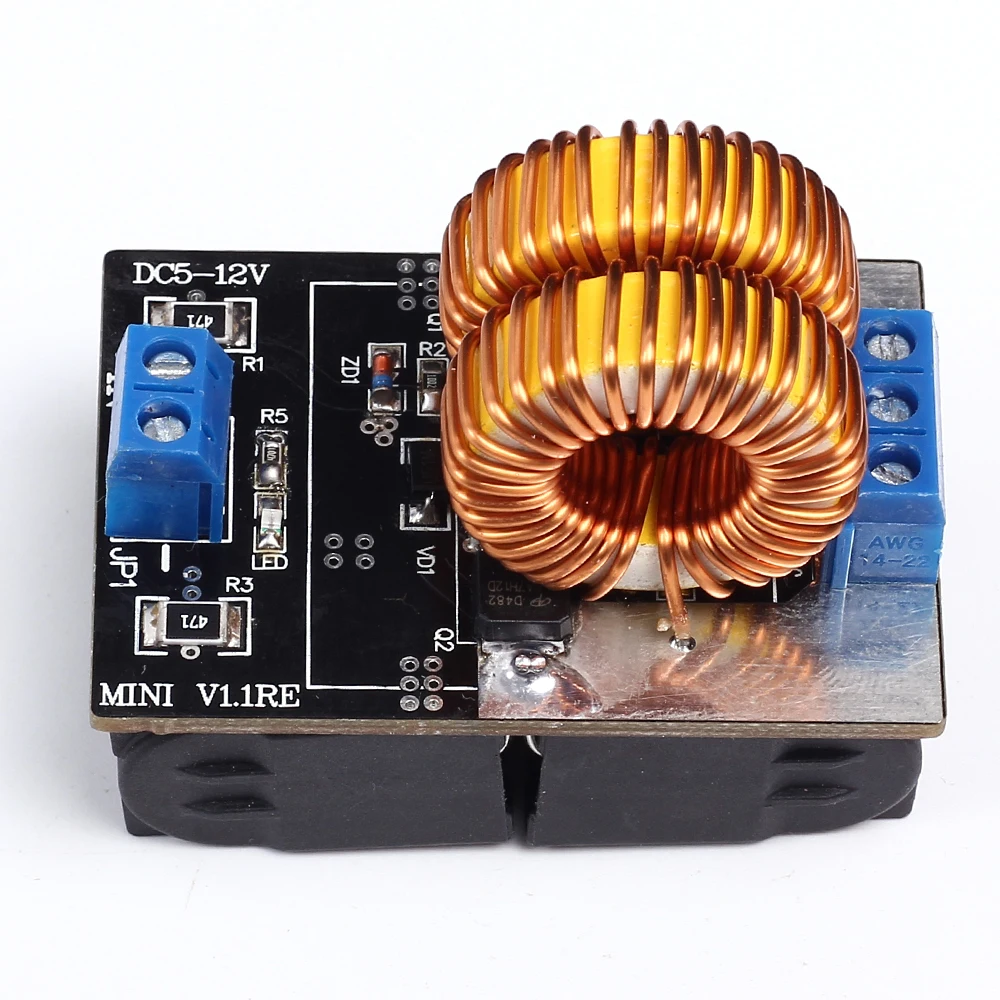

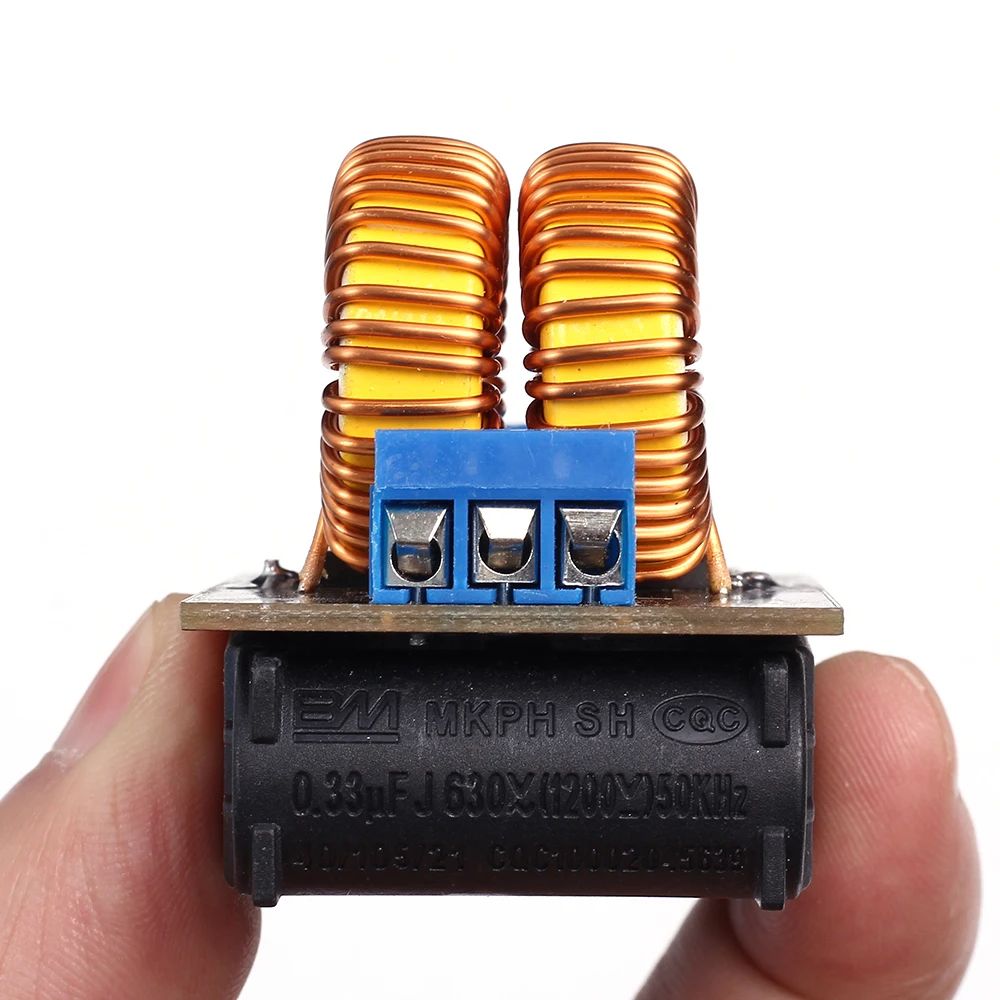

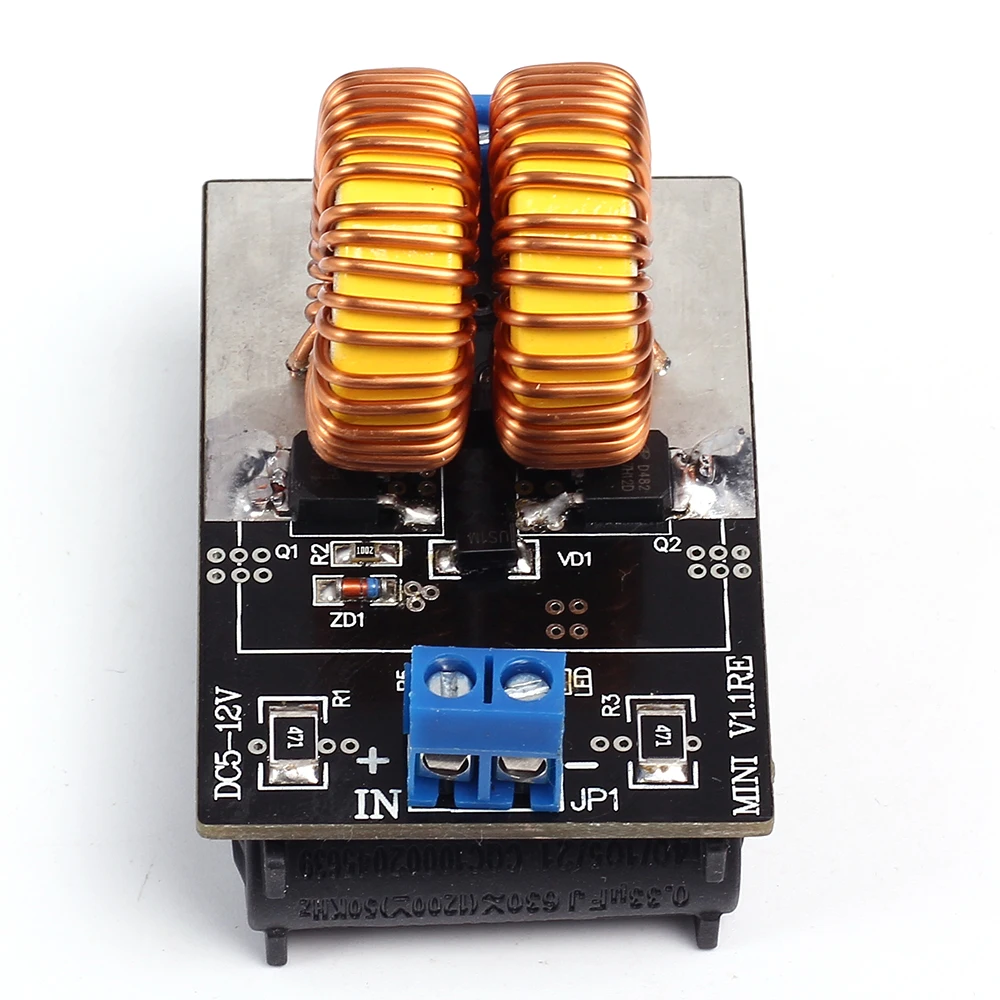

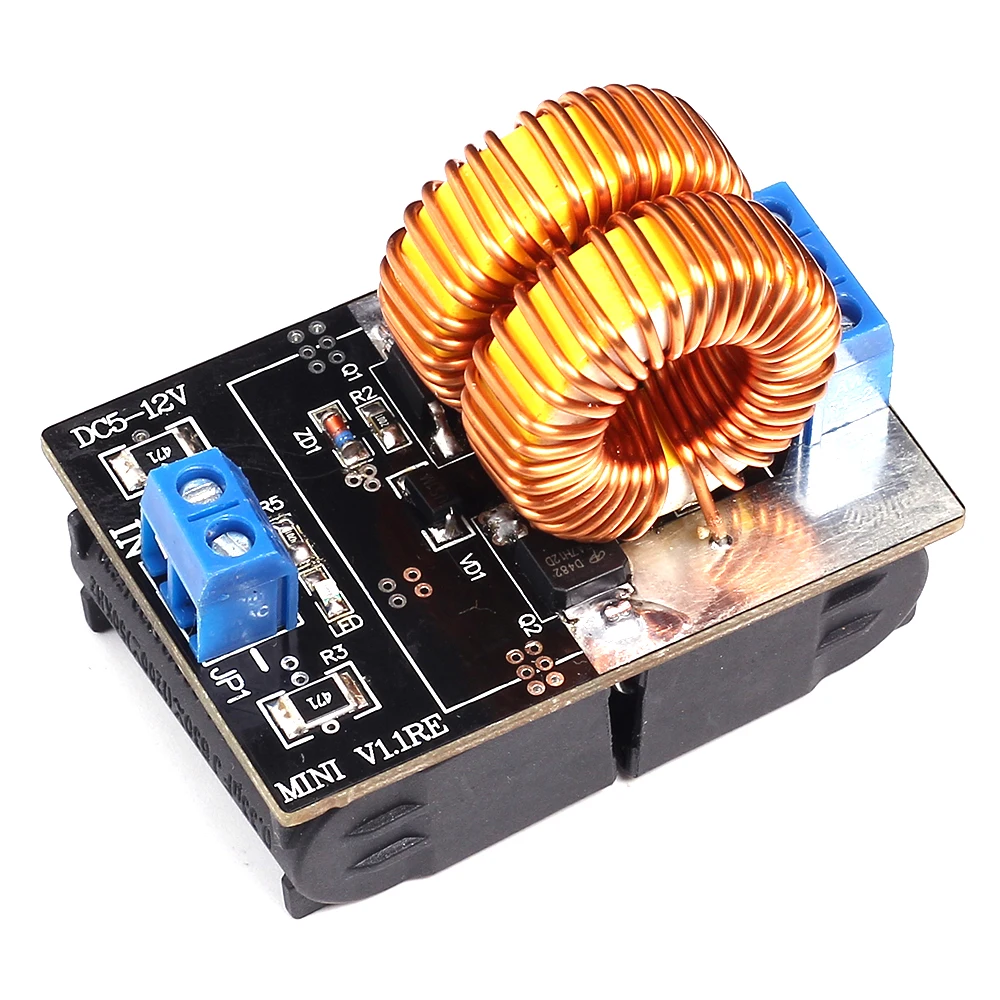

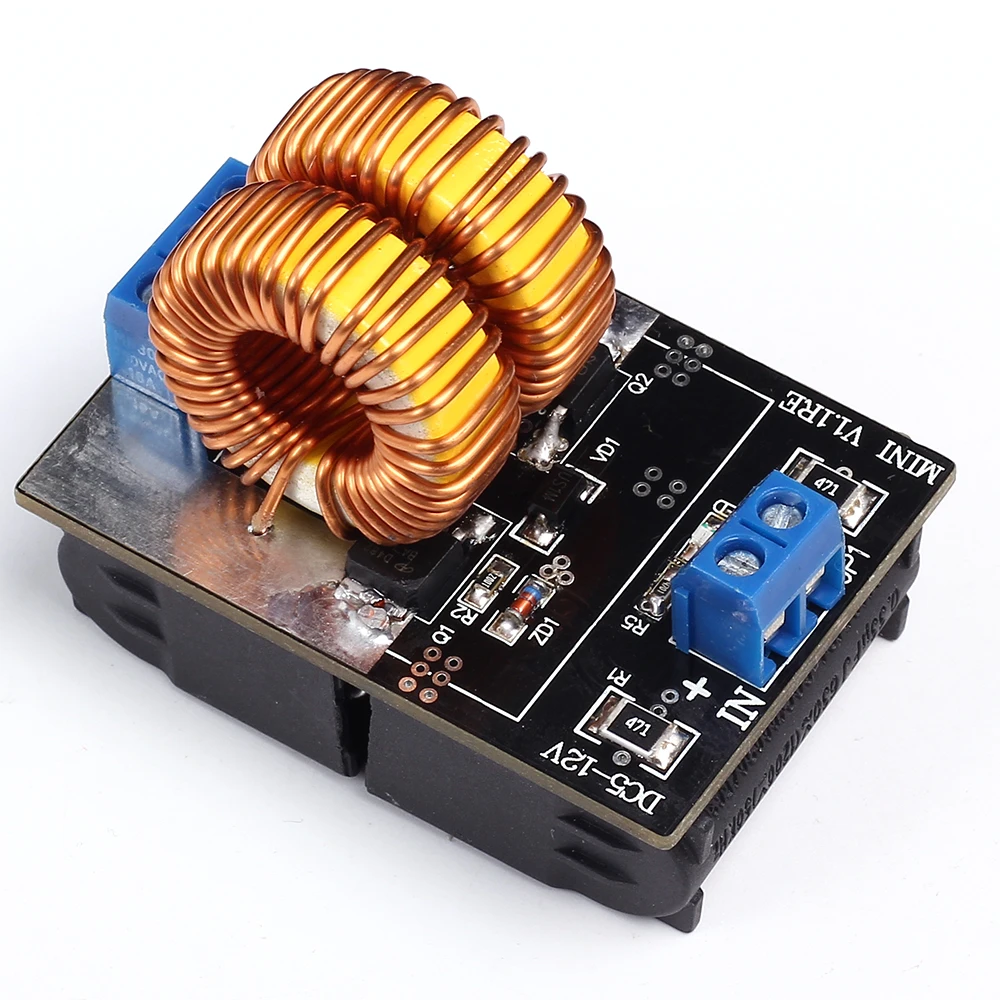

Monday Kids Mini DC 5-15V 150W ZVS Induction Heating Board High Voltage Generator Heater With Coil for Tesla Jacobs ladder Driver

$10.03
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: Induction Heating Board
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Supply Voltage: DC 5V~15V
  • is_customized: Yes
  • Operating Temperature: -30~85 celsius
  • Application: Induction Heating Board
  • Max Power: 150W
  • Input Voltage: DC 5-15V
  • PCB Size: 55mm*37mm*1.6mm

Product Introduction:


1.Max Power:150W (when driving 15V induction heat);if drive 12V ignition coil,primary 5+5 turns,it will be 30W


2.Input Voltage:DC 5-15V (this voltage range is operating voltage,not for power no-load voltage)


3.When using battery or storage battery for power supply,please make sure that the operating voltage is more than 4.5V


4.Power wire should not be reversely connected,and power on after connecting with the load


5.PCB Size:55mm*37mm*1.6mm

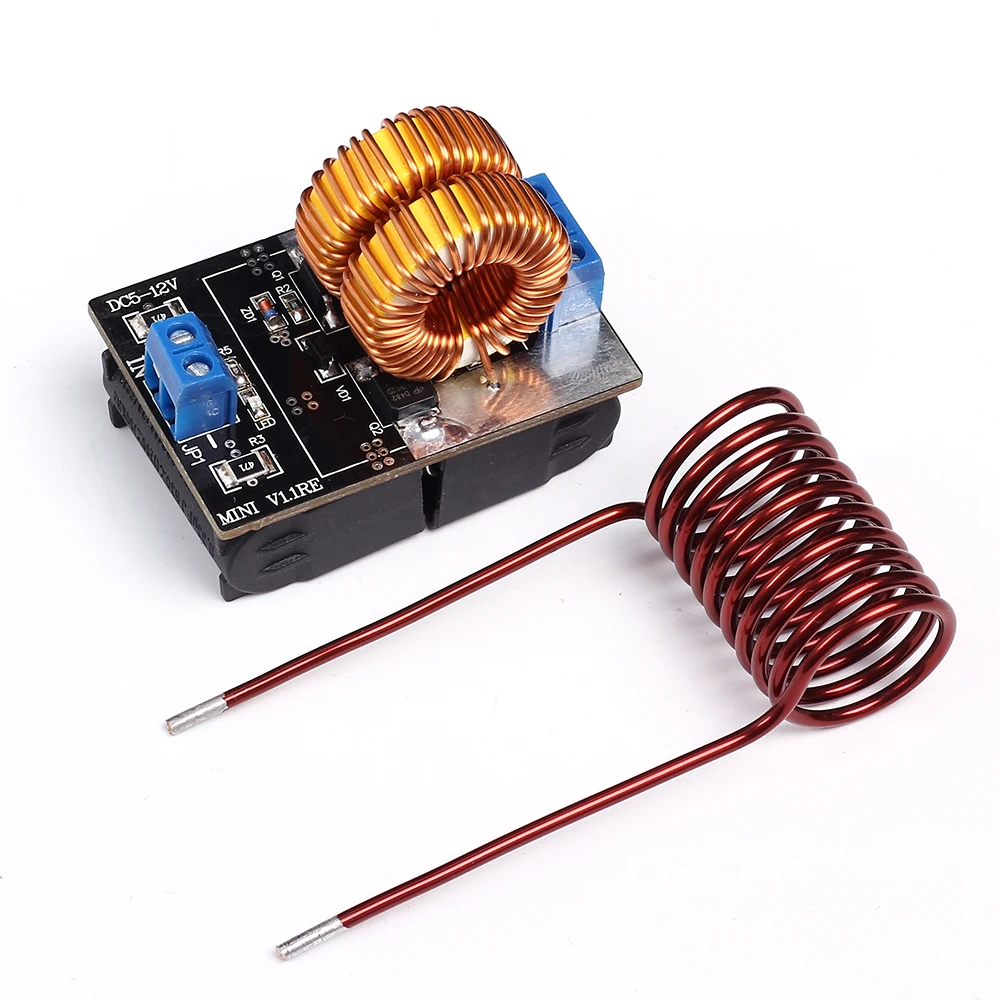

6.When heating the coil,the width of heated object should be in the range of 1/3-1/2 of heating coil internal diameter;please don't be over 2/3;the diameter of heating object should be within 20mm.When inductive heating,there should be a power off for cooling after operating for 5 minutes;please solder the heating coil on the PCB board when heating


7.Blue LED power indicator lamp (If the indicator lamp is not on,there may be some reasons:1.the connection is false,and the power is not power on 2.there is component damage)When the indicator lamp is very dim,maybe because of insufficient power,please change the power supply with greater power

  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
