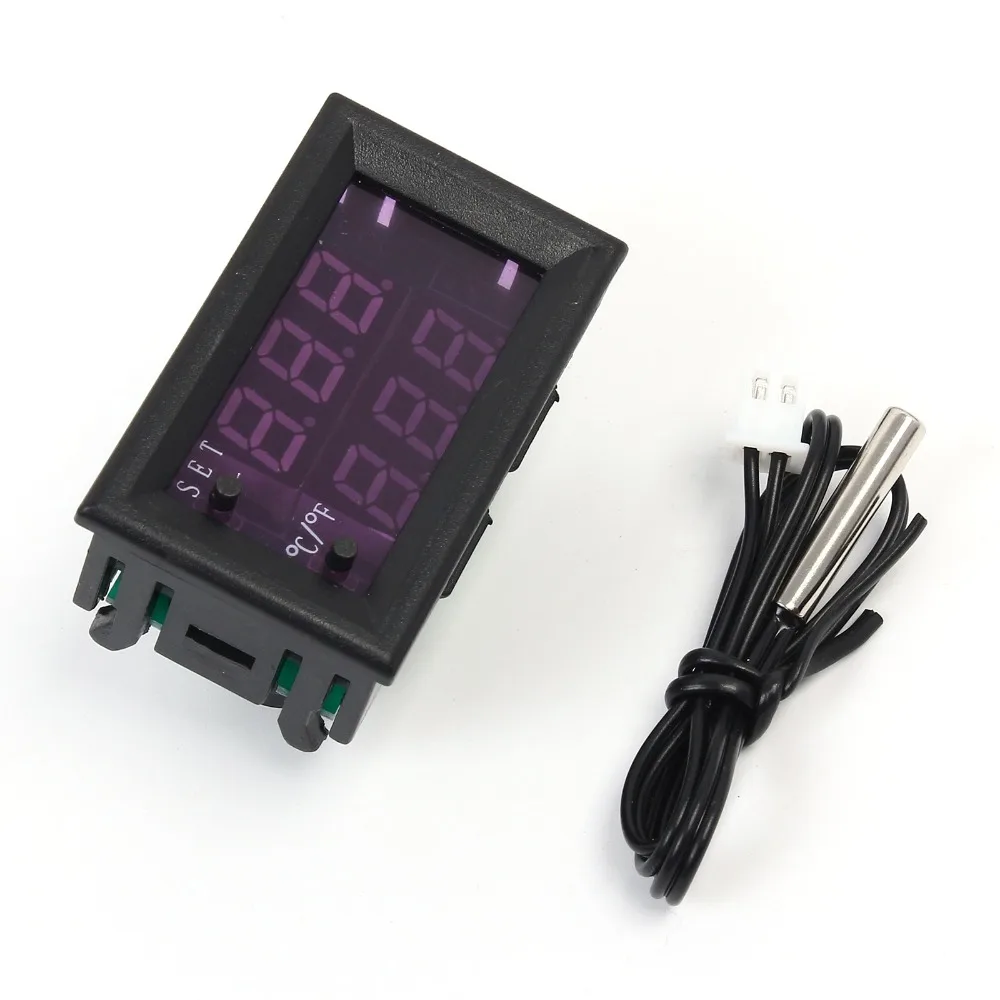

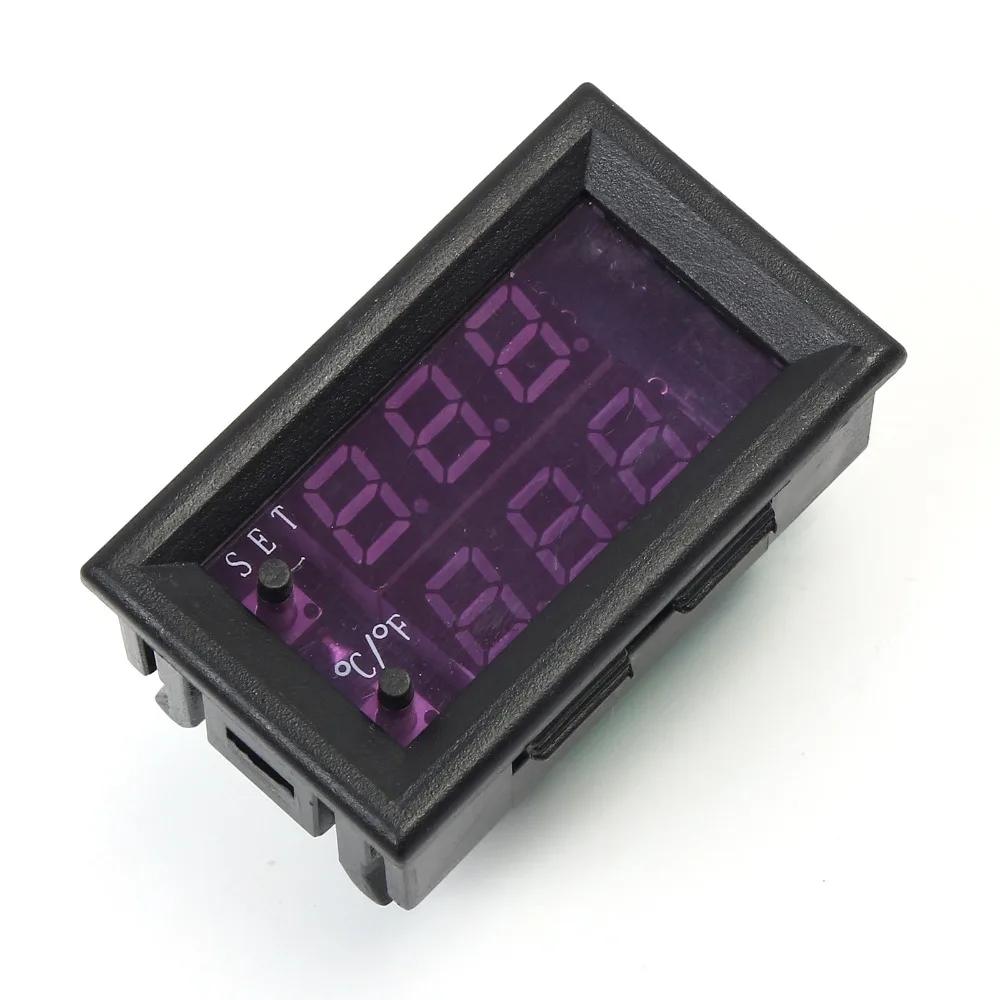

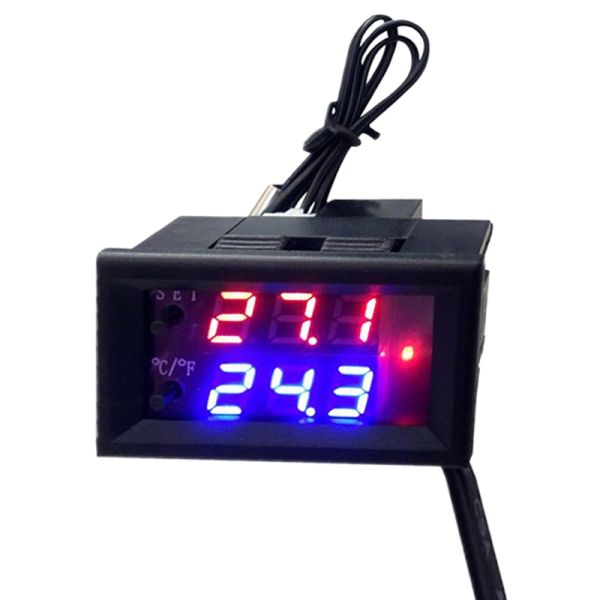

Monday Kids DC 12V Microcomputer Electronic Thermostat Temperature Controller Switch Adjustable Digital LED Display Intelligent
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: DC12V
- Model Number: Electronic Thermostat
- Condition: New
- Type: Logic ICs
- Dissipation Power: NONE
- Operating Temperature: -10~60 Celsius humidity 20% - 85%
- is_customized: Yes
- Application: Temperature Meter
- Temperature measurement range: -50~110 Celsius
- Resolution: 0.1 Celsius when -9.9-99.9
- Accuracy: +/- 0.1 Celsius
- Backlash accuracy: 0.1 Celsius
- Refresh rate: 0.5S
- High-temperature protection: 0-110 Celsius
- Measuring input: NTC (10K0.5%) Waterproof sensor

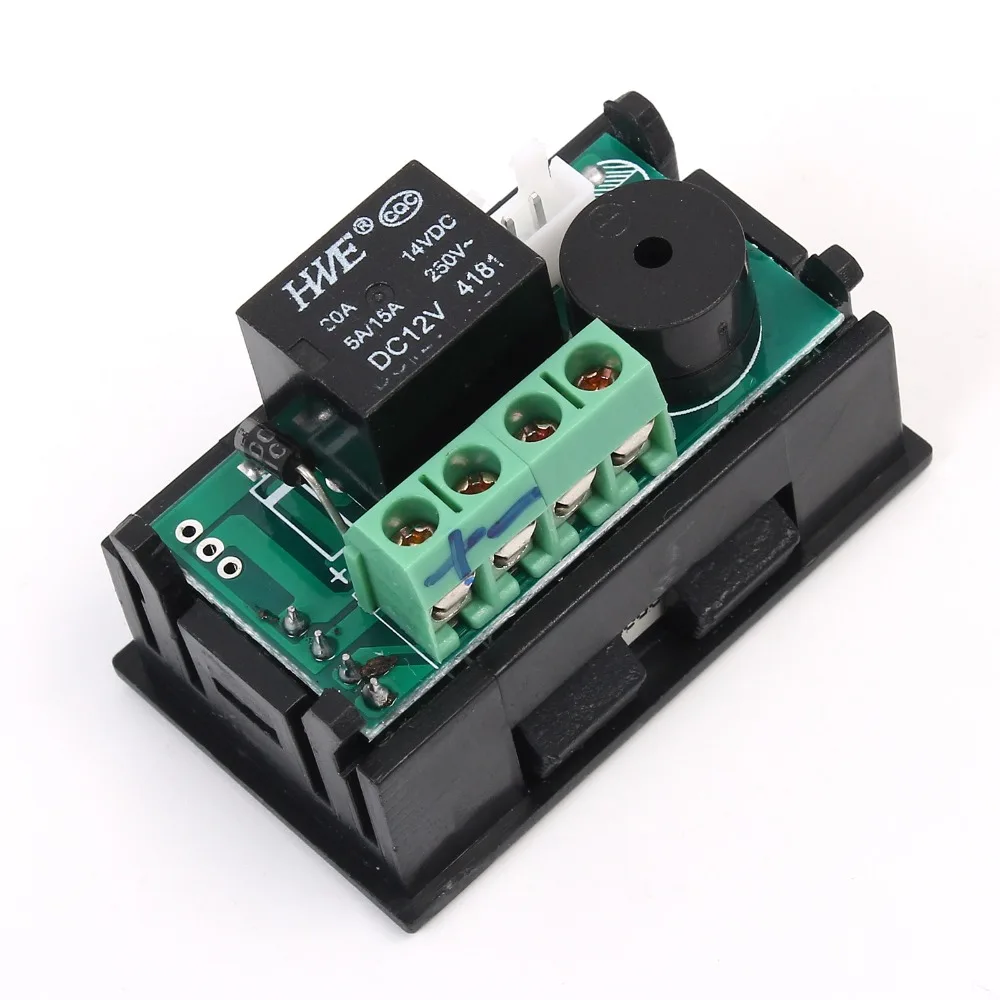

- Input: one 20A relay

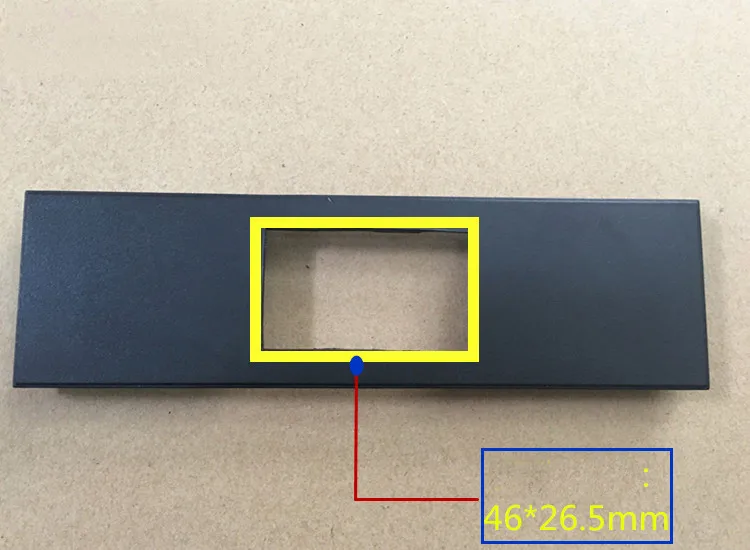

- Hole size: 46x26.5mm

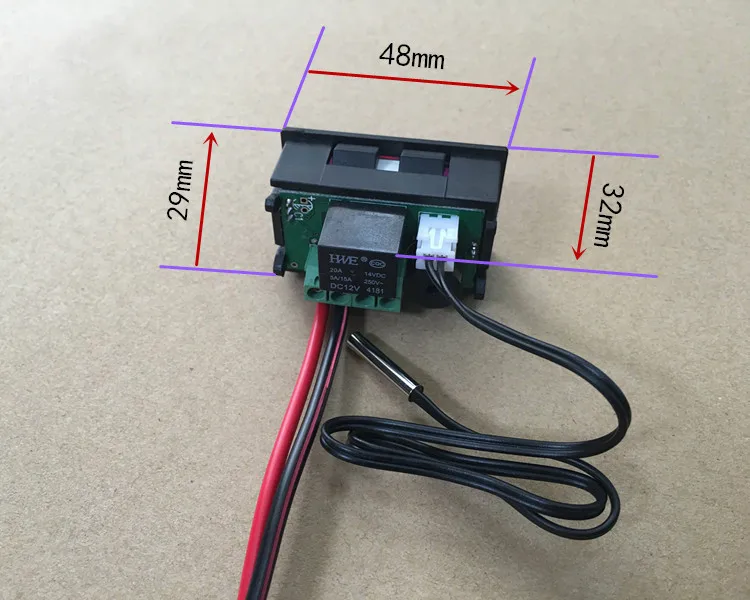

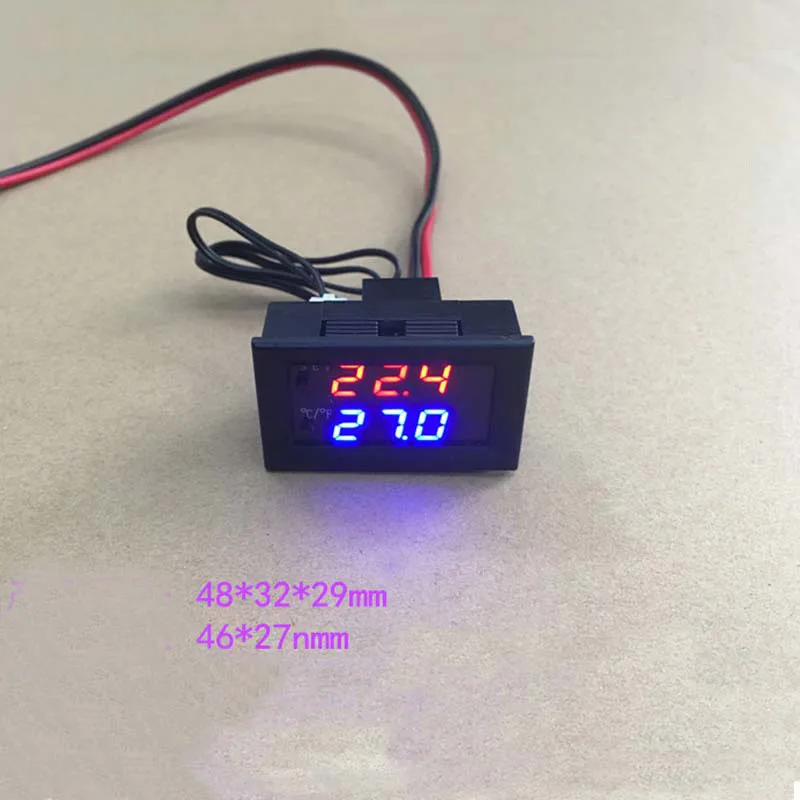

- Size: 48mm (length) * 29mm * wide Depth: 32mm
Description :
Temperature measurement range: -50 ~ 110 Celsius Resolution: 0.1 Celsius when -9.9-99.9 other temperature ranges 1 Celsius
control accuracy: 0.1 Celsius
Measuring input: NTC (10K0.5%) Waterproof sensor
Environmental requirements: -10~60 Celsius humidity 20% - 85%
Power consumption: Static current <=35MA pull current: <=65MA
Instructions:

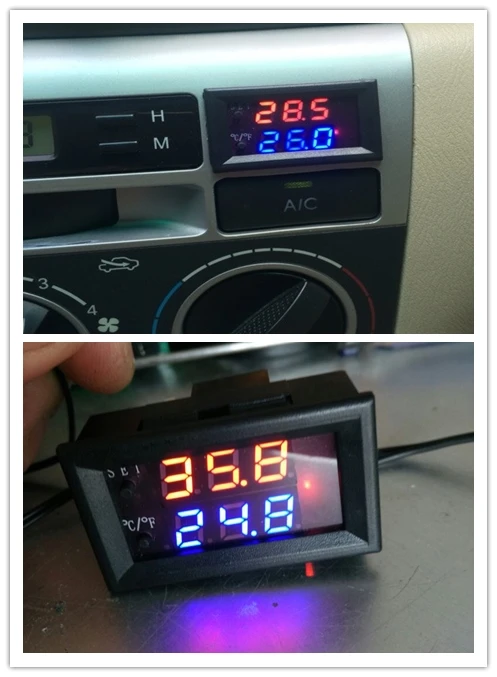

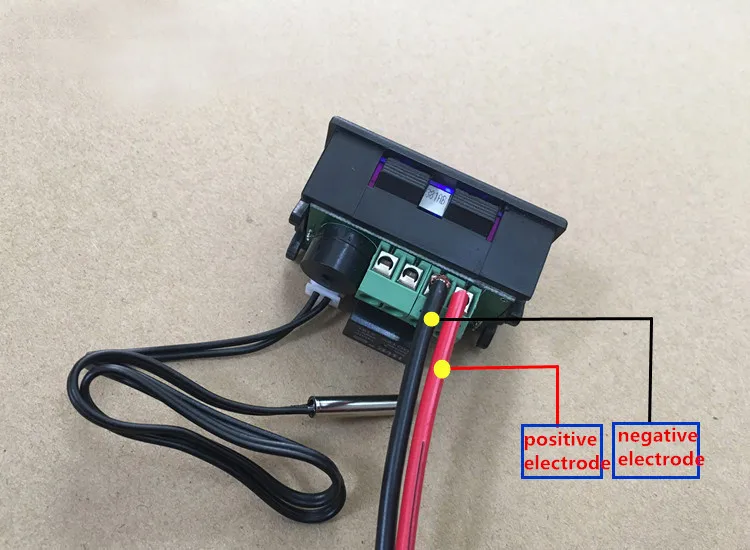

Connect the power supply and the load supply to the controller, this time above the measured temperature is displayed as red, blue below (but also red) display the desired set temperature, press STC (+) C / F (-) to set the desired set temperature, etc. 3 seconds after setting the automatic return to confirm, then the controller automatically executed by the relay set off, the thermostat output 10A relay, to meet a variety of high-power load, make sure that line correctly
LEDs, LED Status Description
LED: Off indicates the relay off, Always indicates relay is closed
Digital tube: shown above open display HH LL sensor measurement range is exceeded as the thermostat will be forced off the relay display --- high temperature protection.
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
