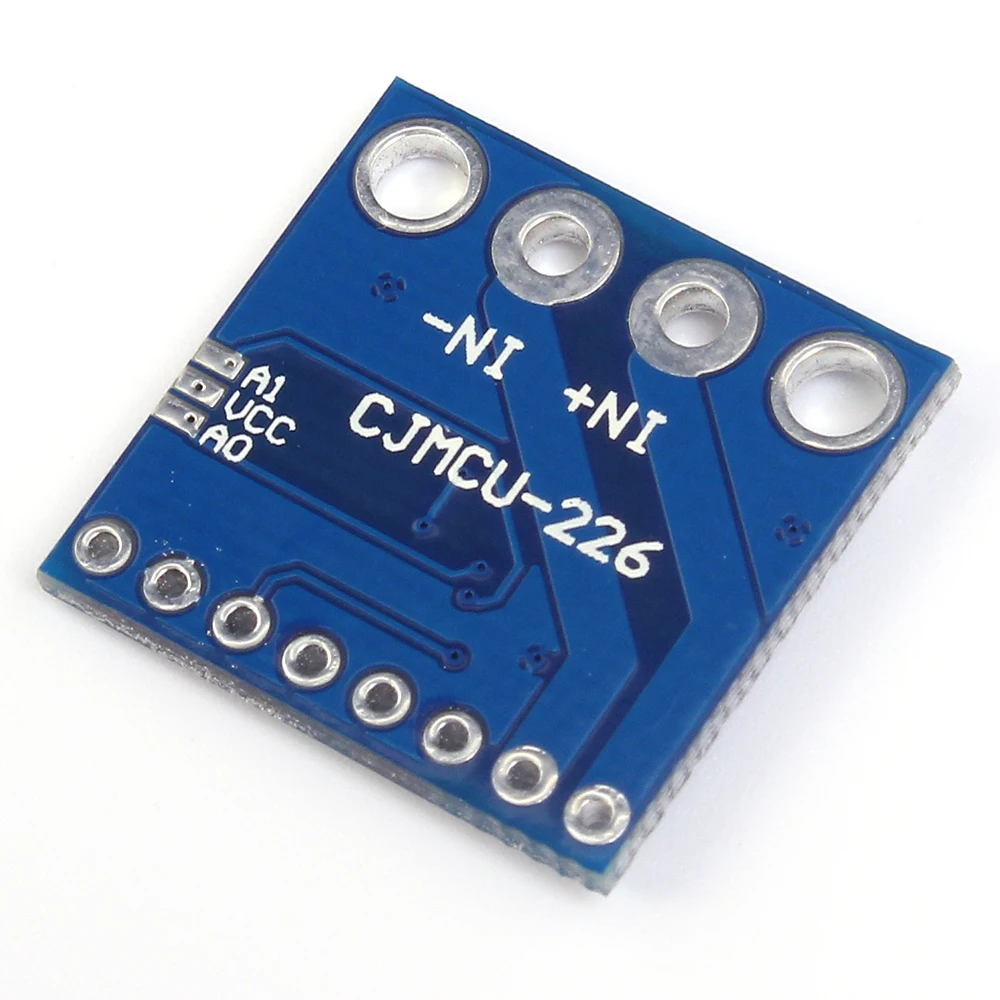

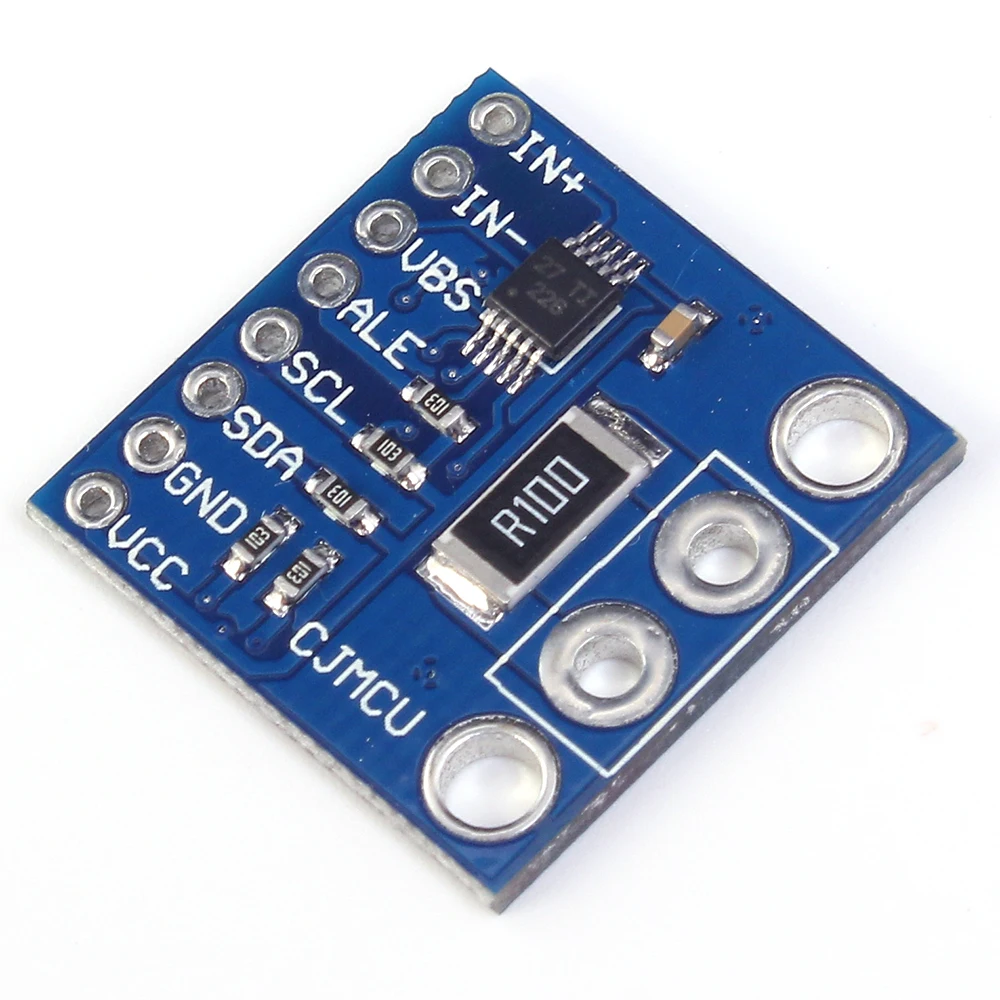

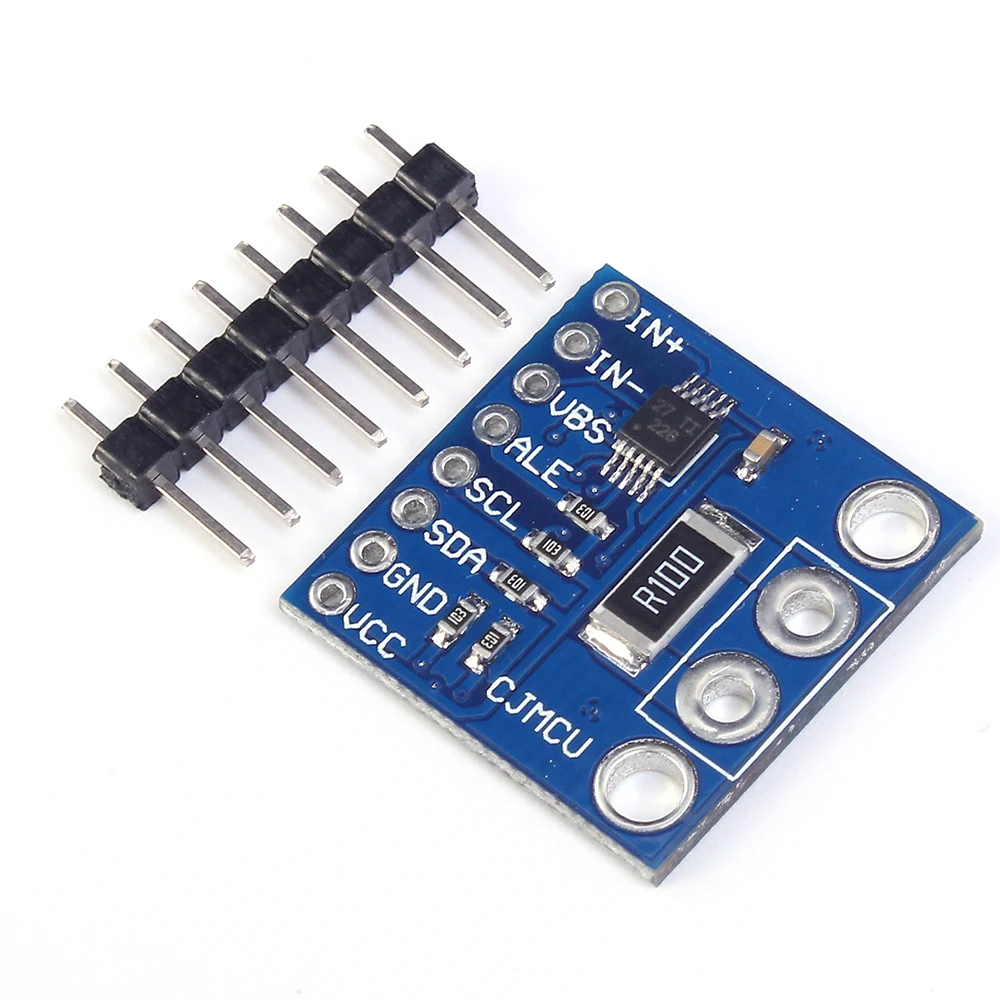

Monday Kids INA226 Voltage Current Power Monitor Module Monitoring Alert Alarm Function Board I2C interface 36V IIC Bi-Directional
$4.10
Availability:
In stock
SKU
EK720
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Operating Temperature: -40~125 celsius
- Type: Logic ICs
- is_customized: Yes
- Model Number: Bi-Directional
- Supply Voltage: 5.5V
- Application: Bi-Directional
- Common Mode Voltage: 36V (max)
- Input Offset: 10uV (max)
- Input Offset Drift: 0.02uV/C (typical)
- CMRR: 126dB (min)
- Bandwidth: 7KHz
Product Introduction:
1.Common Mode Voltage:36V (max)
2.Input Offset:10uV (max)
3.Input Offset Drift:0.02uV/C (typical)
4.CMRR:126dB (min)
5.Bandwidth:7KHz
6.Supply Voltage:5.5V (max)
7.Operating Temperature Range:-40~125 celsius
8.Special Features:alert function;bi-directional;I2C;low-side capable
Features:
1.Senses Bus Voltages From 0 V to 36 V
2.High-Side or Low-Side Sensing
3.Reports Current, Voltage, and Power
4.High Accuracy:0.1% Gain Error (max)
- Unit Type: piece
- Package Weight: 0.012kg (0.03lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
