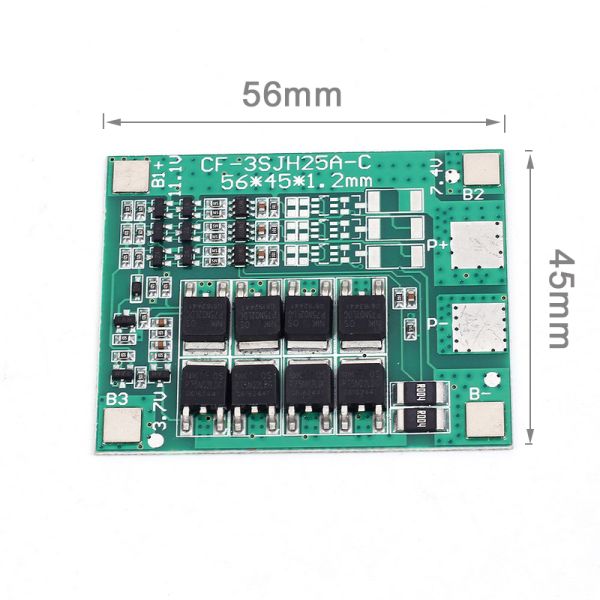

Monday Kids 25A 3S Polymer Lithium Battery 18650 Charger PCB BMS Protection Board 3 Serial 12V 3.7 Lipo Li-ion Charging Protection Module
- Brand Name: Monday Kids
- Model Number: Charger Module
- Supply Voltage: 12V
- Condition: New
- Type: Logic ICs
- Operating Temperature: -30-85 celsius
- Dissipation Power: None
- is_customized: Yes
- Application: Charger Module
- Size: 45*56*3.5mm
- Continuous Operating Current: 25A
Please NOTE : we have documents of most of products in our store If you need it , contact us :) |
Product Introduction:
Model | 3 serial 12V 25A protection Board |
Size | 45*56*3.5mm |
Continuous Operating Current | <30A |
Instant Operating Current | <40A |
Charging Voltage | 12.8-16V |
Charging Current | <10A |
Overcharging Protection Voltage | Single cell 4.2V+/-0.025V |
Overdischarging Protection Voltage | Single cell 2.9V+/-0.1V |
Short Circuit Protection | Yes |
Appliation Fits | 3.7V cell 3 serial/18650 multiple parallel 3 serial |
Load Power | <DC 12V 300W |
Please Notice :
1.First detect cell voltage is basically stable,then serial connection.
2.When soldering protection board,thetouch time between soldering iron and protection board should not be too long,within 1.5s is the best.
If there is any question about it, please feel free to leave messag to us.
- Unit Type: piece
- Package Weight: 0.02kg (0.04lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
