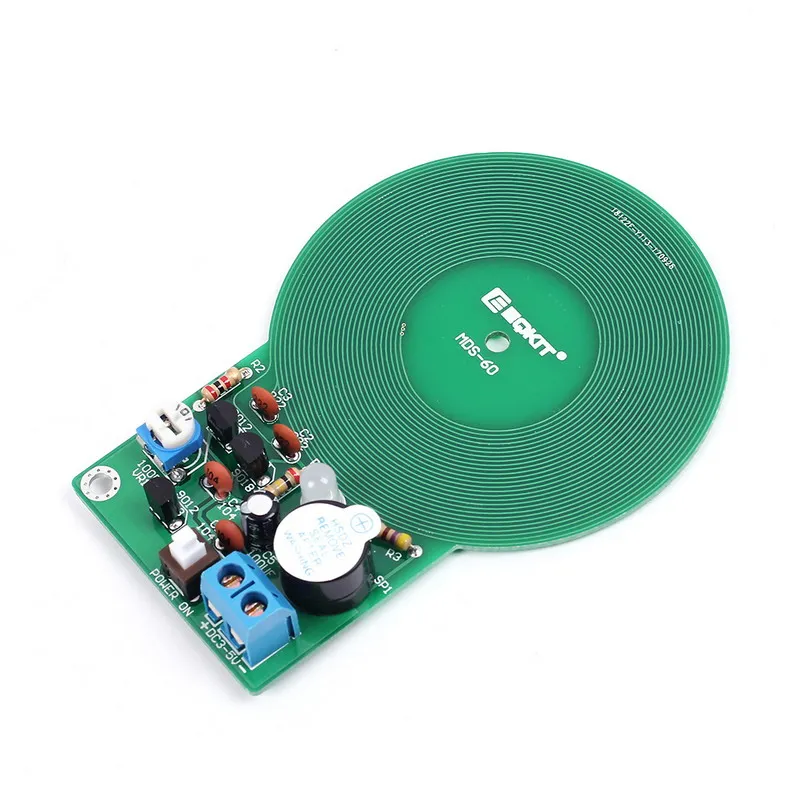

Monday Kids DIY Kit Metal Detector Kit DC 3V-5V 60mm Non-contact Sensor Board Module DIY Electronic Part Metal Detector
$1.45
Availability:
In stock
SKU
EK219
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: DC 3-5V
- Model Number: DIY Metal Detector Kit Parts
- Application: Computer
- Condition: New
- Type: Logic ICs
- Operating Temperature: Electronic DIY Kit
- is_customized: Yes
- Dissipation Power: Metal Detector Board
- Package: well package
- Name: Metal detector
- Difficulty of welding machine: Easy
- Circuit board size: 86*61mm
- Operating current: Less than or equal to 40mA
- Standby current: Less than or equal to 5mA
- Detection depth: Less than or equal to 60mm
1. Introduction
Metal Detector is a high performance metal detector designed for security.
2.Parameter
|
NO. |
Parameter |
Value |
|
1 |
Name |
Metal Detector |
|
2 |
Operating Voltage |
DC 3-5V |
|
3 |
Operating Current |
40mA |
|
4 |
Standby Current |
5mA |
|
5 |
Detection Distance |
60mm |
|
6 |
Alarm mode |
Sound/Light |
|
7 |
Difficulty |
Easy |
|
8 |
PCB Size |
86*61mm |
3.Application
1>. Game entertainment
2>. Security check
3>. Search for metal products
5>. Car detection
5>. Traffic Statistics
6>. Elevator floor control
7>. Production equipment position detection
8>. Production equipment development and design
9>. Electronic Product Design
10>. Play equipment development
11>. Metal proximity switch
12>. Metal detection in human body
4.Schematic
5.Component listing
|
NO. |
Component Name |
PCB Marker |
Parameter |
QTY |
|
1 |
Metal Film Resistor |
R3 |
470ohm |
1 |
|
2 |
Metal Film Resistor |
R2 |
2K |
1 |
|
3 |
Metal Film Resistor |
R1 |
200K |
1 |
|
4 |
Potentiometer |
VR1 |
100R |
1 |
|
5 |
Ceramic Capacitor |
C2,C3 |
0.022uf |
2 |
|
6 |
Ceramic Capacitor |
C1,C4 |
0.1uf |
2 |
|
7 |
Electrolytic Capacitor |
C5 |
100uf |
1 |
|
8 |
Red LED |
LED1 |
5mm |
1 |
|
9 |
S9012 |
Q2.Q3 |
TO-92 |
2 |
|
10 |
S9018 |
Q1 |
TO-92 |
1 |
|
11 |
Power Switch |
SW1 |
6*5mm |
1 |
|
12 |
Buzzer |
SP1 |
9*12mm |
1 |
|
13 |
Power Socket |
J1 |
KF301-2P |
1 |
|
14 |

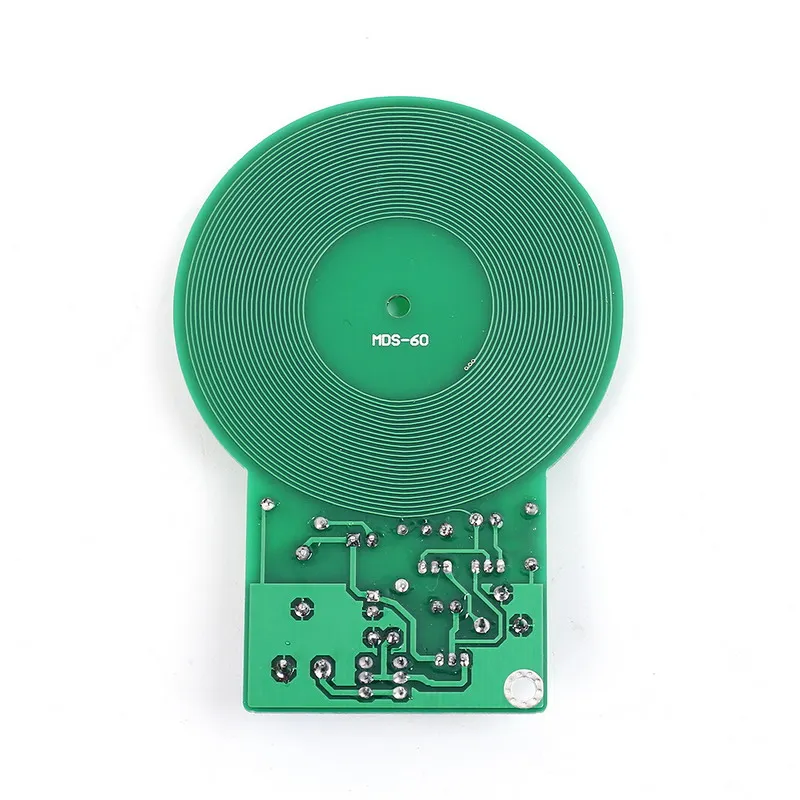

PCB |
MDS-60 |
1 |
NOTE :Users can complete the installation by PCB silk screen and component listing
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
