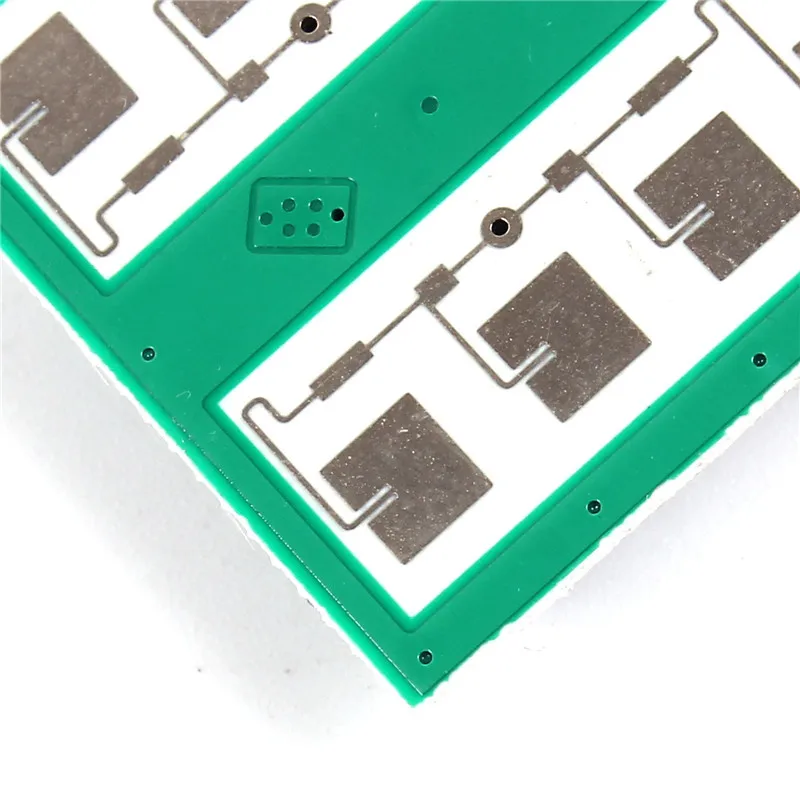

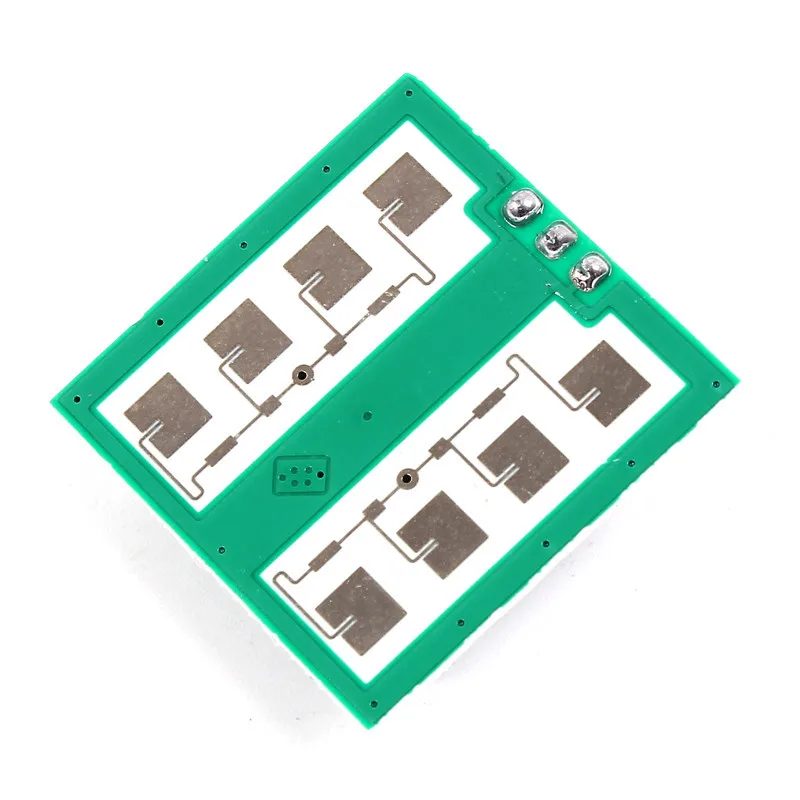

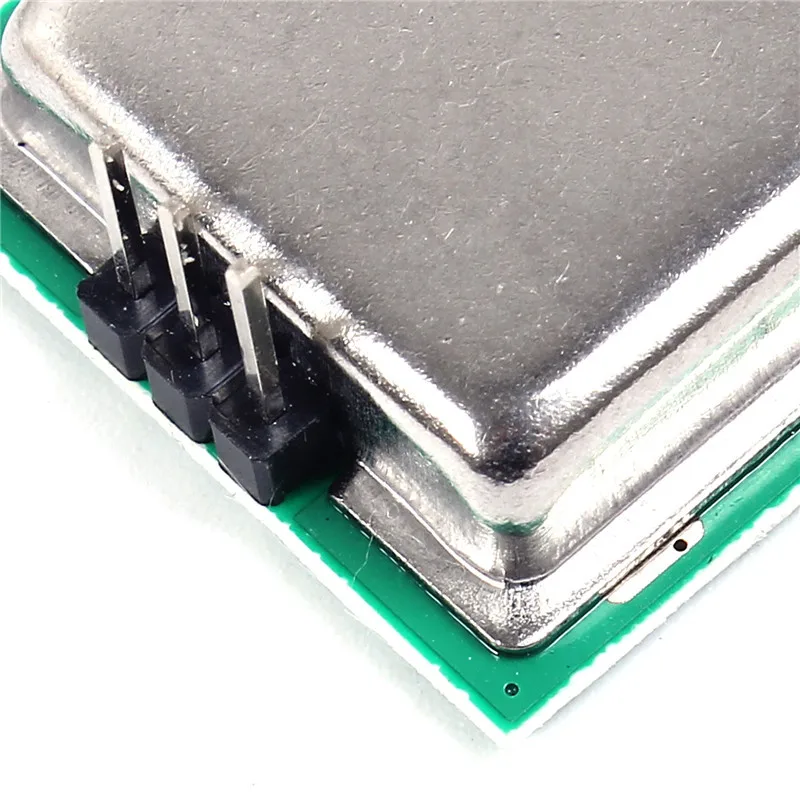

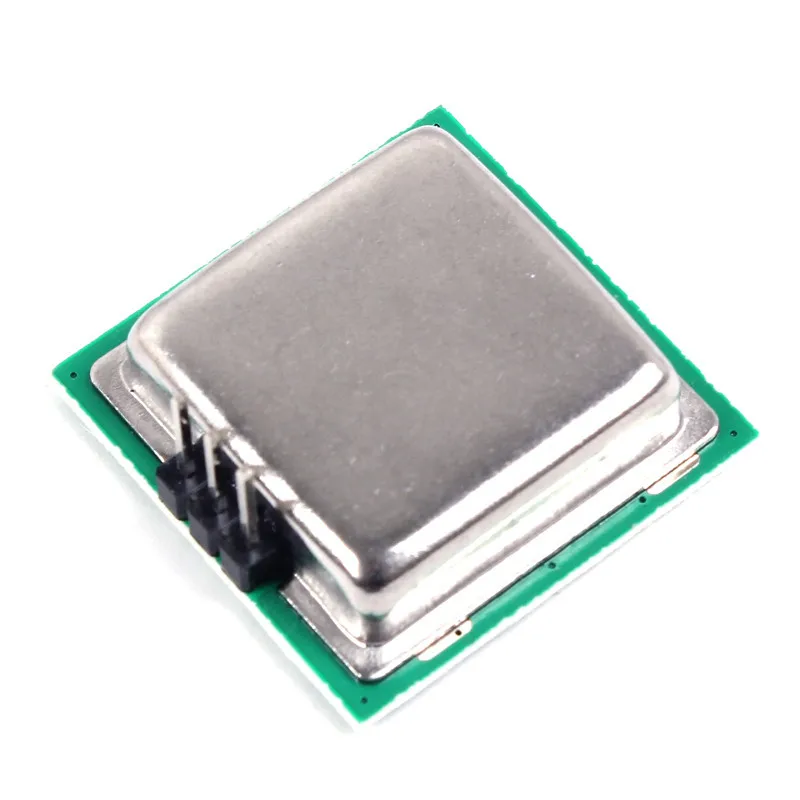

Monday Kids CW Microwave Human Body Sensor Module 24GHz 24.125g CDM324 Radar Induction Switch Sensor 5.5V

Be the first to review this product

$7.98

Availability: In stock

SKU

EK825

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Usage: 24GHz Radar Sensor
Material: Polymer
Model Number: Microwave Sensor
Type: Biosensor
Output: Digital Sensor
is_customized: Yes
Theory: Microwave Sensor
Operating Temperature: -20--60℃
Operating Current: 30MA

Function Features:

1.Noncontact detection,moving object detecting
2.Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc
3.Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator
4.Independent transmitting and receiving route, can get the biggest gain,single channel operation
5.High sensibility,high flexibility,low cost,operating distance:15m
6.Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment
7.Strong radio frequency interference resistance,stable performance,swift response,high sensibility
8.Out put power is 5mW,does no harm to human bodies
9.Long distance detection range:15m
10.Small volume,easy to install
11.Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct
12.Human beings or objects facing the sensor to move wil receive the best detection result

Notice:

1.Don't operate during the power on in case of maloperation,wrong circuit or electric shock
2.Avoid installing the product in exposed place to prevent damage or affecting using longevity
3.Install the product far away from magnetic field in case of maloperation
4.Install the product far waay from moving conductors in case of maloperation

Parameter:

1.Transmitting Frequrency: min:24GHz typ:24.125GHz max:24.25GHz
2.Output Power:16dbm (tpy)
3.Operating Temperature:-20--60 celsius
4.Operating Current: tpy:30MA, max:40MA
5.Operating Voltage: tpy:5.5V
6.Pulse Width: tpy:10US
7.IF Output:-300--300MV
8.Appearance Size:25*25*7mm

Mode antenna: horizontal 80 degree ; vertical 32 degree
