Monday Kids DC 3-15V Audio Video Signal Detector Monitor Module AV Dectection Tester Delay Circuit

$3.43
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: -30-85
  • Model Number: Audio/Video Signal Detector Module
  • is_customized: Yes
  • Supply Voltage: DC 3-15V
  • Application: Audio/Video Signal Detector Module

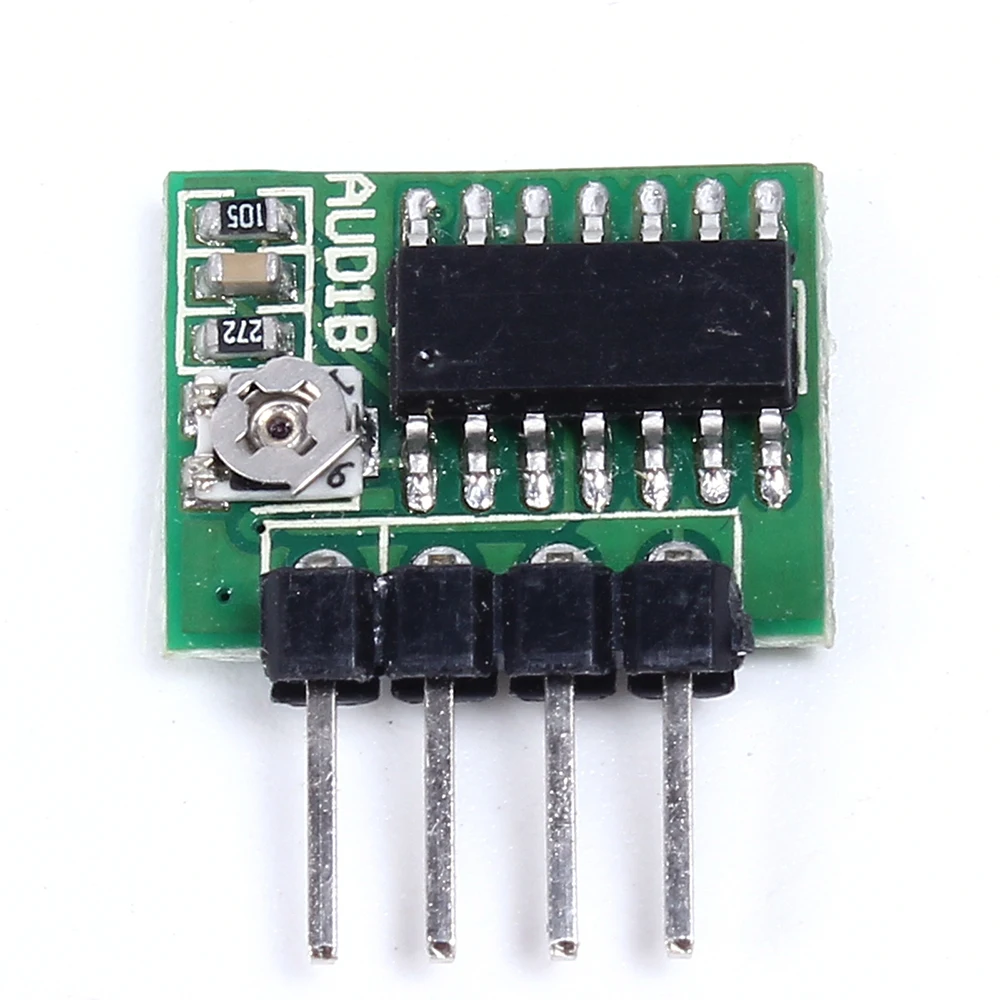

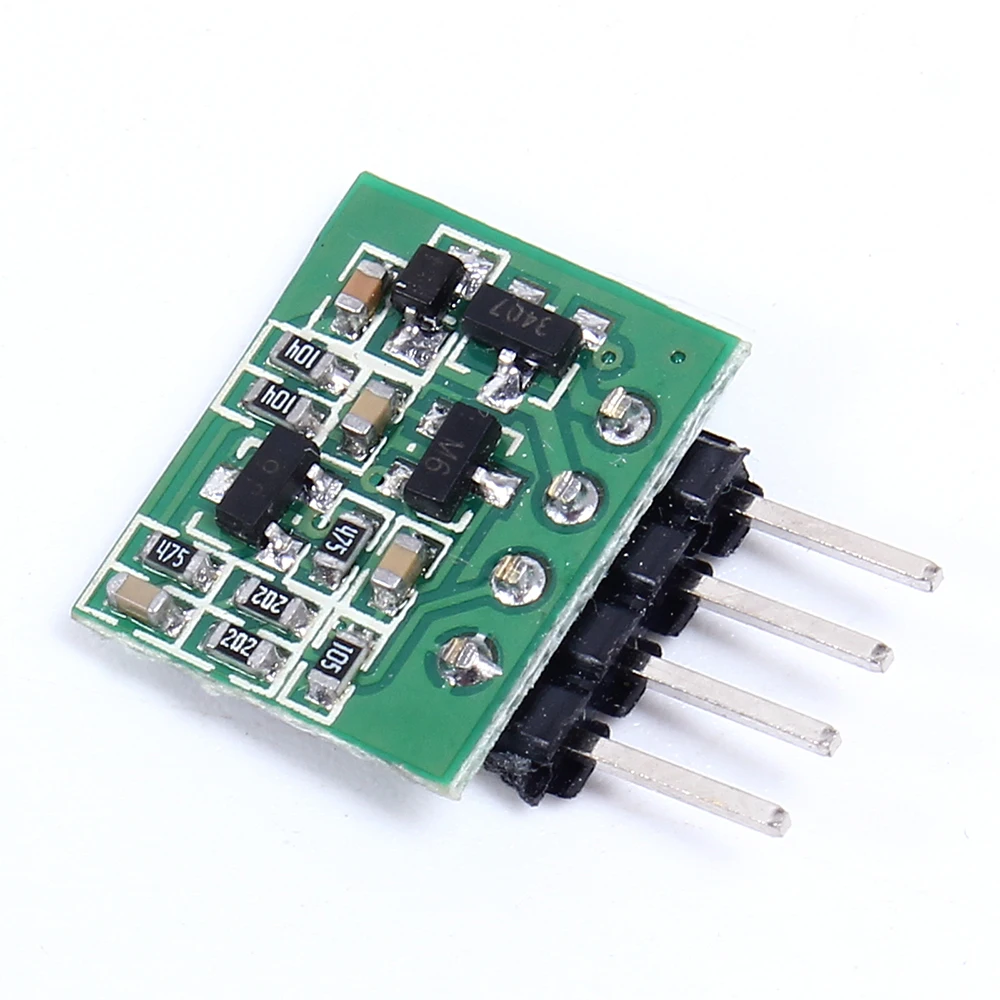

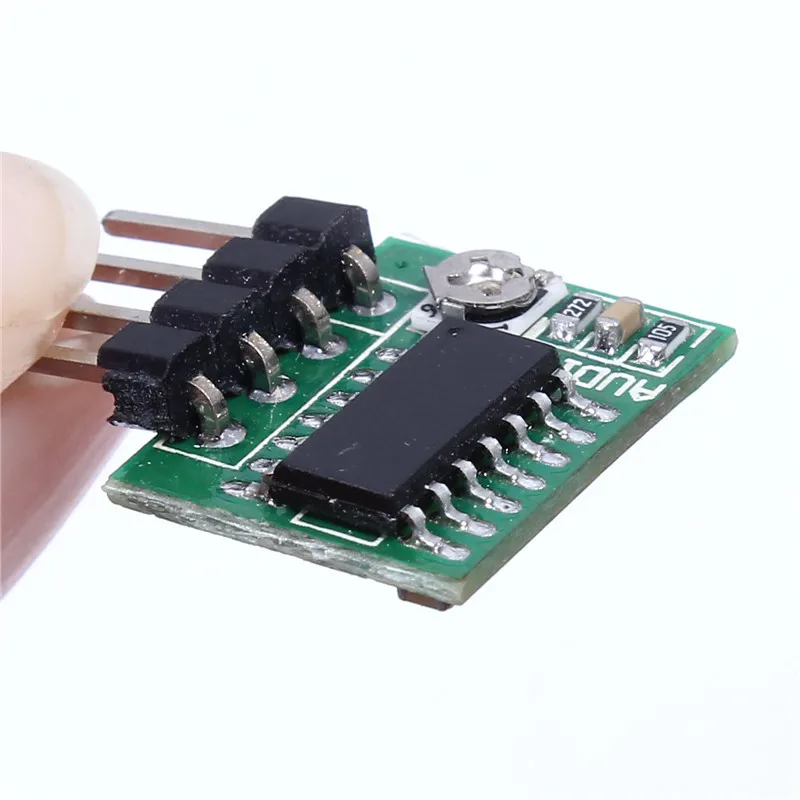

Product Introduction:


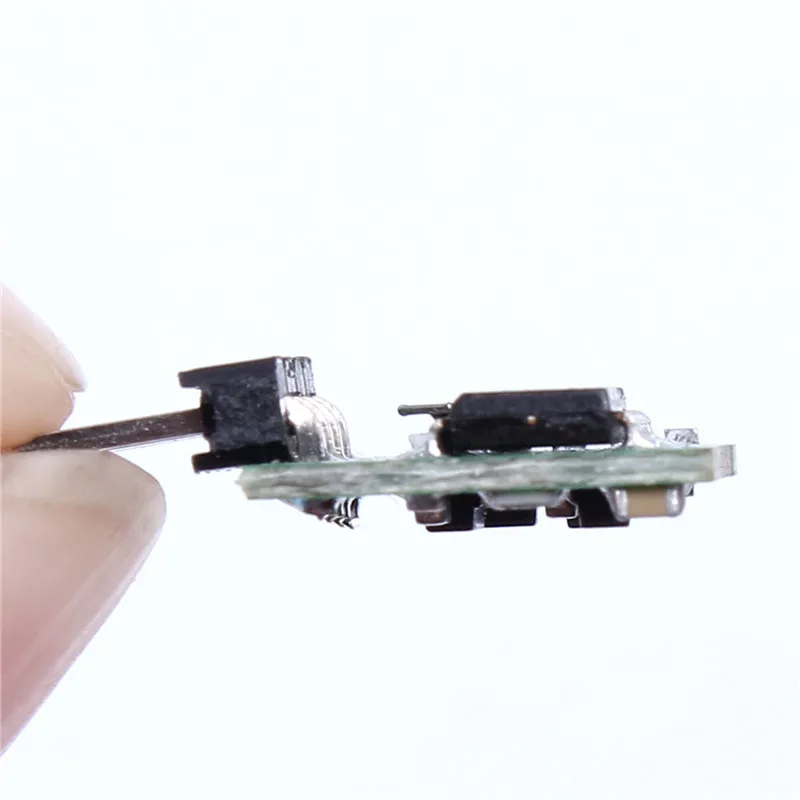

1.Size:15*13mm(not include pin)
2.Power Voltage:DC 3-15V
3.Standby Current:3V--0.7mA;5V--1.2mA;12V--3.3mA
4.Output:output high level 1500MA or open circuit,after testing effective signal,and then output high level.Output port has protection diode,and it can directlty connect with various load(including inductive load)
5.Sensitivtiy:amplitude no less than 180mVp-p audio or video signal can effectively trigger operation(factual video signal is 2-2.5V)
6.Function:if input port tests audio or video signal,output port state will shift and remain;after audio or video signal disappear,output port delay will reset.Delay time is 0.2-60s adjustable

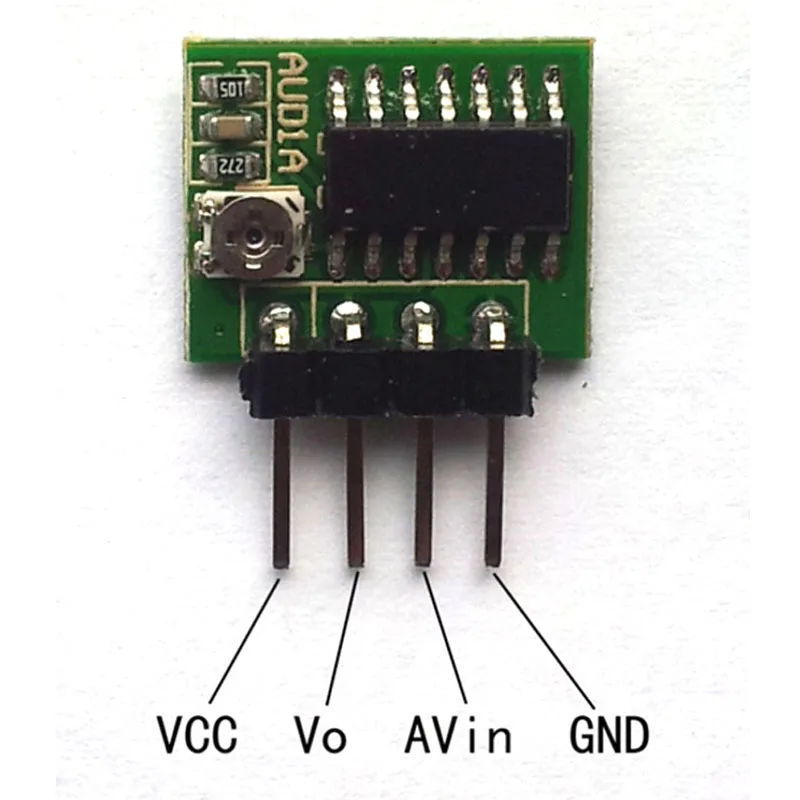

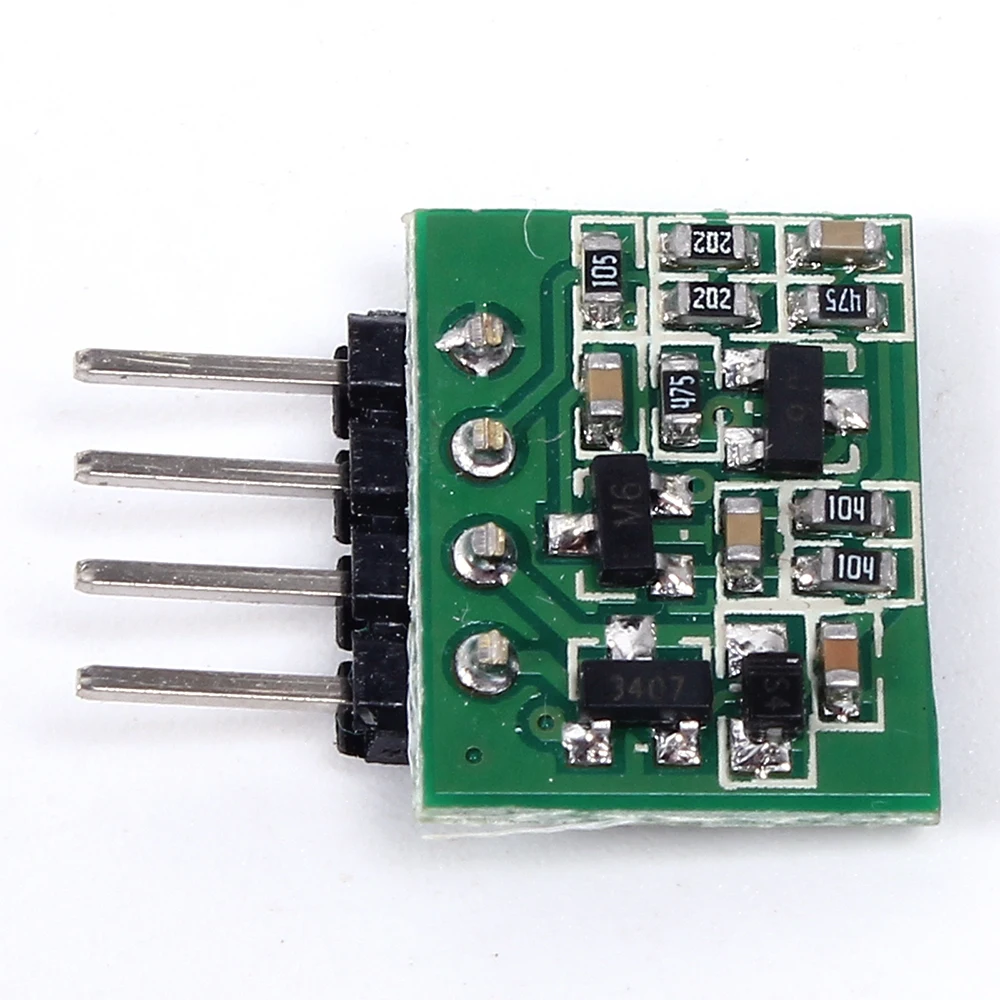

Pin Definition:

1.VCC——power positive
2.Vo——output port
3.AVin——AV signal input port
4.GND——power negative

  • Unit Type: piece
  • Package Weight: 0.012kg (0.03lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
