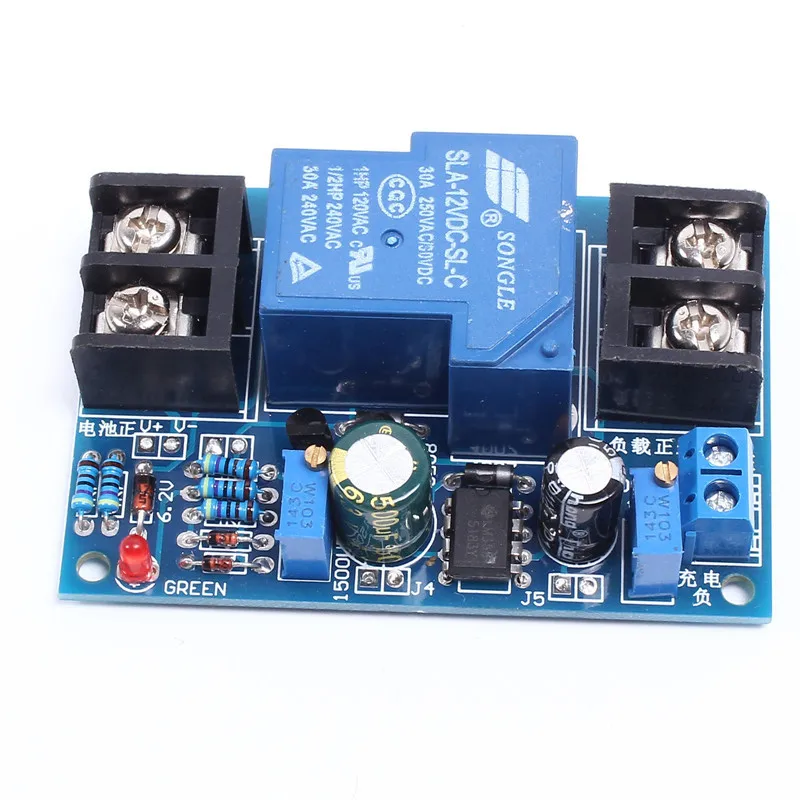

Monday Kids Universal 12V Battery Anti-Over Discharge Board Automatically Restore Low Voltage Protection Module With LED Indicator Light

Be the first to review this product

$6.87

Availability: In stock

SKU

EK409

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 12V
Model Number: Test Module
Condition: New
Type: Logic ICs
Operating Temperature: -30-85
Dissipation Power: none
is_customized: Yes
Application: Test Module

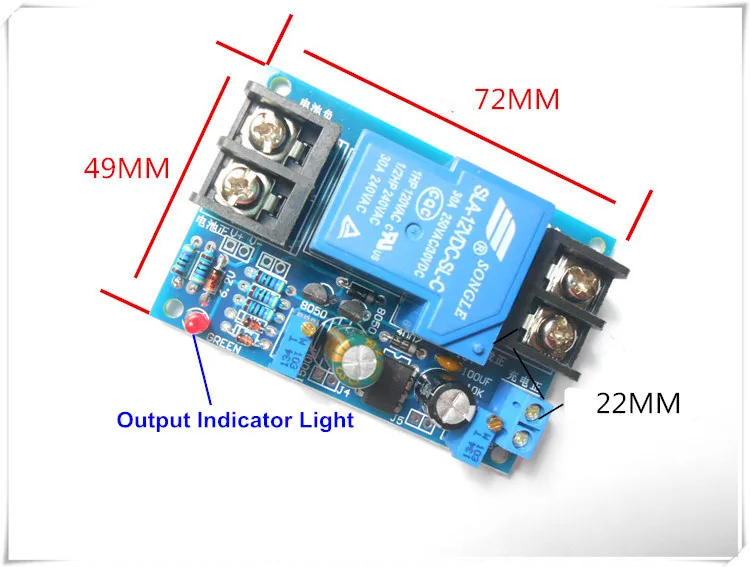

PCB Size: 72*49*22mm
Main Chip: LM358
Fixed Hole Diameter: 3MM
Current: 100MA(static)12MA(dynamic)

Features:
1.With Indicator Light
2.Universal
3.Board can withstand 30A current

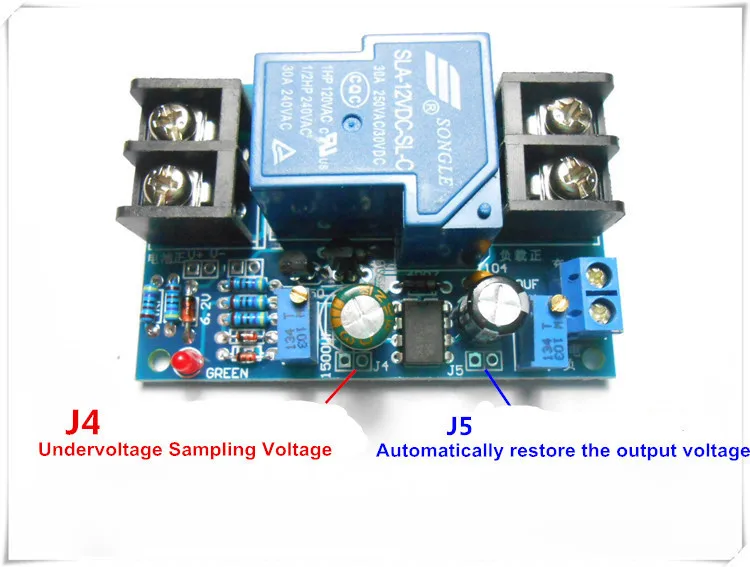

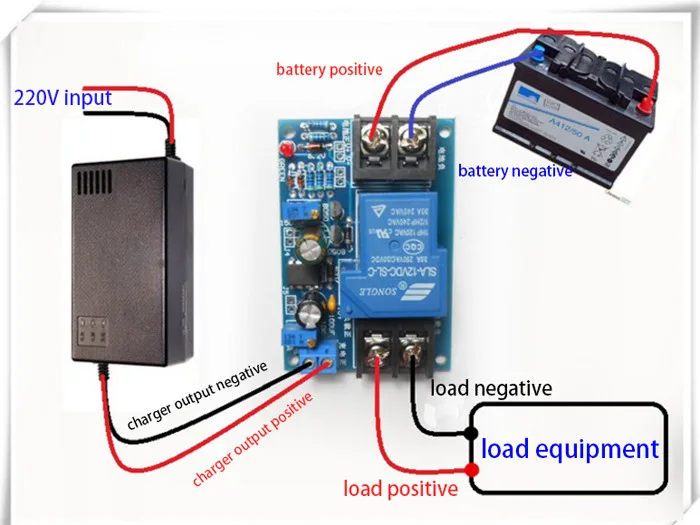

Module function: This module with delay disconnection function and can automatically restore the output function, that is, the battery for less than 3 to 5 seconds after the module will be disconnected from the output, so you can avoid the high current load when the battery Voltage fluctuation and malfunction, when the output is turned off, if the battery voltage rises to full voltage, the battery will automatically turn on the load, disconnect and charger connection, undervoltage voltage and full voltage Can be set by adjusting the potentiometer, set these two values need to use 12V power supply and multimeter, if not the two, it is recommended that buyers do not adjust their own.

Before shipment, we adjust the undervoltage value of 10.5V to 11.5V or so, to restore the output voltage (full voltage) is 14.4V to 14.8V or so.

Example 1: If the load is motor, start, the battery voltage will fluctuate, this can be used with a delay, delay 3 to 5 seconds enough to restore the battery voltage stability.

Example 2: the car just started, the car lights will flash, but also because the start when the current is relatively large, the battery voltage fluctuations, and this delay can be used, the delay of 3 to 5 seconds, enough to make the battery The voltage is restored.
