Monday Kids 3.3-5.0V RGB LED Light Modulator Programmable PWM Controller for Arduino MOSFET Module 9600bps
$2.83
Availability:
In stock
SKU
EK455
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Supply Voltage: 3.3-5.0V
- Condition: New
- Type: Logic ICs
- Model Number: RGB LED Light Modulator Programmable PWM Controller
- is_customized: Yes
- PCB Size: 37.2*22.5mm
- LED controller board communication baud : rate: 9600bps
1. Description:

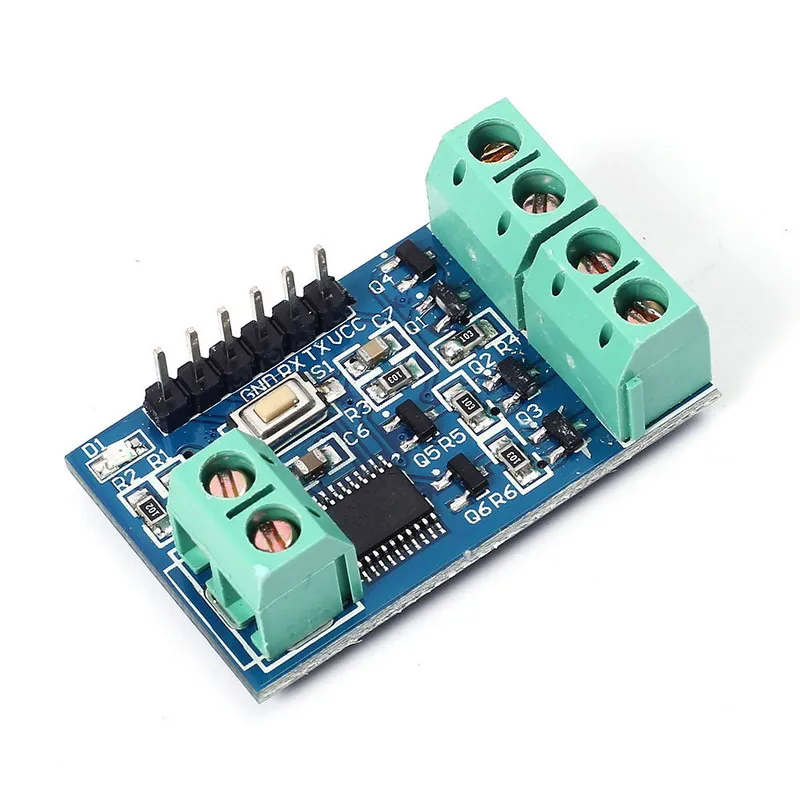

1>. Onboard high performance microcontroller chip
2>. Onboard three-channel MOSFET tube, respectively control RGB LED lamps
3>. Onboard power LED indicator lamp and reset key
4>. Onboard input and output power connection socket
5>. Onboard serial port communication interface
6>. Control board power supply voltage: 3.3-5.0V
7>. PCB Size: 37.2*22.5mm
8>. LED controller board communication baud rate: 9600bps
2. LED Controller Board Communication Protocol:
1>. Data (1): start mark (defaults 0x1F)
2>. Data (2): channel number (1: red, 2: green, 3: blue)
3>. Data (3): brightness value (0-100%)
4>. Data (4): check code (the sum of above data)
3.>. For Example:
Set Auto Adjustment: 1F 00 00 1F
Set Red Lamp 1% Brightness: 1F 01 01 21
Set Red Lamp 50% Brightness: 1F 01 32 52
Set Red Lamp 99% Brightness: 1F 01 63 83
Set Green Lamp 1% Brightness: 1F 02 01 22
Set Green Lamp 50% Brightness: 1F 02 32 53
Set Green Lamp 99% Brightness: 1F 02 63 84
Set Blue Lamp 1% Brightness: 1F 03 01 23
Set Blue Lamp 50% Brightness: 1F 03 32 54
Set Blue Lamp 99% Brightness: 1F 03 63 85
|
