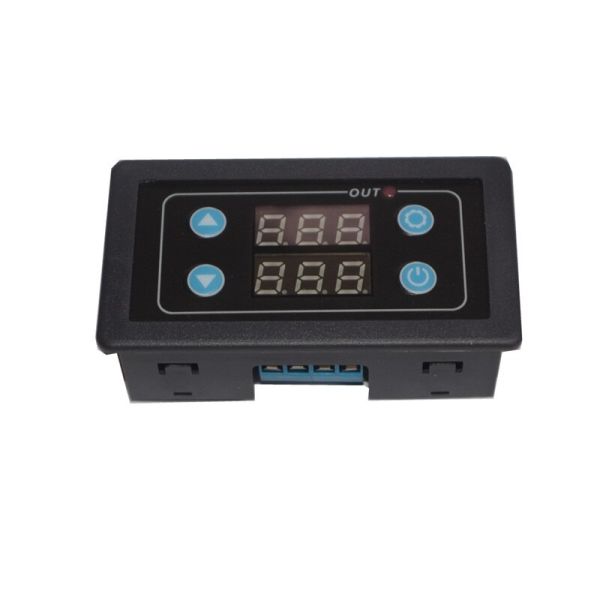

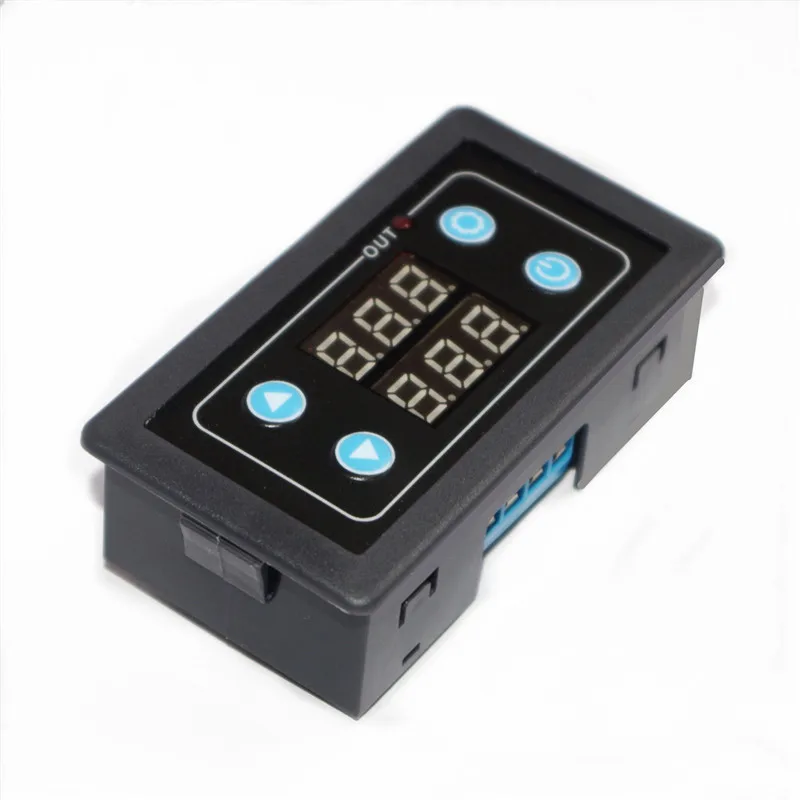

Monday Kids DC 12V Digital Display Time Relay Module Timer Cycle Control Relay Module
$8.98
Availability:
In stock
SKU
RY-ES-513
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

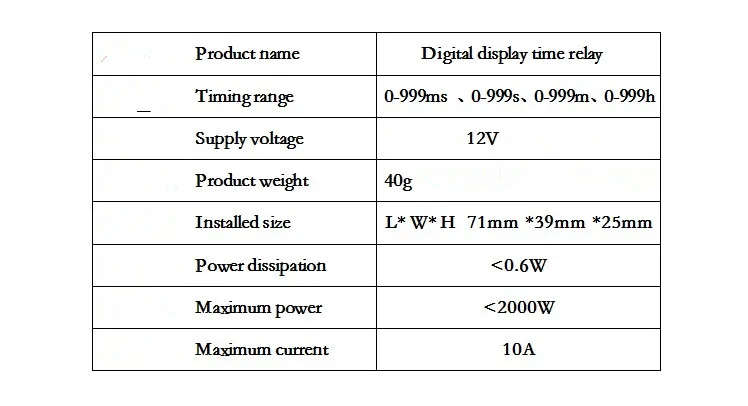

- Brand Name: Monday Kids
- Type: Voltage Regulator
- Supply Voltage: DC 12V
- Model Number: Digital Display Time Relay
- Condition: New
- is_customized: Yes
- Application: Other
Instructions:

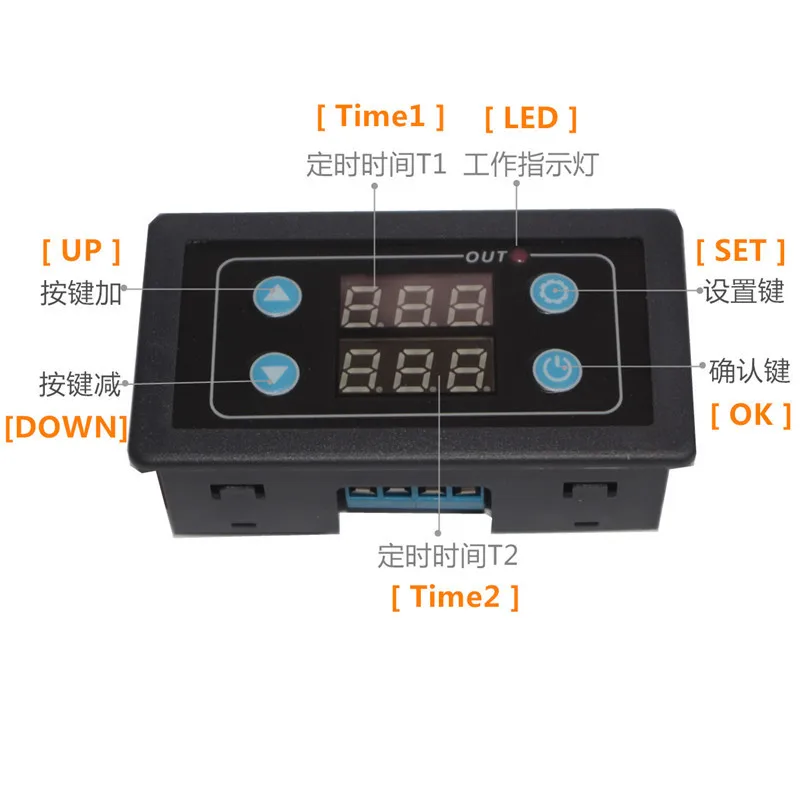

This product has four function keys which are increase key, decrease key, setting key, confirm key.
After the user gets the product, first understand the function keys of the product, which is beneficial to the customer's next use.
Time setting: Short press set button, T1 LED will flash, during flashing time, press button to add or subtract to set timer time T1. After setting, short press setting button again, T2 LED will flash, during flashing, press button to add or subtract. Set the timer time T2. There are two ways to save data after setting. The first one can wait for 6 seconds, the digital tube stops flashing, the system automatically saves the setting time, and the second can short press the setting button again to save the data.
Parameter setting: long press the setting key to enter the parameter setting mode, there are three groups of parameters for the user to set P0, P1, P2.
P0: timing range, P1: working mode, P2: display brightness adjustment. P0, P1, and P2 can be switched by short-pressing the setup key. Under the corresponding parameters, the corresponding parameters can be set by pressing plus or minus.
P0--0 represents the timing range is 0.1 seconds.
P0--1 represents the timing range is seconds.
P0--2 represents the timing range is minutes.
P0--3 represents the timing range is hour.
P1--0: The relay pulls in after the time delay T1 (T1 timing).
P1--1: The relay releases after a time delay T1 (T1 timing).
P1--2: After the time delay T1, the relay pulls in (T1 timing), and after a delay T2, the relay releases (T2 timing) and ends.
P1--3: After the time delay T1, the relay is released (T1 timing), and after the delay T2 time, the relay is closed (T2 timing) and ends.
P1--4: After the delay time T1, the relay pulls in (T1 timing), and after delaying T2 time, the relay releases (T2 timing) and repeats the cycle.
P1--5: After the time delay T1, the relay releases (T1 timing), and after the delay T2 time, the relay pulls (T2 timing) and repeats the cycle.
P2--0 to P2--5 are display brightness adjustments that the user can set based on comfort.
P2--OFF: Low-power mode, the user will set P2 to OFF mode, the system will automatically turn off the display after 10s, enter the low-power mode, press any button to wake up.
The confirmation key has two major functions:
Function 1: After all parameters are set, press the ENTER key to save the setting data and start working. Press the confirmation key again during work to implement the pause function, the relay is disconnected, and press the key again to resume the timing function.
Function 2: Trigger the function again. After the timer finishes work normally, it needs to work again. Short press the confirmation key to restart the timer.
For example: For example, a customer needs to power on for 10 seconds at regular intervals and 20 seconds to turn off. Set as follows:
T1 setting time 10, T2 setting time 20
P0—1 (T1 timing range is second)
P1 - 5 (Timer operation mode is to stop after the first work cycle)

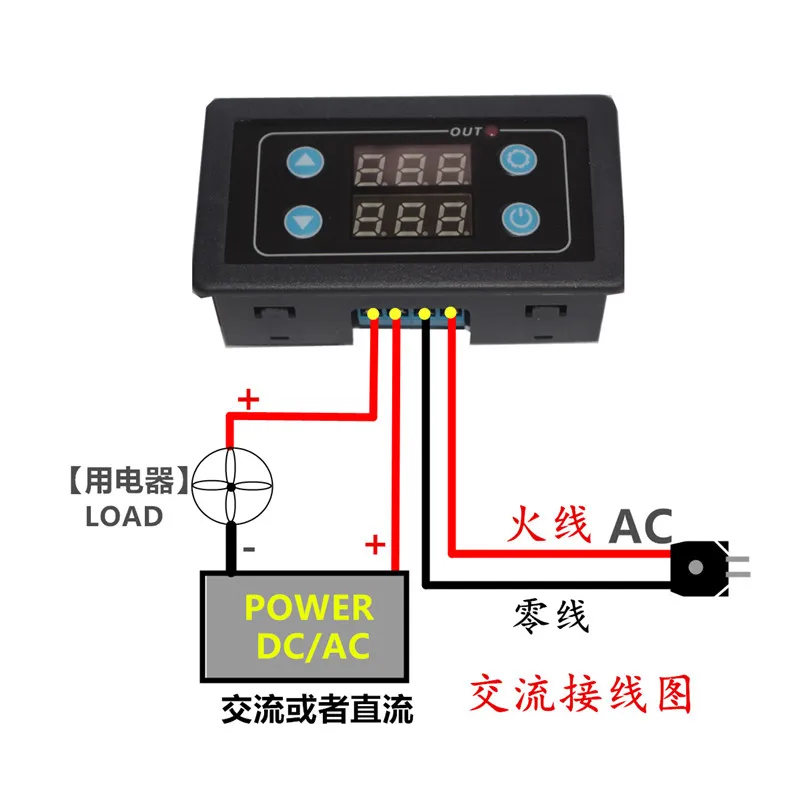

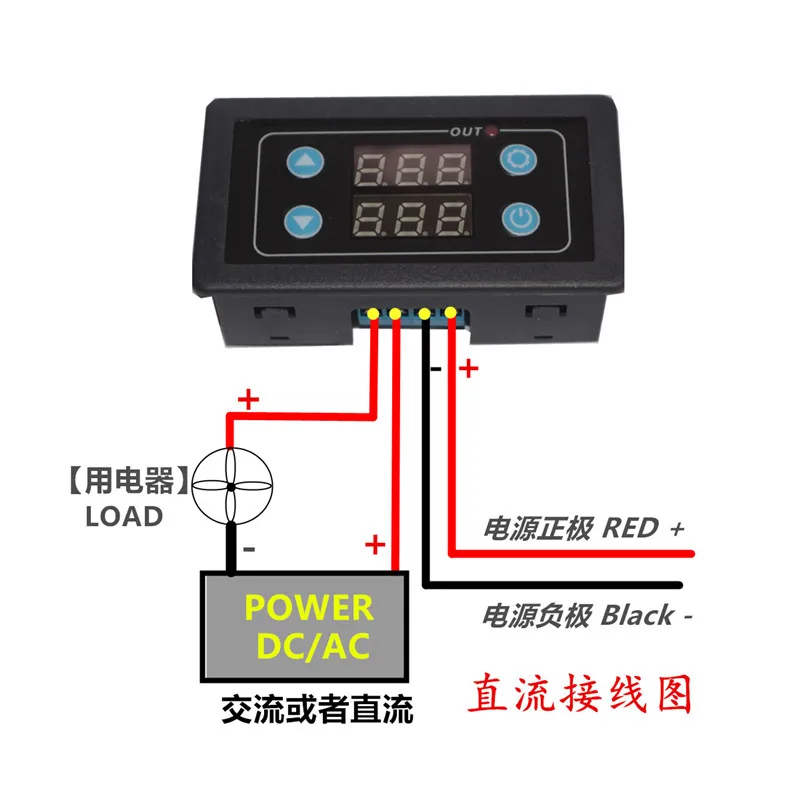

Usage:
Function 1: The product can be used for timing, delay, cycle timing, intermittent timing and other occasions.
Function 2: This product can be used to knock off the dipper and slow down the DIY.
Function 3: This product can be used for timer switch, timing alarm control board.

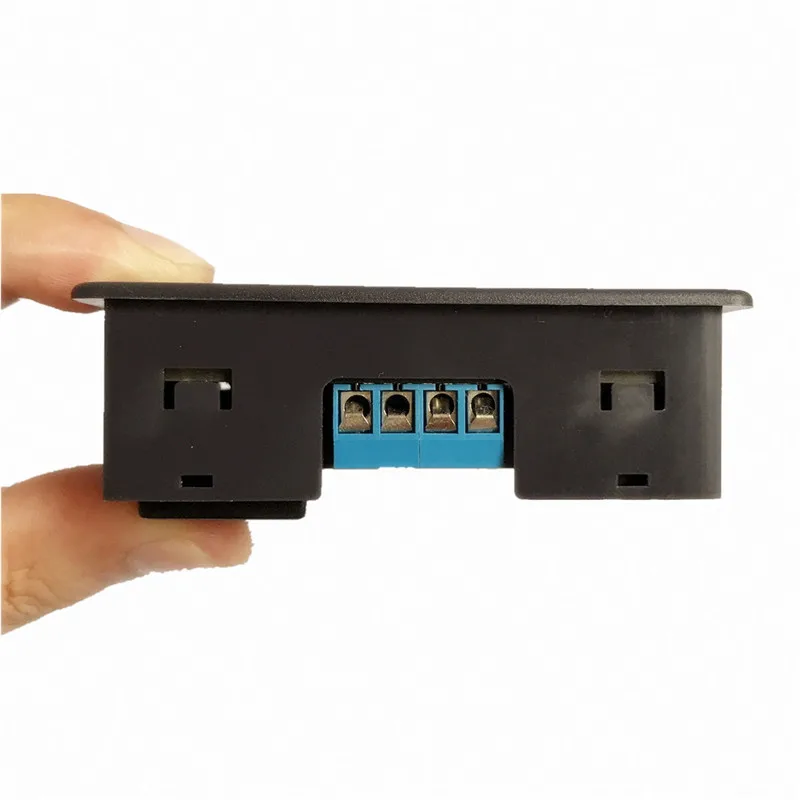

Package Including:
1*DC 12V Digital Display Time Relay Module
Note :This item is DC 12V. We also have DC 5V/24V ,AV220V,If you need,please contact us .
Note:Range(0-999ms):The minimum level is 100ms
- Unit Type: piece
- Package Weight: 0.05kg (0.11lb.)

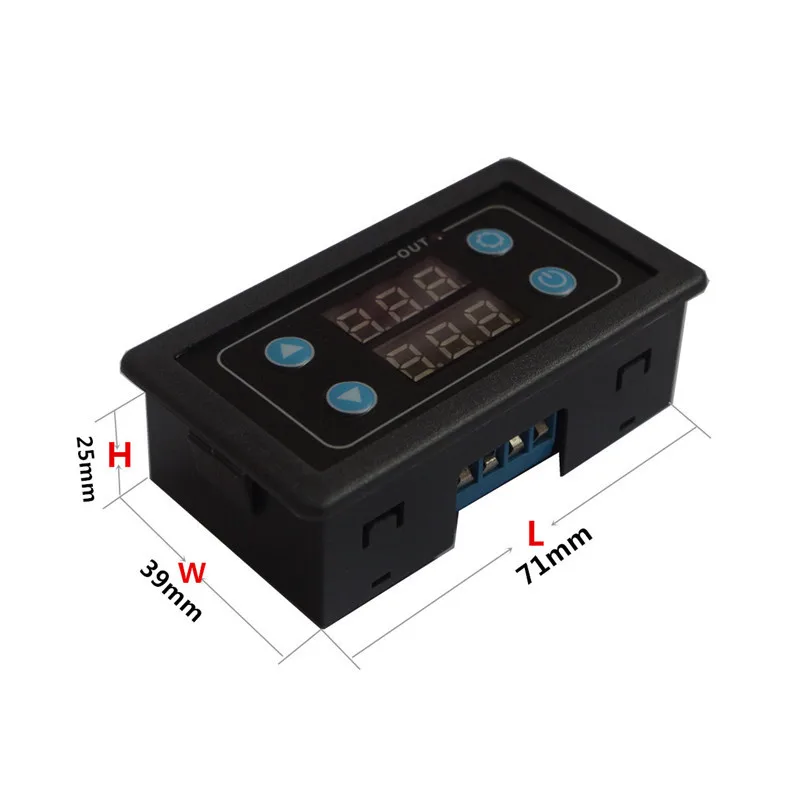

- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
