Please NOTE:Package does not contain battery, the picture is only for reference demonstration effect!!
1. Introduction.

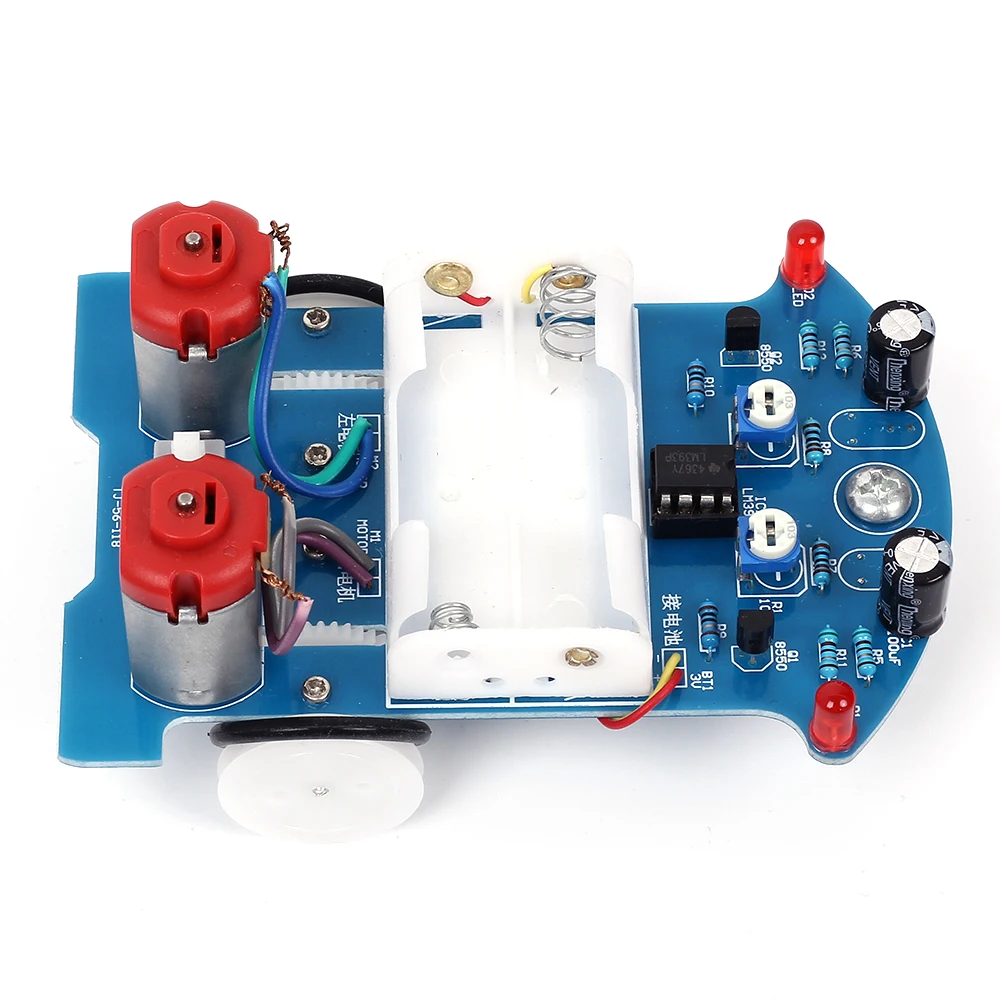

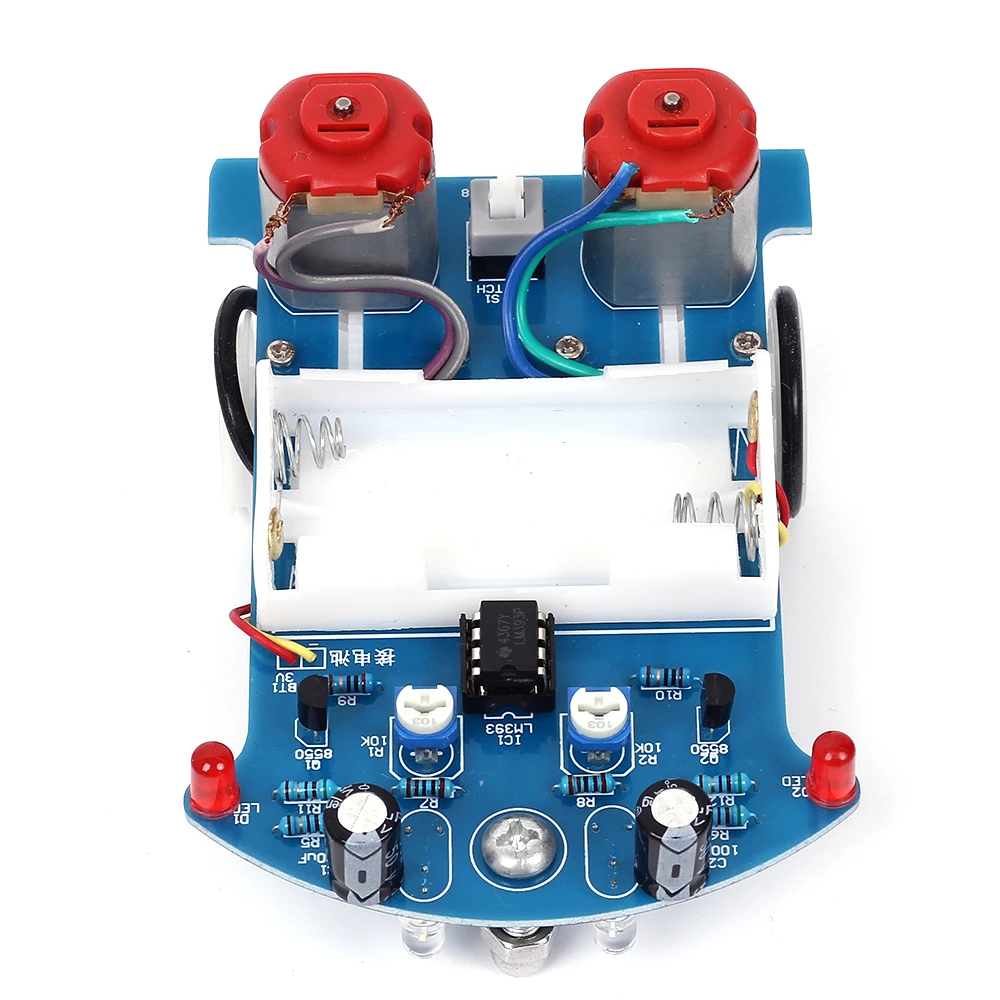

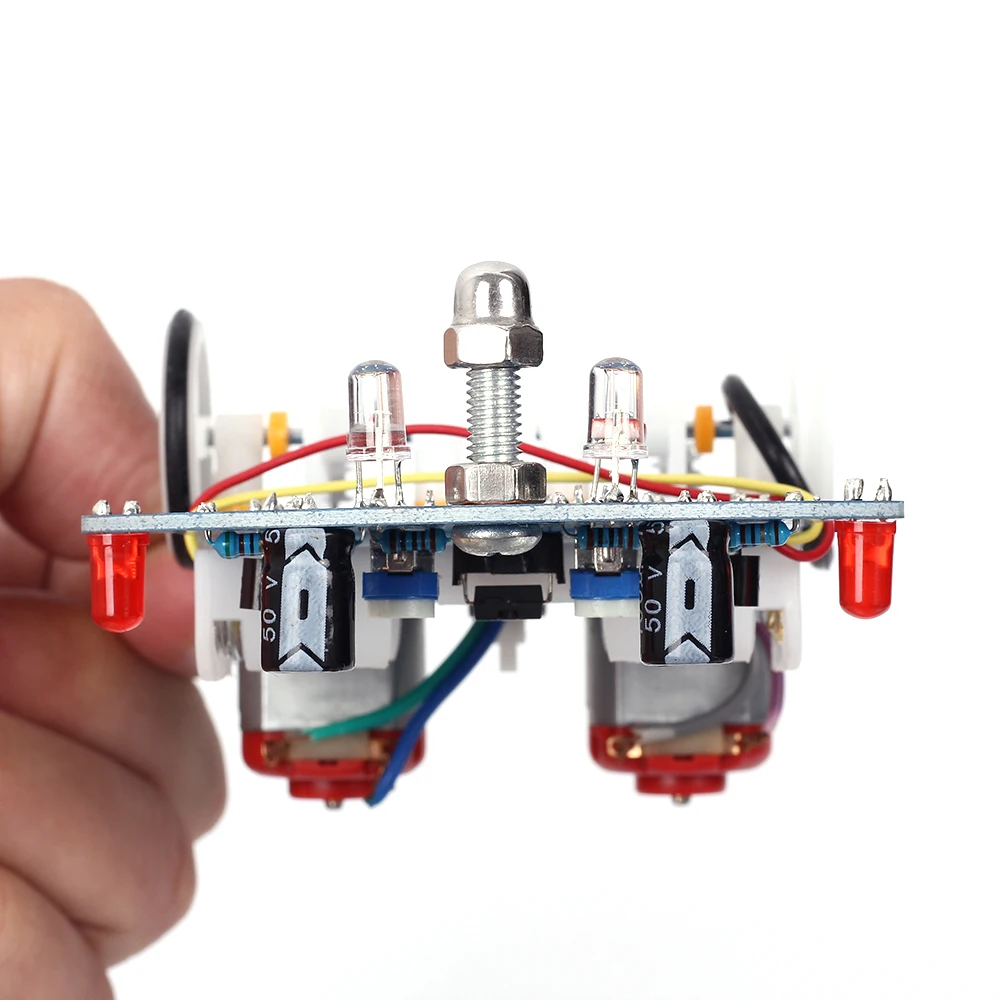

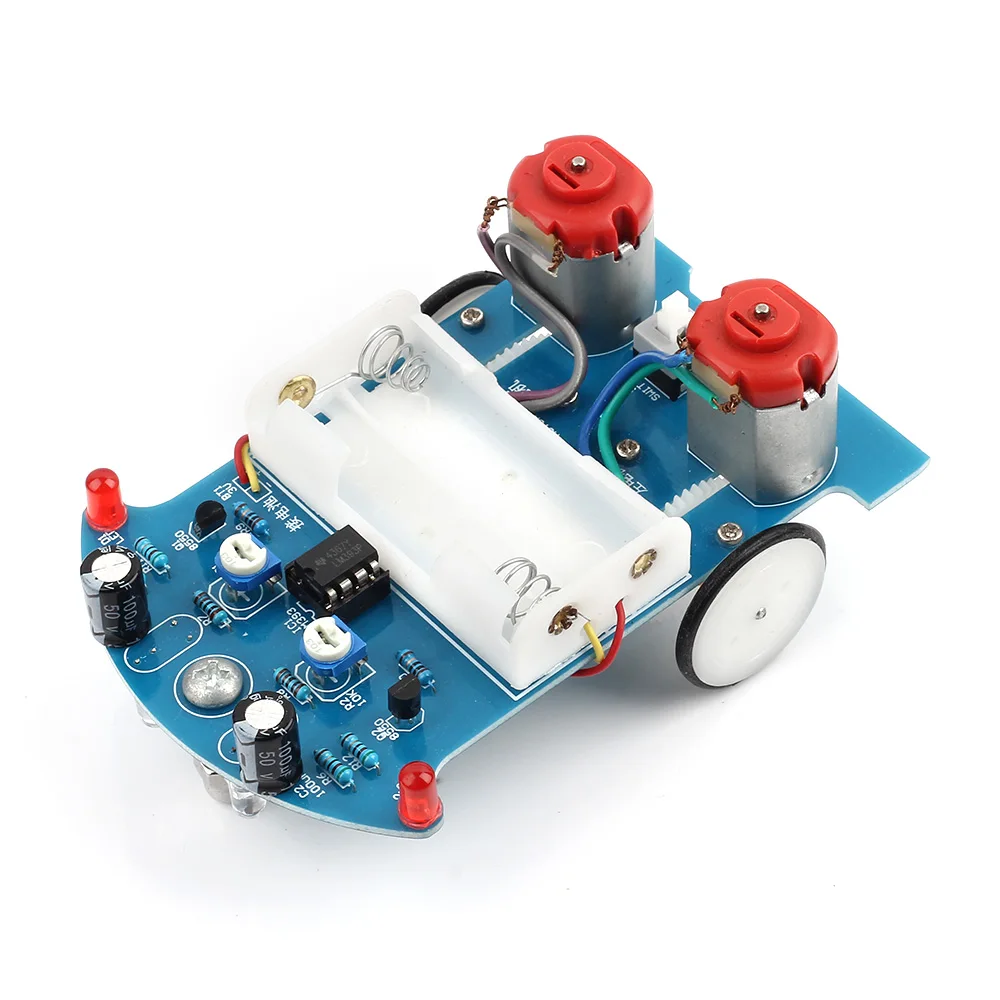

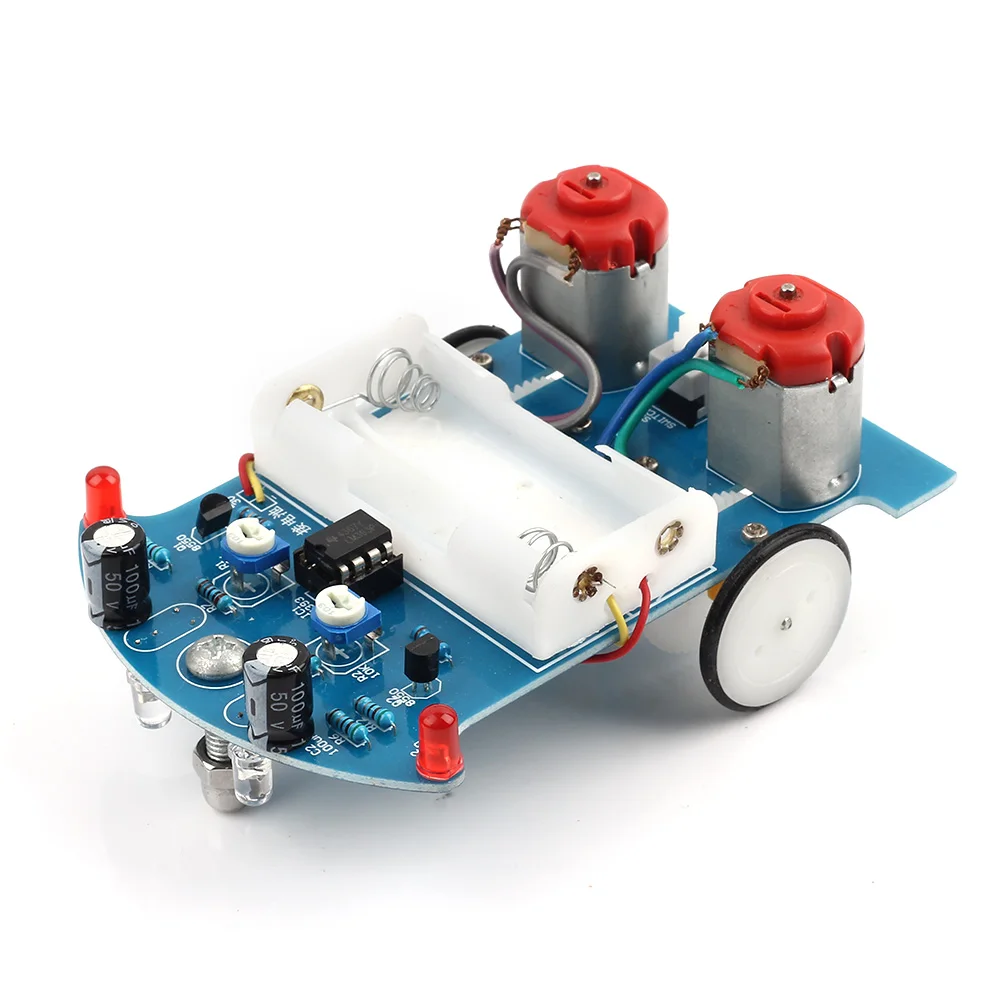

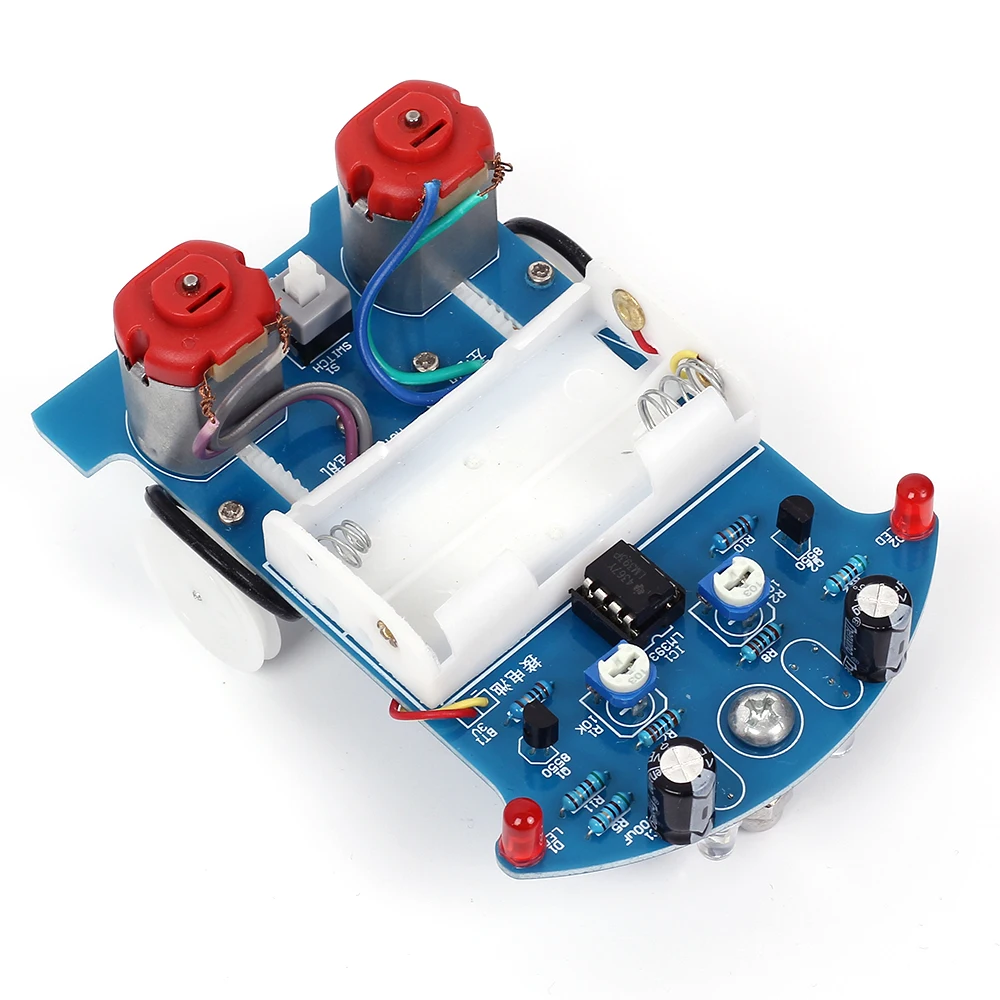

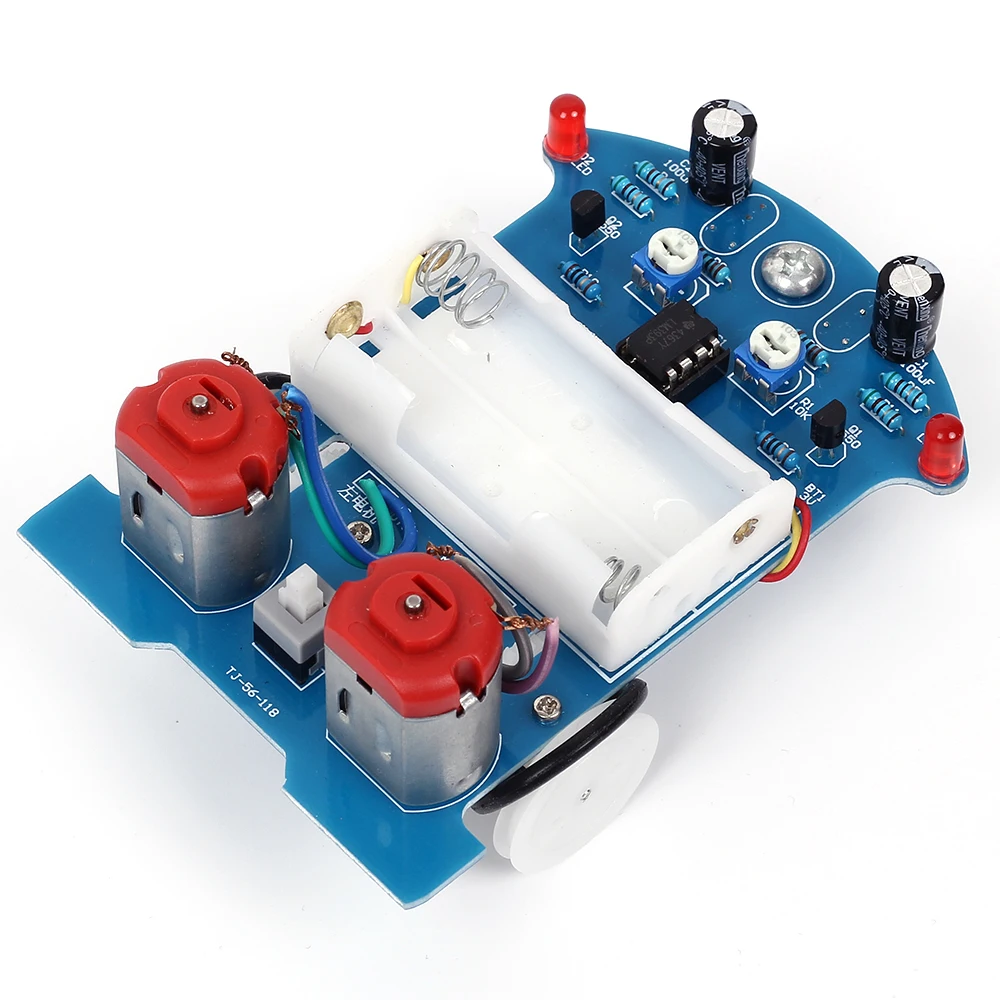

There is a 16 mm wide black runway in the white field.Our tracking car can drive along the black runway automatically.No matter how the runway is bent, the car can be driven automatically.We all know that the reflectivity is different when the light source to the white objects and black objects.Here we use red light source.The light is reflected through the ground to the photoresistor.By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.Drive the car in the opposite direction so that the car is always running along the runway.
2.Overview.
1>. Model: D2-5
2>. Name: D2-5 Intelligent Tracking Car DIY Kit
3>. PCB Size:104*72*1.6mm
4>.Installation dimension:104*72*55mm
5>. Work Voltage:3V
3. Schematic
4. Component listing.
NO. |
Component Name |
PCB Marker |
Parameter |
Quantity |
Remarks |
Electronic Component |
|||||
1 |
LM393 |
IC1 |
DIP-8 |
1 |
|
2 |
IC Socket |
IC1 |
DIP-8 |
1 |
|
3 |
Electrolytic Capacitor |
C1,C2 |
100uF |
2 |
|
4 |
Potentiometer |
R1,R2 |
103 10K |
2 |
|
5 |
Metal Film Resistance |
R5,R6,R11,R12 |
51ohm |
4 |
|
6 |
Metal Film Resistance |
R7,R8 |
1K |
2 |
|
7 |
Metal Film Resistance |
R9,R10 |
10ohm |
2 |
|
8 |
Photoresistor |
R13,R14 |
CDS5 |
2 |
|
9 |
Red LED |
D1,D2 |
5mm |
2 |
Red Shell,Red Light |
10 |
White LED |
D4,D5 |
5mm |
2 |
White Shell,Red Light |
11 |
S8550 |
Q1,Q1 |
TO-92 |
2 |
|
12 |
Self-Locking switch |
S1 |
6*6mm |
1 |
|
Mechanical Part |
|||||
13 |
DC Motor |
M1,M2 |
JD3-100 |
2 |
|
14 |
Wheel |
24mm |
2 |
||
15 |
Tires |
24mm |
2 |
||
16 |
Axle |
D2*30mm |
2 |
||
17 |
Gasket |
D2.0mm |
6 |
Non-essential |
|
18 |
Three-way sleeve |
D2.5mm |
4 |
||
19 |
Gear |
D22mm |
2 |
||
20 |
Worm |
D5mm |
2 |
||
21 |
Screw |
D2.2*8mm |
4 |
||
22 |
Motor Screw(Black) |
D1.7*4mm |
4 |
||
23 |
Gaster Screw |
M5*20mm |
1 |
||
24 |
Gaster Nut |
M5 |
1 |
||
25 |
Gaster Screw Cap |
M5 |
1 |
||
Other Component |
|||||
26 |
Cable |
6mm |
4 |
||
27 |
Battery Case |
AA*2 |
1 |
With adhesive |
|
28 |
PCB |
D2-5 |
1 |
104*72*1.6m |

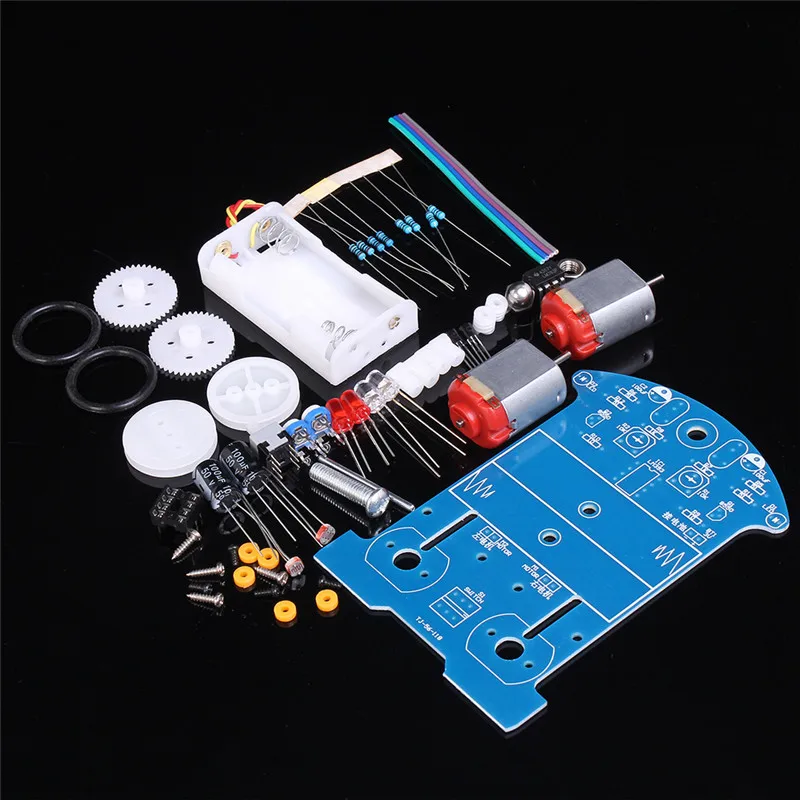

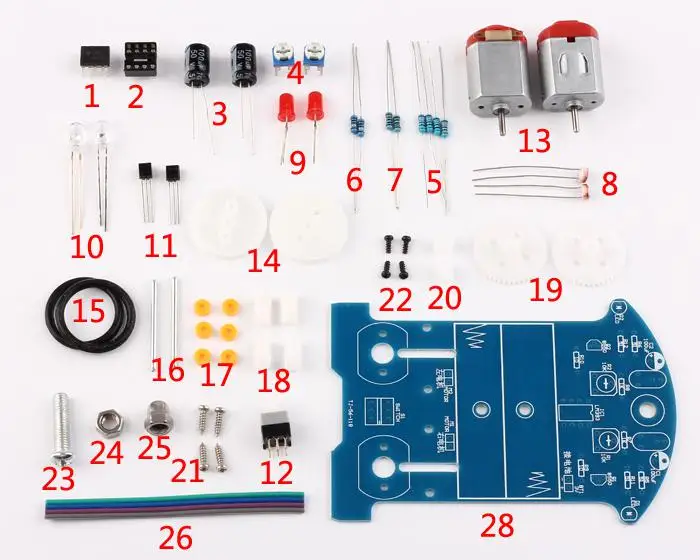

5. Component Description
1>.1pcs LM393 DIP-8
2>.1pcs IC Socket DIP-8
3>.2pcs 100uF Electrolytic Capacitor
4>.2pcs 10K Potentiometer
5>.4pcs 51ohm Metal Film Resistance
6>.2pcs 1K Metal Film Resistance
7>.2pcs 10ohm Metal Film Resistance
8>.2pcs Photoresistor
9>.2pcs 5mm Red LED
10>.2pcs 5mm White LED
11>.2pcs TO-92 S8550
12>.1pcs 6*6 Self-Locking switch
13>.2pcs DC Motor
14>.2pcs Wheel
15>.2pcs Tires
16>.2pcs Axle
17>.6pcs Gasket(Non-essential)
18>.4pcs Three-way sleeve
19>.2pcs Gear
20>.2pcs Worm
21>.4pcs Screw
22>.4pcs Motor Screw(Black)
23>.1pcs Mecanum wheels Screw
24>.1pcs Mecanum wheels Nut
25>.1pcs Mecanum wheels Screw Cap
26>.4pcs 6mm Cable
27>.1pcs AA*2 Battery Case(Not shown in the picture)
28>.1pcs PCB
