Monday Kids DC 5V Dual Frequency WG26 Read RFID Wireless Module for IC/ID/Mifare Card 13.56MHz Card 125KHz Rfid Module

$4.64

Product name is DC 5V Dual Frequency WG26 Read RFID Wireless Module for IC/ID/Mifare Card 13.56MHz Card 125KHz Rfid Module...

Product origin name is Monday Kids DC 5V Dual Frequency WG26 Read RFID Wireless Module for IC/ID/Mifare Card 13.56MHz Card 125KHz Rfid Module

Availability: In stock
SKU
EK861

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Application: Computer
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: NONE
  • Brand Name: Monday Kids
  • Model Number: Dual Frequency WG26 Read/Write RFID Wireless Module
  • is_customized: Yes
  • Supply Voltage: DC 5V
  • Operating Temperature: -20-70 Celsuis
  • Size: 47*26*5mm (includes antenna)
  • EM4100 Card Reading Distance: >8cm

1.Description:

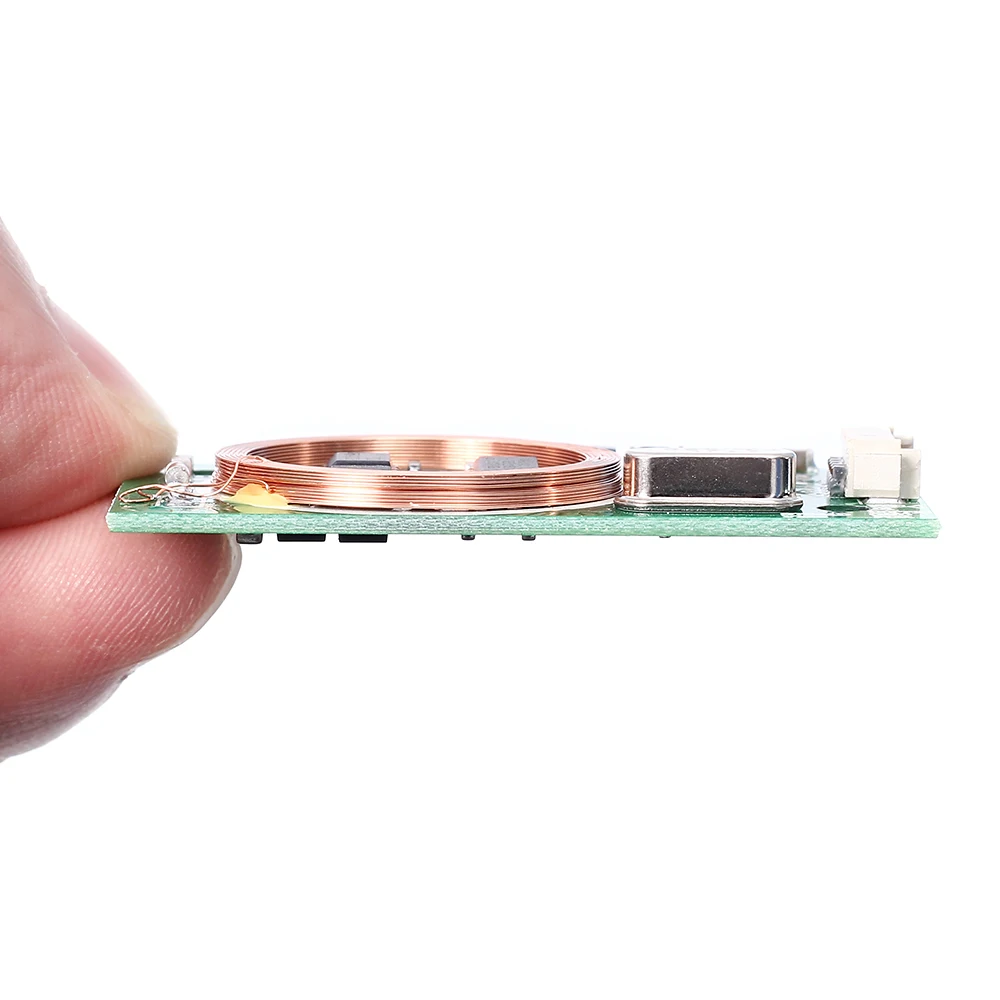

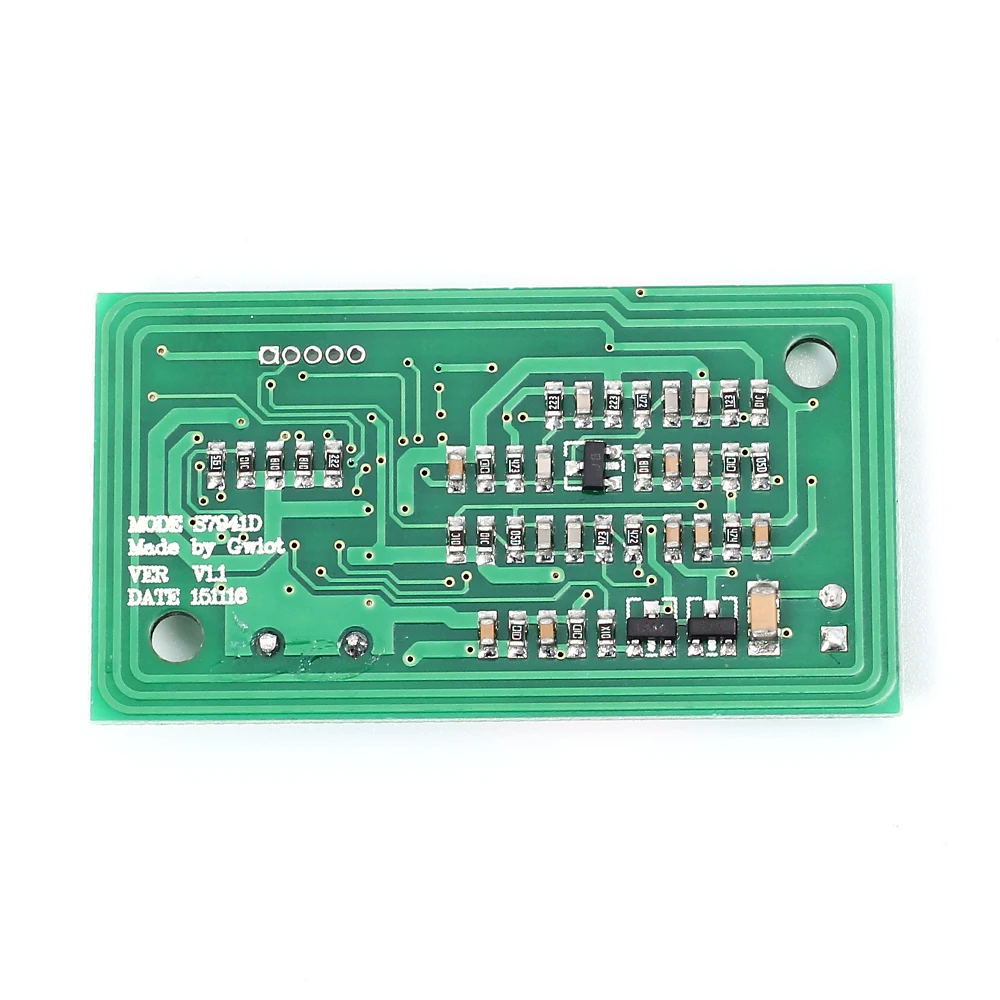

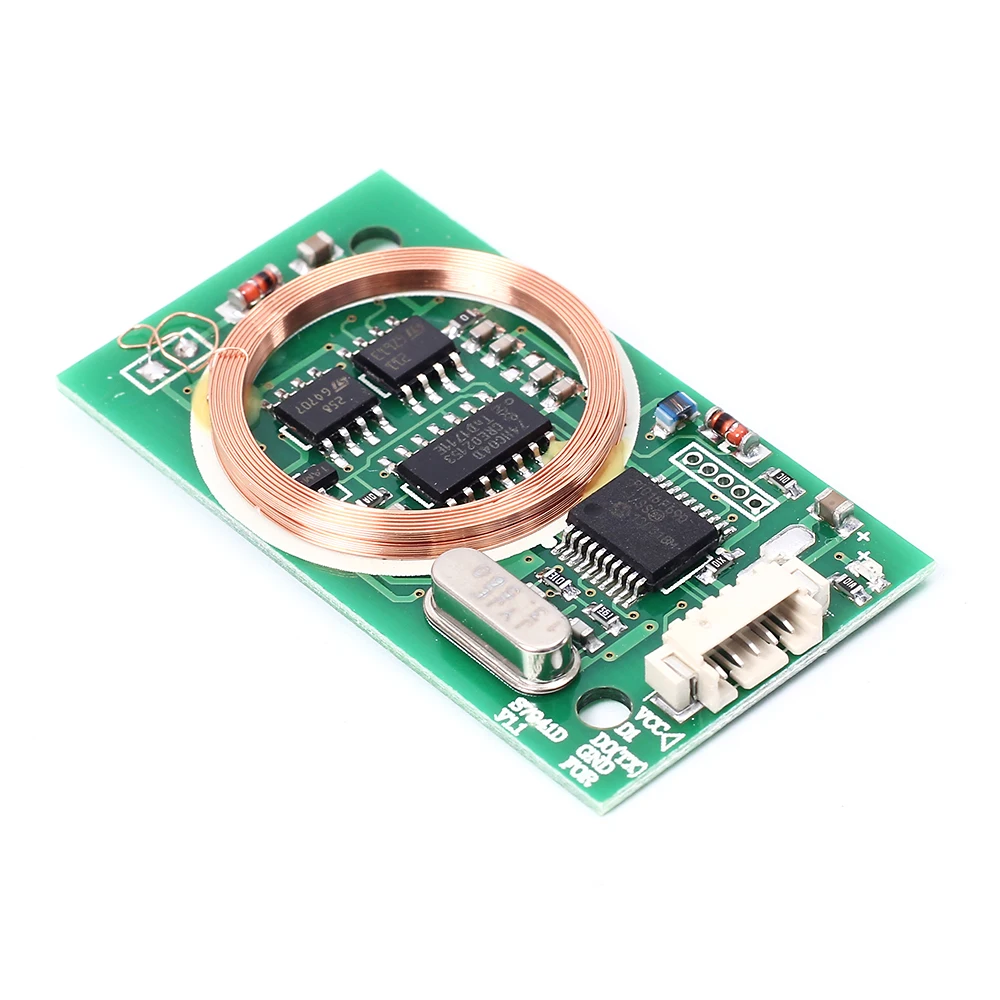

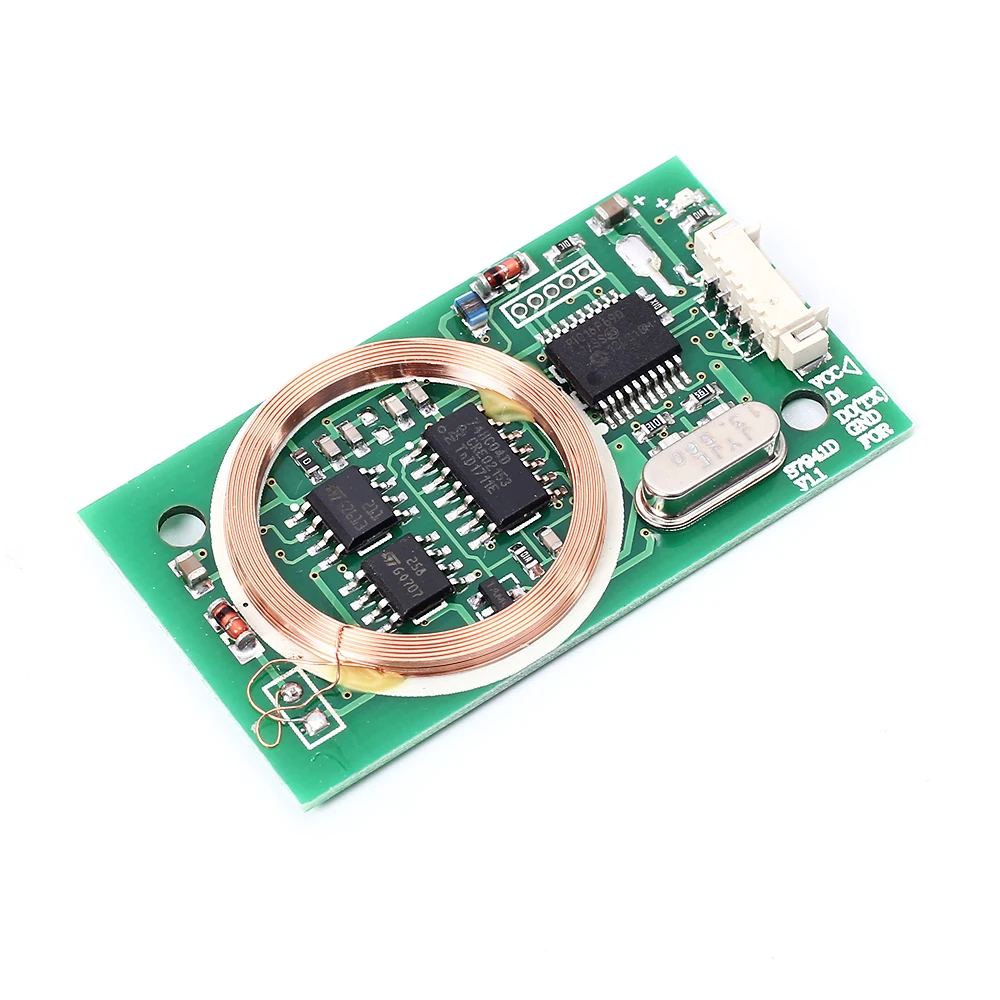

7941D reader module, integrated high performance card reading radio frequency circuit and antenna; and it also supports ID and IC card, and choose wiegand interface to output data. Small size allows it to be widely applied to more devices, such as fingerprint machine, attendance machine, entrance guard

2.Features:

1>. Voltage: DC 5V

2>. Current: 40mA

3>. Support 125KHz and 13.56MHz (Monday KidsO14443A) card

4>. Interface: wiegand

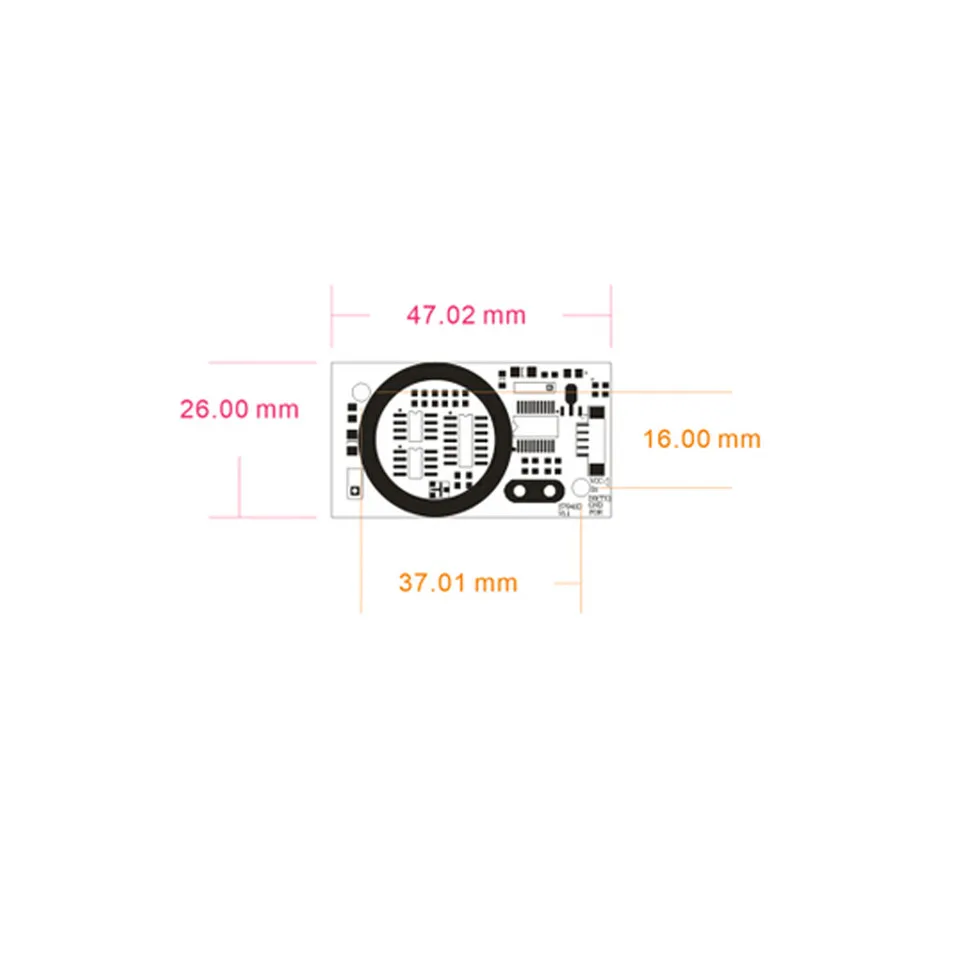

5>. Size: 47*26*5mm (includes antenna)

6>. Operating Temperature: -20~70 Celsius

7>. EM4100 Card Reading Distance: >8cm

8>. Mifare S50 S70, Desfire, FM1208 Card Reading Distance >5cm

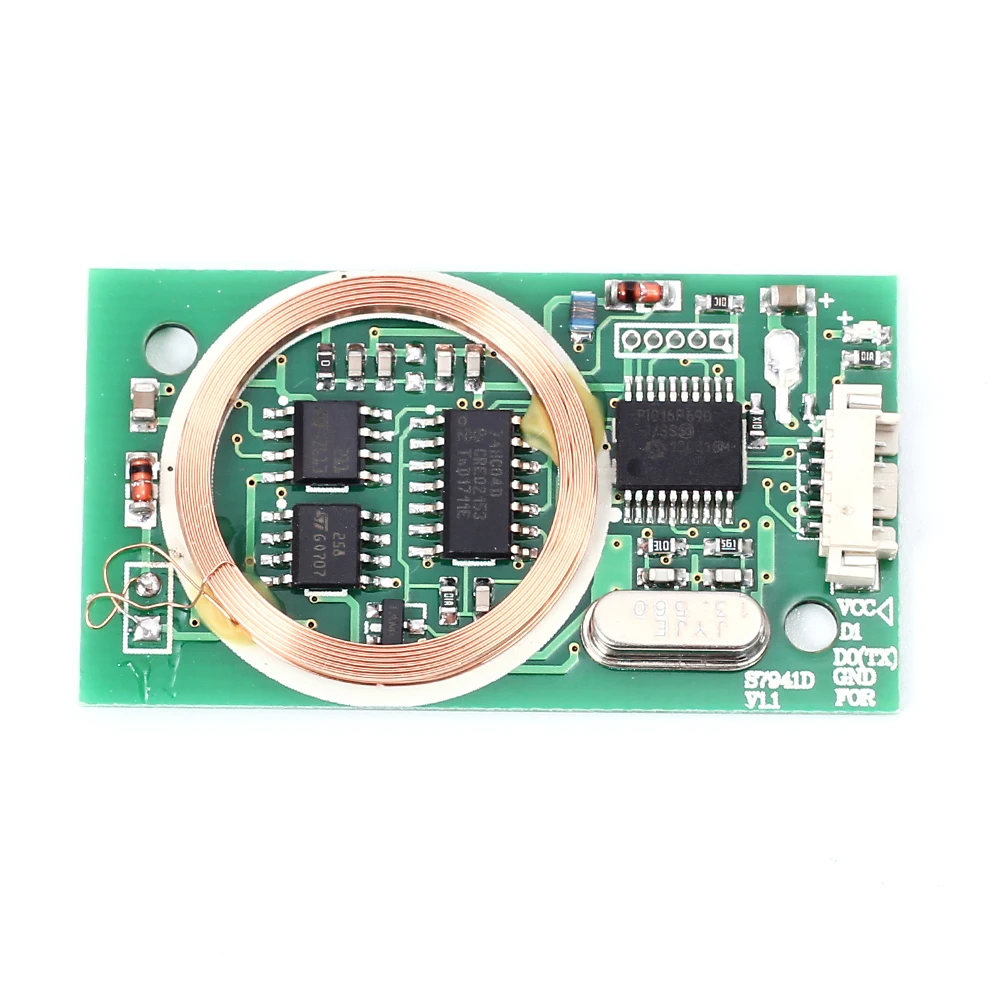

3.Connection Introduction:

1>.Power: DC 5V power supply, choose linearity power can gain better effects

2>.D1 D0: wiegand data output DATA1, DATA0

3>.FOR: format selection (hanging means W26, ground connection means W34)

4. Wirgand Interface Output Introduction:

1>.When it sensors the card, the serial number will be output via Data 0, Data 1 two data wire

2>.Data 0 and Data 1 are high level when there is no data output

3>.Data Bit 0: it will generate 400us low level on Data 0 wire

4>.Data Bit 1: it will generate 400us low level on Data 1 wire

5>.Every data length is 2400us

6>.Every Mifare card has a serial number with 4 bytes, users should output the last three bytes

7>.Add the first 12-bit even check bit in the front and add the last 12-bit odd check bit in the back, 26-bit data in total

8>.Card number is 6B 3D 12 D6

9>.Output data is 3D 12 D6

10>.Weigand 26 Code

0

111101

10010

11010110

1

Even Check

3D

12

D6

Odd Check

11>.Weigand 34 Code

Weigand 34 Code

0

1101011

111101

10010

11010110

0

Even Check

6B

3D

12

D6

Odd Check

12>.UART Interface Output

UART Interface Output

Data Head

Length

Card Type

Card Type

BCC Check

Data End

0x02

0x09

0x01

SN0~SN3

XOR Check Except Data Head And Data End

0x03

13>.Card Type:

0x02 EM4100

0x01 MIFARE 1K

0x03 MIFARE 4K

0x10 HID Card

0x11 T5567

0x20 2nd Card

0x21 Monday KidsO14443B

0x22 FELICA

0x30 15693 Label

0x50 CPU Card

0x51 Sector Information

0xFF Keyboard Data

For example: the data received by serial port tool is 02 0A 02 2E 00 B6 D7 B5 F2 03, then

The first byte 0x02 means data start
The second byte 0x0A means the whole data length is 10 bytes, which includes data start and data end

The third byte 0x02 means the card type is EM4100

The fourth to eighth byte (0x2E 0x00 0xB6 0xD7 0xB5) means the read card number, and the fourth byte 0x2E is hidden card number

The ninth byte 0xF2 means BCC check of second byte to eighth byte

The tenth byte 0x03 means data end

5.Notice:

Keep away from interference source, and strong interference signal may affect card reading

Select linearity power can improve the card reading distance and effect; switch power may attenuate the distance but will not influence normal operation

The module can operate normally in the range of 3-5V, please do not use higher voltage

This module has high frequency signal, so it may cause some interference to the analog circuit. Uses should place the module a little far away from the buzzer; if the distance is too close, the sound of the buzzer will be low

6.Applications:

1>.Attendance Fingerprint Read Write Module

2>.Entrance Guard Intercom Read Write Module

3>.Replicator

4>.Attendance fingerprint card reader module

5>.Entrance guard intercom card reader module

  • Unit Type: piece
  • Package Weight: 0.04kg (0.09lb.)
  • Package Size: 5cm x 3cm x 2cm (1.97in x 1.18in x 0.79in)
