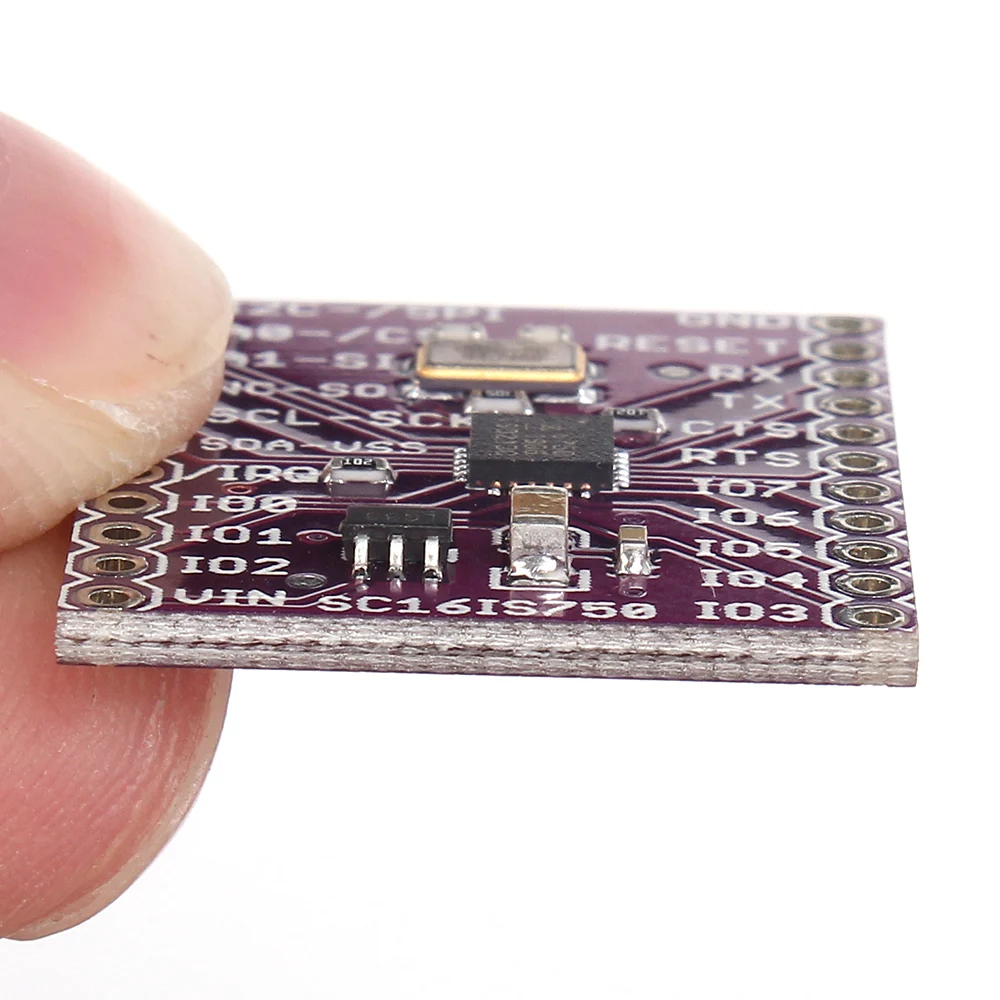

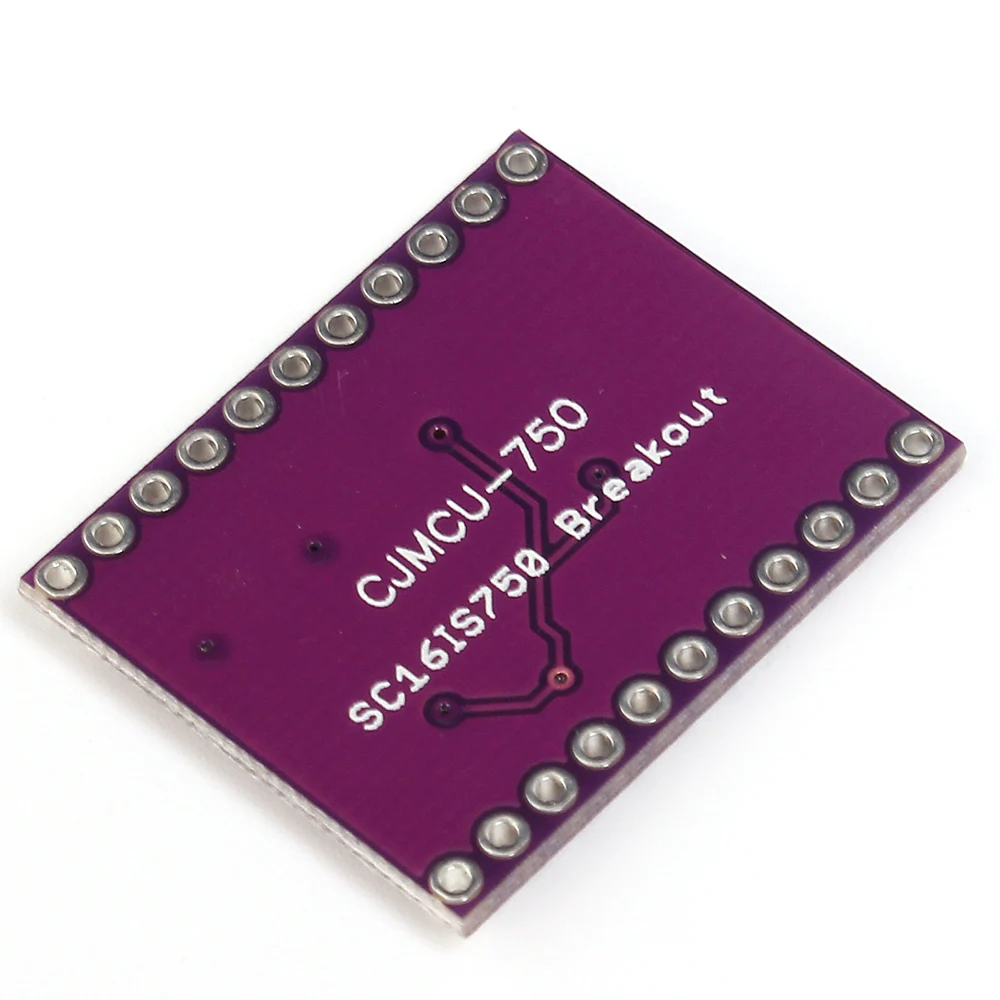

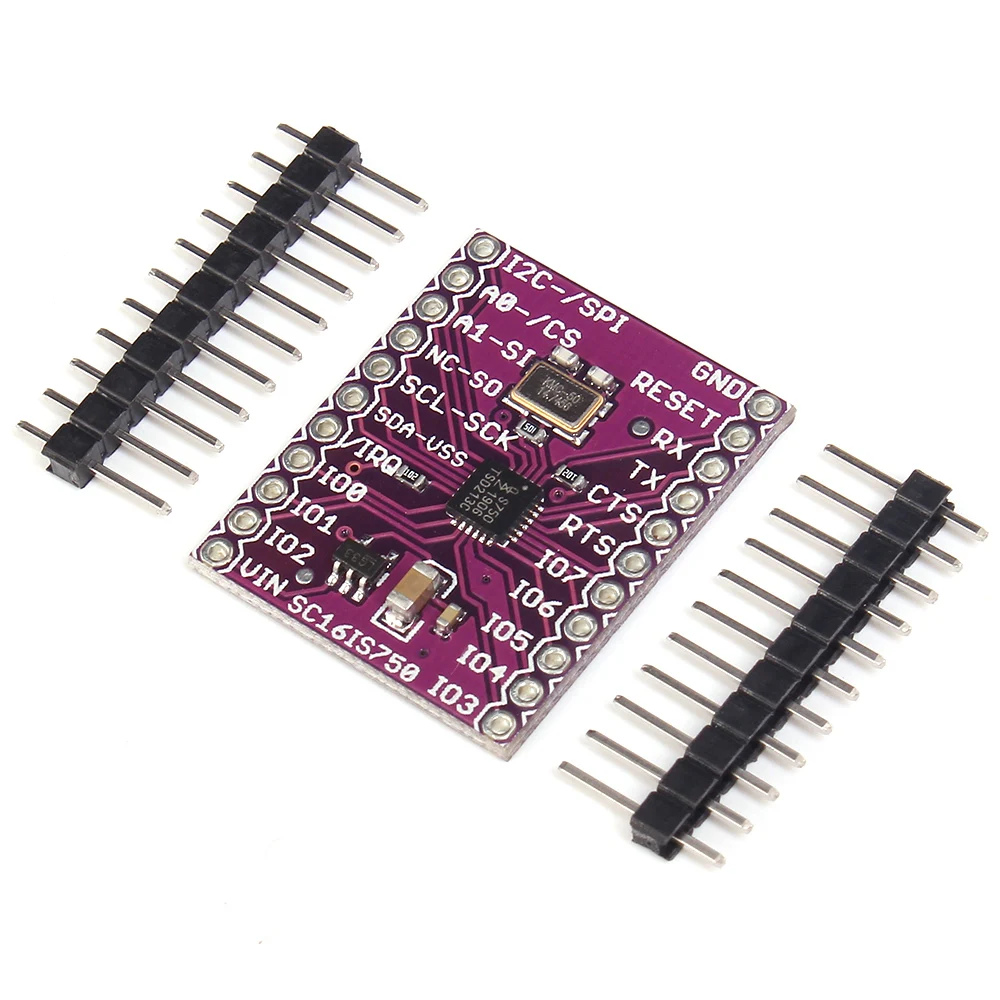

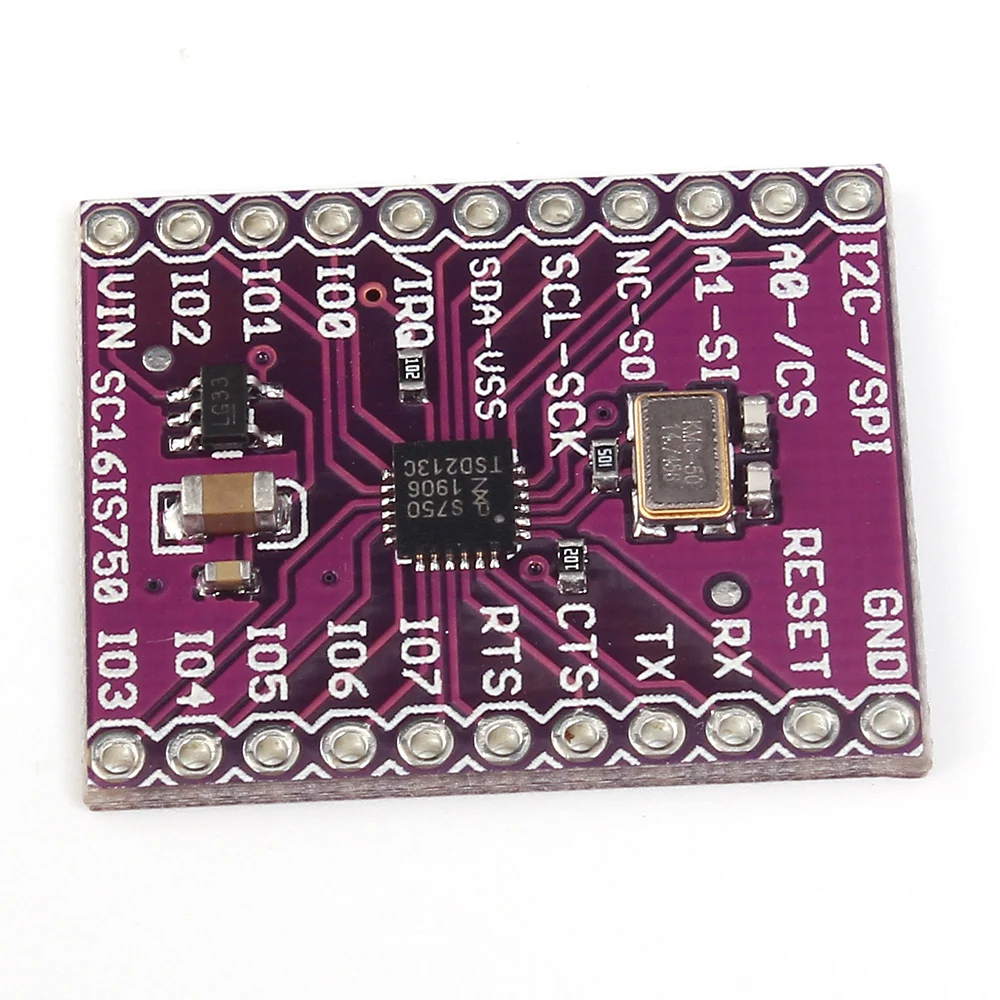

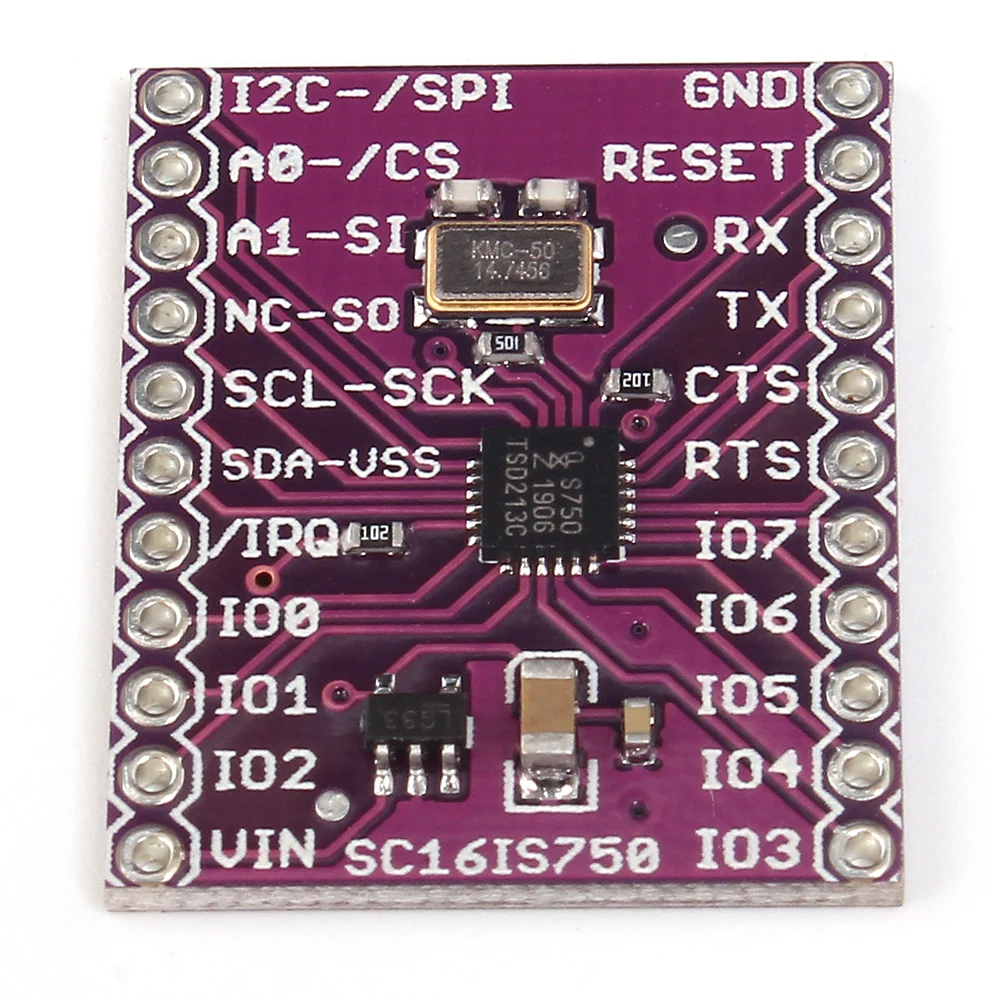

Monday Kids CJMCU-750 SC16750 Single UART with I2C-bus/SPI interface Module Board
$4.37
Availability:
In stock
SKU
EK771
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Model Number: CJMCU-750
- Condition: New
- Type: Logic ICs
- Supply Voltage: 3.3 V or 2.5 V
- Operating Temperature: -30~85 celsius
- is_customized: Yes
- Application: CJMCU-750
NOTE : we have documents of most of products in our store If you need it , contact us :) |
 |

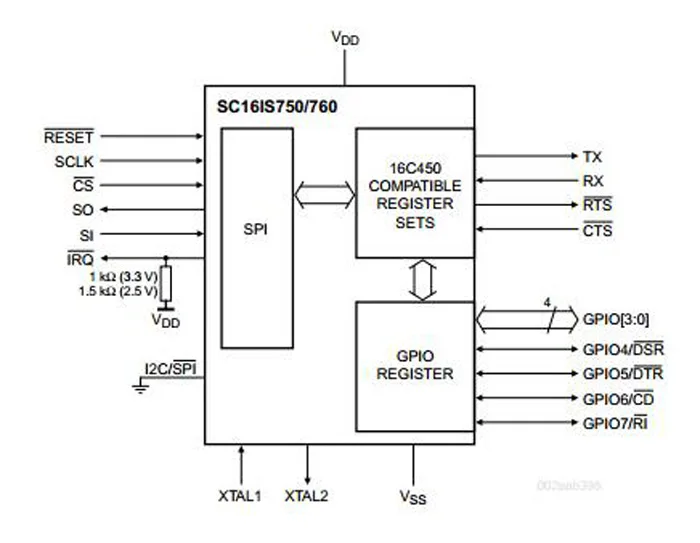

Product Introduction:
1.Single full-duplex UART
2.Selectable I2C-bus or SPI interface
3.3.3 V or 2.5 V operation
4.64 bytes FIFO (transmitter and receiver)
5.Fully compatible with industrial standard 16C450 and equivalent
6.Baud rates up to 5 Mbit/s in 16x clock mode
7.Auto hardware flow control using RTS/CTS
8.Auto software flow control with programmable Xon/Xoff characters
9.Single or double Xon/Xoff characters
10.Automatic RS-485 support (automatic slave address detection)
- Unit Type: piece
- Package Weight: 0.014kg (0.03lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
