Monday Kids Voice Controller Shield for XY-V17B Mini MP3 Player Module Development Board Serial Port Control Voice Single Chip SD/TF Module

$1.93
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: XY-V17D
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Supply Voltage: DC 5V
  • Operating Temperature: -20~85 Celsuis
  • Application: MP3/MP4 Player
  • Work Humidity: 0%~95%RH

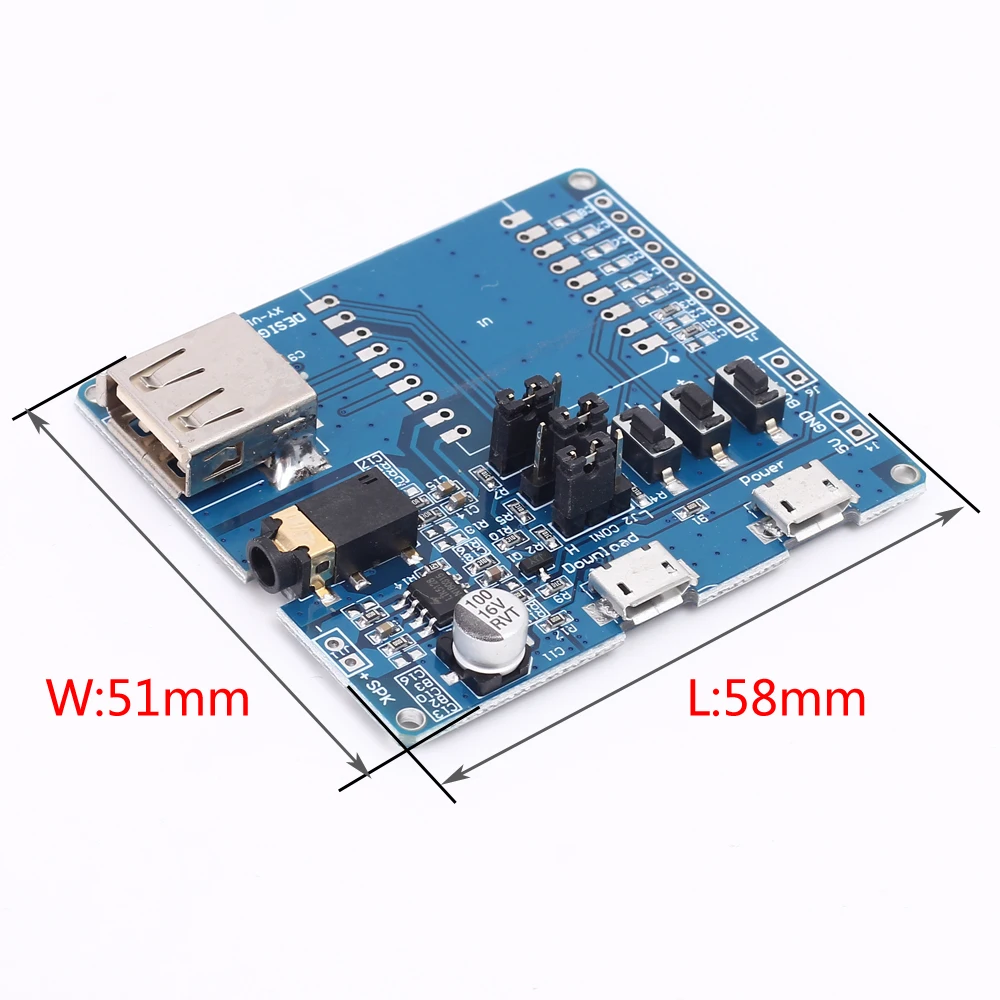

  • Size: 58*51*12mm
  • Function 1: Support Micro USB download for TF card
  • Function 2: Support U-disk and 3.5mm audio input
  • Function 3: Support IO0~IO7 external extension trigger

1.Description:

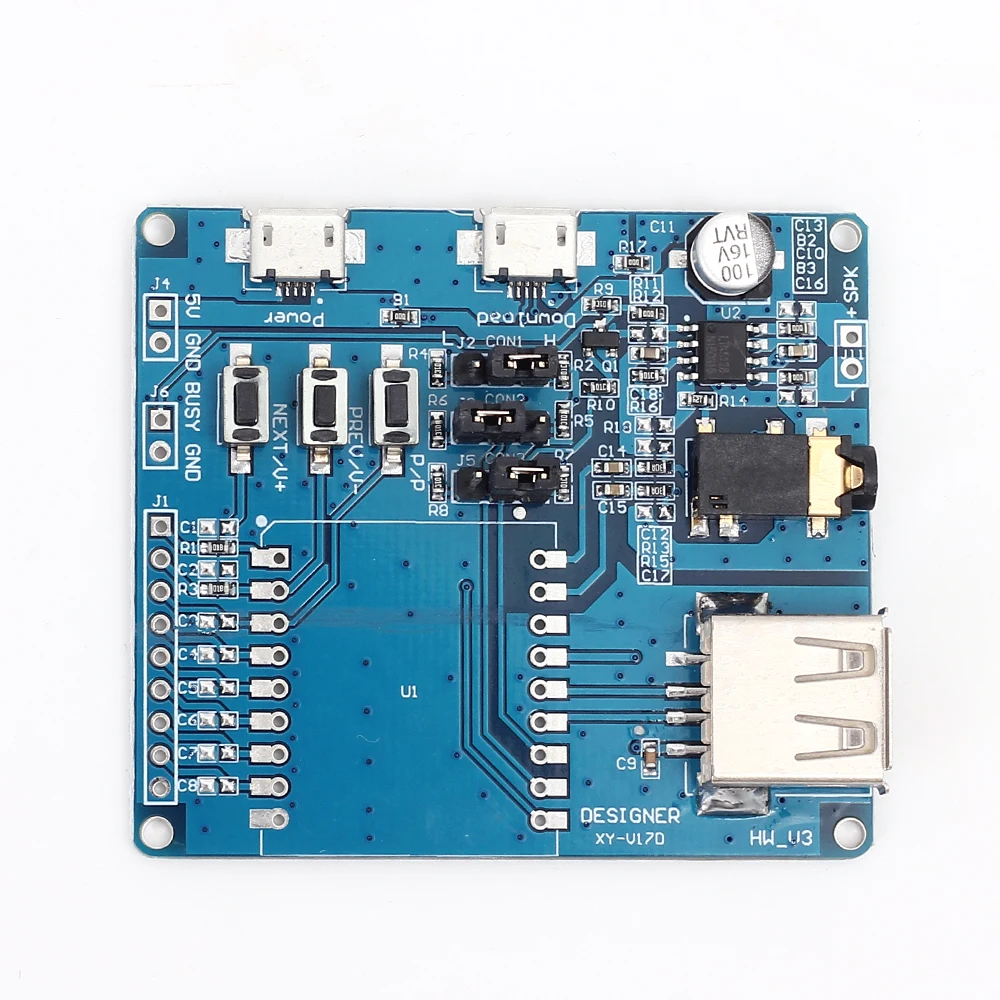

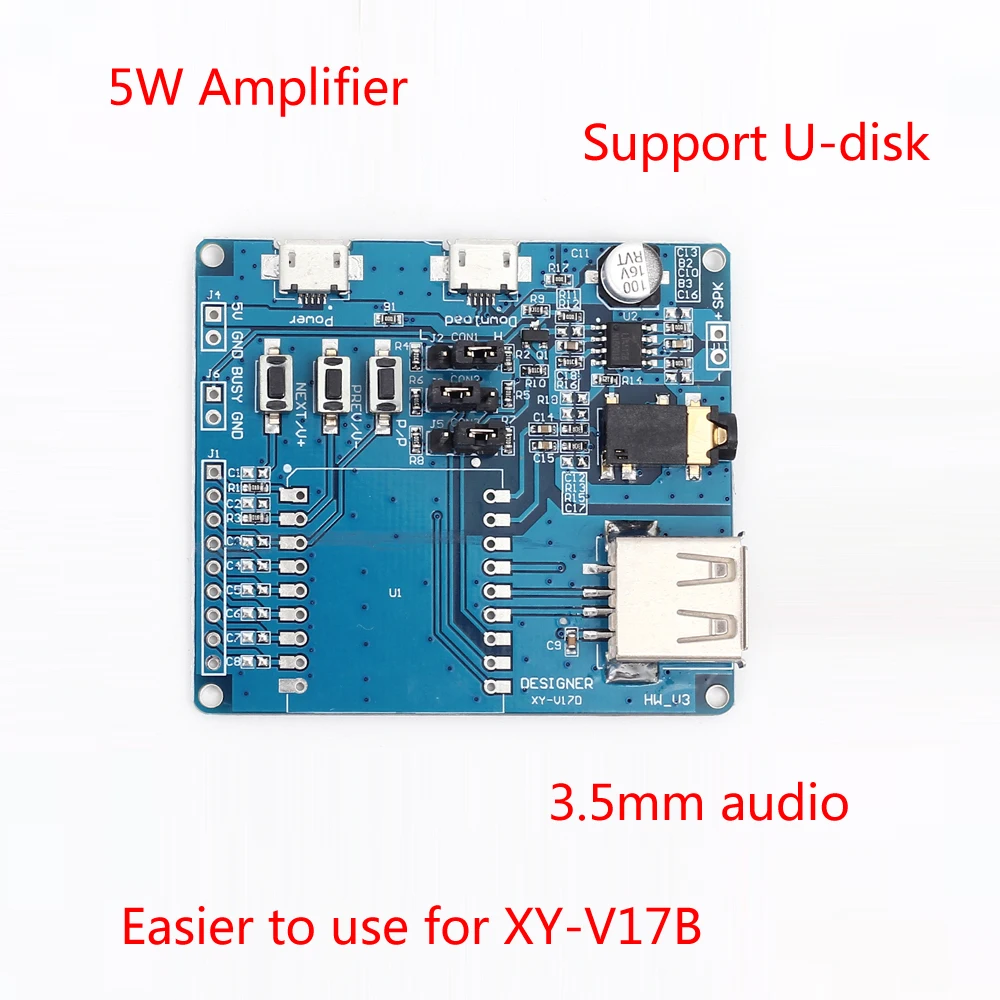

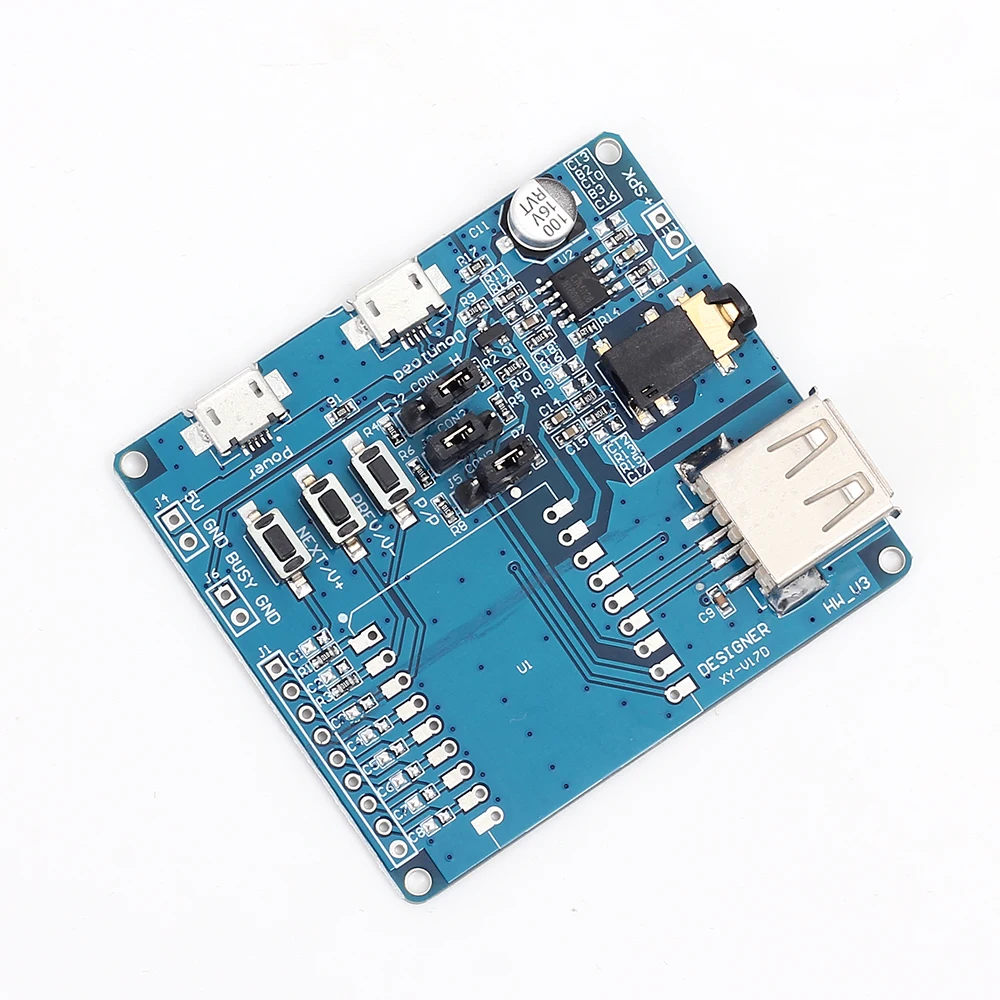

XY-V17D is a development board for our XY-V17B voice module. The development board integrates 5W Class D power amplifier module, 3.5mm audio interface, U disk interface,Micro USB download interface, button module in one module;It makes XY-V17B voice module testing, secondary development are easier and more convenient.

2.Features:

1>.Support MP3 and WAV decoding format.

2>.Support sampling frequency (KHz) : 8/11.025/12/16/22 05/24/32/44.1/48.

3>.24-bit DAC output, dynamic range support 90dB, SNR support 85dB.

4>.Fully support the FAT16/FAT32 file system, with the maximum support 32GB TF card and 32GB U-disk.

5>.Support UART serial port control voice broadcast function, can control playback, pause, selections, turn up and down volume and other functions, the largest selection of 65535 tracks.The baud rate is 9600 bit/s.

6>.Support IO trigger function, 8 IO ports can trigger 8 musics or 8 IO combinations to trigger 255 songs.

7>.Support One_line single bus serial port control, which can control playback, pause, selection, turn up and down volume and other functions.

8>.Support 3 configuration IO for mode selection.

3.Parameters:

1>.Product Name:UART Voice Controller

2>.Product Number:XY-V17D

3>.Working Voltage:DC 5V

4>.Work Temperature:-20℃~85℃

5>.Work Humidity:0%~95%RH

6>.Size:58*51*12mm

4.Function:

1>.It cannot be used alone, it can only be used together with XY-V17B;

2>.It combines the peripheral circuits required by XY-V17B to facilitate the debugging and use of XY-V17B;

3>.Support Micro USB download for TF card;

4>.Support U-disk and 3.5mm audio input;

5>.Built in 5W amplifier;

6>.Support IO0~IO7 external extension trigger.

5.Use steps:

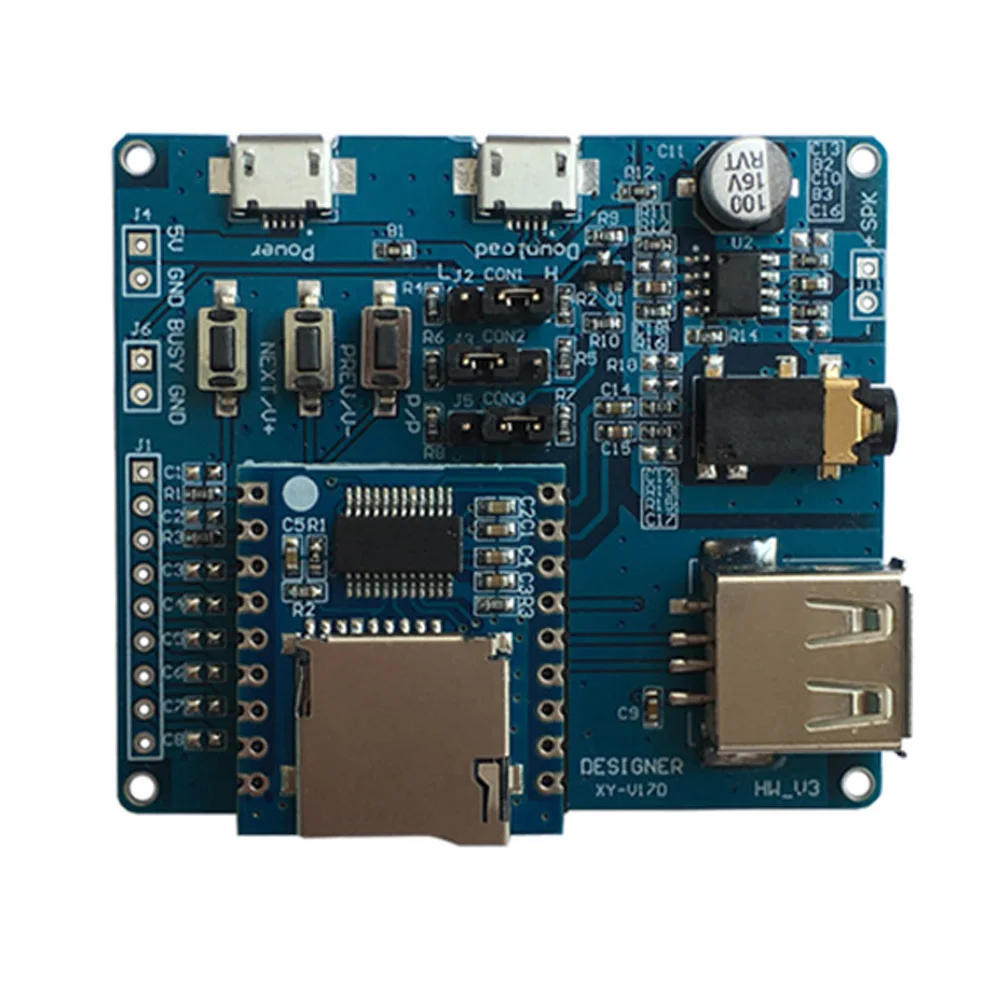

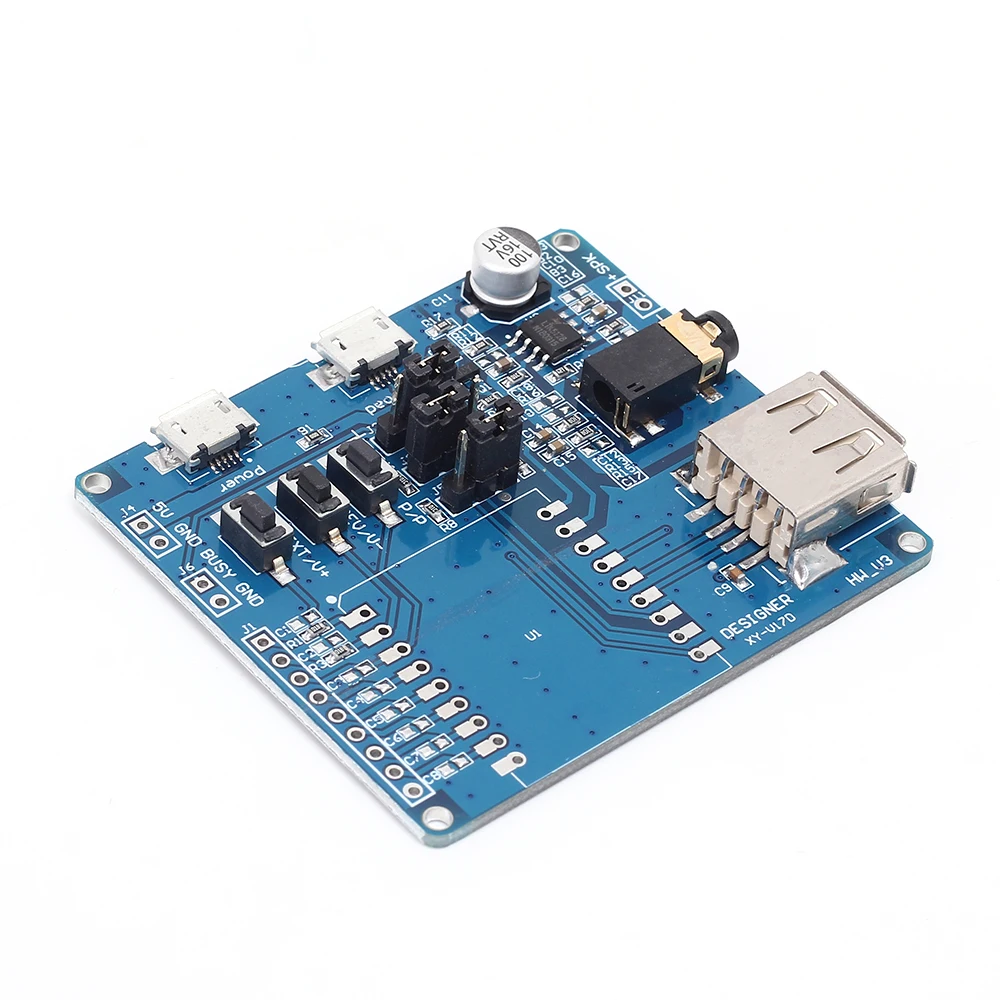

1>.Install XY-V17B on module XY-V17D;

2>.Connect to 4ohm~8ohm speaker;(Speaker is not include in package!)

3>.Connect working voltage;

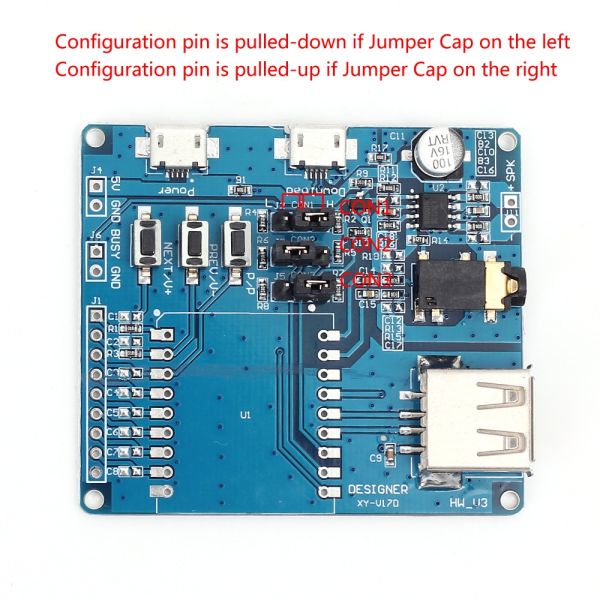

4>.Set work mode by jump cap CON1~CON3;

5>.Test by button on module;

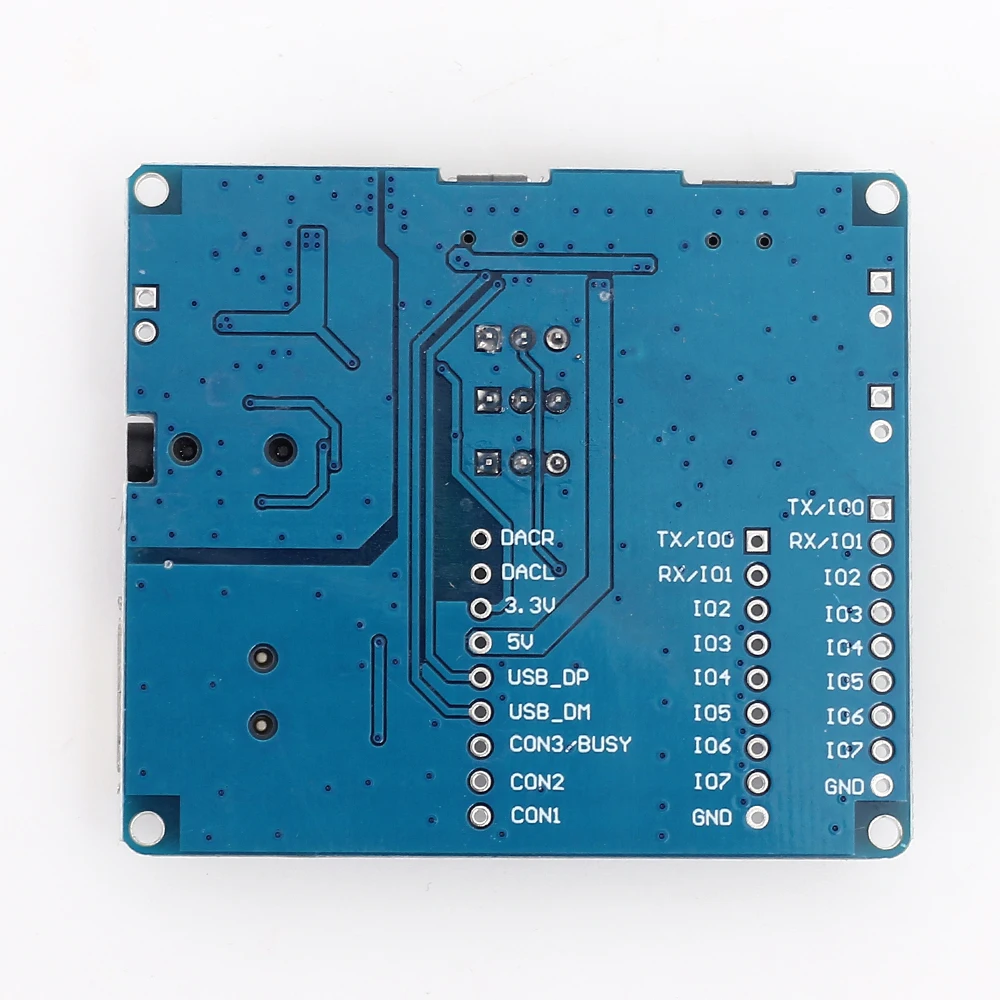

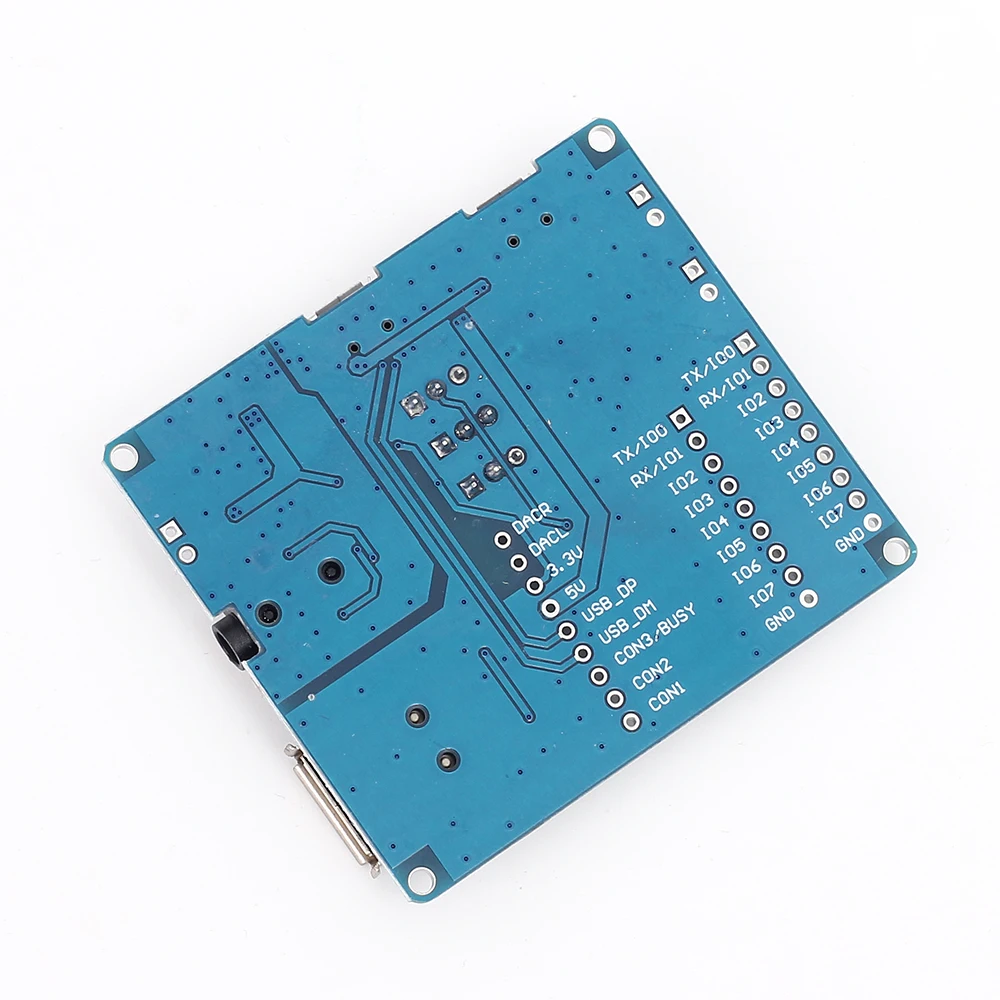

6.Mode configuration and pin function:

Control Mode

Configuration Pin

I/O Function

CON3

CON2

CON1

IO7

IO6

IO5

IO4

IO3

IO2

IO1

IO0

I/O Integrated Mode 0

0

0

0

Key combination play, can play 2^8-1(255) Songs.

I/O Integrated Mode 1

0

0

1

Level combination play, can play 2^8-1(255) Songs.

I/O Independent Mode 0

0

1

0

Music 8

Music 7

Music 6

Music 5

Music 4

Music 3

Music 2

Music 1

I/O Independent Mode 1

0

1

1

Music 8

Music 7

Music 6

Music 5

Music 4

Music 3

Music 2

Music 1

UART Mode

1

0

0

RXD

TXD

One-Line Mode

1

0

0

TXD

Standard MP3 Mode

1

0

1

RPT

EQ

P/P/MODE

PREV/V-

NEXT/V+

Note:

1>. "key combination play" : Return to the original high level after the corresponding level from I/O0-I/O7 output, similar to the key triggered once.Similar instantaneous switch.

2>. "Level combination play" :The trigger signal remains the same, similar to a self-locking switch.

3>.The difference between “I/O Integrated/Independent Mode 0” and “I/O Integrated/Independent Mode 1” :Mode 0 will continue playing the current song to the end after release level .Mode 1 will stop playing immediately after release level.

7.Package:

1pc XY-V17D UART Voice Controller;


  • Unit Type: piece
  • Package Weight: 0.02kg (0.04lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
