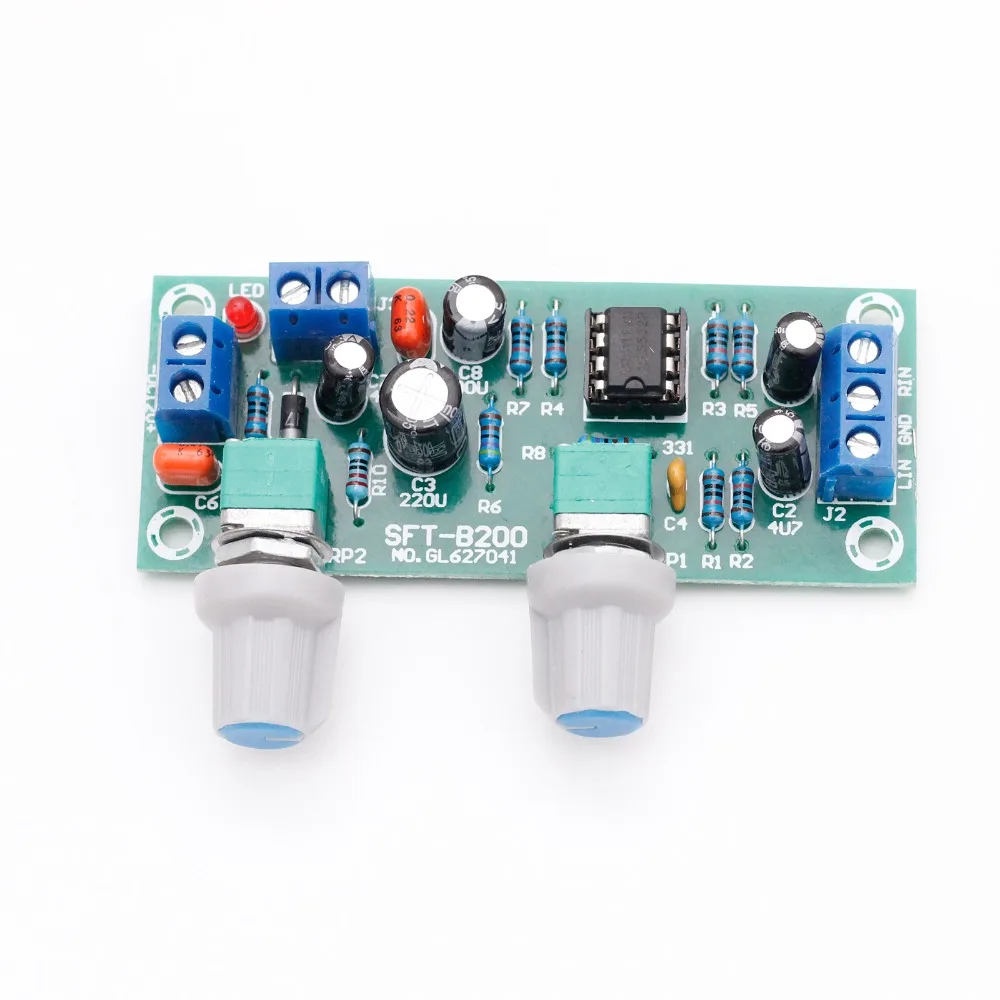

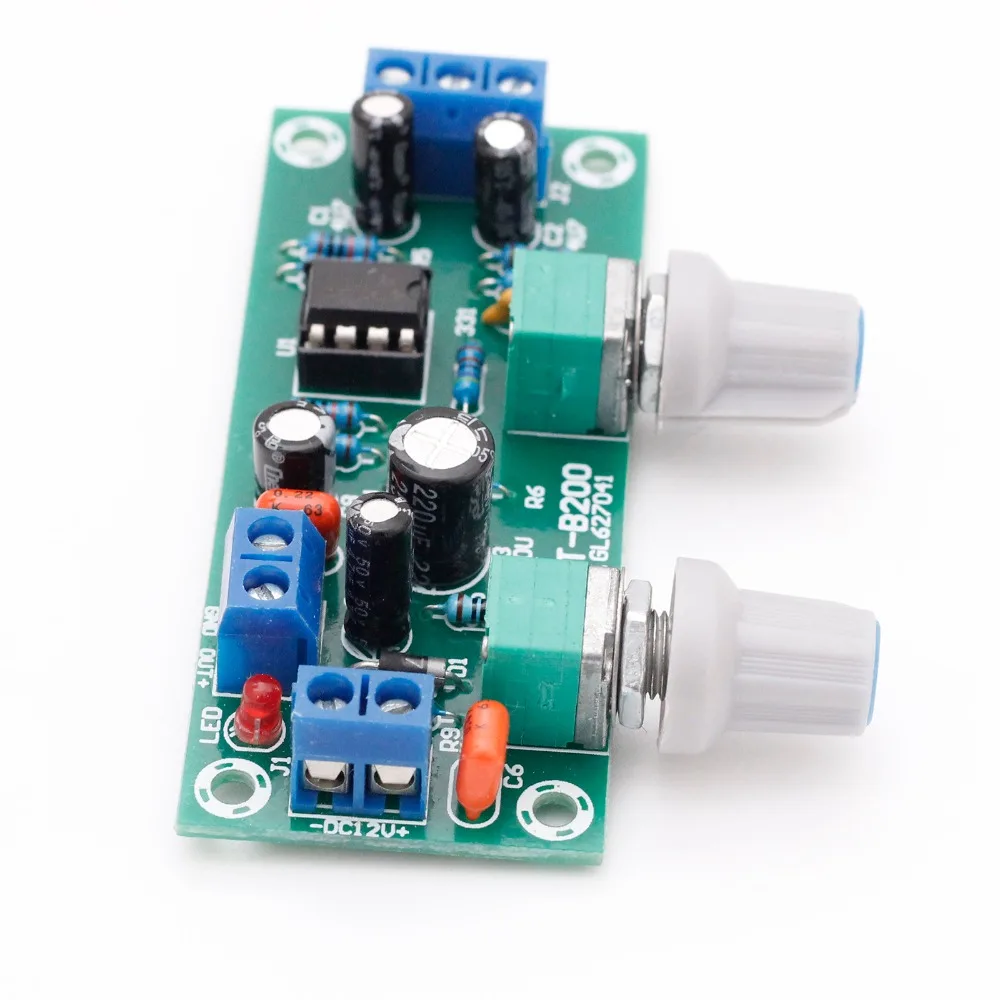

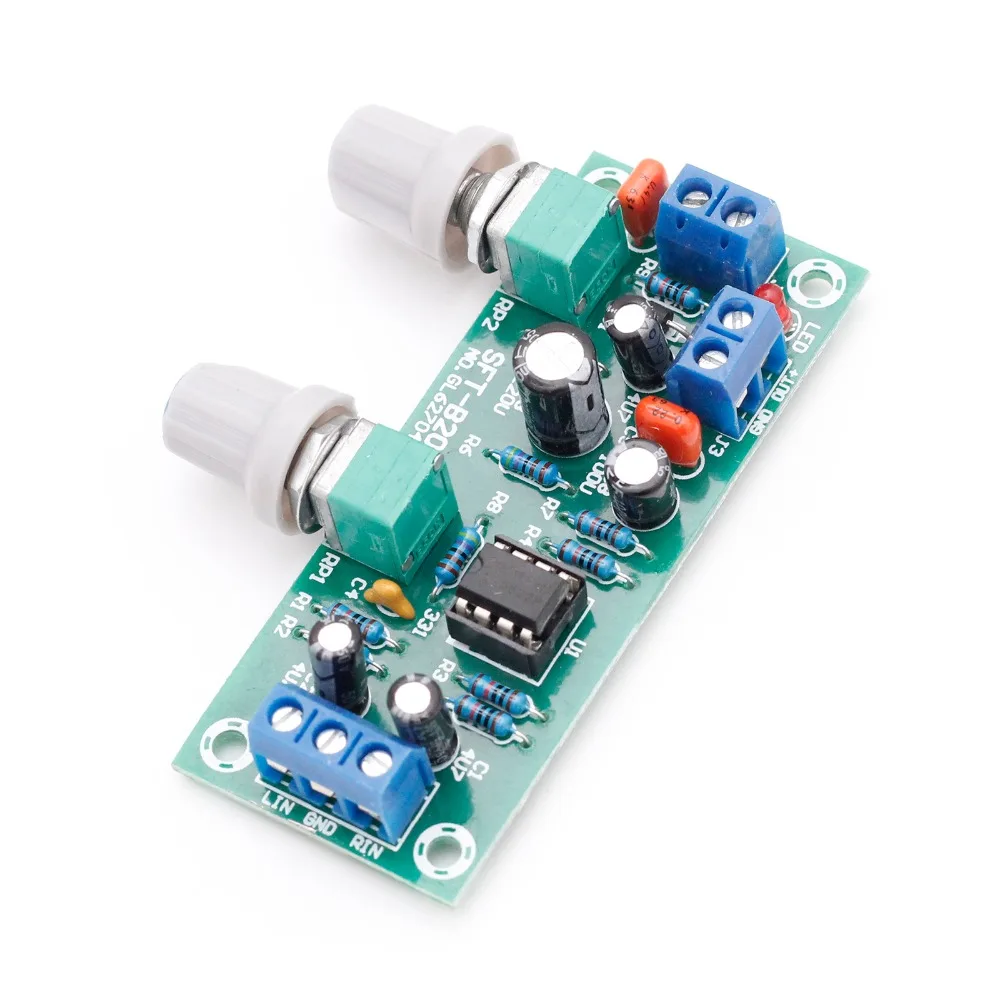

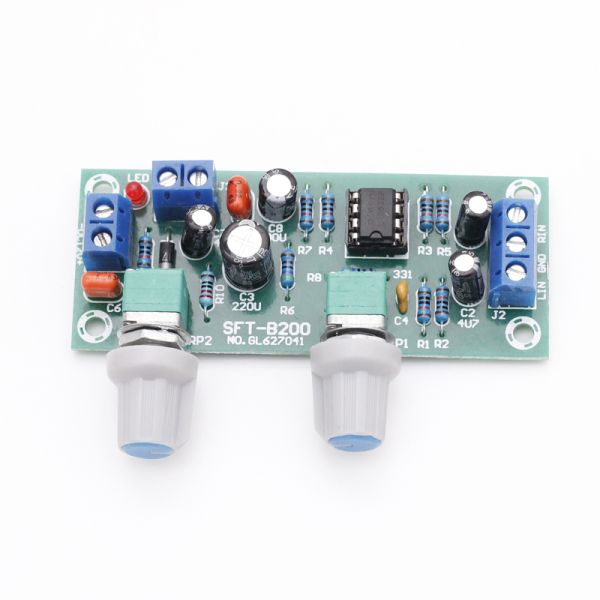

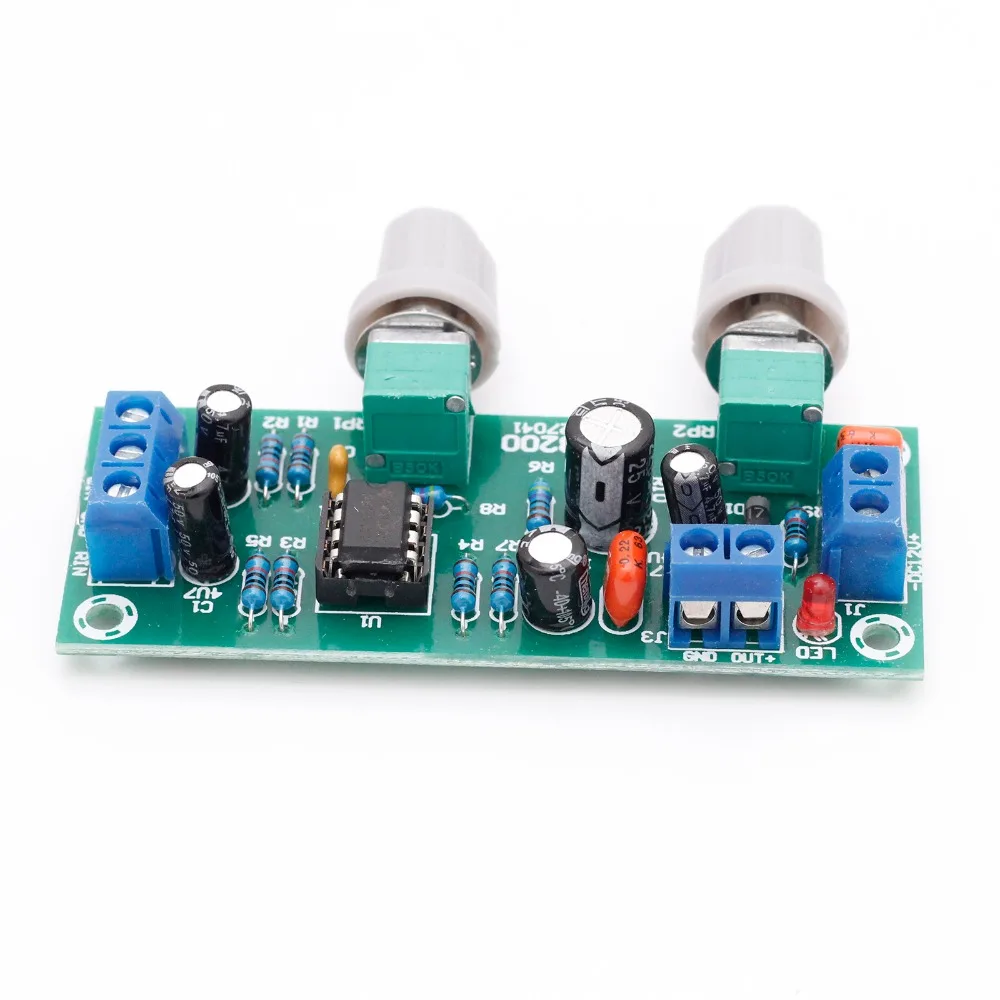

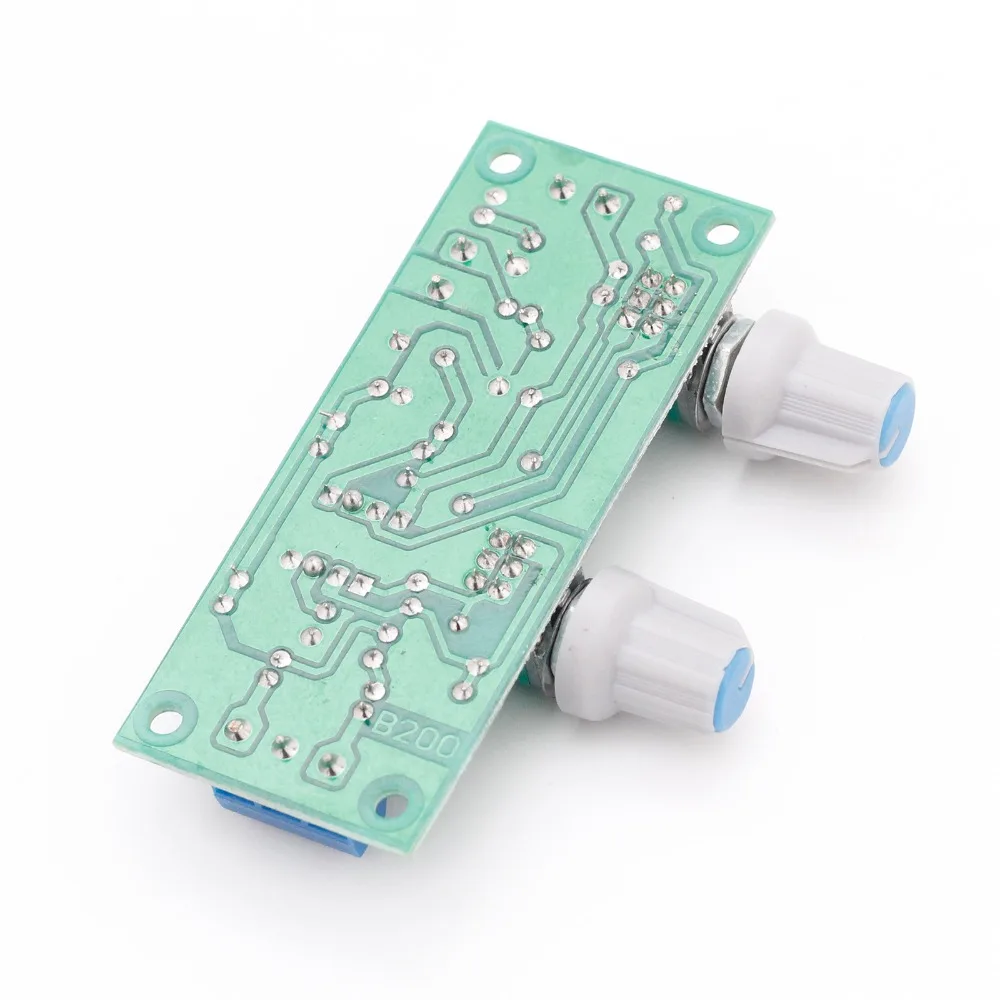

Monday Kids Bass Subwoofer Preamp Board Low-Pass Filter Plate 2.1 3-Channel DC 10-24V 22Hz-300Hz
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Model Number: Subwoofer Preamp Board
- Condition: New
- is_customized: Yes
- Type: Voltage Regulator
- Supply Voltage: DC10-24V
- Operating Temperature: -20 - 60
- Application: Electronic Circuit
- Type: Home Amplifier
- Channels: 3 (2.1)
- Frequency Range: 22Hz-300Hz
- Audio Input: Mono or Two-Channel
- PCB Specifications: 78x32mm, 1.6mm Thickness
Parameters:
Power supply voltage: DC10-24V DC single power supply
Frequency range: 22Hz-300Hz
Audio input: mono or two-channel
Audio output: Mono
PCB specifications: 78x32mm, Thickness: 1.6mm
PCB Materials: FR-4 ultra-hard glass plate
Finished board Weight: 30g
Plate mounting holes center to center spacing: 70x24mm, hole diameter: 3.2mm
Potentiometers axial center spacing: 32.5mm
- Unit Type: piece
- Package Weight: 0.04kg (0.09lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
