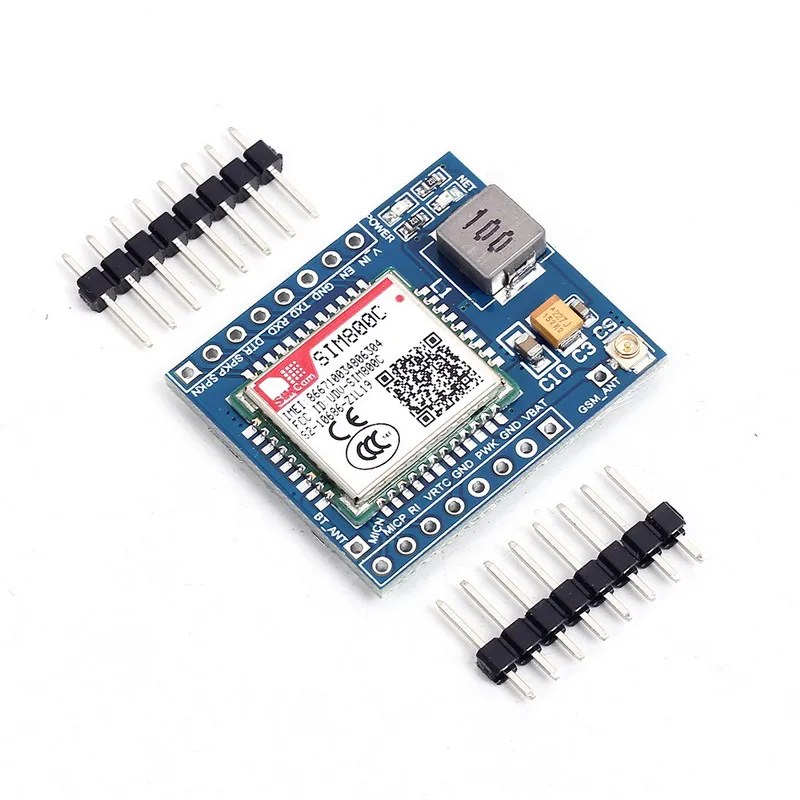

Monday Kids SIM800C GSM GPRS Module 5V/3.3V TTL Development Board IPEX With Bluetooth And TTS For Arduino STM32 C51
$7.43
Availability:
In stock
SKU
EK764
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Supply Voltage: DC5V
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- is_customized: Yes
- Operating Temperature: -30-85 Celsius
- Model Number: GPRS Module
- Application: GPRS Module
|
Description:
Power input: DC5V or received by a lithium battery input VBAT and GND.
Supports MCU level: 5V / 3.3V for TTL logic
(Such as the common 51 and the For arduino is 5v, STM32 is the 3.3v)
Antenna use: IPEX antenna interfaces, you can use the version PCB antenna or antenna IPEX-SMA- peppers
Pin Description:
5V: power supply pin, the only input DC5V, used to power the board.
V_TTL: access control board microcontroller core target voltage of 5V / 3.3V (according to its own microcontroller is much to distinguish kernel v), this pin is used to convert the GSM module board TXD and RXD for the corresponding TTL logic.
GND: power supply ground
TXD: send pin serial port module, TTL level (not directly connected to RS232 level)
RXD: receive pin serial port module, TTL level (not directly connected to RS232 level)
DTR: Data Terminal Ready
SPKP: Core Audio output pin
SPKN: Core Audio output pin
MICN: Core Audio input
MICP: Core Audio input
RI: Ring core pin tips
VRTC: RTC pin external battery
GND: power supply ground
PWR: This pin can turn down or turn off the module
GND: power supply ground
VBAT: lithium battery input pin, 3.3v-4.4v
- Unit Type: piece
- Package Weight: 0.018kg (0.04lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
