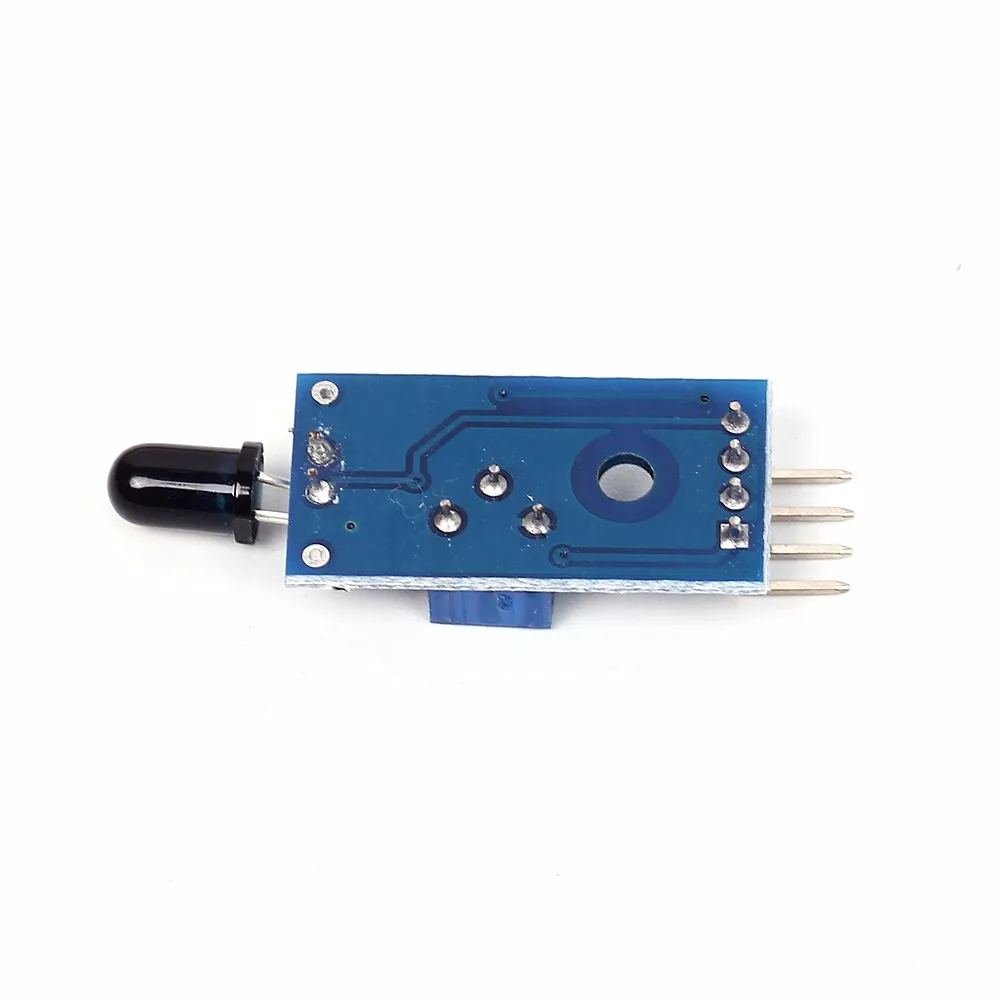

Monday Kids 5pcs/lot LM393 4 Pin IR Flame Detection Sensor Module Fire Detector Infrared Receiver Module for Arduino Diy Kit
$1.93
Availability:
In stock
SKU
EK786
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Model Number: Flame Detection Sensor
- is_customized: Yes
- Supply Voltage: 3.3V-5V
- Operating Temperature: -30 ~ 85 Celsuis
- Application: Electronic Circuit
Features:
1. Detect the flame or the wavelength at 760nm to 1100nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test
2. tThe detection angle of 60 degrees, the flame spectrum particularly sensitive
3. Sensitivity adjustable (shown in blue digital potentiometer adjustment)
4. The comparator output signal clean waveform is good, driving ability, than 15mA
5. With a precision potentiometer adjustable sensitivity adjustment
6. Operating Voltage 3.3V-5V
7. The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output
8. Fixed bolt holes for easy installation
9. Small plates PCB size: 3.2cmx1.4cm
10. Using a wide voltage LM393 comparator
Usage:
1. Flame sensor most sensitive to ordinary light is also a reaction, generally used as fire alarm and other purposes.
2. Small panel output interface can be directly connected with the microcontroller IO port
3. Sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature of the test flame lighters distance 80cm, the larger the flame, the greater the distance test
4. Small plates analog output mode and the AD conversion process, you can get higher accuracy
- Unit Type: lot (5 pieces/lot)
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
