Monday Kids 6S 6 Series Lithium Battery Capacity Indicator Module 25.2V Blue Display Electric Vehicle Battery Power Tester Li-po Li-ion

$1.61
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: Battery Capacity Indicator
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Supply Voltage: 25.2V
  • Application: Battery Capacity Indicator

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Features:
1.Battery type electricity quantity display
2.Wide application fields:lithium battery

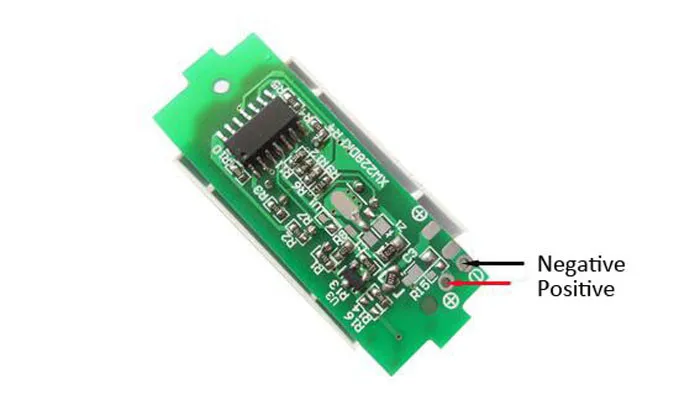

3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity

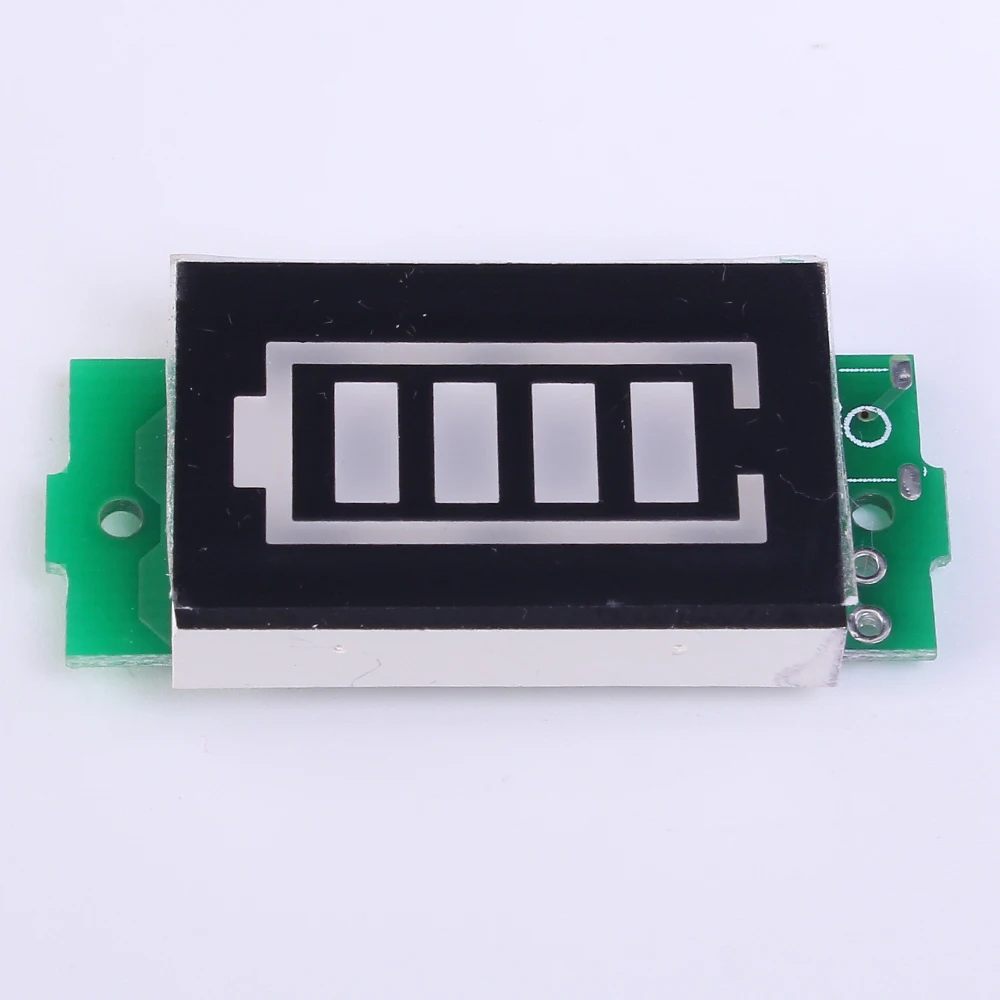

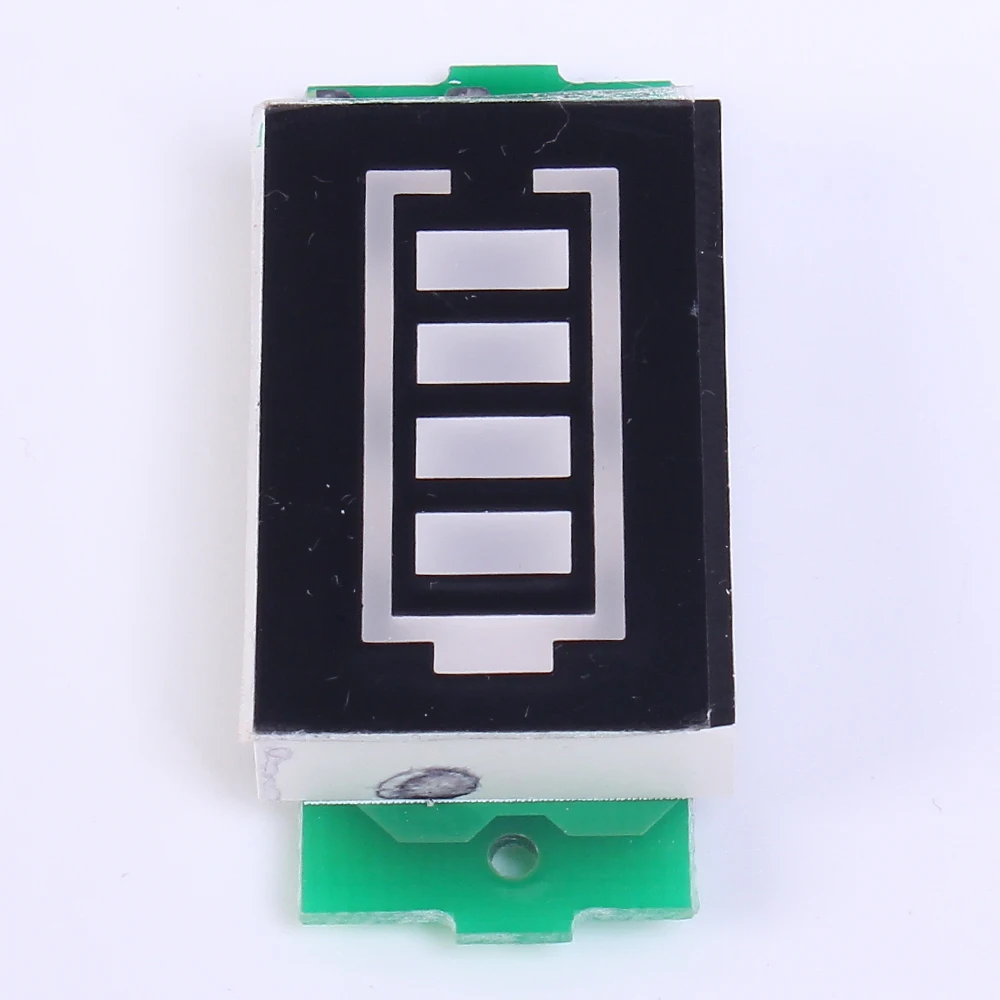

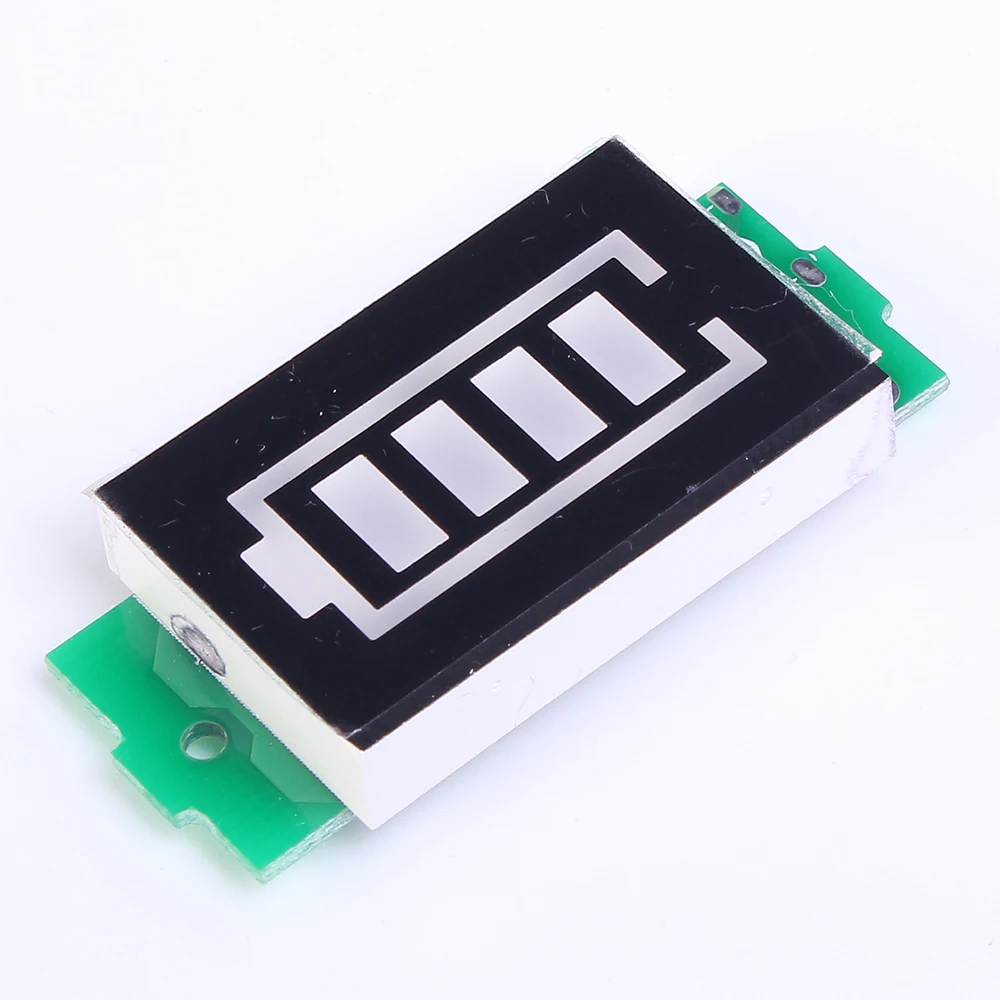

4.Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on)

Display Electricity Quantity Parameter:
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity)
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery


  • Unit Type: piece
  • Package Weight: 0.015kg (0.03lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
