Monday Kids DC 12V ESP8266 2 Bit WIFI Relay Module IOF Intelligent Home Mobile APP Remote Control Switch For Smart Home IOT Transmission

1. Description:

The 12V ESP8266 two way WIFI relay module is based on ESP-01 as the WIFI module, with 8 bit MCU chip, and realizes the wireless control of the relay in the local area network by mobile APP through a simple configuration process.

2. Function and features:

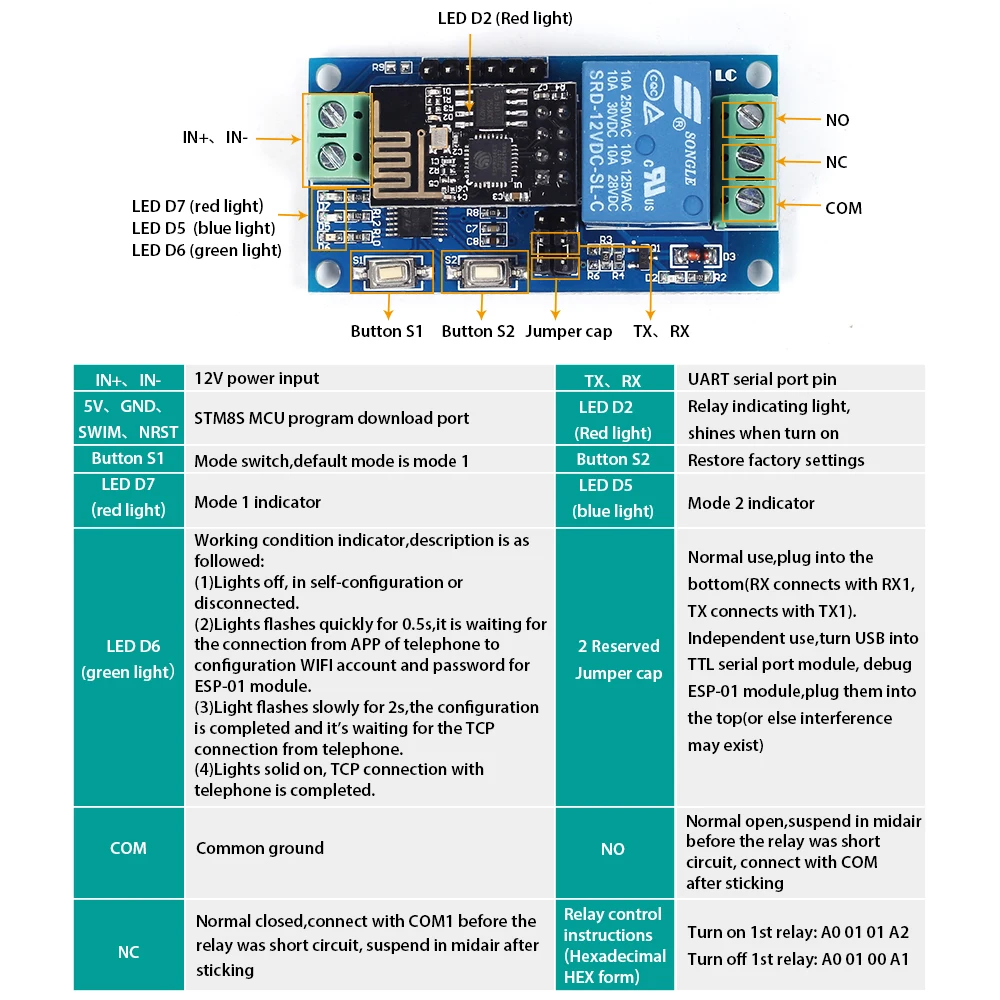

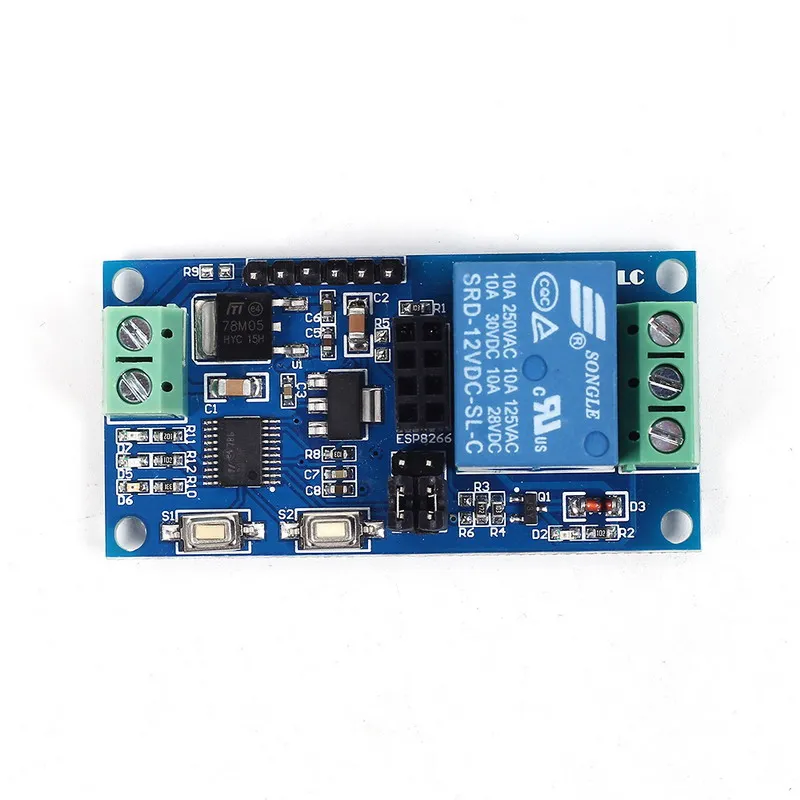

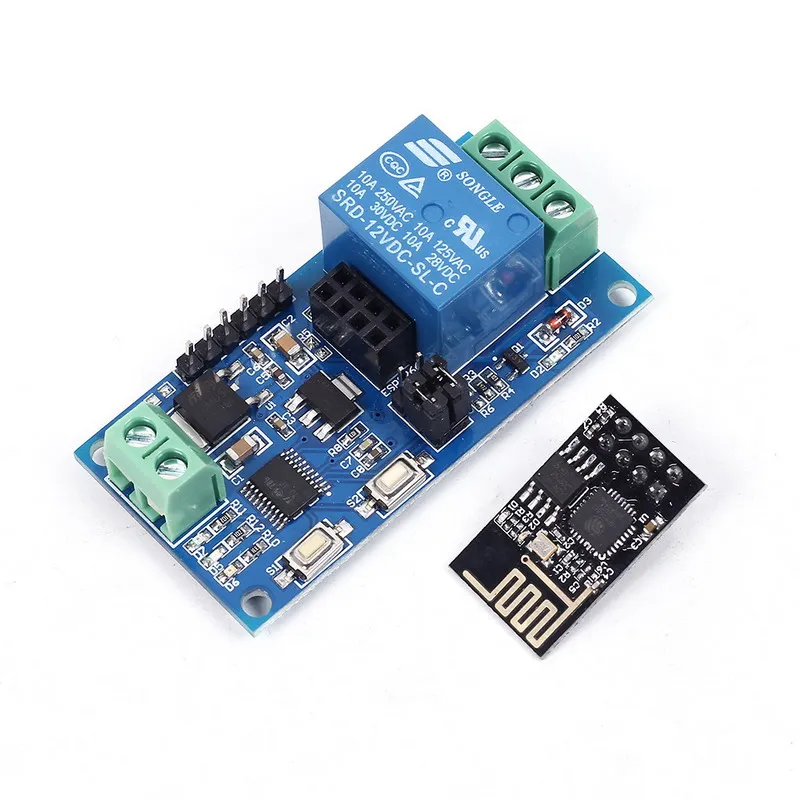

1>. On-board high performance microprocessor STM8S103 and ESP-01 WIFI module

2>. The module has 2 modes of work

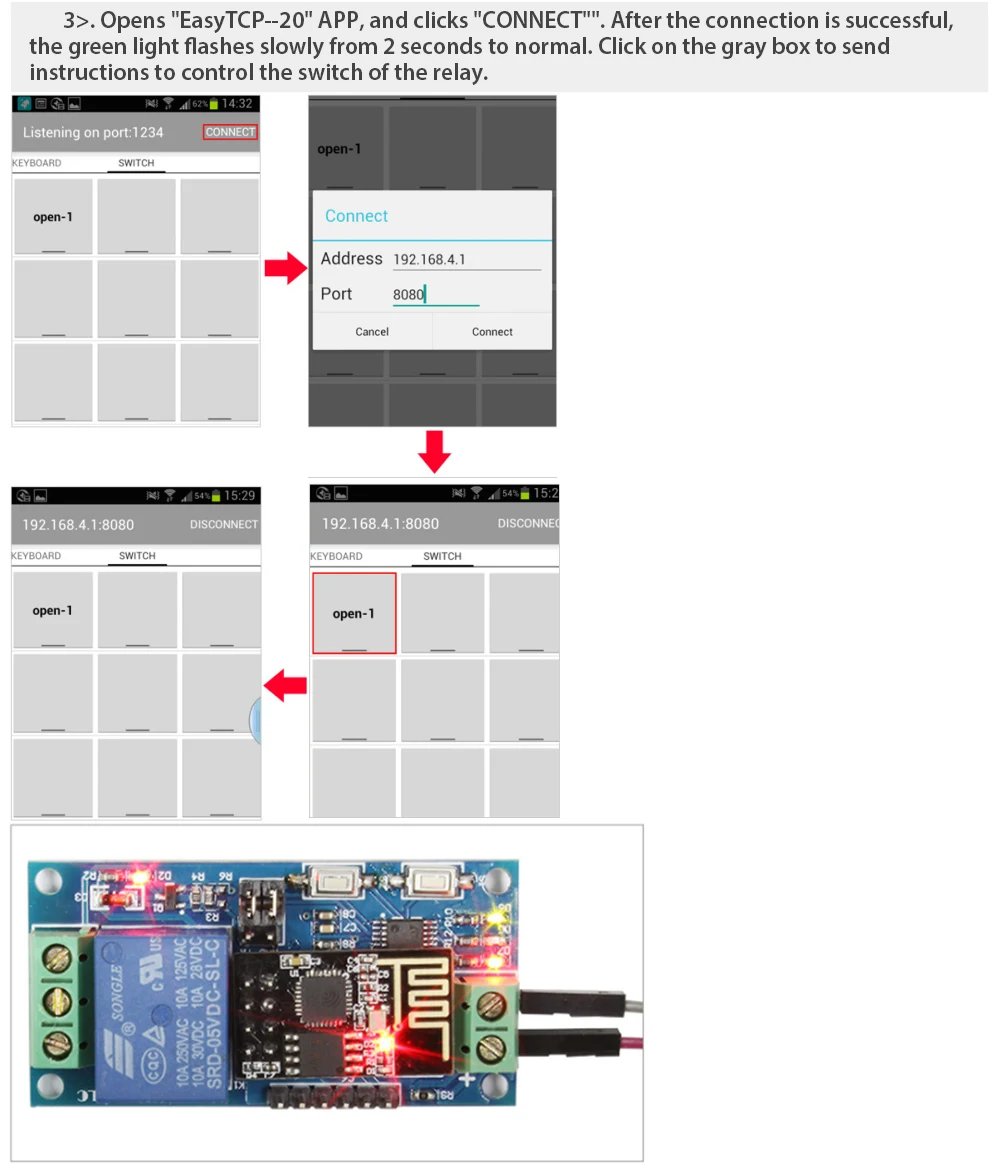

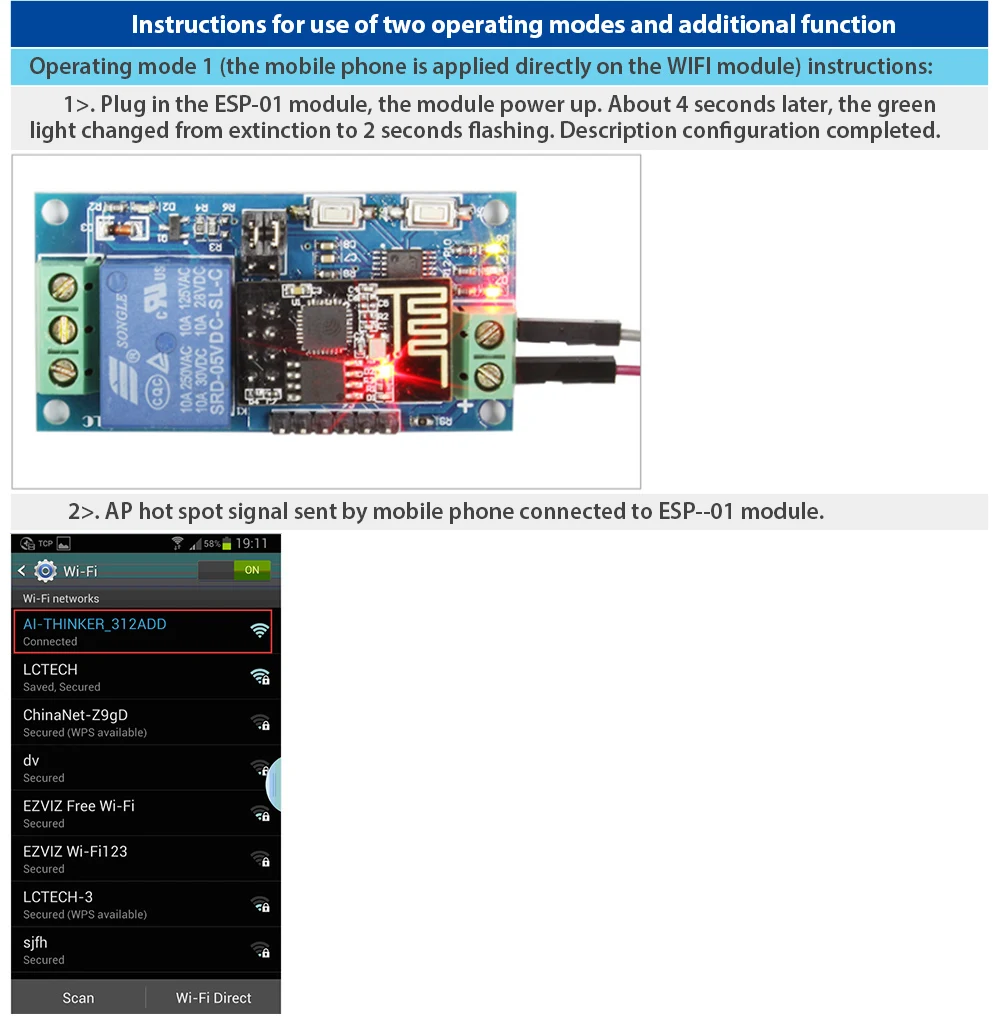

Mode 1: the mobile phone is applied directly on the WIFI module
Mode 2: the mobile phone and the WIFI module are applied to the router at the same time.
Additional function: it can also be used as a USB relay when the ESP-01 is pulled out.

3>.Transmission distance:
In an open environment, the maximum stable transmission distance is 100M when the mobile phone is mounted on the WiFi module.
4>. When the WiFi module and mobile phone are carried on the router at the same time, the transmission distance depends on the signal strength of the router.

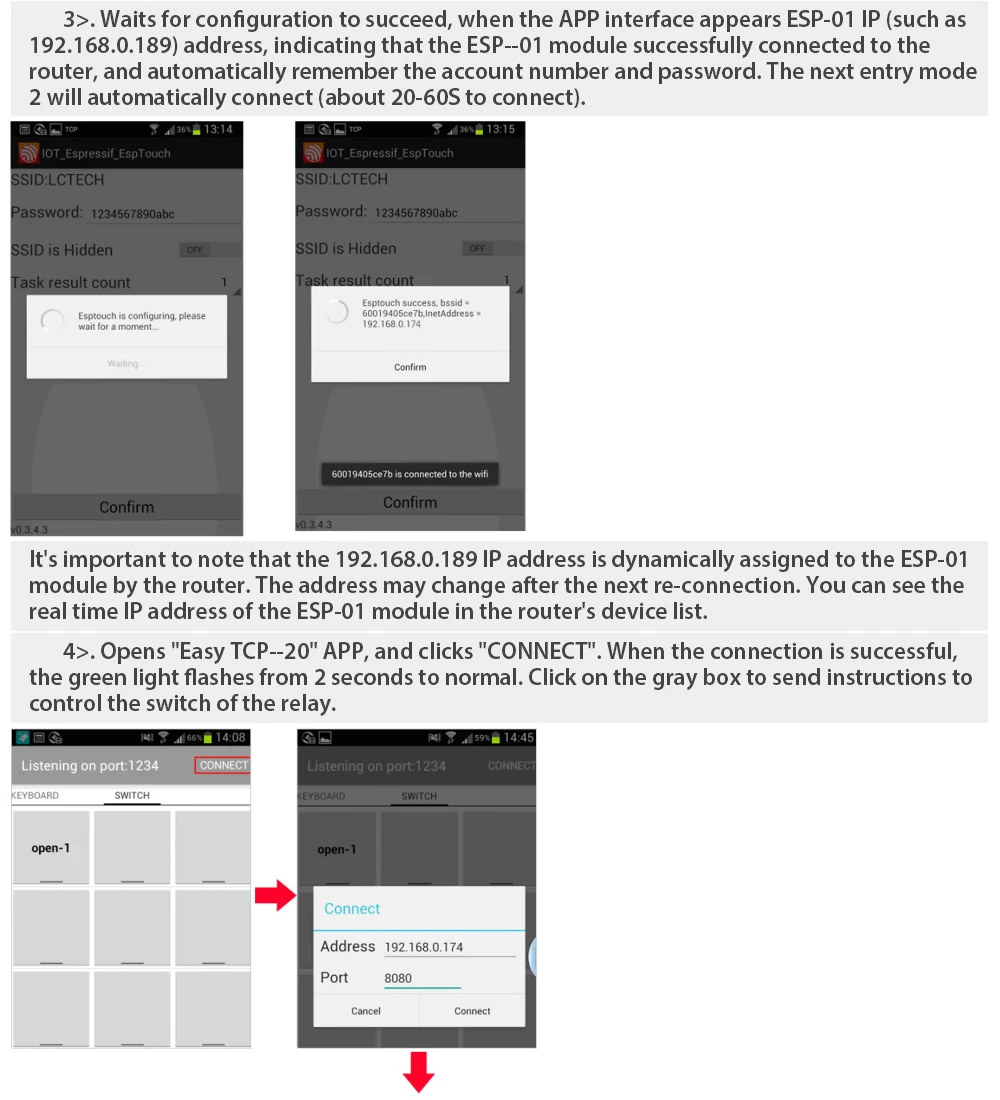

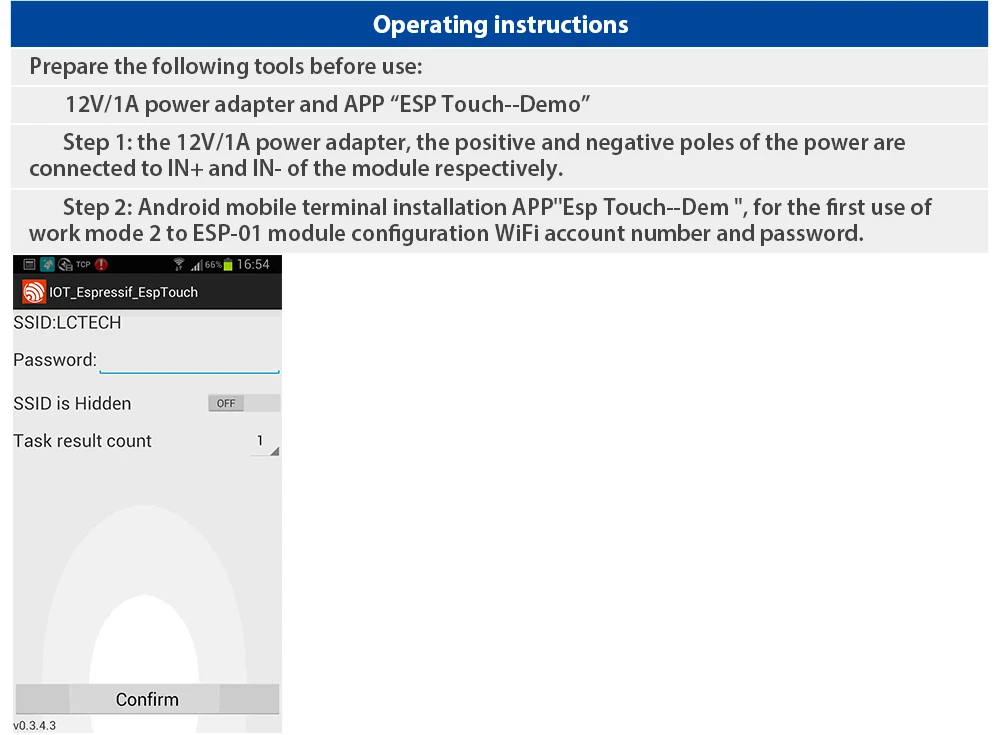

5>. The use of Smartcongig technology in the mobile phone on the APP ESP-01 WiFi module to complete the account and password configuration, configured username and password memory function.
6>. On-board 12V, 10A/250V AC 10A/30V DC relay, which can be continuously pulled for 100 thousand times, has diode discharge protection, short response time.
7>. On-board mode selection and real time working status indicator.
8>. Reserved UART debug interface and STM8 SWIM program download interface.
9>. Board size: 57.4*29mm.
