Monday Kids 12V ACID Lead Battery Indicator Battery Capacity LED Tester Voltmeter Charge Battery Level Indicator Lead-acid Batterie Capacity

$2.17
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: Batteries Indicator
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Operating Temperature: -10 ~ +65 celsius
  • Supply Voltage: 12V
  • Application: Batteries Indicator
  • Working Current: 5-15mA(The lower the battery voltage and current smaller)
  • Eight electricity Resolution: 10% 25% 40% 50% 60% 75% 90% 100%
  • Voltmeter Accuracy: 1%
  • Operating Humidity: 10 ~ 80%

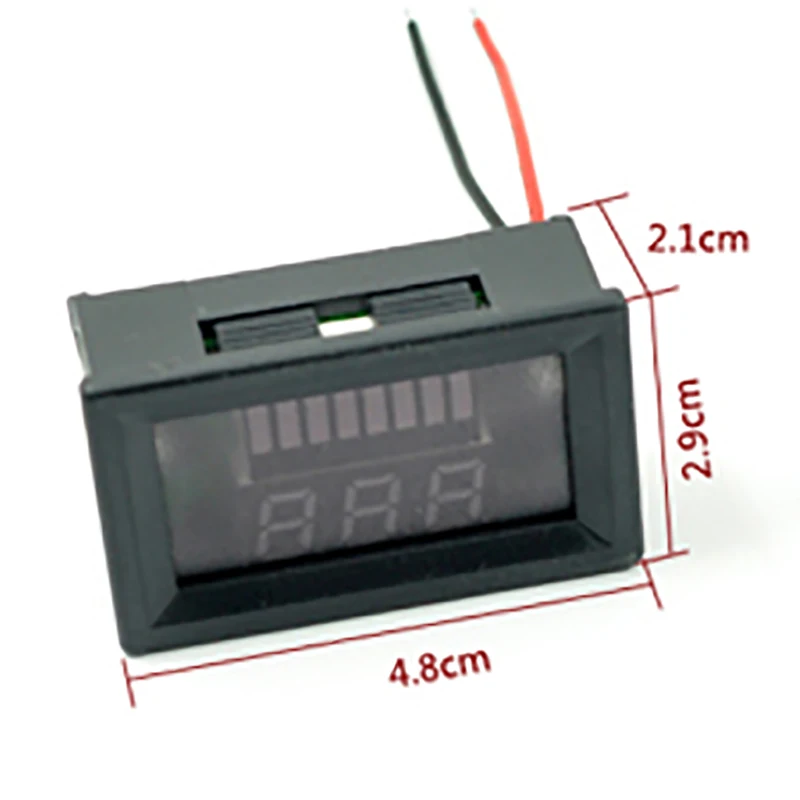

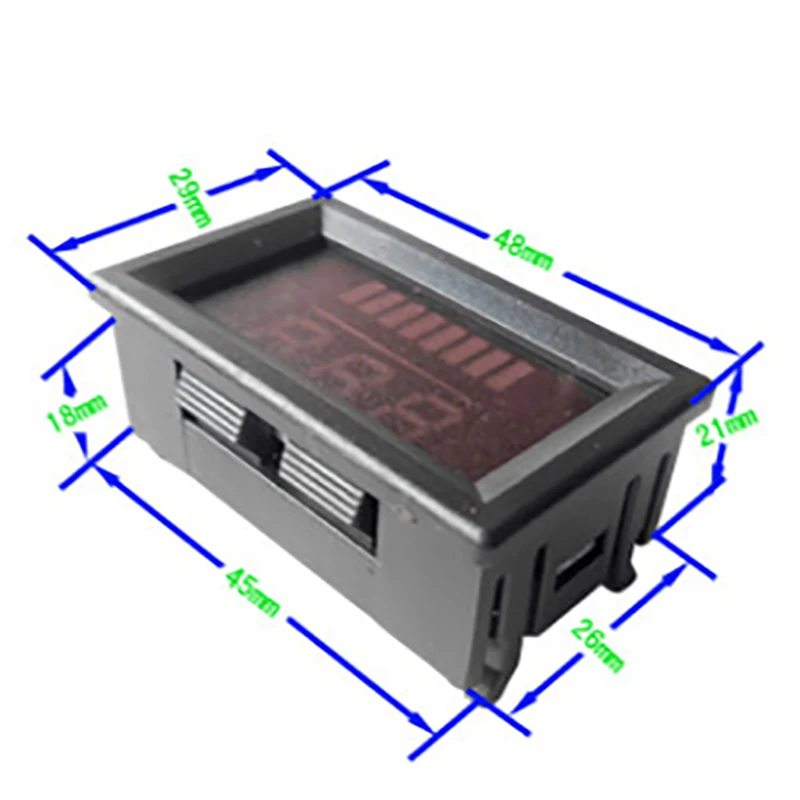

  • Dimension: 48*29*21 mm
  • Name: charge indicator

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Description
1. Working current:5-15mA(The lower the battery voltage and current smaller)
2. Eight electricity Resolution:10% 25% 40% 50% 60% 75% 90% 100%
3. Voltmeter accuracy:1%
4. Working temperature: -10 ~ +65 Centigrade
5. Operating Humidity: 10 ~ 80%
6. Dimensions: 48*29*21 mm

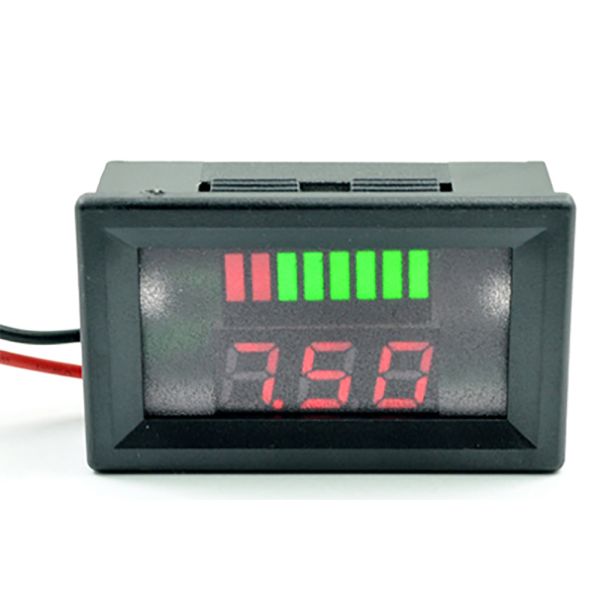

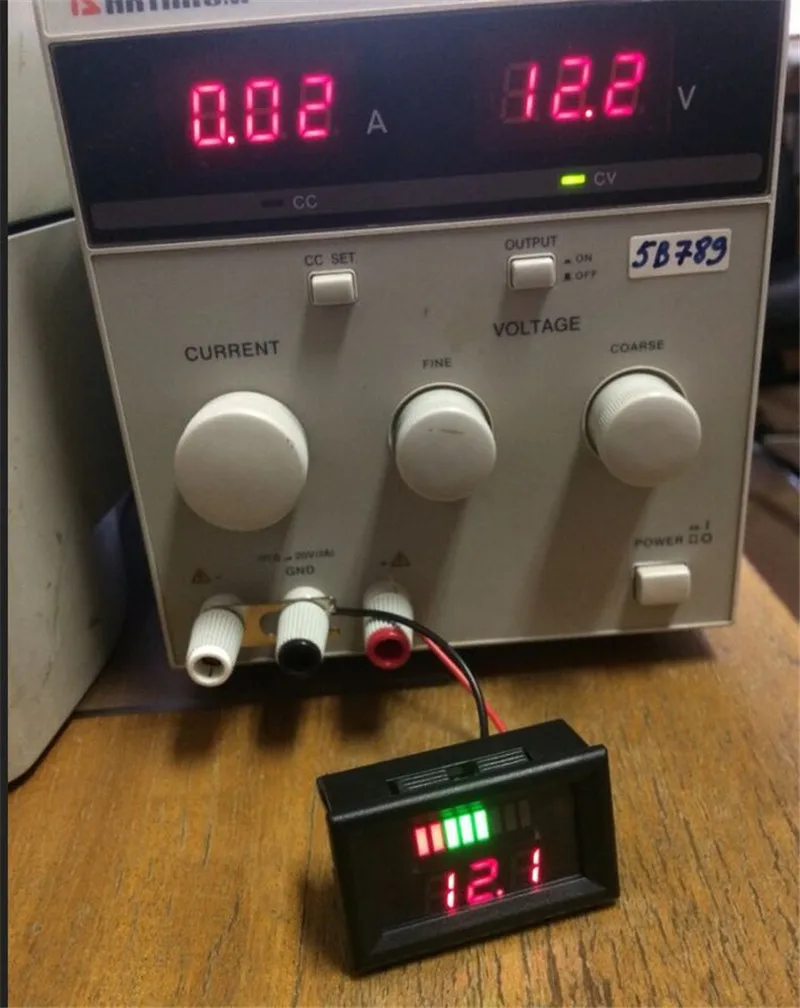

Indicator:


Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.

Not more than 20V can be!

NOTE: It will only display voltage if not measure lead-acid battery!!

  • Unit Type: piece
  • Package Weight: 0.025kg (0.06lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
