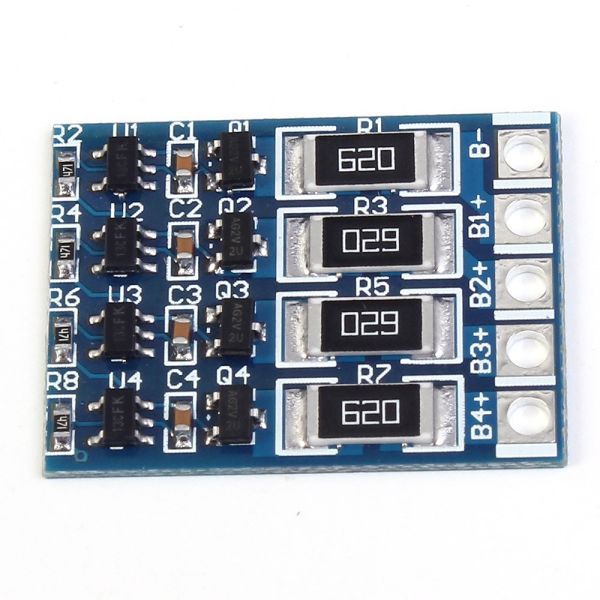

Monday Kids 4S 3.6V DIY 58mA 18650 Lithium Iron Phosphate Battery Charger Protection Board Balanced Function Polymer Li-ion Charging Module

$2.50
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • is_customized: Yes
  • Operating Temperature: -30~85 celsius
  • Model Number: Battery Protection Board
  • Application: Battery Protection Board
  • Features: 3.6V balanced function
  • Operating Current: 58mA

Product Introduction:
1.Features:3.6V balanced function
2.Operating Current:58mA

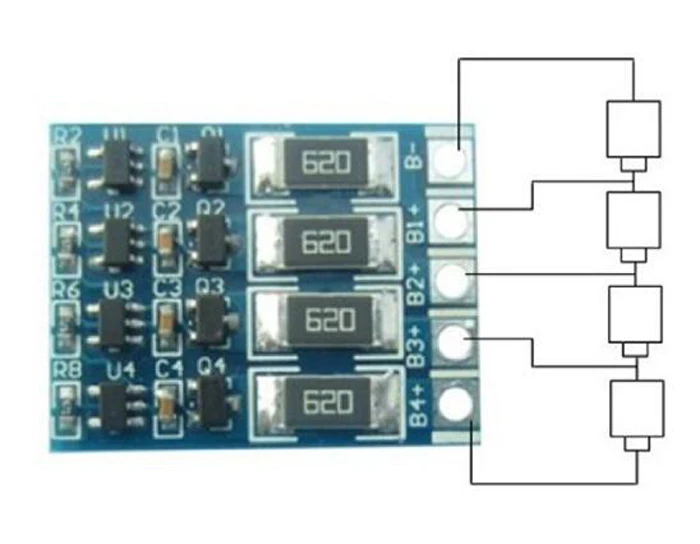

Soldering Point Introduction:
1.B4+:connect with battery pack positive
2.B3+:connect with junction between battery 1 and battery 2
3.B2+:connect with junction between battery 2 and battery 3
4.B1-:connect with junction between battery 3 and battery 4
5.B-:connect with battery pack negative
Notice:
1.This balanced board is adaptive to lithium battery pack which has no balance charging function,it can add charging and balanced function to ensure battery pack full of electricity
2.This balanced board has no function of charging or discharging,and it cannot replace the protection board.When the battery is in the end of full charged,it will discharge by resistor to first fully charged battery,namely shunt and balance function
  • Unit Type: piece
  • Package Weight: 0.016kg (0.04lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
