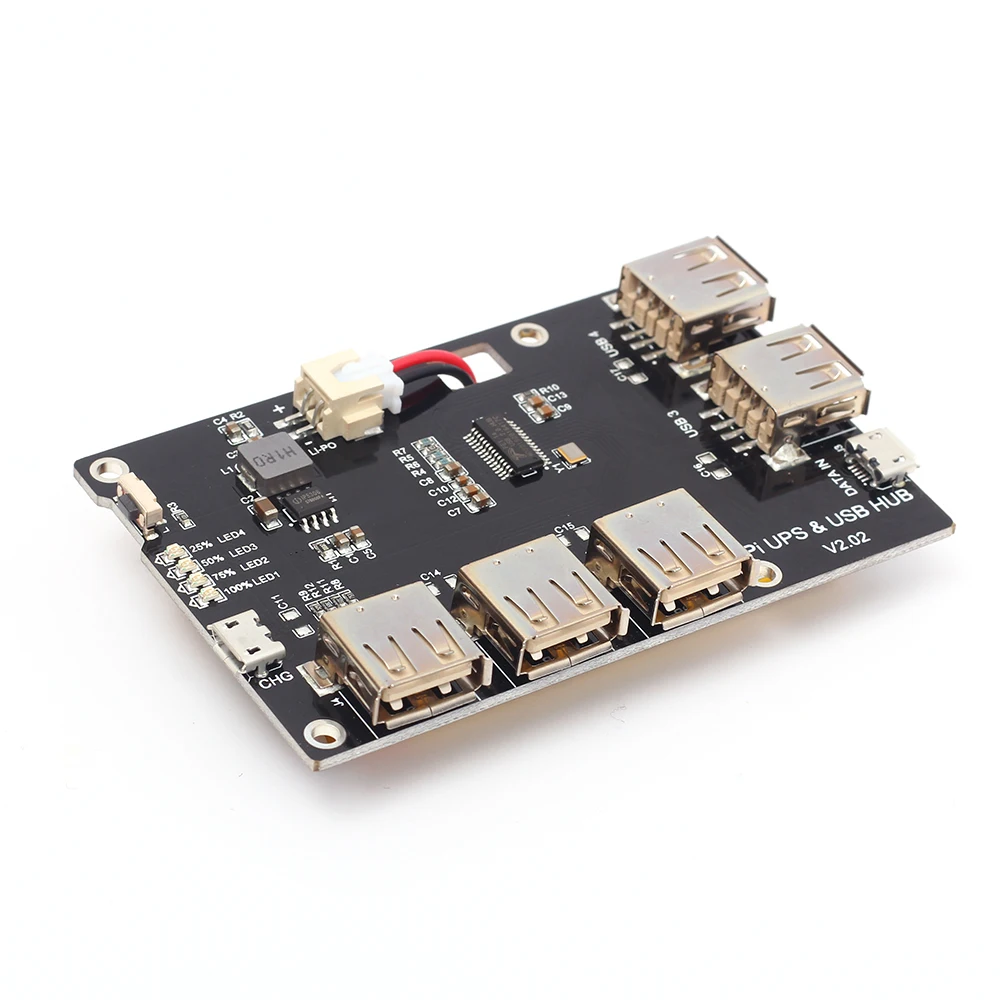

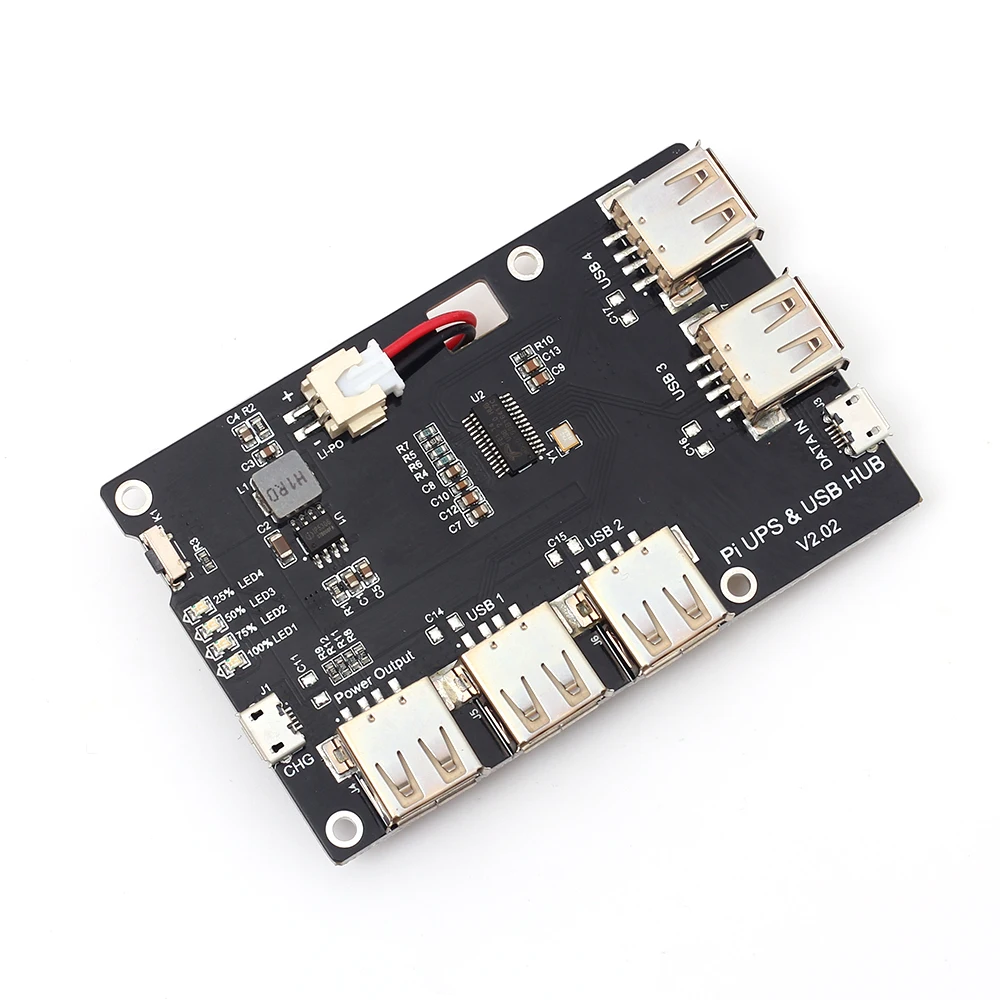

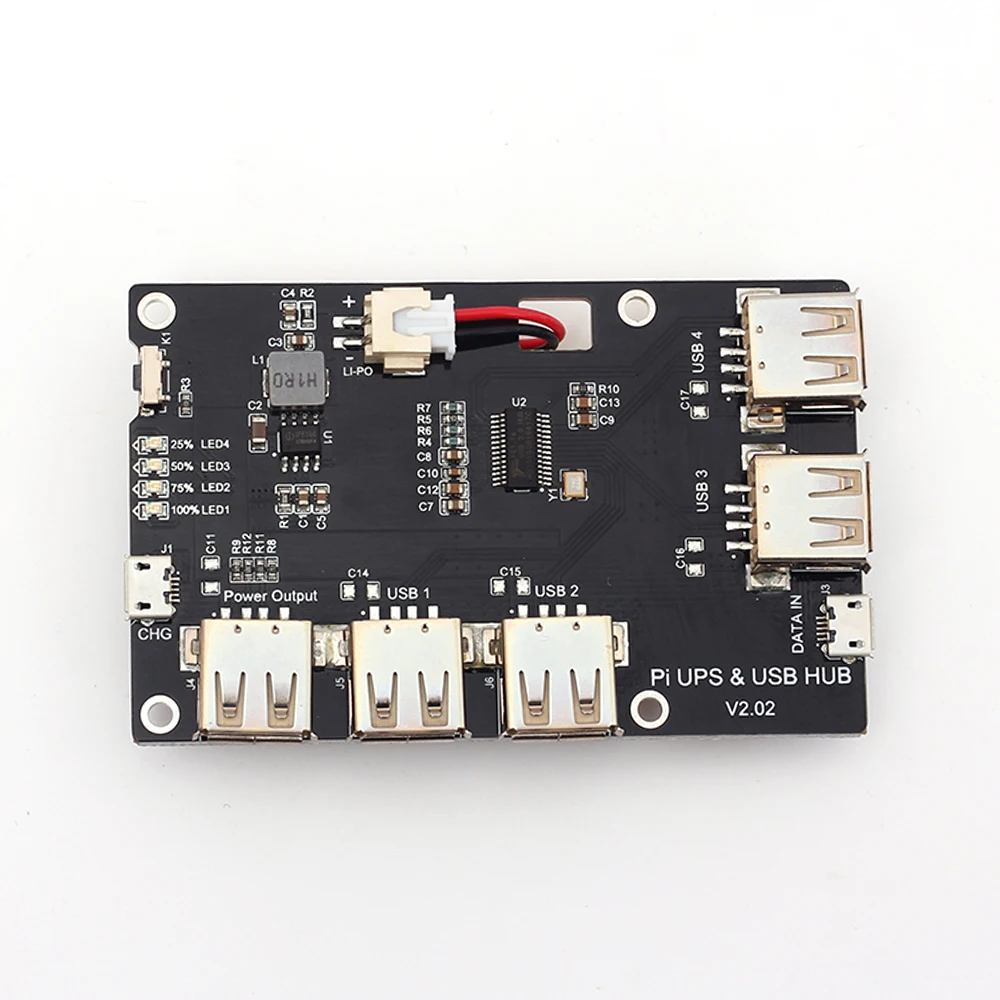

Monday Kids 5V 2A Power Supply Board Module USB HUB Lithium Battery Module for Raspberry Pi 3 Zero/3B/2B/B

$18.50
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Supply Voltage: 5V
  • Operating Temperature: -30~85 celsius
  • is_customized: Yes
  • Model Number: Power Supply Board
  • Application: Power Supply Board

Description

As we know, The Raspberry Pi has 4 USB Port so that we can hook up 4 USB devices on it. You will need a USB expansion device like USB HUB If you want to have more USB device connected.

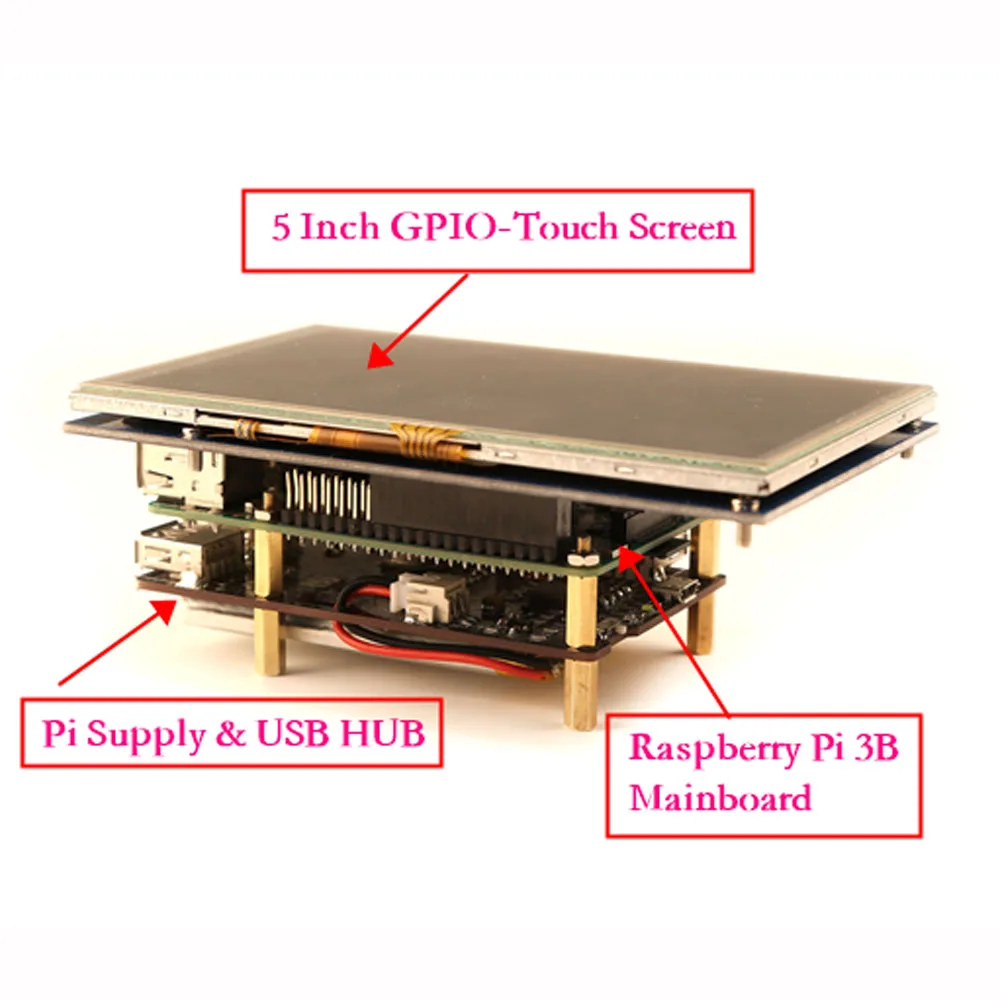

And most of them are not for mobility. Pi Supply & USB HUB is fit for your mobility requirement, It is smaller and functional.
It can provide power charging for your Cellphone (except iPhone) / Raspberry Pi 3 Model B/ Pi 2B /Pi B+ /Pi A+/Pi B/ Pi zero
It can offer you 4 USB-DATA transport Ports in case you need a USB HUB as well.

Features

Parameters

Value

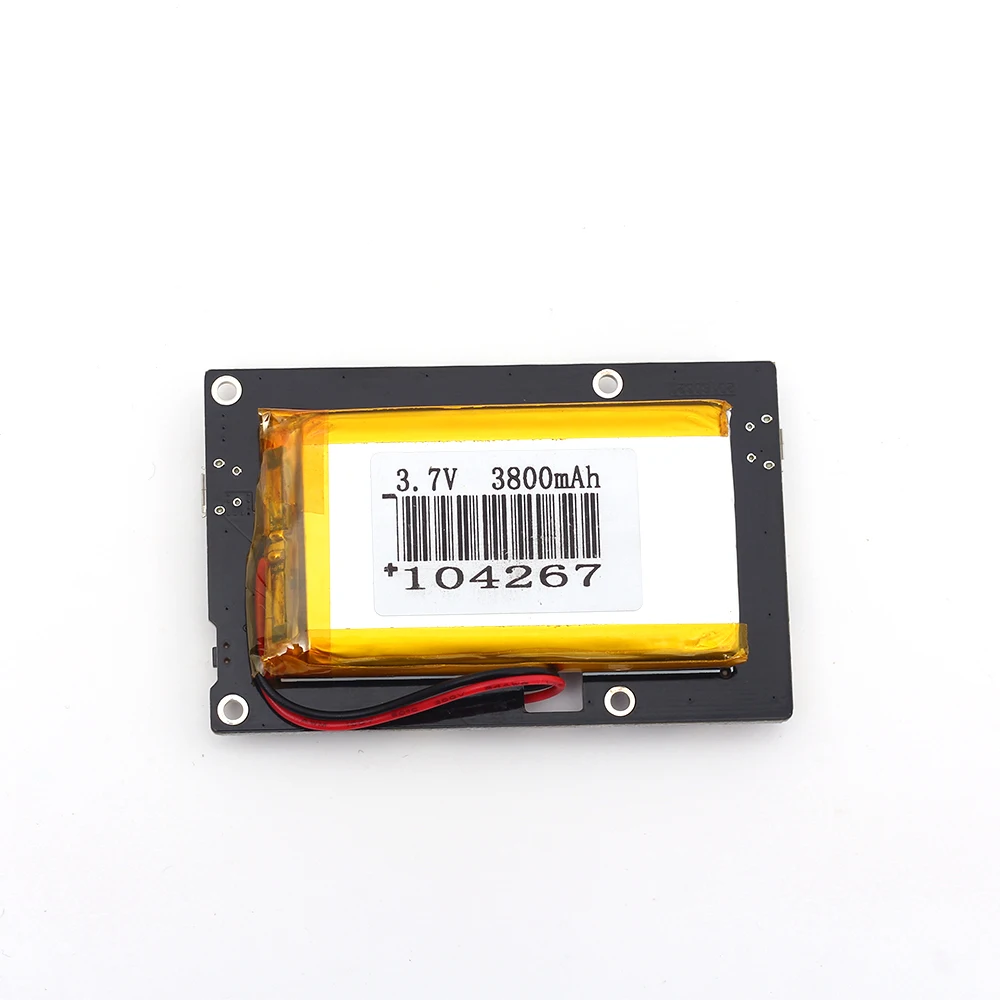

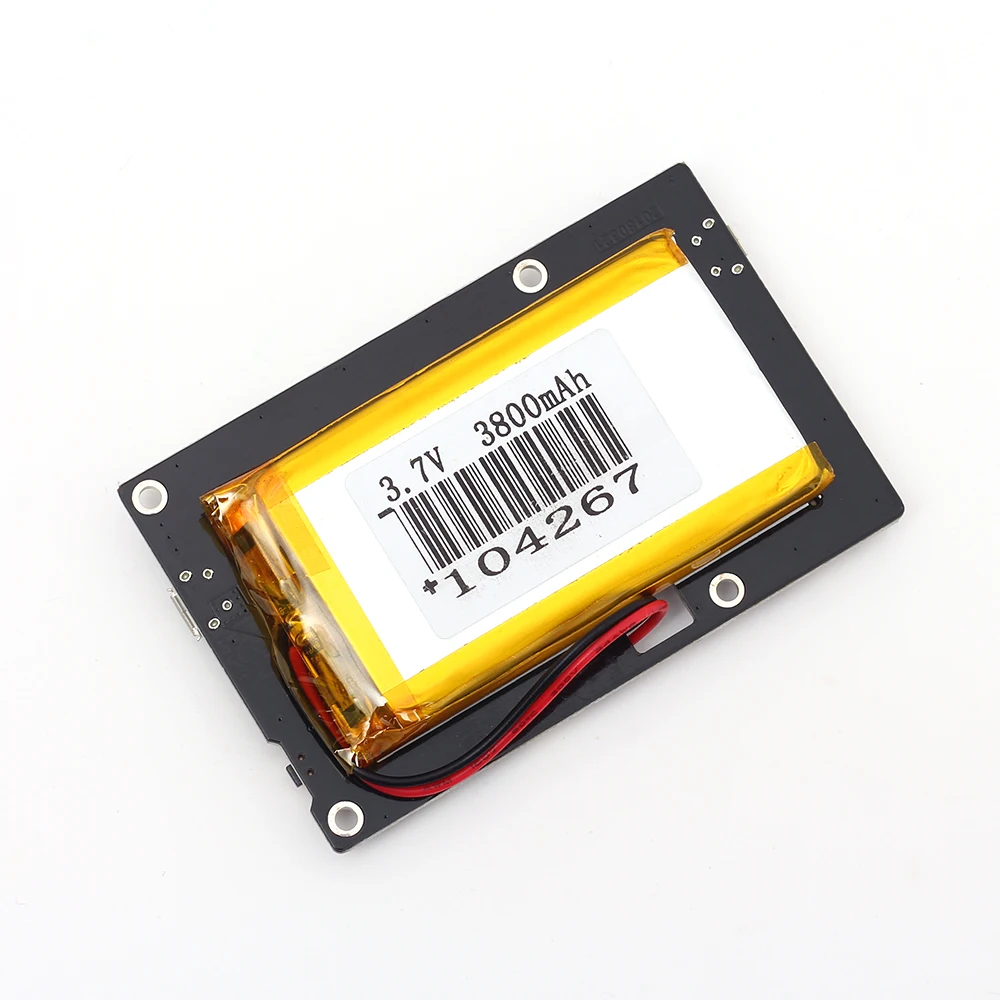

Battery Capacity:

3800mAh Maximum

Output Current:

2.0A

Output Voltage:

5.0V

Output Ports:

USB2.0 x 5

Standard Charging Current / Voltage :

1.0A/5.0V

USB Data Ports:

USB2.0 x 4 / MicroUSB x1

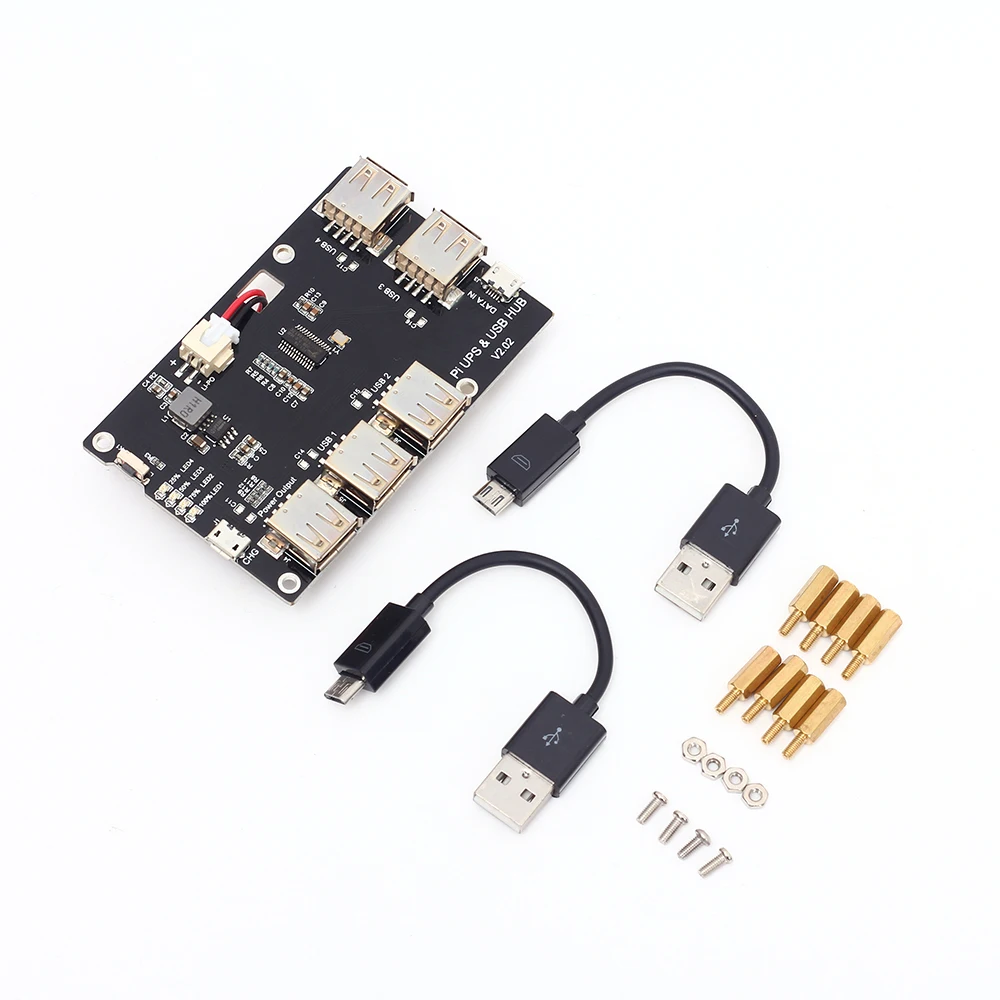

Package Includes

· 1 x Pi Supply & USB HUB

· 8 x M2.5 nylon screws

· 2 x M2.5 nylon nuts

Function Details

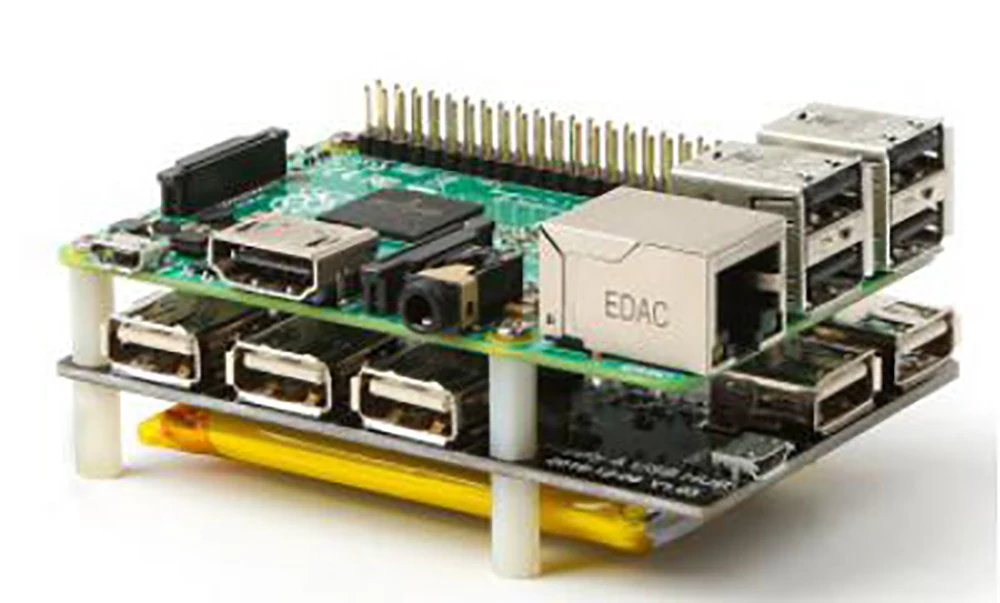

How to wire it up:

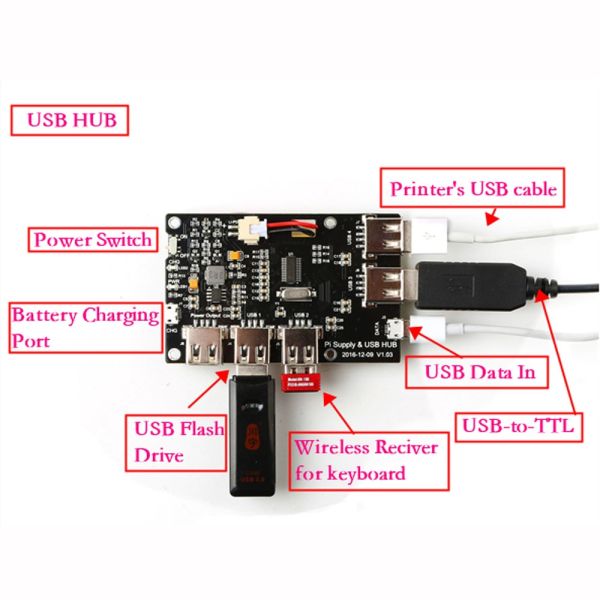

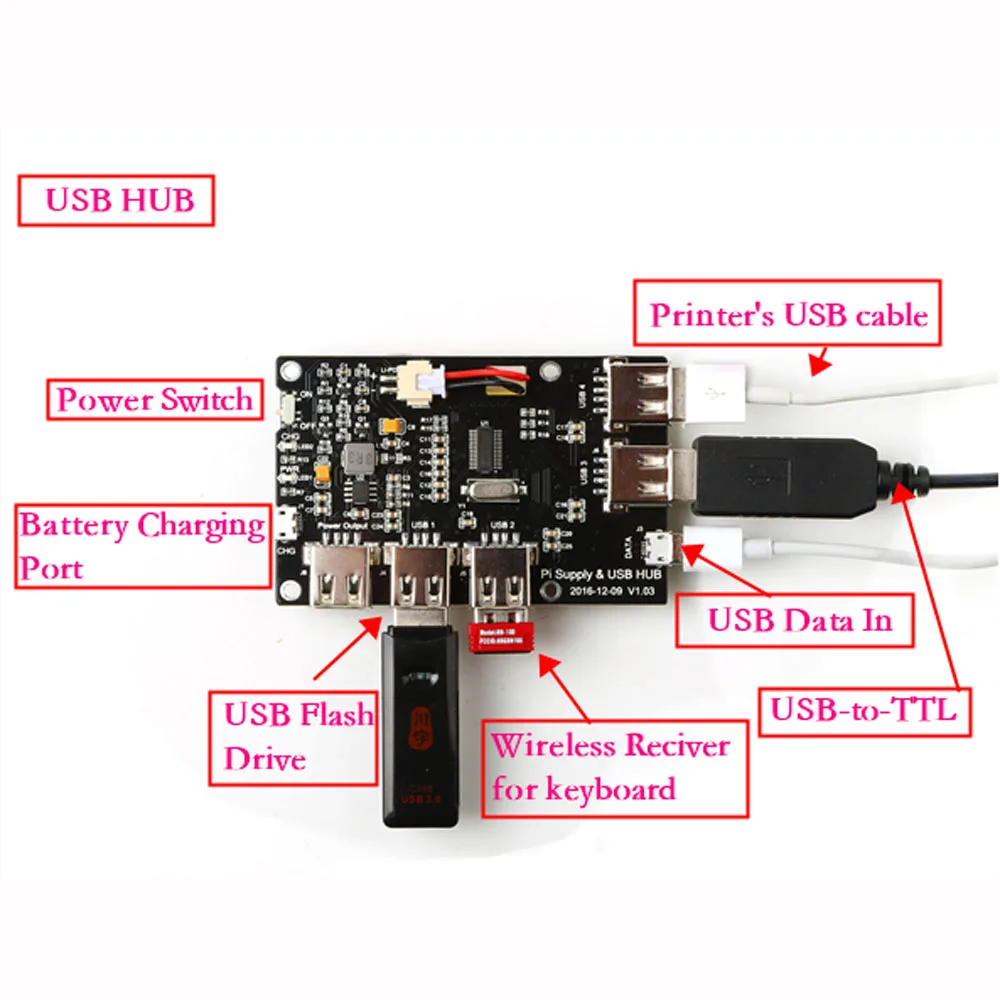

How to use it as a USB hub:

· Use usb cable connect Raspberry Pi with Pi Supply & USB HUB's by using MicroUSB port which has a mark on the board as DATA mark.

NOTE: Data input port is MicroUSB port, it will separate to 4 USB2.0 Port on board.

How to use it as Pi Supply:

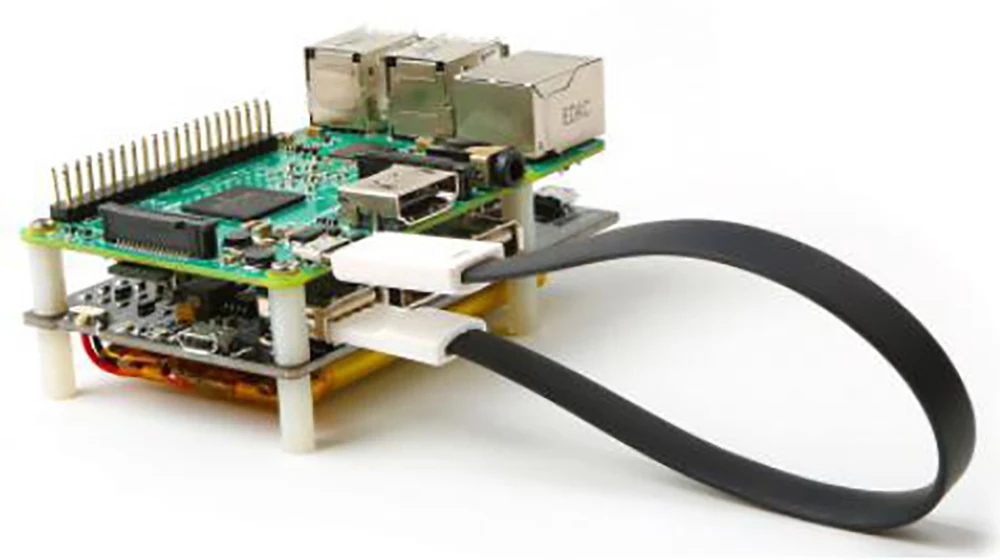

· Connect your Raspberry Pi with Pi Supply & USB HUB by using a USB cable near by charging port which is marked "Power Output" on board.

· Turn on the power switch.

NOTE: It's only power output port on board which is marked as POWER OUTPUT.

  • Unit Type: piece
  • Package Weight: 0.08kg (0.18lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
