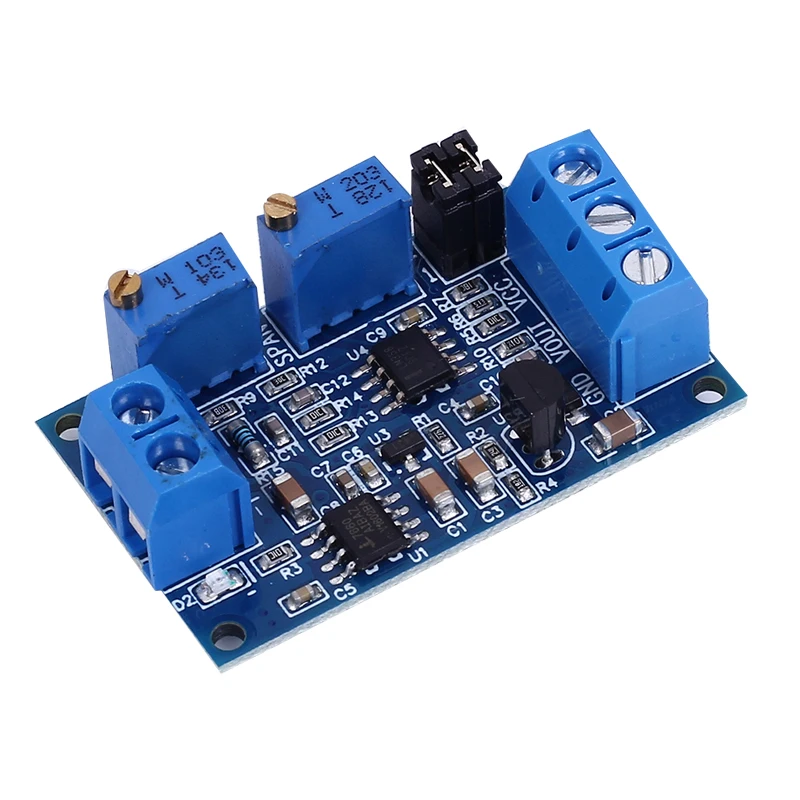

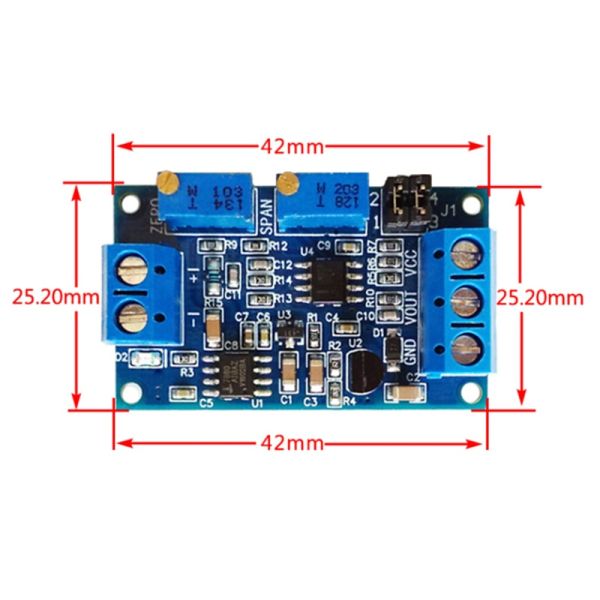

Monday Kids 4-20mA to 0-3.3V/5V/10V Current to Voltage Converter Signal Conversion Module I/V Transmitter

Be the first to review this product

$2.78

Availability: In stock

SKU

EK387

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 7-36V
Condition: New
Type: Logic ICs
Model Number: Current to Voltage Converter
Dissipation Power: none
is_customized: Yes
Operating Temperature: -20 ~ 60 celsius
Application: Current to Voltage Converter

Product Introduction:

1.Power Supply Voltage: 7-36V

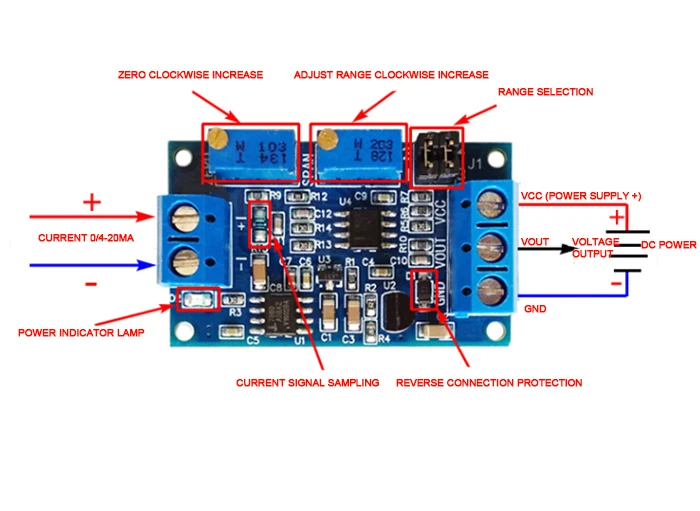

2.After power on, D2 lamp should be on; if not, please check the connection. The board has reverse connection protection function.
3.When the input current is the minimum (0mA or 4mA), please adjust the ZERO potentiometer to let VOUT output be the minimum (0.0V or other voltage)
4.When the input current is the maximum (20mA), please adjust the SPAN potentiometer to let VOUT be the maximum (3.3V or 5V, 10V; when the input is 4-20mA, output minimum is 2.5V)

Adjustment Range:

4-20mA:
1.0-2.5V: J1 1,2 pin are short circuit connected; 3, 4 pin are short circuit connected
2.0-3.3V: J1 1,2 pin are disconnected; 3, 4 pin are disconnected
3.0-5V: J1 1,2 pin are short circuit connected; 3, 4 pin are short circuit connected
4.0-10V: J1 1,2 pin are short circuit connected; 3, 4 pin are disconnected

0-20mA:
1.0-3.3V: J1 1,2 pin are short circuit connected; 3, 4 pin are short circuit connected
2.0-5V: J1 1,2 pin are short circuit connected; 3, 4 pin are short circuit connected
3.0-10V: J1 1,2 pin are short circuit connected; 3, 4 pin are disconnected
