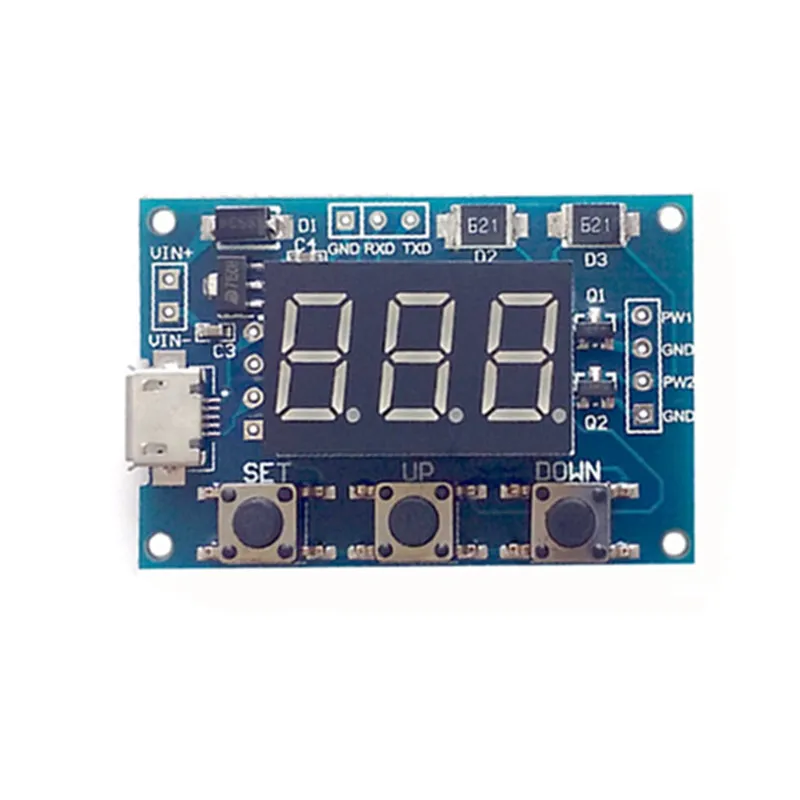

Monday Kids 2 Channel PWM Generator Pulse Frequency Duty Cycle Adjustable Square Wave Rectangle Signal Generator For Stepper Motor Driver
$2.42
Availability:
In stock
SKU
RY-ES-225
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Supply Voltage: 5-30V
- is_customized: Yes
- Model Number: PWM Pulse Frequency Duty Cycle Adjustable Module
- Operating Temperature: -20 ~ +70 Celsius
- Condition: New
- Application: For a square wave signal generator
Product Introduction:
1.Operating Voltage:5-30V,support micro USB 5.0V power supply
2.Frequency Range:1Hz~150KHz
3.Frequency Precision:2%
4.Signal Load Capaciity:output current is within 8--30mA
5.Output Range:default 5V V-pp (can be changed by external power)
6.Ambient Temperature:-30 Celsius ~70 Celsius
Application Fields:
1.As square wave generator to generate square wave for experiment development
2.Used to drive steeping motor driver's square wave
3.Generate adjustable pulse for MCU using
4.Generate adjustable pulse for controlling relative circuit (PWM adjust light speed etc)

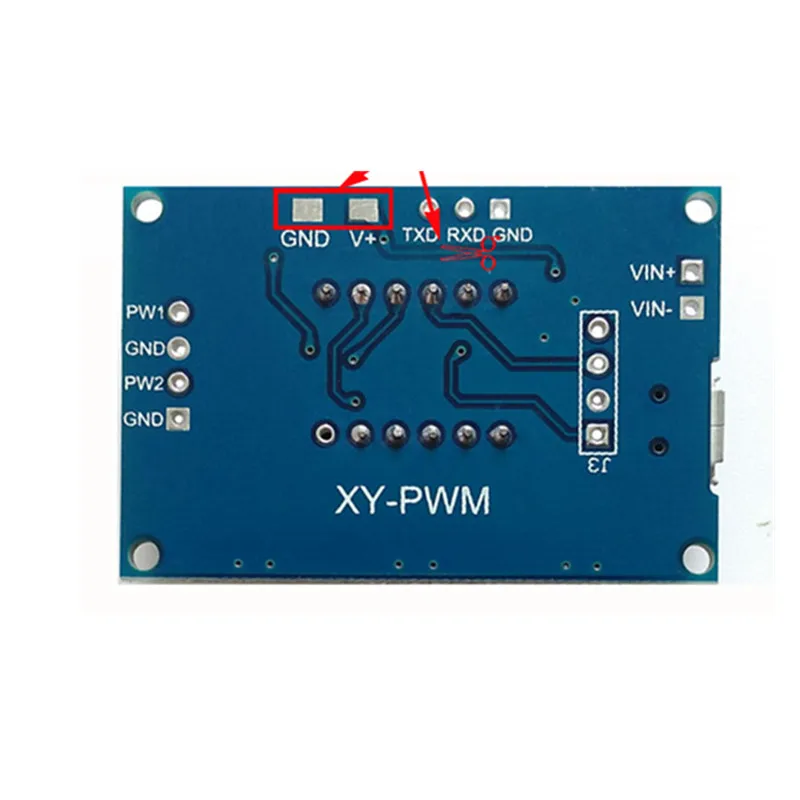

Serial Port Control
1.Communication Standard:9600 bps
2.Data Bit:8
3.Stop Bit:1
4.Verify Bit:none
5.Flow Control:none
Setting PWM Duty Cycle
1."S1DXXXT":set PWM1 duty cycle as XXX;(001~100)
2."S2DXXXT":set PWM2 duty cycle as XXX;(001~100)
Setting successfully back:DOWN
Setting unsuccessfully back:FALL
1.Operating Voltage:5-30V,support micro USB 5.0V power supply
2.Frequency Range:1Hz~150KHz
3.Frequency Precision:2%
4.Signal Load Capaciity:output current is within 8--30mA
5.Output Range:default 5V V-pp (can be changed by external power)
6.Ambient Temperature:-30 Celsius ~70 Celsius
Application Fields:
1.As square wave generator to generate square wave for experiment development
2.Used to drive steeping motor driver's square wave
3.Generate adjustable pulse for MCU using
4.Generate adjustable pulse for controlling relative circuit (PWM adjust light speed etc)
Serial Port Control
1.Communication Standard:9600 bps
2.Data Bit:8
3.Stop Bit:1
4.Verify Bit:none
5.Flow Control:none
Setting PWM Duty Cycle
1."S1DXXXT":set PWM1 duty cycle as XXX;(001~100)
2."S2DXXXT":set PWM2 duty cycle as XXX;(001~100)
Setting successfully back:DOWN
Setting unsuccessfully back:FALL
Setting PWM Frequency:
1."S1FXXXT":set PWM1 frequency as XXX HZ (001~999)
2."S1FXX.XT":set PWM1 frequency as XX.X KHZ (00.1~99.9)
3."S1F:X.X.X.T":set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
4."S1":PWM1
5."S2":PWM2
6."F":frequency
7."D":duty cycle
8."T":stop sign bit
Parameter Setting
Module has 3-channel key:Set,Up,Down
1.By short press SET key,can shift display 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle);before shifting,there will be corresponding parameter name flashing
2.Directly press UP,DOWN key to modify current parameter value
3.2-chhannel PWM are set 3 kinds frequency value,in frequency display interface,by long press SET to shift,3 kinds frequency's duty cycle are the same (XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz;X.X.X.:1Khz~150Khz
1."S1FXXXT":set PWM1 frequency as XXX HZ (001~999)
2."S1FXX.XT":set PWM1 frequency as XX.X KHZ (00.1~99.9)
3."S1F:X.X.X.T":set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
4."S1":PWM1
5."S2":PWM2
6."F":frequency
7."D":duty cycle
8."T":stop sign bit
Parameter Setting
Module has 3-channel key:Set,Up,Down
1.By short press SET key,can shift display 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle);before shifting,there will be corresponding parameter name flashing
2.Directly press UP,DOWN key to modify current parameter value
3.2-chhannel PWM are set 3 kinds frequency value,in frequency display interface,by long press SET to shift,3 kinds frequency's duty cycle are the same (XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz;X.X.X.:1Khz~150Khz
Packahe Including
1*PWM Module.
- Unit Type: piece
- Package Weight: 0.03kg (0.07lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
