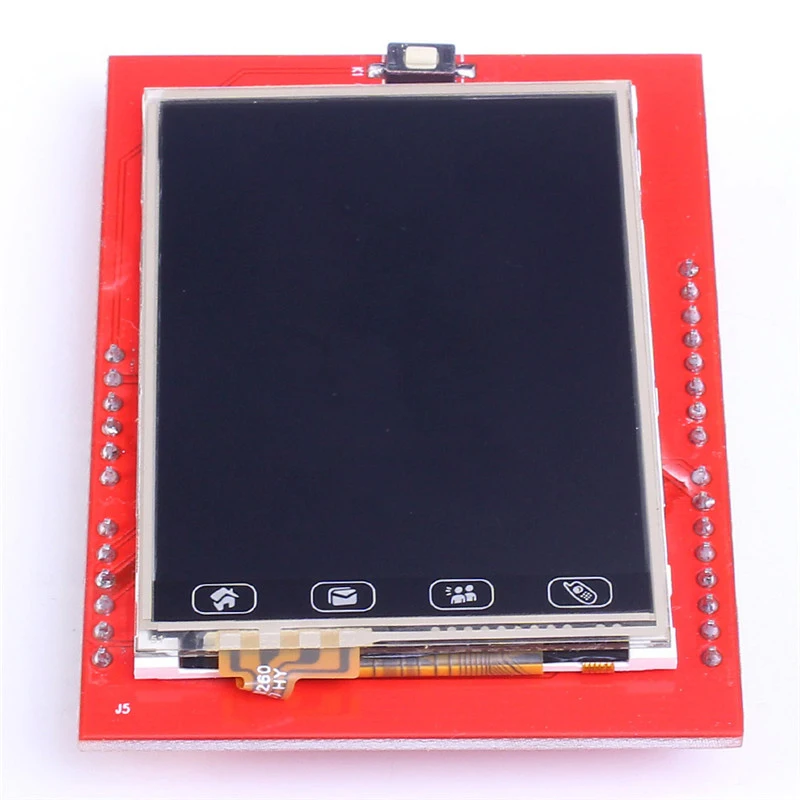

Monday Kids 2.4 inch TFT LCD Touch Screen Shield for Arduino UNO R3 Mega2560 LCD Module 18-bit 262,000 Different Shades Display Board

$4.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Model Number: TFT Touch Screen Shield
  • Type: TFT
  • Display Mode: 240x320 resolution
  • is_customized: Yes

Product Introduction:


1.2.4" diagonal LCD TFT display
2.Bright 4 white-LED backlight
3.Colorful 18-bit 262,000 different shades
4.4-wire resistive touchscreen
5.240x320 resolution

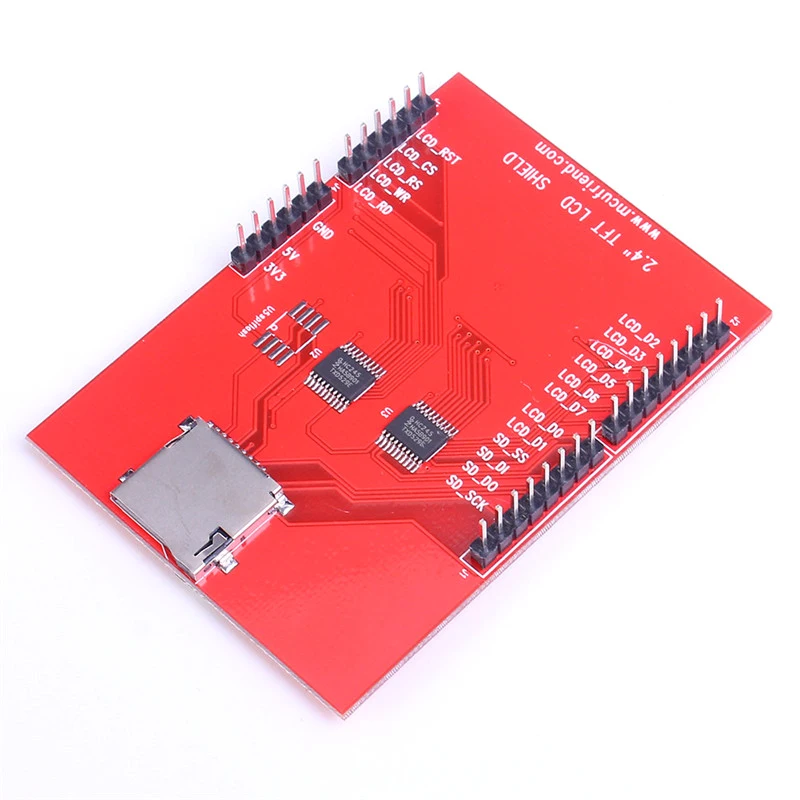

6.Spfd5408 controller with built in video RAM buffer
7.8 bit digital interface,plus 4 control lines
8.Use digital pins 5-13 and analog 0-3
9.Pin 12 is available if not using the micro SD
10.5V compatible,use with 3.3V or 5V logic
11.Onboard 3.3V (300mA LDO regulator)
12.Size:71*52*7mm
13.SD card slot

  • Unit Type: piece
  • Package Weight: 0.06kg (0.13lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
