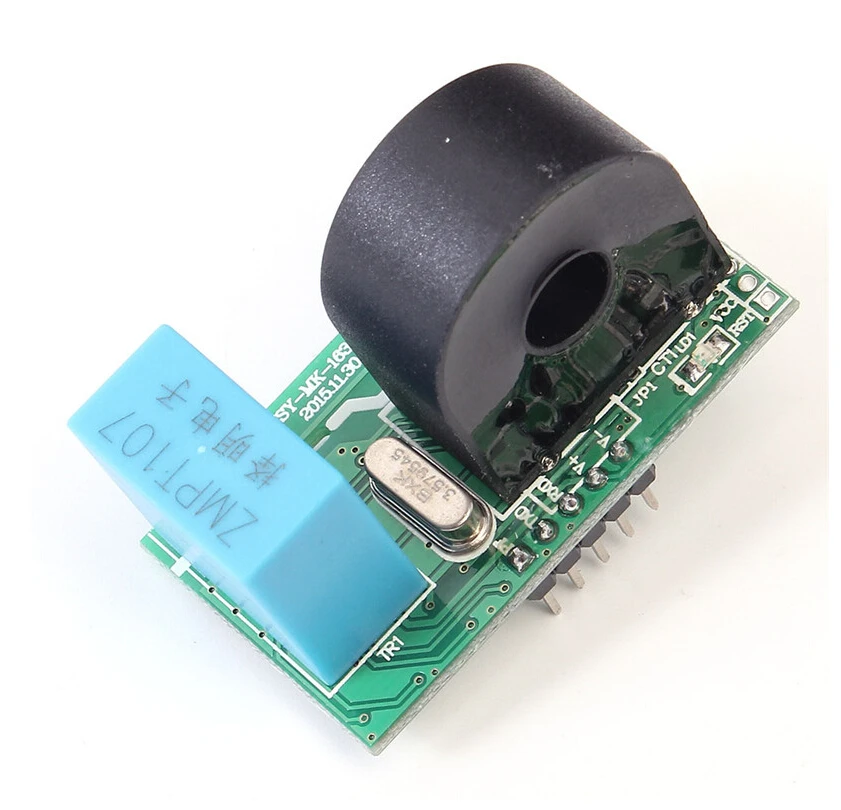

Function:
1.Collecting Single Phase AC Electricity Parameter:including voltage,current,power factor,frequnecy,electric energy etc
2.Adopting Measuring Chip:effective value measurement way,high measuring precision
3.With 1-Channel TTL Communication Interface:compatible with 5V/3.3V interface
4.Standard Modbus-RTU Communication Protocol:good compatibility;easy to program
5.Low Voltage DC 5V Power Supply:have anti-transposition function
6.High Isolation Voltage:withstand voltage can be reached DC 3000V
Performance Paramaeter:
1.Single Phase AC Input:
1)Voltage Range:220V
2)Current Range:50A
3)Signal Processing:adopt measuring chip,24 bit AD sampling
4)Overload Capacity:1.2 times range sustainable;instant (20mS) current 5 times,voltage 1.5 times range not get damaged
5)Input Impedance:voltage channel >1k ohm/V
2.Communication Interface:
1)Interface Type:1-channel TTL communication interface;compatible with 5V/3.3V
2)Communication Protocol:MODBUS-RTU
3)Data Format:can be set by software;"n,8,1" "e,8,1" "o,8,1" "n,8,2"
4)Communication Rate:baud rate can be set as 1200,2400,4800,9600Bps;baud rate default is 4800bps
3.Measuring Output Data:voltage,current,power,electric energy,power factor,frequency etc
4.Measuring Precision:voltage,current,electricity quantity:+/-1.0%;active power electric degree 1 level
5.Isolation:RS-285 interface,islated from supply power,voltage input,current input;isolation withstand voltage is 2000V DC
6.Power:DC single power supply 5V;power consumption 8-10mA
7.Operating Environment:
1)Operating Temperature:-20 Celsius ~70 Celsius ;storage temperature:-40 Celsius ~85 Celsius
2)Relative Humidity:5-95%,non condensing (40 Celsius )
3)Altitude Height:0-3000m
4)Environment:no explosive corrosive gas and electricity conductive dust,no remarkable shaking,vibrating or collision places
8.Temperature Drifting :<=100ppm/ Celsius
9.Installation Way:PCB soldering
10.Module Size:25.6*43.3*29mm

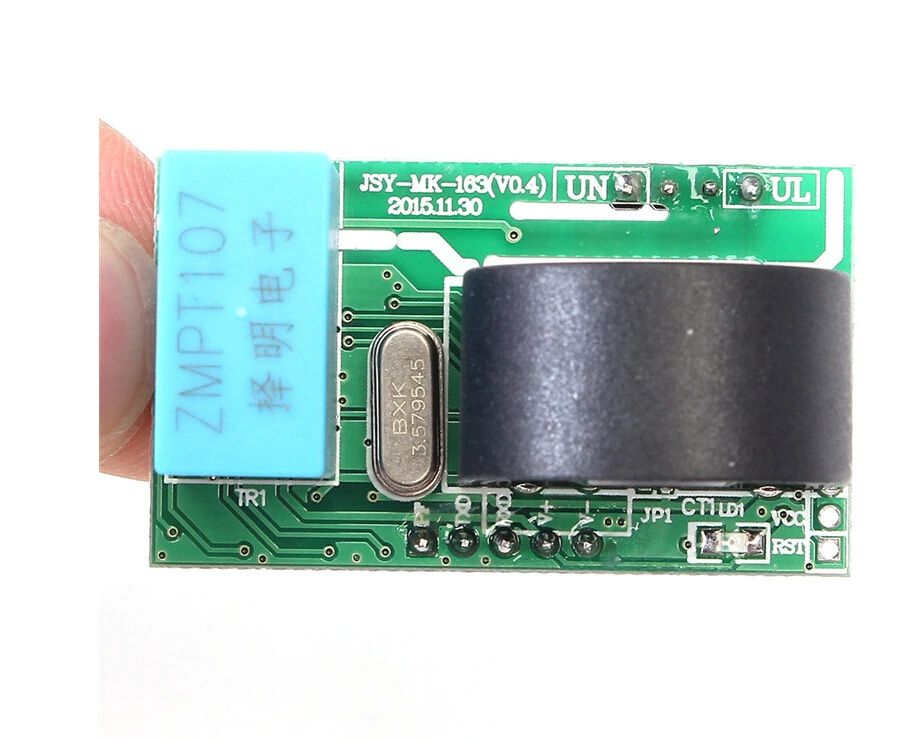

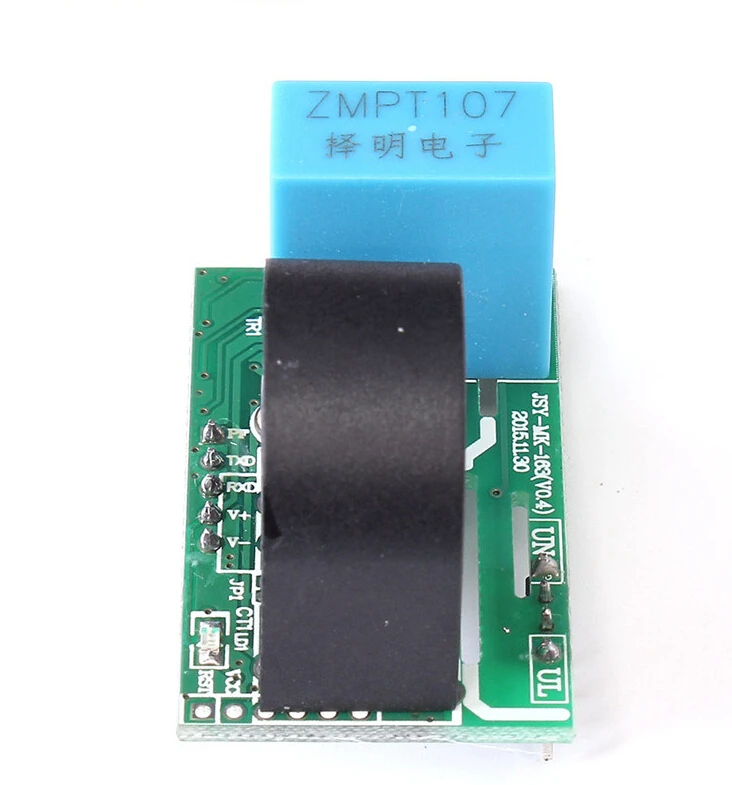

Pin Introduction:
1.VL:live line;tested voltage live line interface
2.VN:null line;tested voltage null line interface
3.PF:output;active power electric energy check pulse output;default state is low level output
4.TXD:output;module TTL level transmitting
5.RXD:input;module TTL level receiving
6.V+:power positive;measurement module power supply pin;normal application range is 4.8V-5.5V
7.V-:power ground
