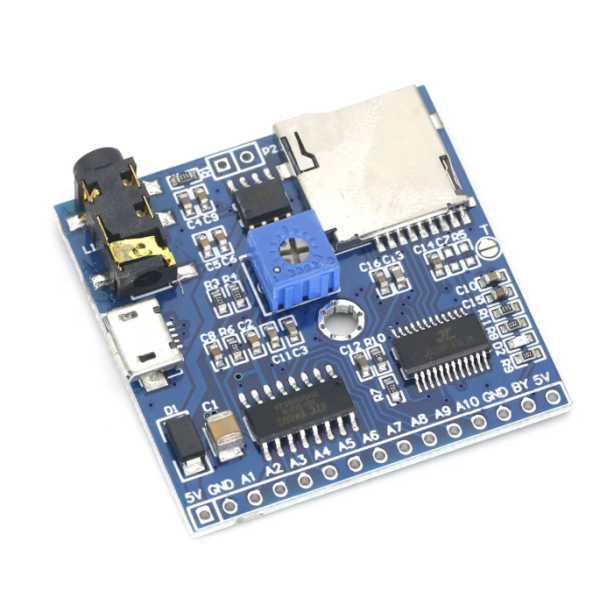

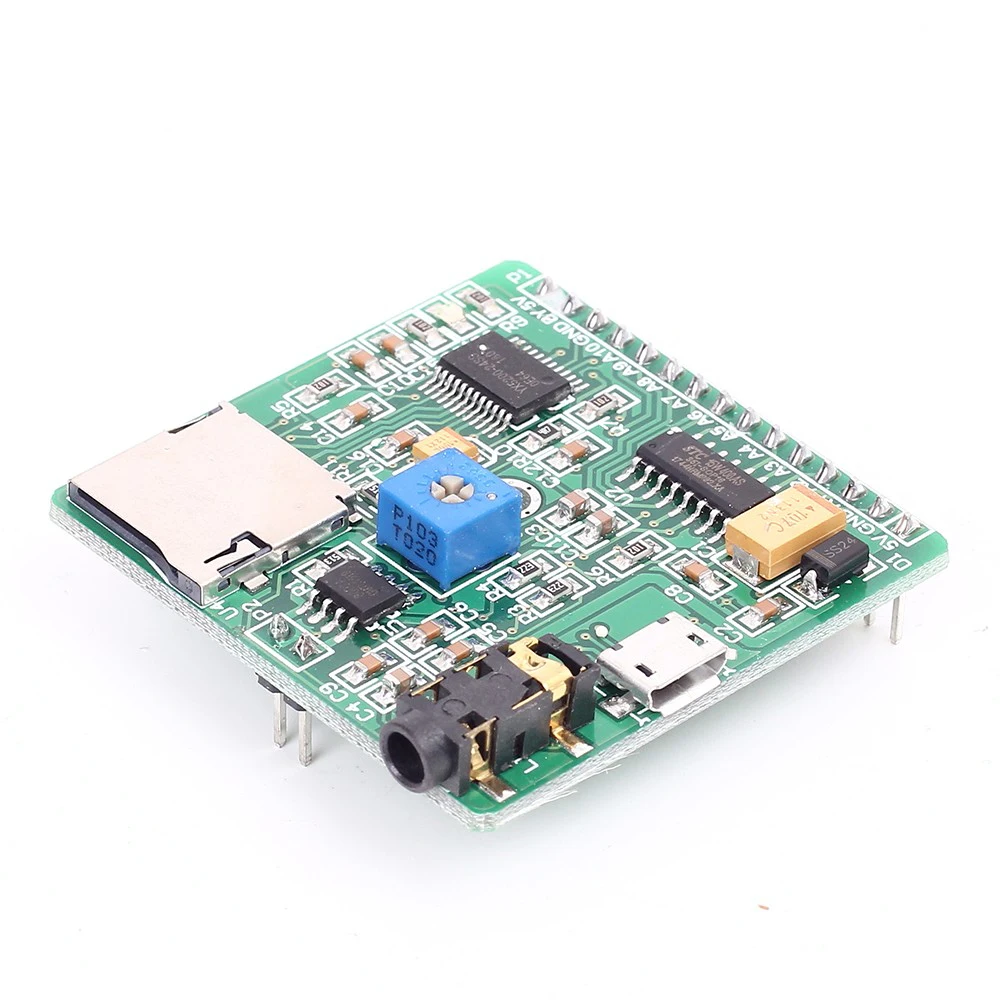

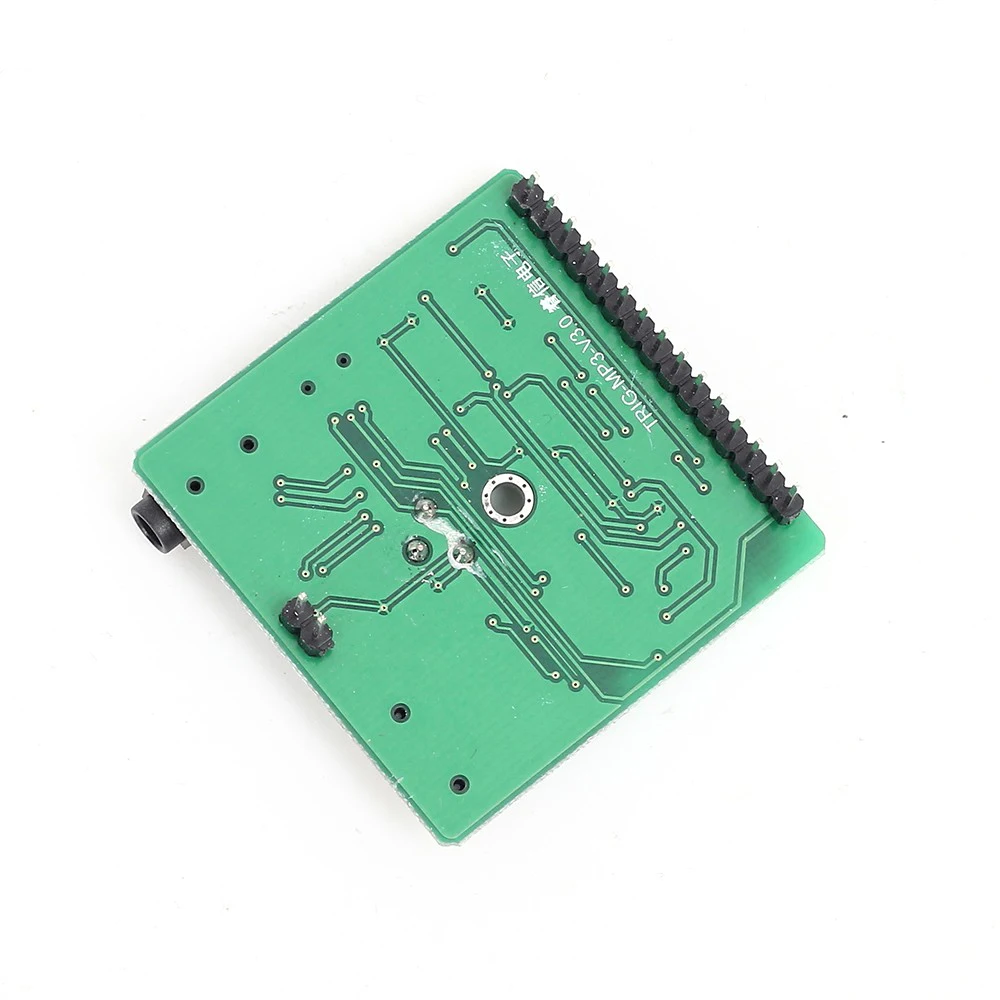

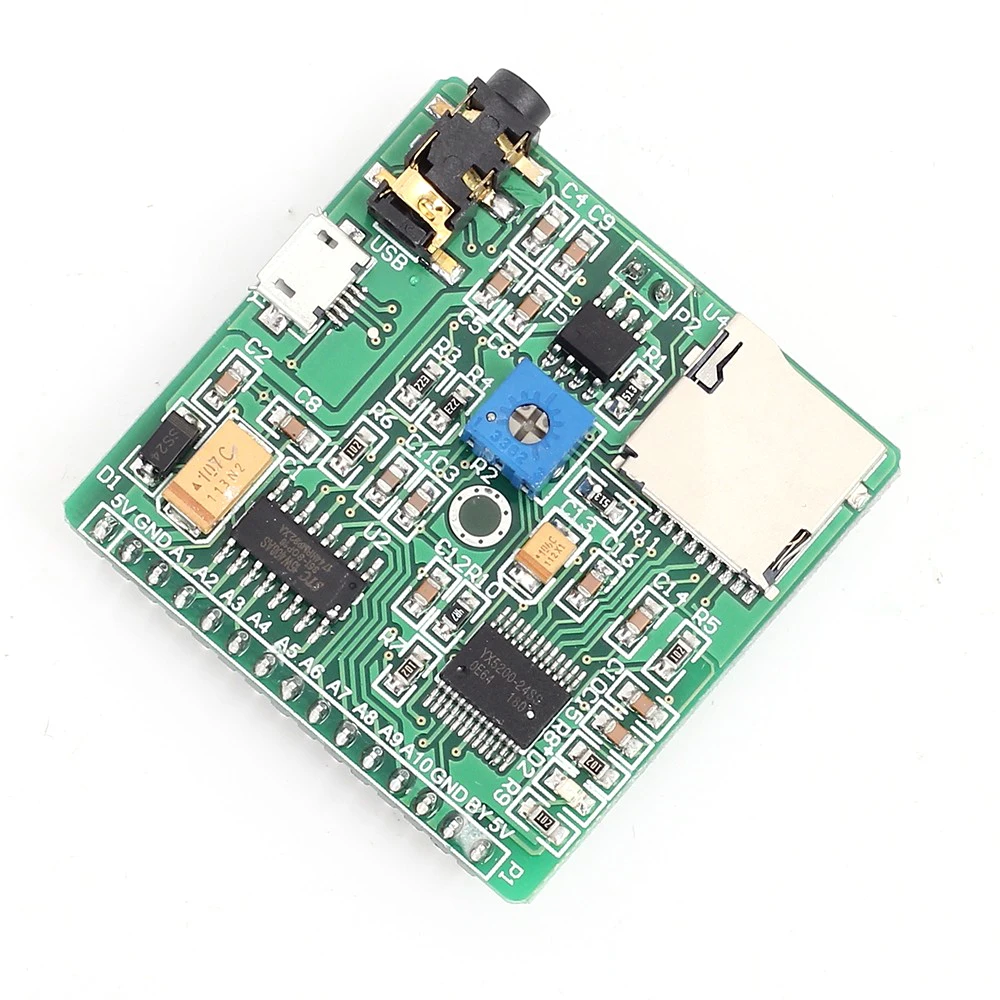

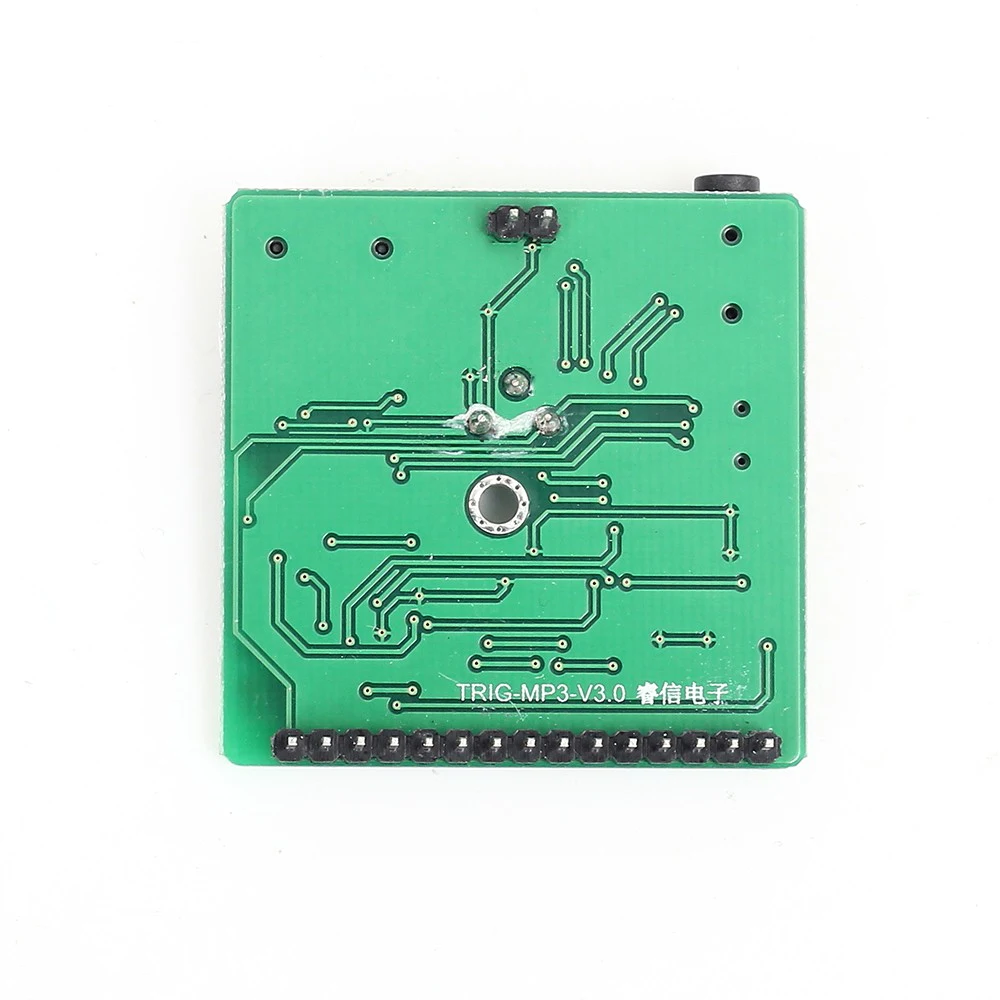

Monday Kids Voice Playback Module MP3 Voice Prompts Voice Broadcast Device For Arduino MP3 Music Player Development Board
$7.71
Availability:
In stock
SKU
EK559
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
MP3 Module User Manual
1. Encoded Control Description
In addition to direct triggering for up to 9 MP3 tracks, this module supports on-demand playback selection for up to 31 MP3 tracks when integrated with a microcontroller (MCU).

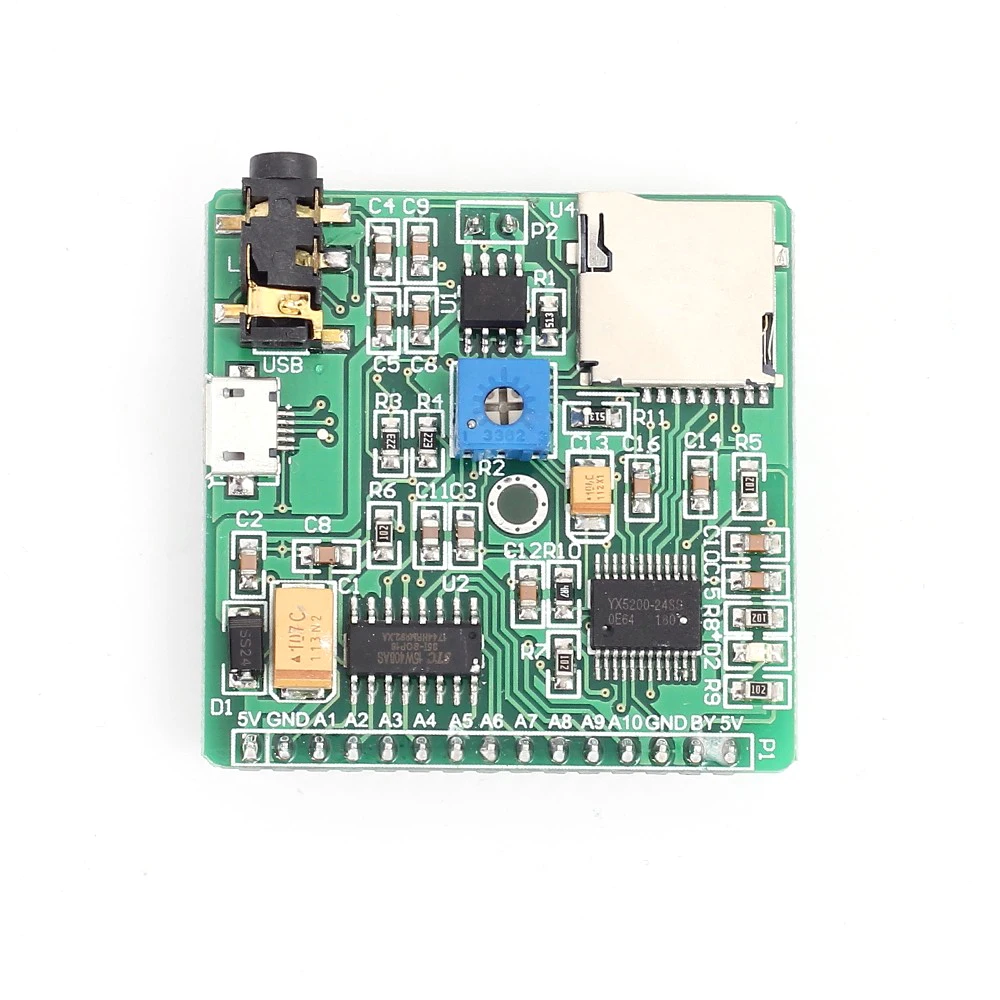

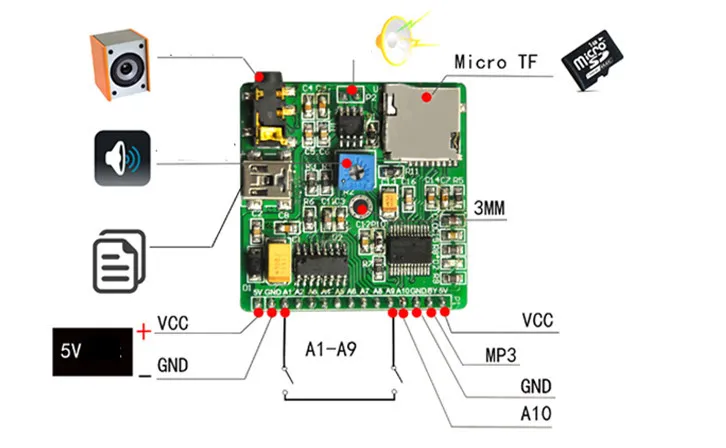

Before powering on the module, connect pin A10 to Ground (GND) as indicated in the diagram. Upon power-up, the module will enter Encoding Control Mode.
Pins A1–A5 serve as encoding control ports operating in active-low inverted binary code, where A1 represents the least significant bit (LSB).
The mapping for track selection is detailed in the table below:
| No. | A5 | A4 | A3 | A2 | A1 | Action |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | 1 | 0 | Play Track 001 |
| 2 | 1 | 1 | 1 | 0 | 1 | Play Track 002 |
| 3 | 1 | 1 | 1 | 0 | 0 | Play Track 003 |
| 4 | 1 | 1 | 0 | 1 | 1 | Play Track 004 |
| 5 | 1 | 1 | 0 | 1 | 0 | Play Track 005 |
| 6 | 1 | 1 | 0 | 0 | 1 | Play Track 006 |
| 7 | 1 | 1 | 0 | 0 | 0 | Play Track 007 |
| 8 | 1 | 0 | 1 | 1 | 1 | Play Track 008 |
| 9 | 1 | 0 | 1 | 1 | 0 | Play Track 009 |
| 10 | 1 | 0 | 1 | 0 | 1 | Play Track 010 |
| 11 | 1 | 0 | 1 | 0 | 0 | Play Track 011 |
| 12 | 1 | 0 | 0 | 1 | 1 | Play Track 012 |
| 13 | 1 | 0 | 0 | 1 | 0 | Play Track 013 |
| 14 | 1 | 0 | 0 | 0 | 1 | Play Track 014 |
| 15 | 1 | 0 | 0 | 0 | 0 | Play Track 015 |
| 16 | 0 | 1 | 1 | 1 | 1 | Play Track 016 |
| 17 | 0 | 1 | 1 | 1 | 0 | Play Track 017 |
| 18 | 0 | 1 | 1 | 0 | 1 | Play Track 018 |
| 19 | 0 | 1 | 1 | 0 | 0 | Play Track 019 |
| 20 | 0 | 1 | 0 | 1 | 1 | Play Track 020 |
| 21 | 0 | 1 | 0 | 1 | 0 | Play Track 021 |
| 22 | 0 | 1 | 0 | 0 | 1 | Play Track 022 |
| 23 | 0 | 1 | 0 | 0 | 0 | Play Track 023 |
| 24 | 0 | 0 | 1 | 1 | 1 | Play Track 024 |
| 25 | 0 | 0 | 1 | 1 | 0 | Play Track 025 |
| 26 | 0 | 0 | 1 | 0 | 1 | Play Track 026 |
| 27 | 0 | 0 | 1 | 0 | 0 | Play Track 027 |
| 28 | 0 | 0 | 0 | 1 | 1 | Play Track 028 |
| 29 | 0 | 0 | 0 | 1 | 0 | Play Track 029 |
| 30 | 0 | 0 | 0 | 0 | 1 | Play Track 030 |
| 31 | 0 | 0 | 0 | 0 | 0 | Play Track 031 |
2. MCU Control Example
Based on the encoding table above, 0 represents Low Level (GND) and 1 represents High Level (VCC).
After outputting the corresponding code from the MCU I/O ports, hold the state for 200–500 ms (or longer), then restore to the default state (High Level) to trigger playback.
sbit A5 = P1^4; sbit A4 = P1^3; sbit A3 = P1^2; sbit A2 = P1^1; sbit A1 = P1^0; // Main control logic (e.g., triggering Track 003) A5=1; A4=1; A3=1; A2=0; A1=0; // Send code: 11100 Delay_ms(200); // Hold pulse for 200ms A5=1; A4=1; A3=1; A2=1; A1=1; // Restore default state: 11111
3. Technical Specifications
Power Supply: 5V DC / 1A
Trigger Inputs: 9 dedicated ports
Track Capacity: 9 tracks via direct triggers, 31 tracks via MCU encoding control
Speaker Output: 0–3W, 4–8Ω (Adjustable volume)
Max MicroSD Support: Up to 16GB
4. Precautions & Operating Notes
1. The operating voltage must not exceed 5.5V DC.
2. Supports speakers up to 3W (4–8Ω). When operating with a 3W speaker at high volume, monitor thermal performance and consider attaching a heatsink if necessary.
5. TF Card / MicroSD Directory Structure
To ensure proper file indexing on the TF card, follow this directory format:
1. Create a root folder named "01".
2. MP3 audio files inside the folder must be named starting with a 3-digit prefix (e.g., 001.mp3 through 999.mp3).
