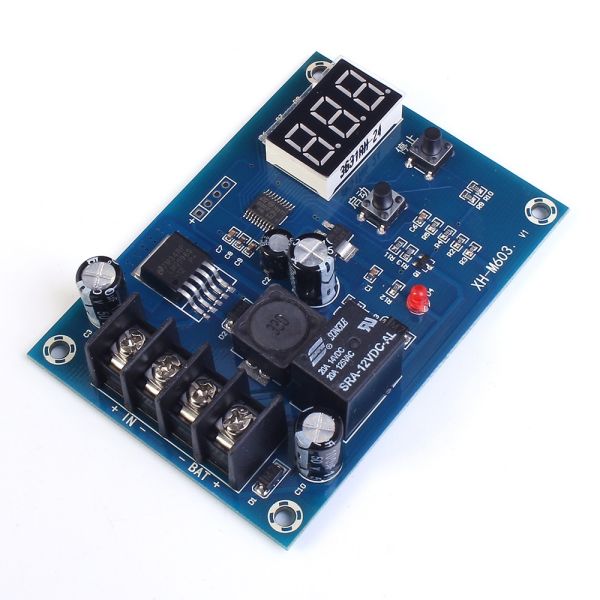

Monday Kids XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board

Be the first to review this product

$4.99

Availability: In stock

SKU

EK347

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Operating Temperature: -30~85 Celsius
Condition: New
Type: Logic ICs
Dissipation Power: none
Model Number: XH-M603
is_customized: Yes
Supply Voltage: DC 10-30V
Application: Charging Control Module
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: +/-0.1V
Application Fields: 12-24V storage battery
Size: 82*58*18mm

NOTE : we have documents of most of products in our store

If you need it , contact us :)

Product Introduction:
1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage battery
8.Size;82*58*18mm

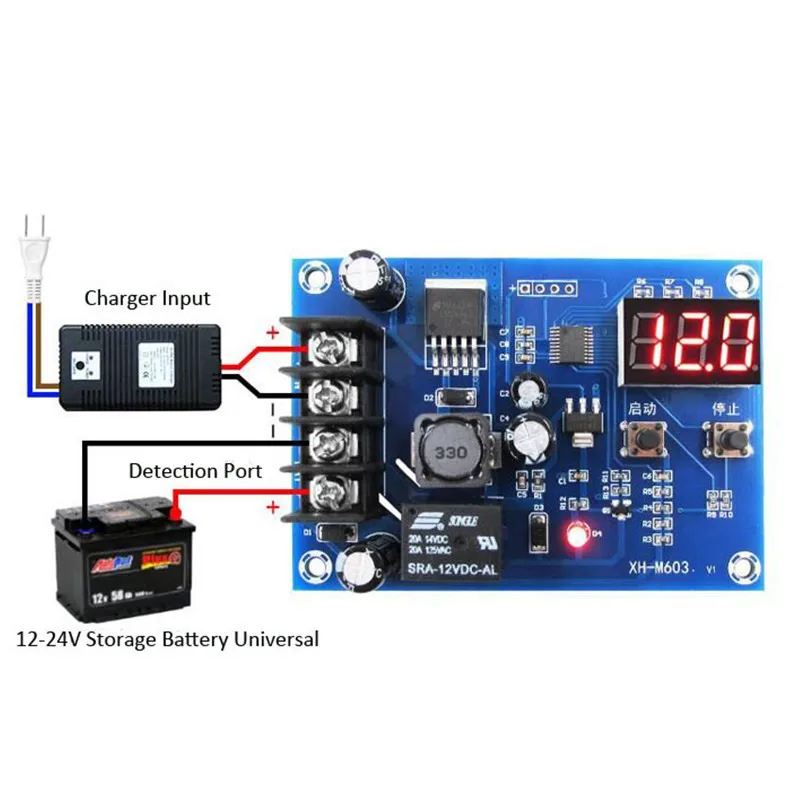

Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
