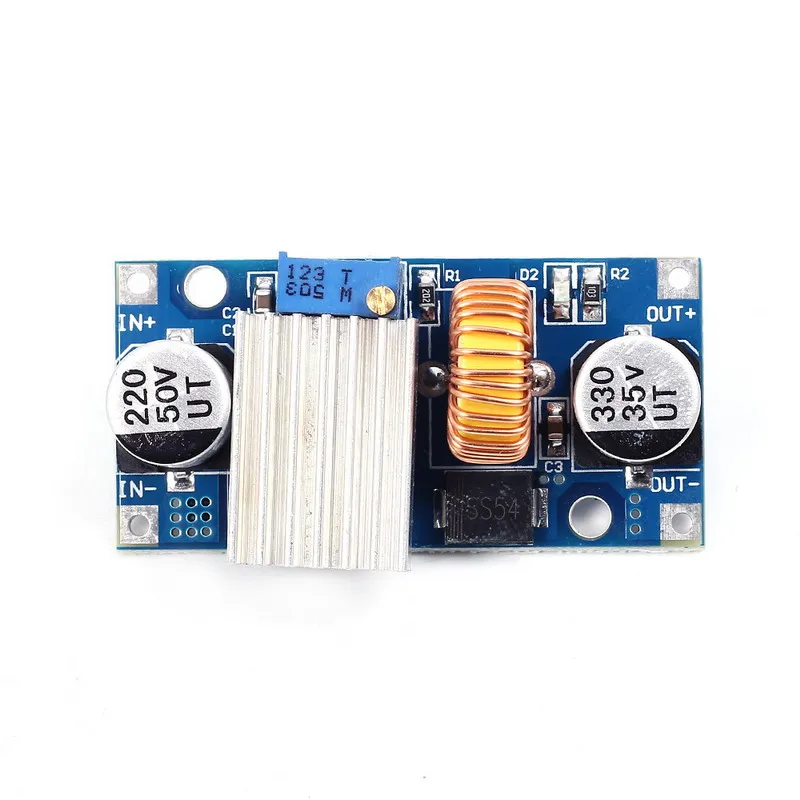

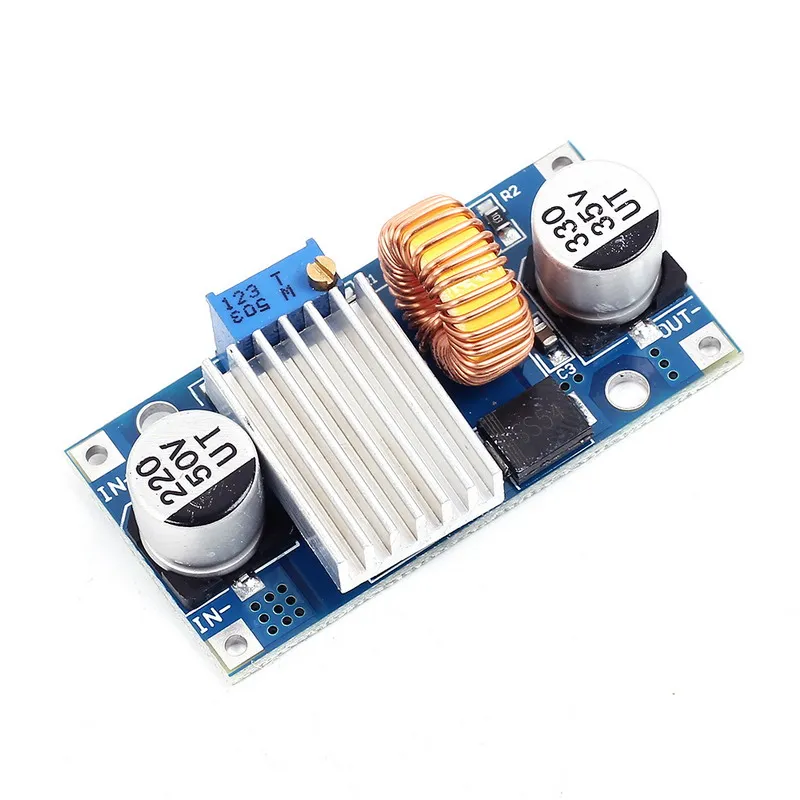

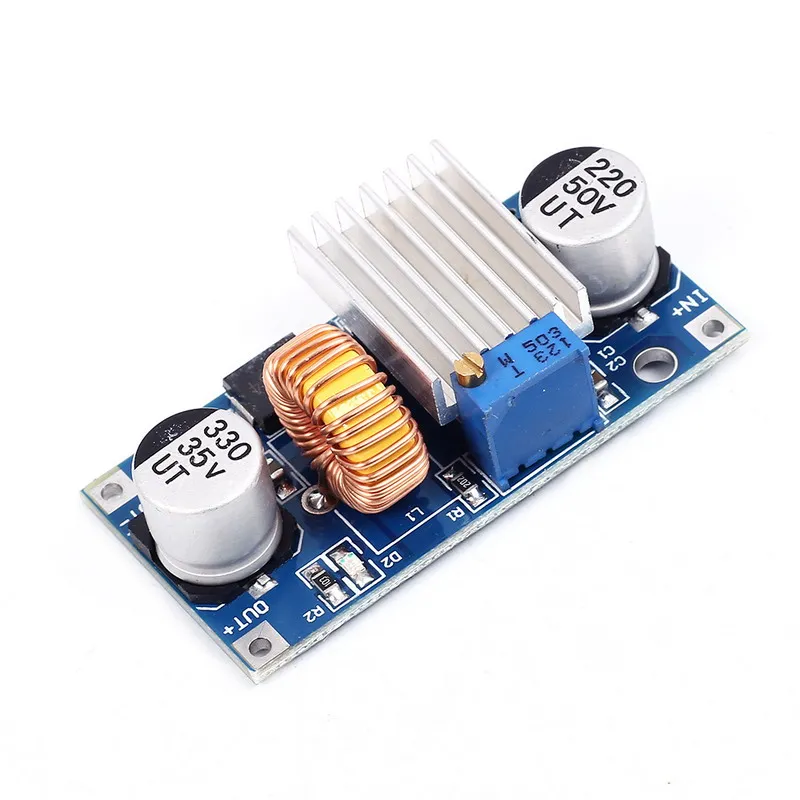

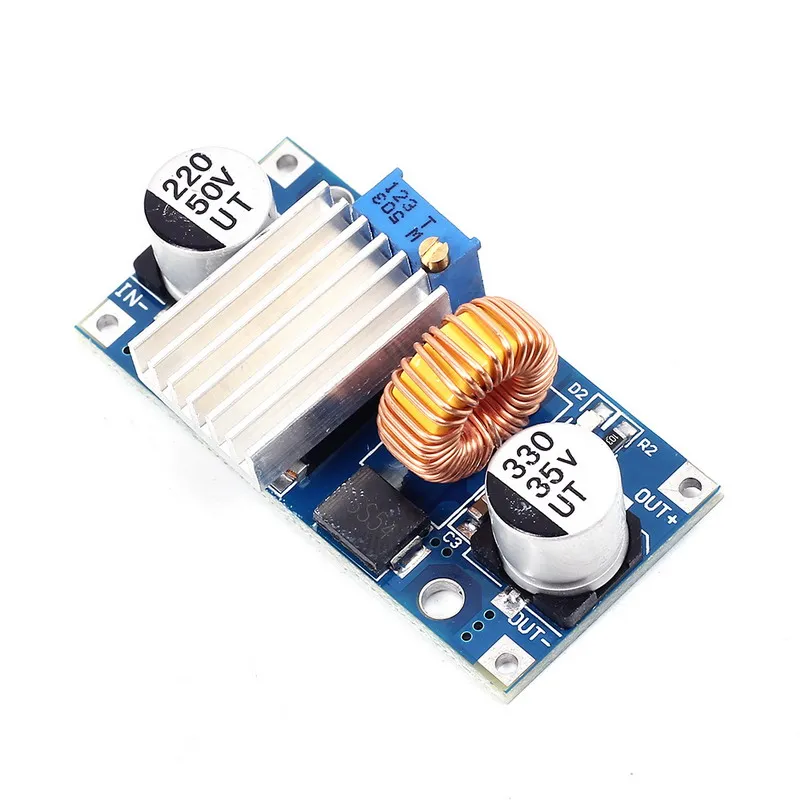

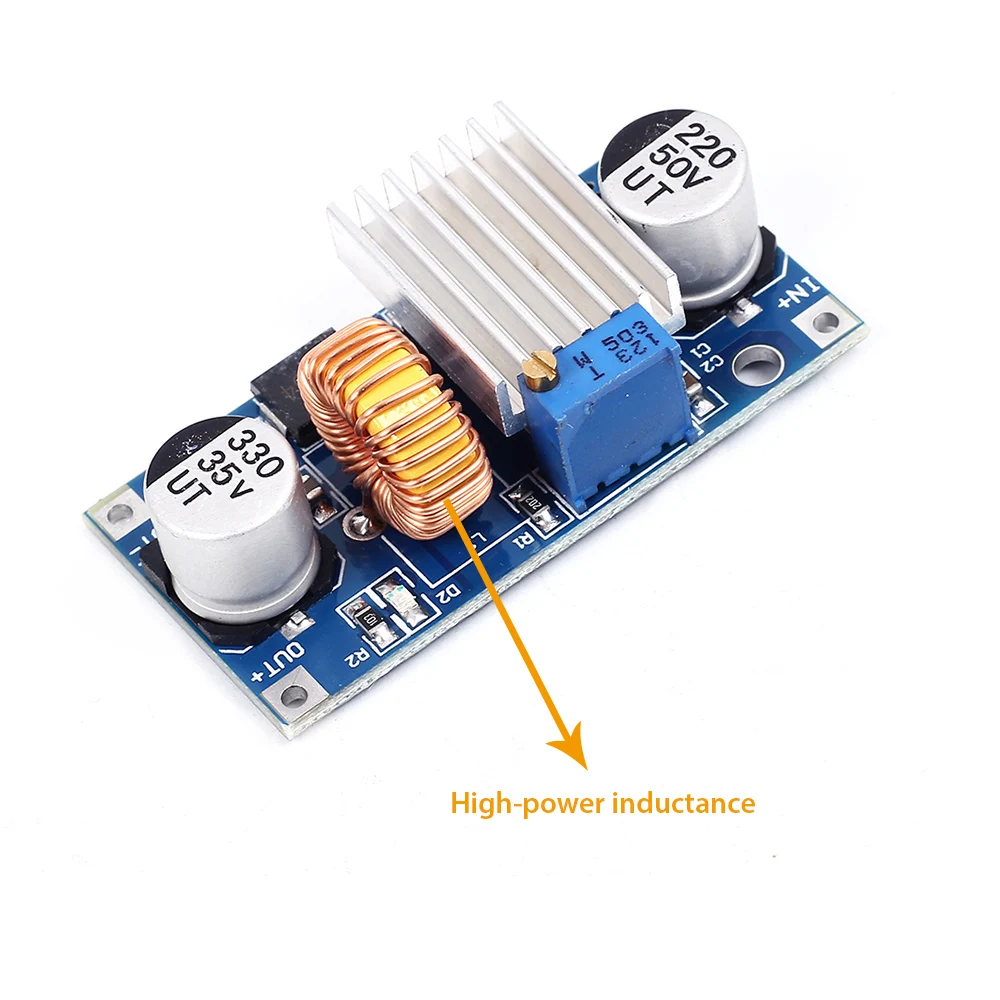

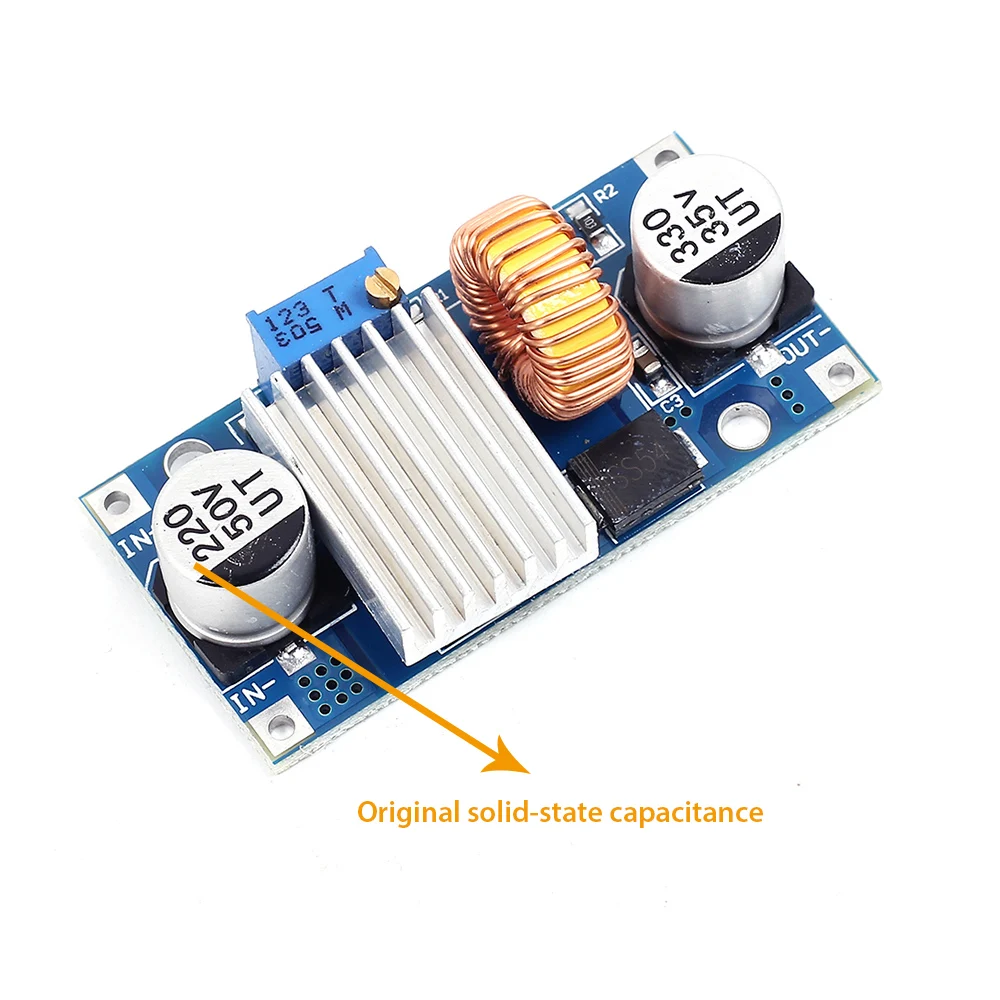

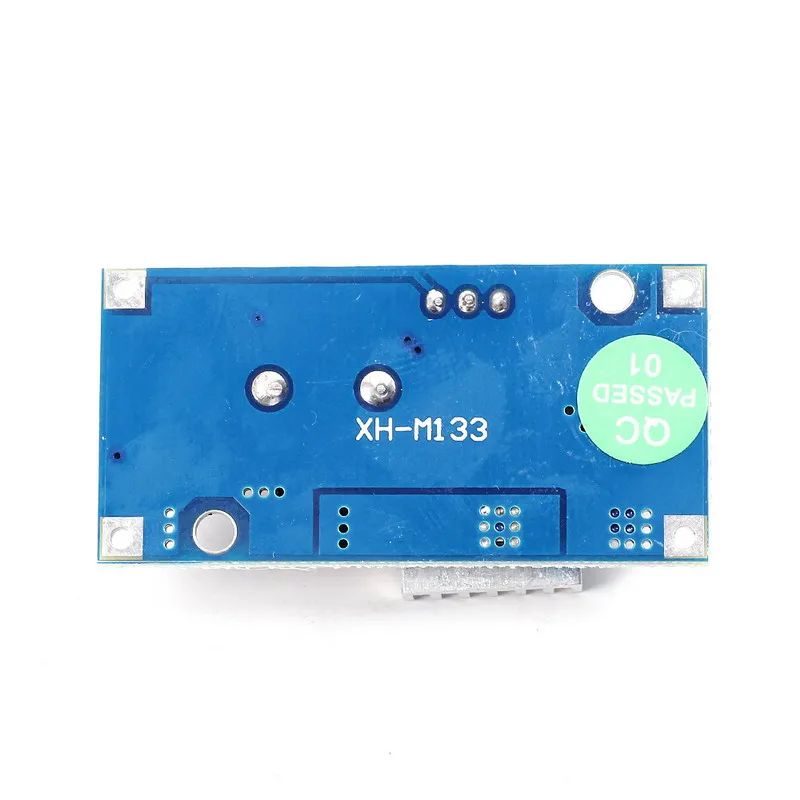

Monday Kids XH-M133 DC-DC Adjustable Step Down Power Supply Module Buck Voltage Regulator 5A 4-38V to 1.25-36V DC Voltage Regulator Module

$1.75

Product name is XH-M133 DC-DC Adjustable Step Down Power Supply Module Buck Voltage Regulator 5A 4-38V to 1.25-36V DC Voltage Regulator Mod...

Product origin name is Monday Kids XH-M133 DC-DC Adjustable Step Down Power Supply Module Buck Voltage Regulator 5A 4-38V to 1.25-36V DC Voltage Regulator Module

Availability: In stock
SKU
EK624

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Application: Computer
  • Operating Temperature: NONE
  • Supply Voltage: Output voltage 1.25-36V
  • Type: Logic ICs
  • Condition: New
  • Dissipation Power: NONE
  • Model Number: XH-M133
  • is_customized: Yes
  • Input voltage: 4-38V
  • Output current: Max 5A
  • Name: DC voltage regulator module

1. Description:

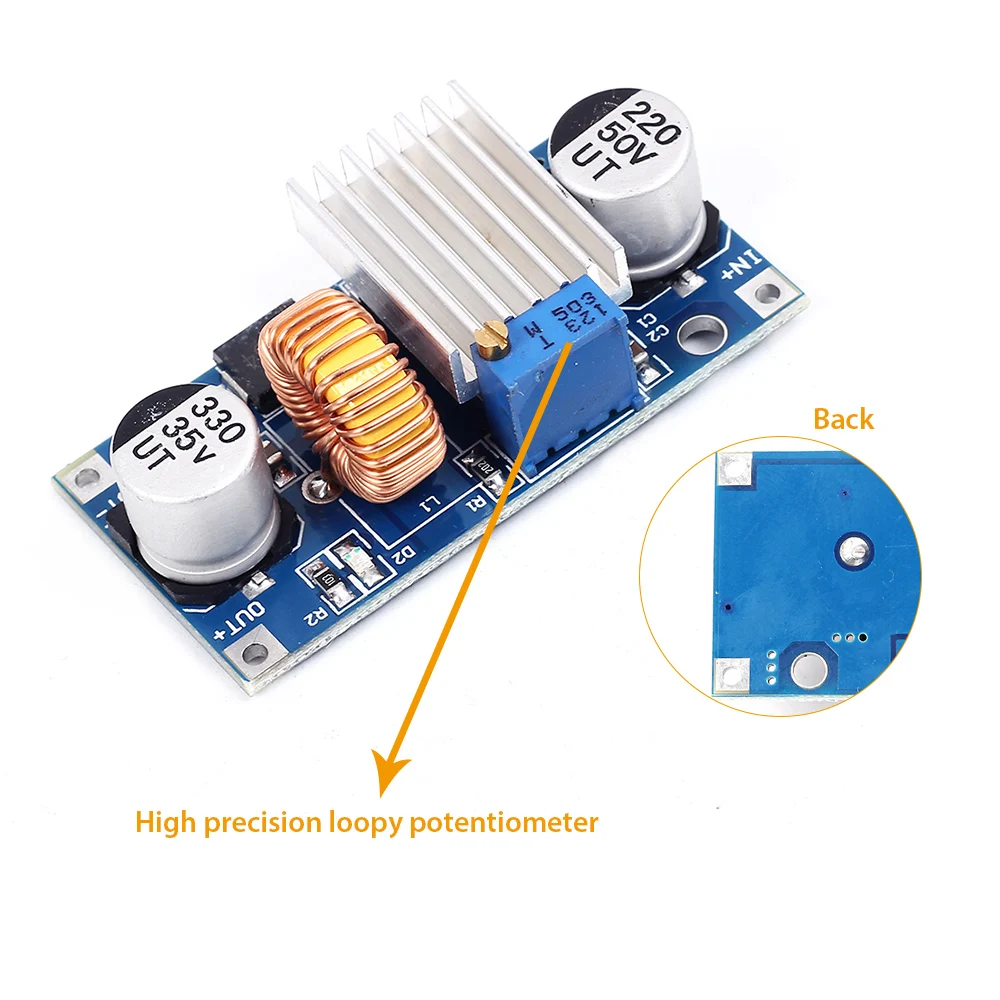

This is a constant voltage constant current power output module. The conversion efficiency is as high as 96%. The maximum is 5A or 150W output. The module has a precision adjustable output voltage potentiometer with green indicator light status. The whole is patch design. It is with high efficiency and fast, which is the preferred product of voltage regulation / charging.

2. Parameters:

NO.

Parameter

Value

1

Model

XH-M133

2

Name

DC voltage regulator module

3

Input voltage

4-38V

4

Output voltage

1.25-36V

5

Output current

Max 5A

6

Output power

Recommended to be used in 75W, and long-term work should not be greater than 60W

7

Working temperature

-40 degrees Celsius -80 degrees Celsius

8

Working frequency

180KHz

9

Conversion efficiency

Highest 96%

10

Load regulation rate

S (I) is less than or equal to 0..8%

11

Voltage regulation rate

S (U) is less than or equal to 0..8%

12

Power indicator

Yes

13

Short circuit protection

Yes (limiting current 8A)

14

Over temperature protection

Yes (automatic shutdown after overtemperature)

15

Board size

49*26*19mm

3. Features:

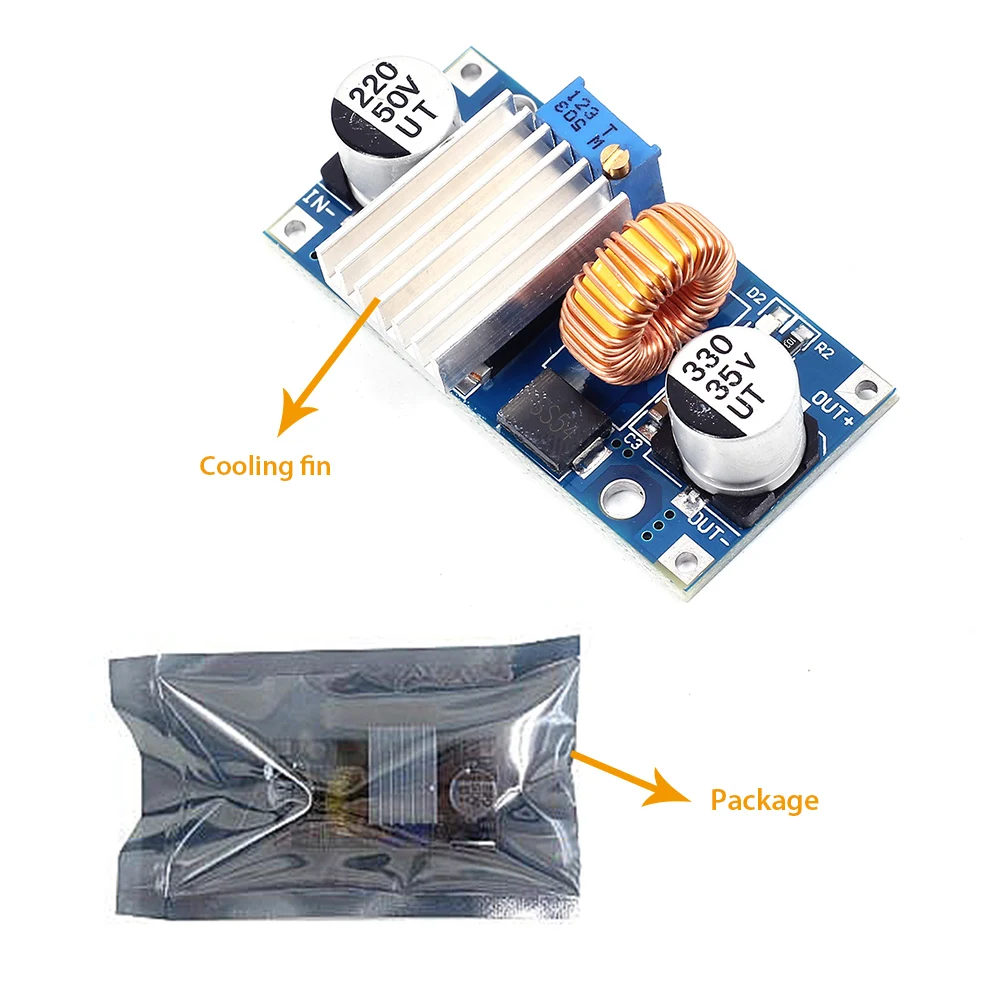

1>. Increase radiator heat dissipation effect, stable performance.
2>. With working light, clear and intuitive working state
3>. Large area copper cladding can improve heat dissipation and maintain stable performance.

4. Using attention:

1>. All wiring must be done when the power is disconnected.
2>. The input is lower than 5V can also reduce blood pressure. But the light doesn't turn on. More than 5V can be normal light

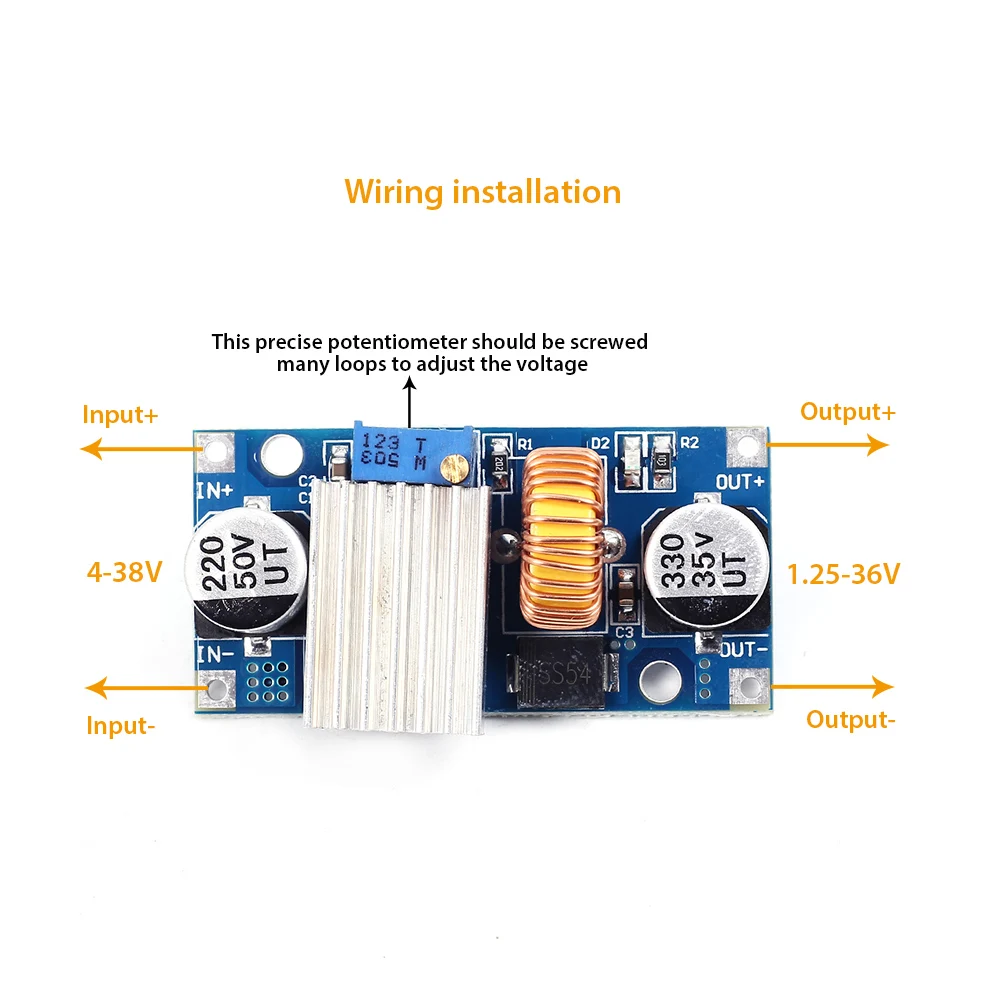

3>. The defaults to 5V. if the adjustment voltage and output current to turn several rounds, the potentiometer adopts reflection mode.
4>. In actual use, severe fever may occur depending on the load. When the load is more than 3A, heating 100 degrees is the normal temperature.
5>. If the load is longer than 3.5A, it is recommended to use a fan to blow the module to reduce the temperature and prolong the service life.
6>. During the charging process, a number of colleagues will appear, indicating the real mode handover. This is a normal phenomenon.
7>. The input must use an adapter or a switching power supply. If you use the transformer, must be rectified and filtered to use.
8>. Pay attention to board damp proof and insulation to avoid unnecessary losses caused by short circuit.

  • Unit Type: piece
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
