[Upgraded Version] Monday Kids Wireless Bluetooth Proximity Switch Mobile Phone Bluetooth Control Switch Sensor Induction Module For Android Phone and iPhone
- Brand Name: Monday Kids
- Model Number: Bluetooth Module
- Condition: New
- Type: Logic ICs
- is_customized: Yes
- Supply Voltage: 12V
- Operating Temperature: -30-85
- Application: Bluetooth Module
- Bluetooth Version: 4..0
We are sorry that this Bluetooth Proximity Switch Module currently is out of stock, BUT now there is more powerful NEW released Wifi Control Switch Module on our website,please click here to see more
1.Size: 82mm * 50mm * 32mm
2.Power Supply:12V 500mA
3.Control Switch:AC 0-250V 8A; DC 0-30V 8A
5.Power Consumption:max 125MA (12V);min 36MA (12V)
7.Bluetooth Searching Time:3-15s
This proximity switch communicate with your mobile phone via the bluetooth audio channel so it may mute your phone during the communication term. If some one is ringing you while the connection you just need to switch your phone to hands free mode.
When first time in use please enable the bluetooth function on your mobile phone and search for the proximity switch and then execute the connection and then enter the password. After connecting successfully, the switch is at ON state; The switch will be OFF state as long as the mobile phone goes away from the proximity switch. And whenever your mobile phone located within the searchable area of the proximity switch and open the bluetooth the proximity can automatically be ON state (don’t need to enter the password any more).

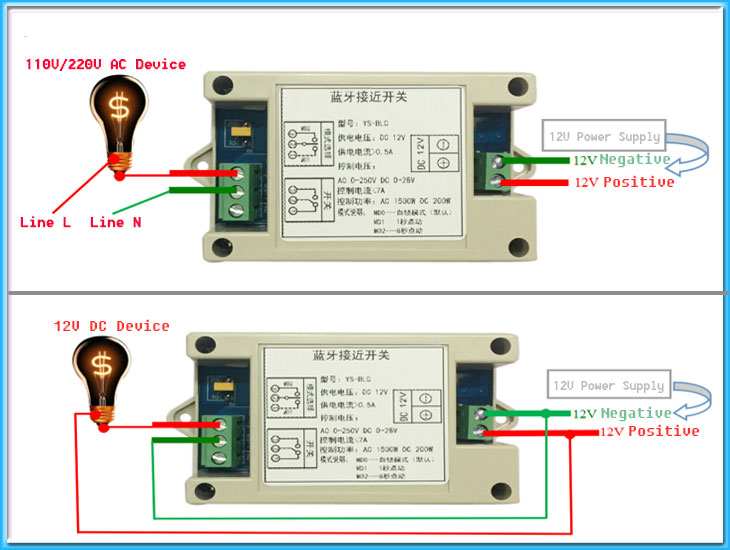

1. Apply 12V DC supply voltage to the proximity switch
2. Enable bluetooth on your mobile phone and searching for the target device (target name is BLC), enter the password (default pw is 1518).
3. If connected successfully the proximity switch would be ON state.
4. When your phone goes away from the proximity switch the switch would be shifted from ON to OFF state and the bluetooth of the switch would be turned off temporarily.
5. If you want to disconnect your phone from the proximity switch just need to turn off the bluetooth on your phone or to delete the connected device.

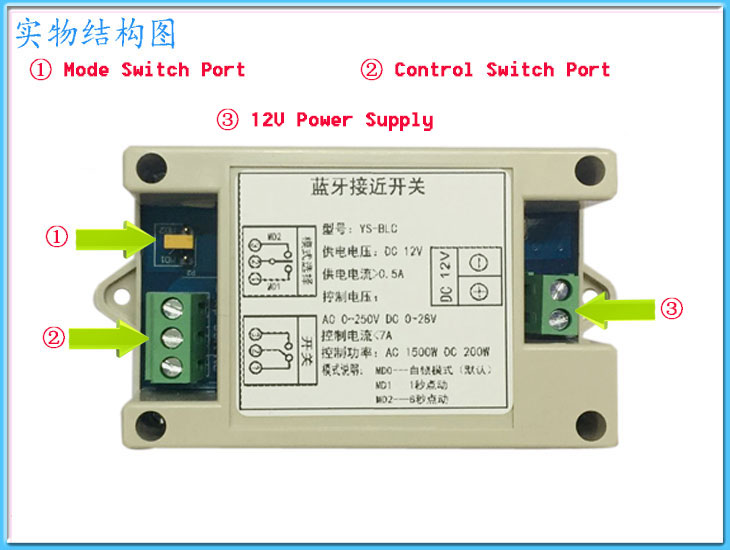

The Mode Switch Port introduction
MD0 - Self-lock mode, it means that when connected successfully, the switch is at ON status. When disconnected, the switch will be turned into OFF status automatically. The defaul mode is MD0, no need to adjust the jumper
MD1 – 1 second mode, it means that when connected successfully, the switch will be ON status and after 1 second it will be turned into OFF status automatically. If you connect the MD1 pin with the middle pin using the jumper, it will be MD1 mode.
MD2 – 8 seconds mode, it means that when connected successfully, the switch will be ON status and after 8 seconds it will be turned into OFF status automatically. If you connect the MD2 pin with the middle pin using the jumper, it will be MD2 mode.
For the document of how to change the password,please go to Google Drive below:
For the App on Android Phone to change the password please go to Google Drive below:
- Unit Type: piece
- Package Weight: 0.064kg (0.14lb.)
- Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
