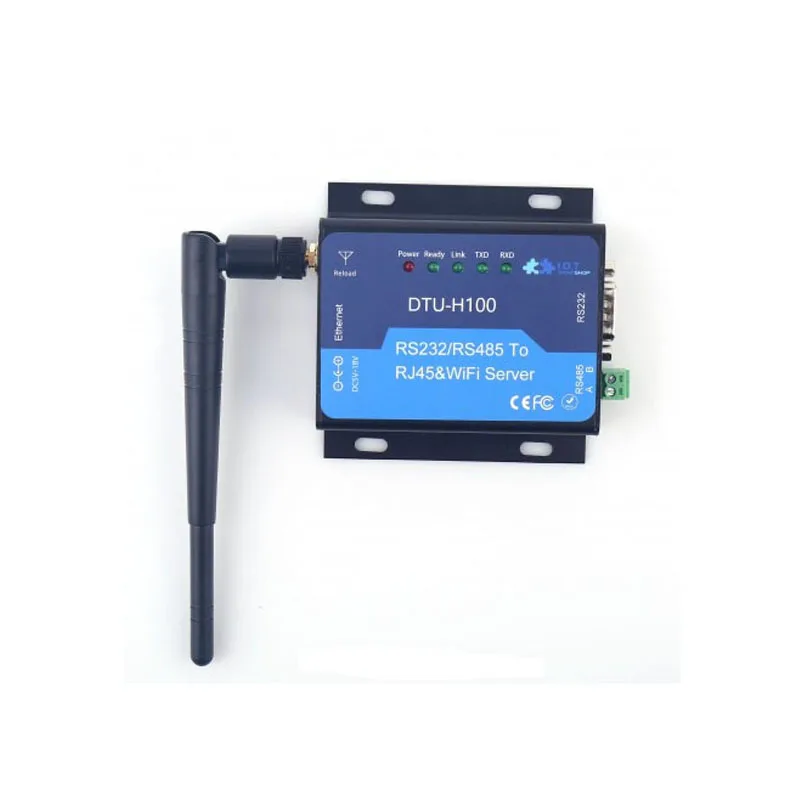

Monday Kids WIFI Serial Server RS232 RS485 to RJ45 and WIFI Server wifi converter RS232/RS485/Ethernet Interface DTU HF-H100

Be the first to review this product

$51.98

Availability: In stock

SKU

RY-ES-302

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Application: Computer
Condition: New
Model Number: DTU HF-H100
Type: Voltage Regulator
is_customized: Yes

WIFI Serial Port Server RS232/485 Wireless Serial Port Server DTU HF-H100

Description:

EmbeddedUART to Wi-Fi device, hardware flow control (RTS/CTS) RS232 interface

Support IEEE802.11b/g/n Wireless standards

Support TCP/UDP/HTTP/TLS/Modbus Network Protocols

Support RS232/RS485/Ethernet Data Interface

RS232 RS485 automatic switching

Support Work As STA/AP/AP+STA Mode

Support Router/Bridge Mode Networking

Support AT+ Instruction Set for Configuration

Support Friendly Web Configuration Page

Single 5~18V DC Power Supply

Size: 84 x 84 x 25mm

FCC/CE/TELEC/RoHs Certificated

Class	Item	Parameters
Ethernet Port	Port Number	1
	Interface	8-Pin RJ45
	PHY Rate	10/100Mbps, MDI/MDIX
	Network Protocol	IP/TCP/UDP/DHCP/DNS/HTTP/ARP/ ICMP/Web socket/Http Client
Wi-Fi Port	Standard	802.11 b/g/n
	Network Mode	STA/AP/STA+AP
	Max Connection	32
	Transmit Power	802.11b: +20 dBm (Max.)
		802.11g: +18 dBm (Max.)
		802.11n: +15 dBm (Max.)
	ReceiverSensitivity	802.11b: -89 dBm (@11Mbps, CCK)
		802.11g: -81dBm(@54Mbps, OFDM)
		802.11n: -71dBm(@HT20, MCS7)
	Antenna Option	External: 3dBi Antenna
	Port Number	2(1 x RS232, 1x RS485)
UART Port	Interface Standard	RS232: DB9 Pin Type RS485: 2 wire(A+, B-)
	Data Bits	5,6,7,8
	Stop Bit	1,2
	Check Bit	None, Even, Odd, Space, Mark
	Baud Rate	300 bps ~ 460800bps
	Flow Control	RTS / CTS
Hardware Parameters	Input Voltage	5~18V DC Input
	Operating Current	Avg:170mA Peak:400mA
	Operating Temp.	-40℃~85℃
	StorageTemp.	-45℃- 125℃/ 5 ~ 95% RH
	Dimensions	84 x 84 x25mm
	Certificate	CE/FCC/TELEC/RoHS
	Warranty	2 Years
Software Parameters	Network Type	STA/AP/STA+AP
	Security Type	WEP/WPAPSK/WPA2PSK
	Encryption	WEP64/WEP128/TKIP/ AES
	Network Protocol	TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
	Max. TCP Connection	32
	Configure Interface	Web Server / AT Command
	Customization	Support Software Customization
