Monday Kids USB Logic SCM 24MHz 8 Channel 24M/seconds Logic Analyzer Debugger for ARM FPGA Logic Analyzer Logic 24M 8CH
$8.22
Availability:
In stock
SKU
RY-ES-209
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Type: Voltage Regulator
- Condition: New
- Model Number: Logic Analyzer
- is_customized: Yes
Microcontroller USB Automatic Programming Programmer K150 + ICSP Cable PIC K150 Microcontroller Programmer Writer Downloader
Product Description :
Support for the latest Logic 1.1.16 Beta (new!) software!
The logic analyzer supports: SALEAE and USBEE AX (logical part only)
Can be switched by software.
Product size: 50mm X 28mm x 14mm
Product weight: 50g (including SALEAE, USB cable and 10 DuPont lines)
Introduction: (supports the latest version of saleae logic 1.1.15)
Sample speed up to: 24 MHz
The sampling speed of each channel of the logic is 24M/sec. The general application is about 10M, which is enough for various occasions.
Logic 8 input - can be collected at the same time. It is analyzed by signal, such as I2C, UART and other sampling analysis.
Logic can sample up to 10 billion samples, allowing you to capture even the most elusive events.
Slave logic: 5V voltage, accepts 5.25 V, has a standard CMOS threshold logic of 0.8V low level. 2.0 V logic high level. The input impedance is approximately 1 MΩ and more specifications are seen (10 pF)
Input resistance for protection logic overvoltage protection conditions, and buffer chip. Better protection equipment for safe work.
Note: Support for the latest version: 1.1.15 version:
This logic analyzer requires a PC with a high-speed USB 2.0 interface.
Support the following systems: support WINXP/2000, WIN7, VISTA, LINUX
Packing list:
1, Saleae Logic 24M 8CH logic analyzer host 1 unit.
2, color DuPont line 10 lines (10 different colors) 10 pieces.

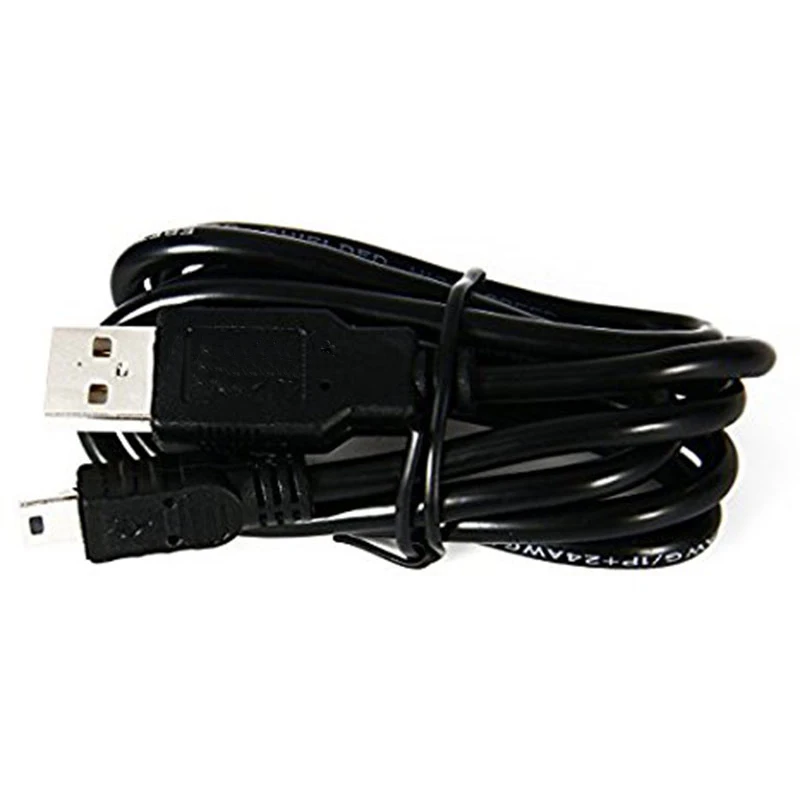

3, high quality USB-MINI line (NOKIA dedicated line) 1 piece.
- Unit Type: piece
- Package Weight: 0.1kg (0.22lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
