Monday Kids 9V 12V 24V to 5V DC-DC Step Down Charger Power Module Dual USB Output Buck Voltage Board 3A Car Charge Charging Regulator 6-26V

$1.45
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Supply Voltage: 6-26V
  • Model Number: Step Down Charger Module
  • Operating Temperature: -40~85 Celsius
  • is_customized: Yes
  • Application: Step Down Charger Module

Product Introduction:

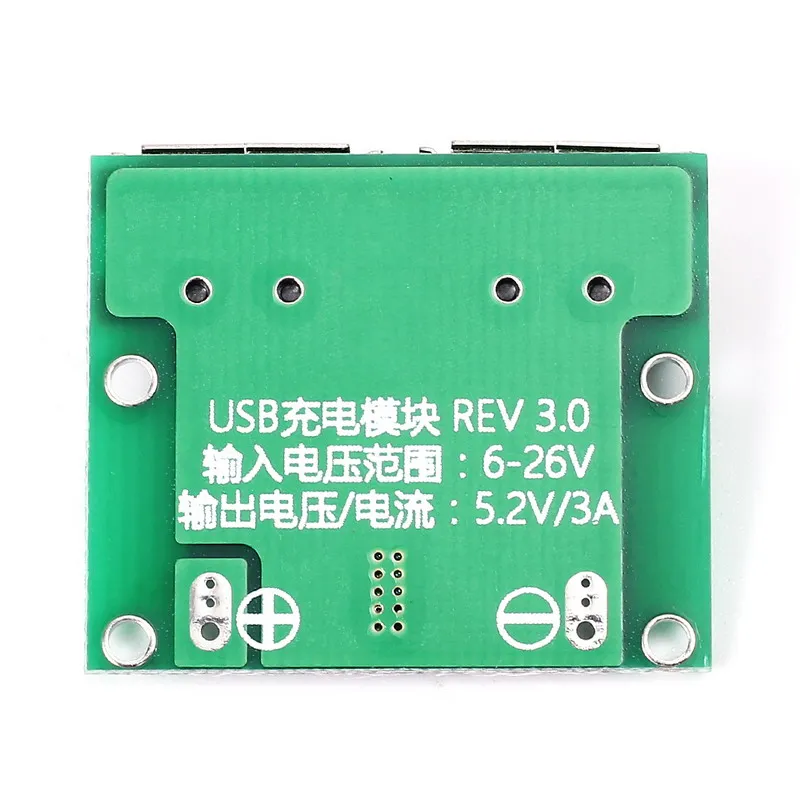

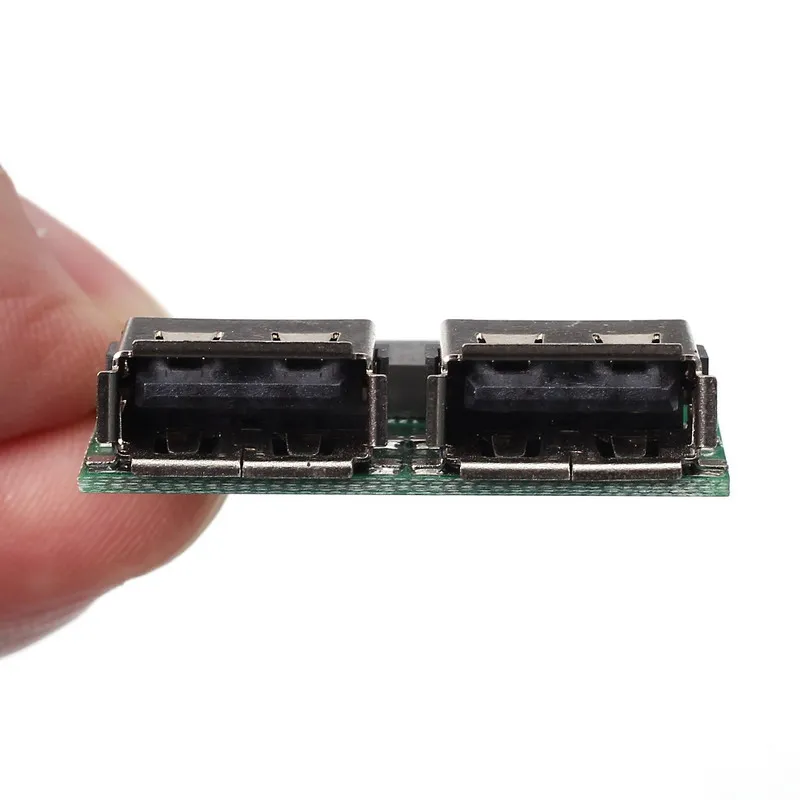

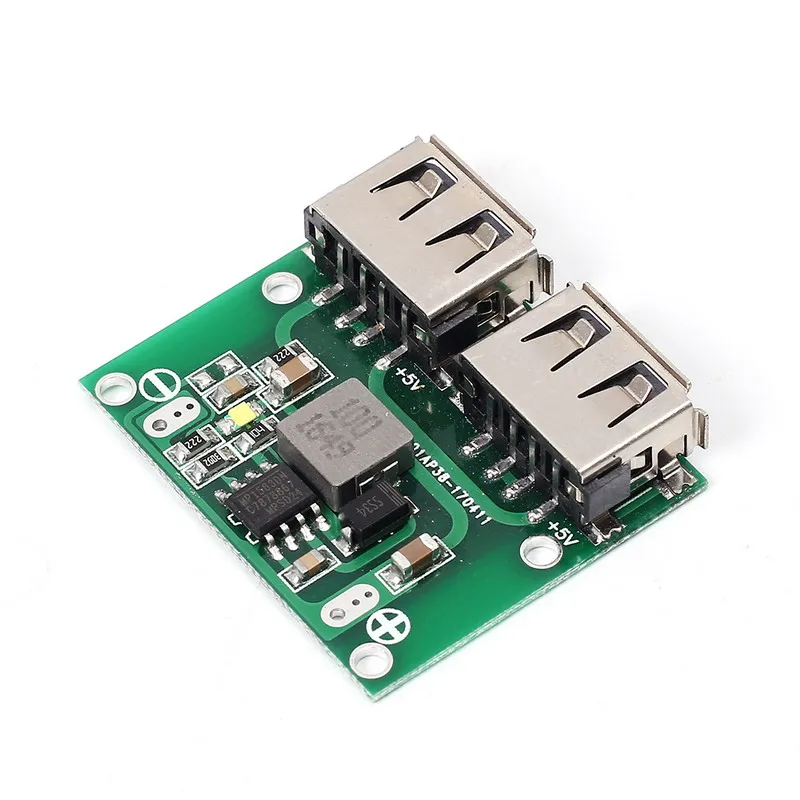

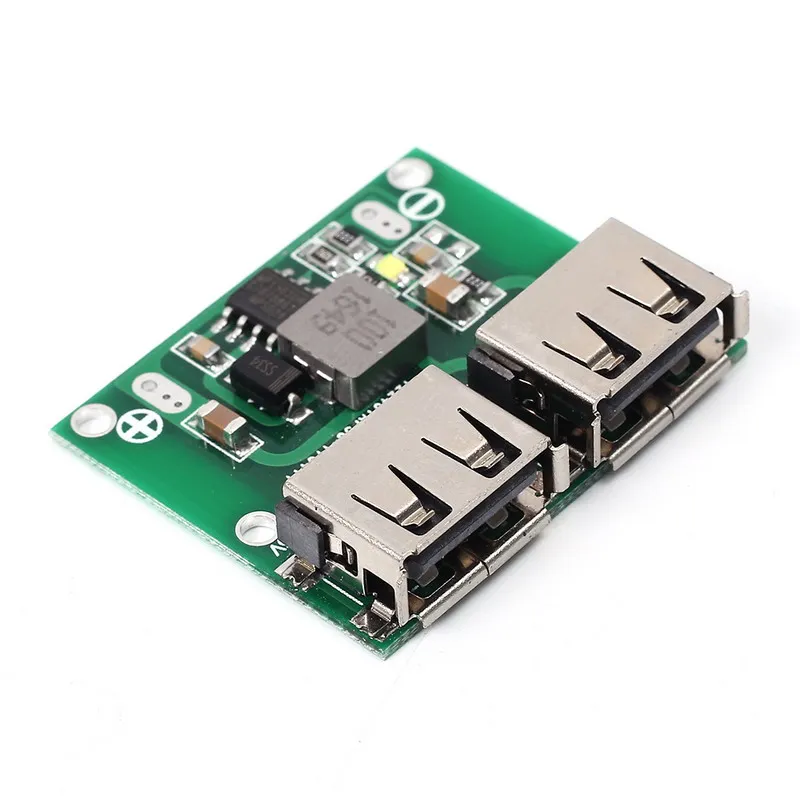

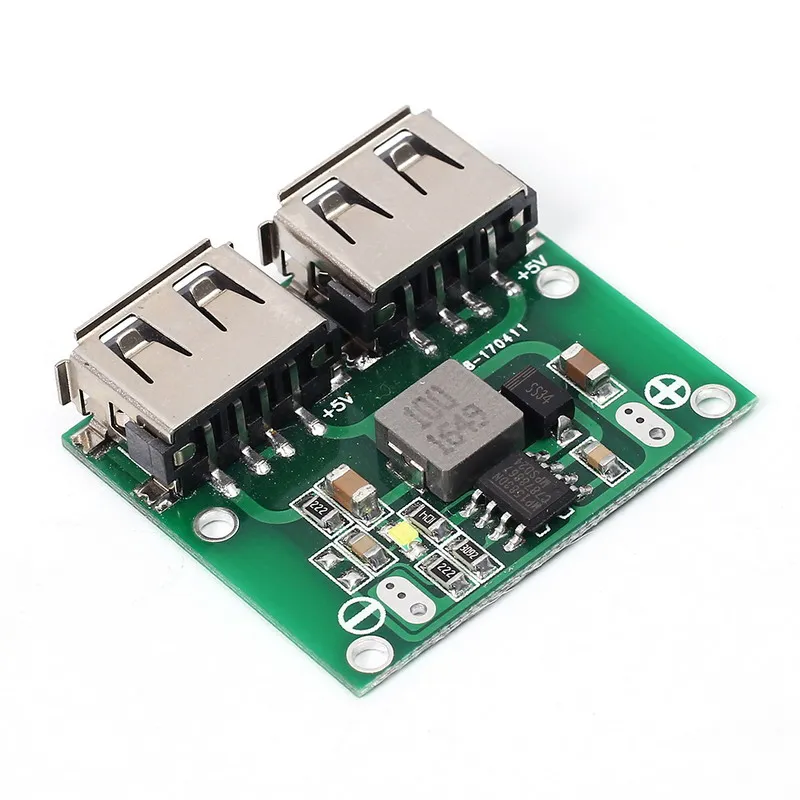

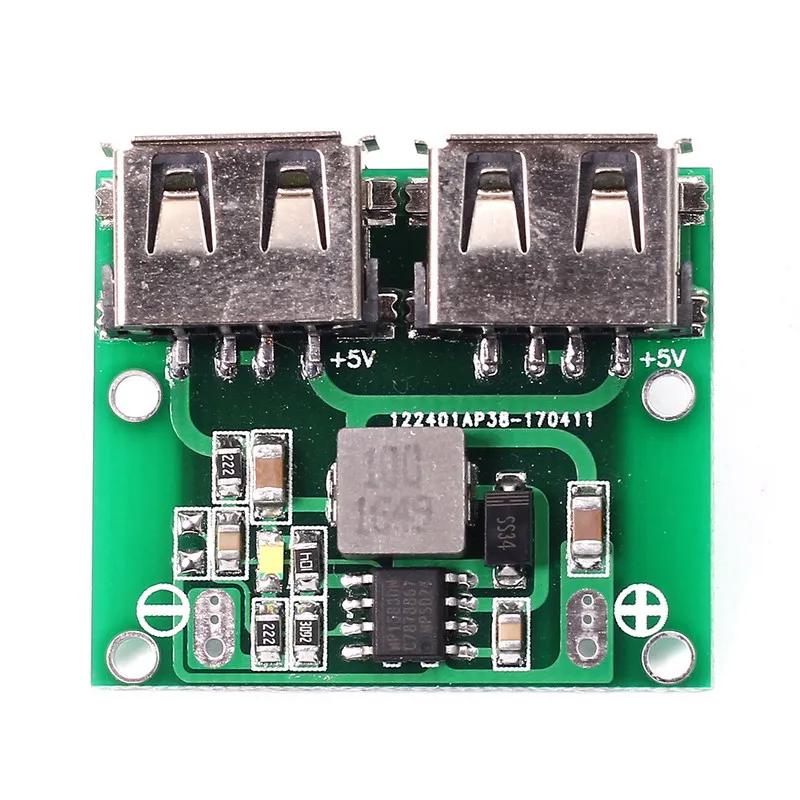

DC-DC USB buck charging module (with work indicator, standard contact gold-plated socket)

Compatible phone models: Andrews series, iPhone series, Huawei, millet, Nokia. The The

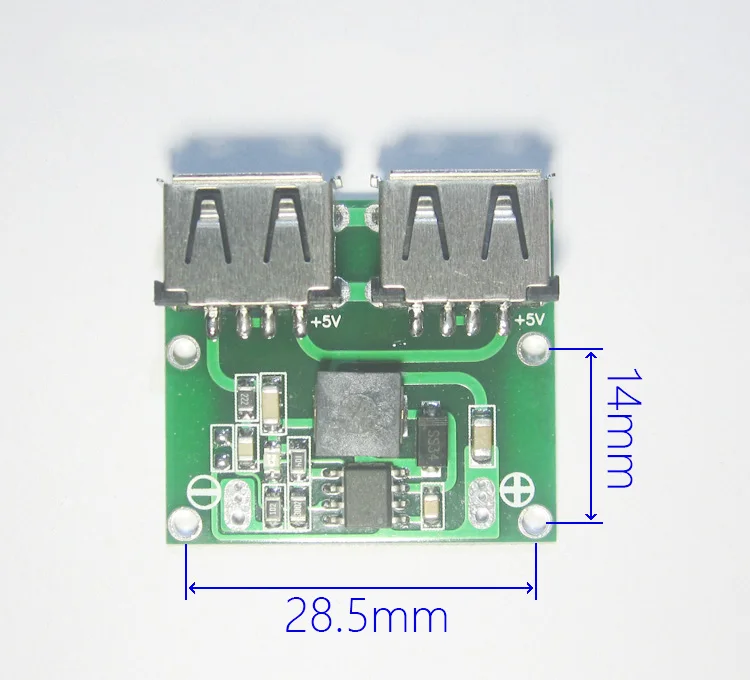

Product Size: 28 * 32 * 8mm

Product weight: 5.5g

Input voltage range: 6-26V

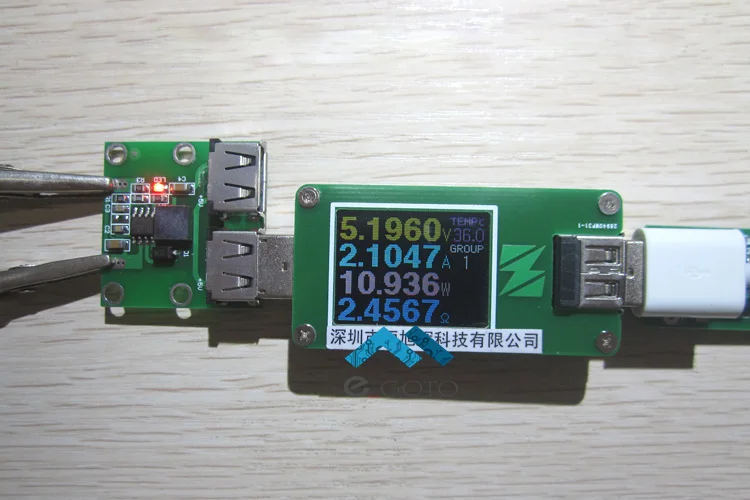

Output voltage: 5.2V (consider the charge line loss, the output is 5.2V or so, the load side is about 5V)

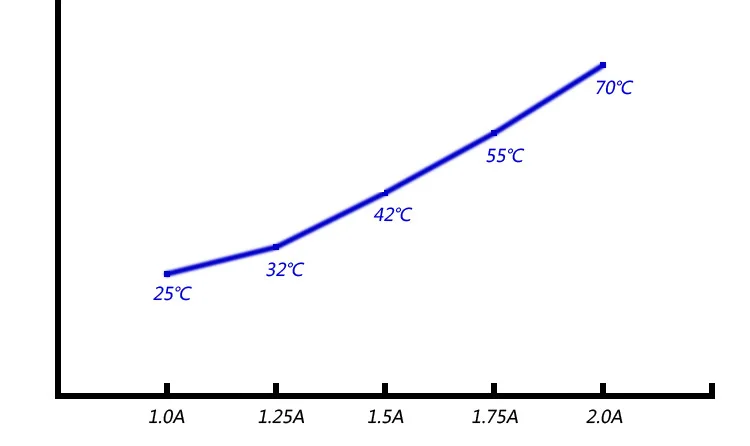

Output current: 3A (in the absence of heat sink device, the stable output current is 2A)

Note 1: positive and negative can not be reversed, and the input voltage can not exceed 26V, otherwise it will lead to chip damage!

Note 2: When working in power, you can not touch the circuit board on the sampling resistor, IC pin, otherwise it may lead to damage to the output voltage of the device!

For some of the poor electronic base customers say: Do not think the nominal 3A current will burn the phone burn equipment! Charging current is determined by the phone or equipment! Most mobile phone charging current is 0.8-1.5A.

  • Unit Type: piece
  • Package Weight: 0.016kg (0.04lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
