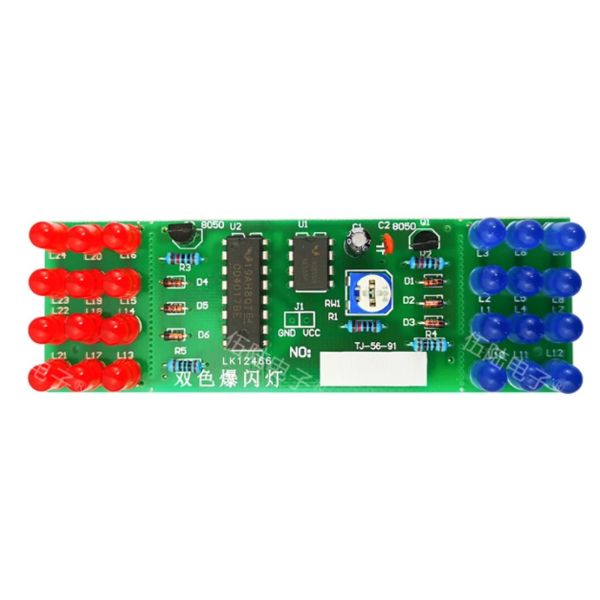

Monday Kids Simulated Police Light Kit - Dual-Color Flashing Soldering Practice for High School and College Electronics Skills Training

This product is a Simulated Police Light Kit designed for electronic skills training and DIY soldering projects. The kit includes all necessary electronic components and circuit board, allowing users to assemble and solder a complete simulated police light circuit. It is ideal for students for electronic skills training and for electronic enthusiasts for DIY projects.

Product Parameters:

Power Supply Voltage: 9~12V (DC Power)
Board Size: 92 x 30mm
Function Explanation: This kit uses NE555 and CD4017 chips to create a simulated police light circuit. The blue LED and red LED alternate flashing based on pulses. Adjusting RP1 changes the flashing frequency. The circuit operates on DC 9-12V. The kit does not include a power supply (battery). It is easy to assemble, has a significant effect, and is highly engaging, suitable for electronic enthusiasts and vocational school students.

Circuit Principle: The kit consists of an astable multivibrator formed by NE555 and a decade counter/pulse distributor CD4017. When pins 2, 3, and 5 are reached, Q0, Q2, and Q4 output two levels sequentially, causing the blue LED to flash three times. When the 6th, 8th, and 10th pulses arrive, Q5, Q7, and Q9 sequentially output two levels, causing the red LED to flash three times. When the 11th, 13th, and 15th pulses arrive, the blue LED flashes again, alternating blue and red LEDs to simulate a police light. Changing RP1 adjusts the oscillation period, thus changing the LED flashing frequency. The entire circuit works on DC 9-12V.

Product Features:

Educational Value: Suitable for students to conduct electronic skills training, helping them grasp basic knowledge of electronic components and soldering techniques.
DIY Project: Perfect for electronic enthusiasts to carry out DIY projects, enhancing hands-on skills and innovative thinking.
High-Quality Components: Uses high-quality electronic components to ensure circuit stability and reliability.
Detailed Manual: Comes with a detailed assembly and soldering manual to help users complete the project smoothly.
Practical Function: The finished simulated police light can be used for practical applications such as alarm prompts.

Combination of Education and Entertainment: Students can learn electronic knowledge through hands-on creation, increasing their interest in learning.
Easy Assembly: Detailed manual and high-quality components make the assembly process simple and easy to understand.

Usage Instructions:

Preparation: Gather soldering tools (soldering iron, solder wire, etc.) and power supply.
Assemble Circuit: Follow the manual to solder the electronic components onto the circuit board.
Connect Power: Connect the circuit board to a 9~12V DC power supply.
Test Function: Test the simulated police light's functionality by inputting a signal to ensure it works properly.
Circuit Diagram: A detailed circuit diagram is provided with the kit. Users can follow the circuit diagram to assemble and solder, ensuring the accuracy of the circuit.

Purchase Information:

Applicable Range: The kit is suitable for students' electronic skills training and electronic enthusiasts' DIY projects.
