Monday Kids DIY Kit NE555 Component Electronics Electric Piano Organ Module Battery Box

$2.26

Product name is DIY Kit NE555 Component Electronics Electric Piano Organ Module Battery Box...

Product origin name is Monday Kids DIY Kit NE555 Component Electronics Electric Piano Organ Module Battery Box

Availability: In stock
SKU
EK360

Payment Security

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

  • Brand Name: Monday Kids
  • Condition: New
  • Type: Logic ICs
  • Operating Temperature: none
  • Model Number: Organ NE555 DIY
  • Dissipation Power: none
  • Supply Voltage: DC3-12V
  • is_customized: Yes
  • Application: Electric Toy
  • PCB size: length 13.5CM* width 2.2CM
  • Name: NE555 Piano

1. Description:

The scale of the circuit can produce different sounds, while different keys correspond to different scales. The play of the electronic organ is to use the fingers to press different keys to produce different scales. The principle is that the circuit IC555 is connected to an oscillator, whose oscillation frequency is determined by the resistance of the circuit (R1- R10), so different sounds will be generated due to different keys.

This DIY product needs to be soldered and assembled by yourself. If you have any problem or question about it, please leave message to us.

2. Parameters:

1>. Power supply voltage: DC3-12V

2>. PCB size: length 13.5CM* width 2.2CM

3. Features:

1>. It is simple and practical, and the power consumption is small, and the circuit is driven by an integrated circuit. The parts are few, and the line is simple and clear.
2>. In the process of debugging, the understanding of the principle of the circuit will be deepened.

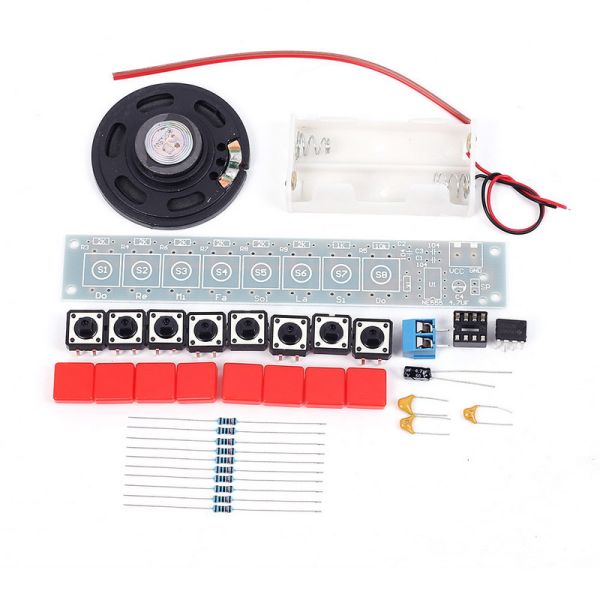

4. Component list:

Component Name

PCB Marker

Parameter

QTY

IC Socket

U1

DIP-8

1

NE555

U1

DIP-8

1

KF301-2P Connector

1


Electrolytic Capacitor

C4


4.7uF

1

Capacitor

C1-C3


0.1uf 104

3

Metal Film Resistor


R1,R2

1K

2

Metal Film Resistor


R3,R4,R6-R9

2K

6

Metal Film Resistor

R5

10K

1

Cable

5CM

2

Button

S1-S8

12*12*7.3mm

8


Button Cap

8

Battery box


AA*2

1


Speaker

SP

8ohm 0.25W 5cm

1

PCB

22*135mm

1


  • Unit Type: piece
  • Package Weight: 0.06kg (0.13lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
