Monday Kids QR Code Barcode Recognition Module Scan Code Module Serial Communication UART Interface Embedded
$38.61
Availability:
In stock
SKU
RY-ES-428
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Condition: New
- is_customized: Yes
- Type: Voltage Regulator
Features:
1 . Simple operation, no need to understand complex image recognition algorithms
2 . Support the reading of common one-dimensional codes and two-dimensional codes such as Barcode and QR
3 . Onboard micro USB and UART serial port for access to a computer or embedded device
4 . Support for setting module parameters by scanning the setup code
5 . Onboard auxiliary light source for reading in a completely dark environment
Specifications:
Working voltage: 5V
Operating current: 135mA (scan), 58mA (standby), 2mA (sleep)
Working temperature: 0 ° C ~ 60 ° C
Working humidity: 5%~95% (non-condensing)
Communication interface: UART, USB
Support for 1D code types: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5
Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)
Support QR code type: QR code, Data Matrix, PDF417
Auxiliary light source: white light
Reading angle: 360° rotation, ±65° tilt, ±60° deflection
Field of view angle: 28° (horizontal), 21.5° (vertical)
Product size: 53.3mm × 21.4mm
Package included:

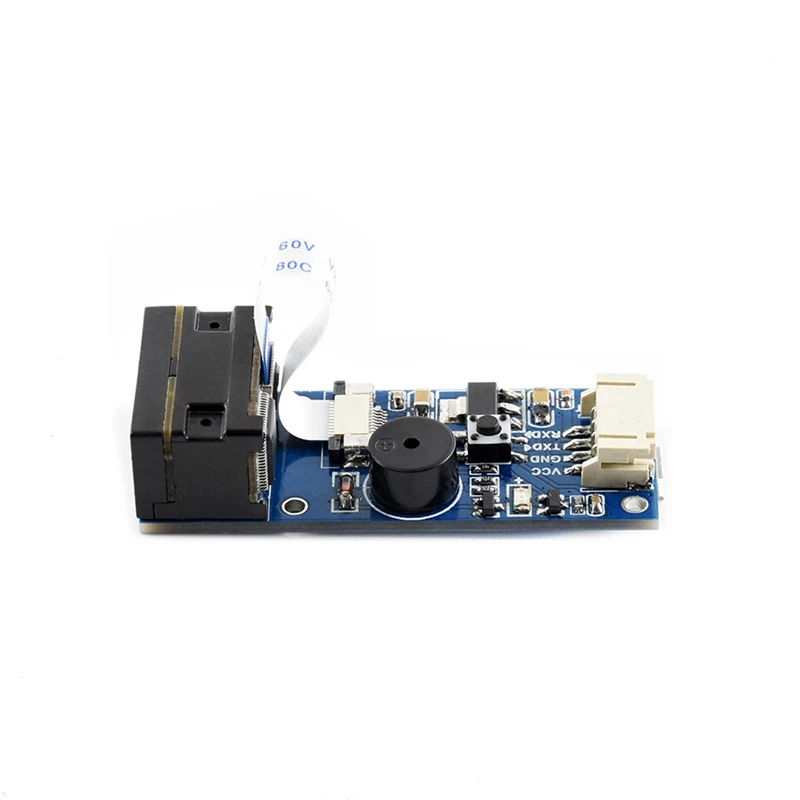

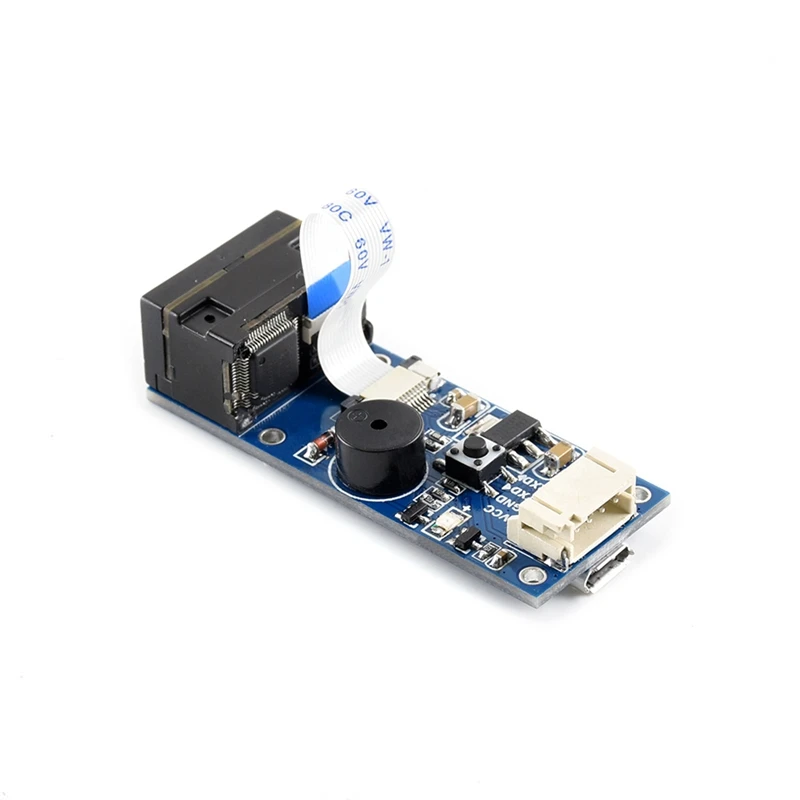

1 * Barcode Scanner Module
1 * USB cable type A male to micro male
1 * PH2.0 4PIN cable
- Unit Type: piece
- Package Weight: 0.08kg (0.18lb.)
- Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
