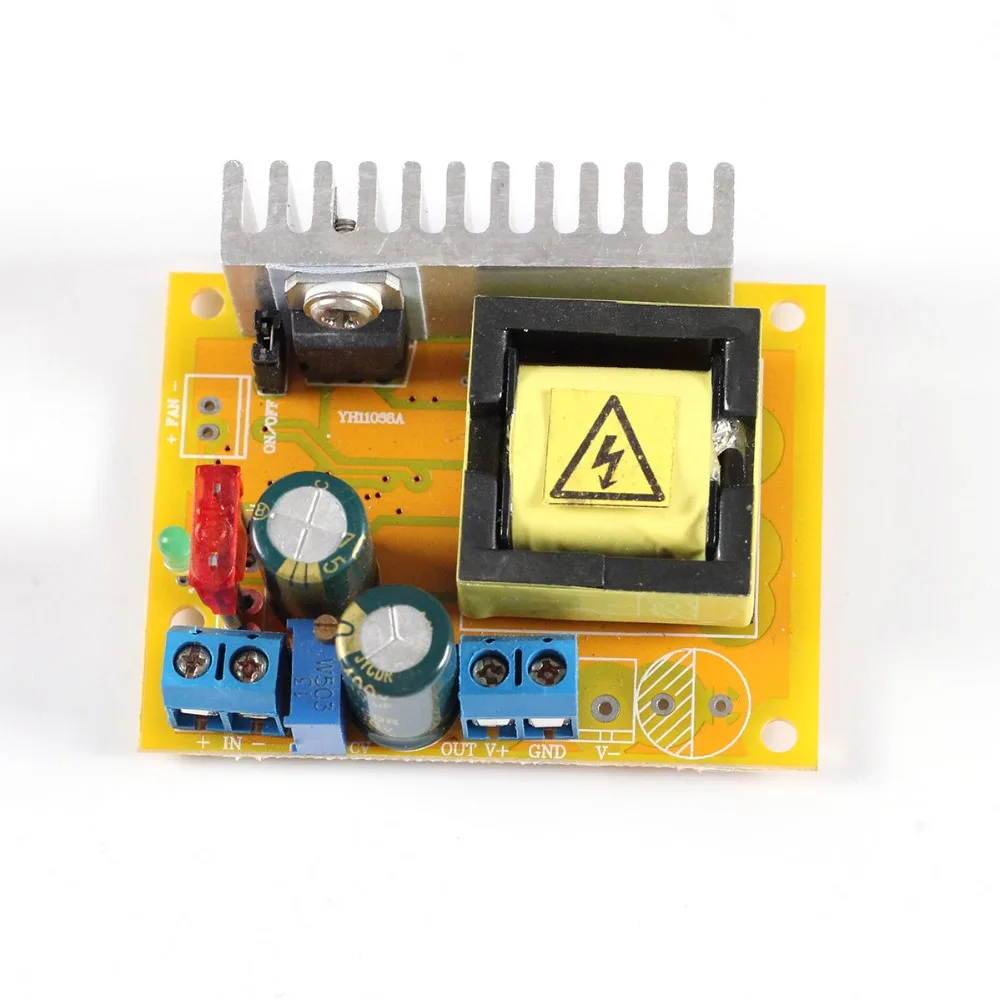

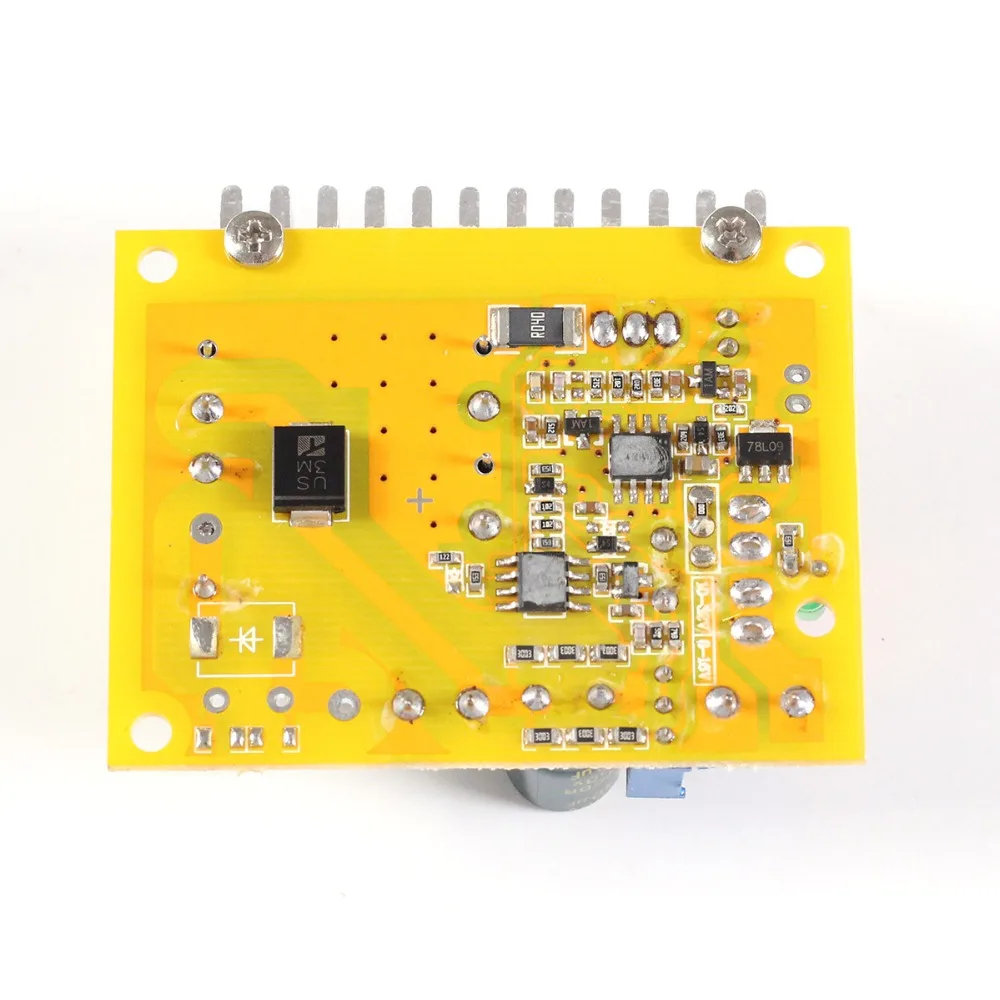

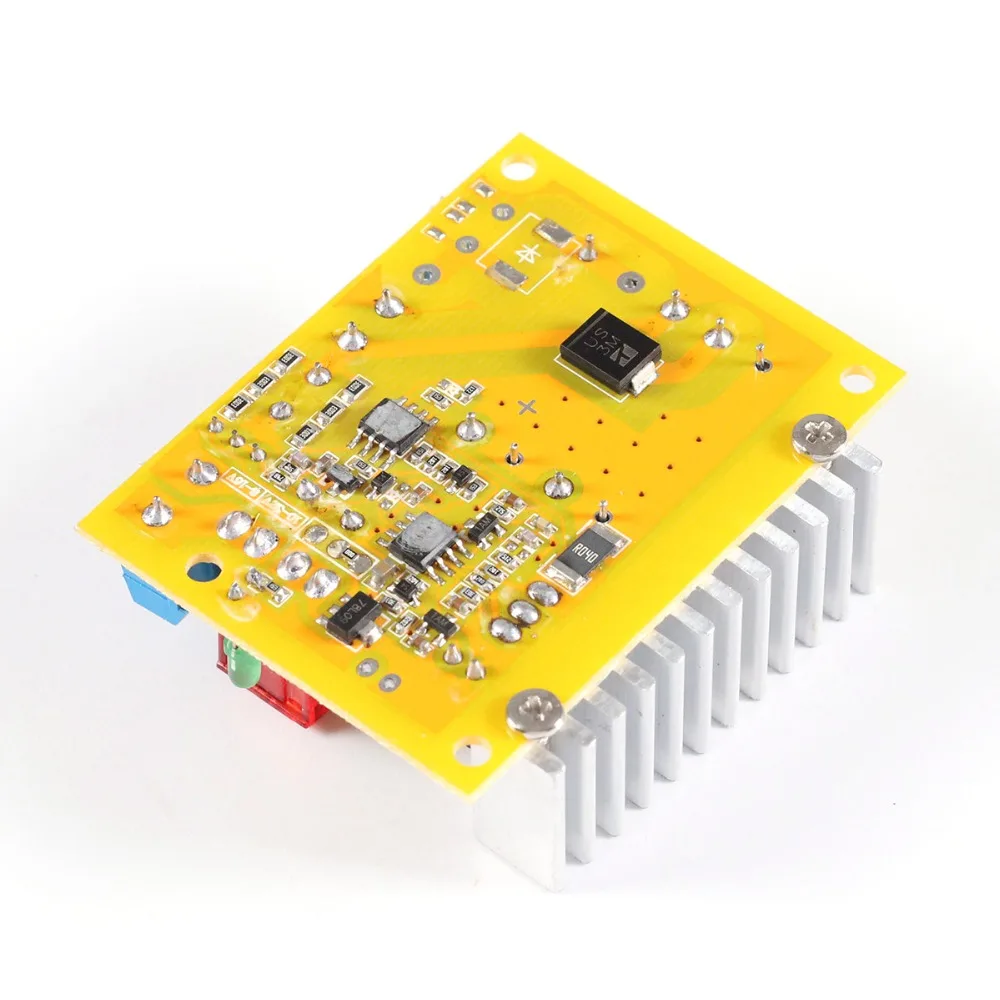

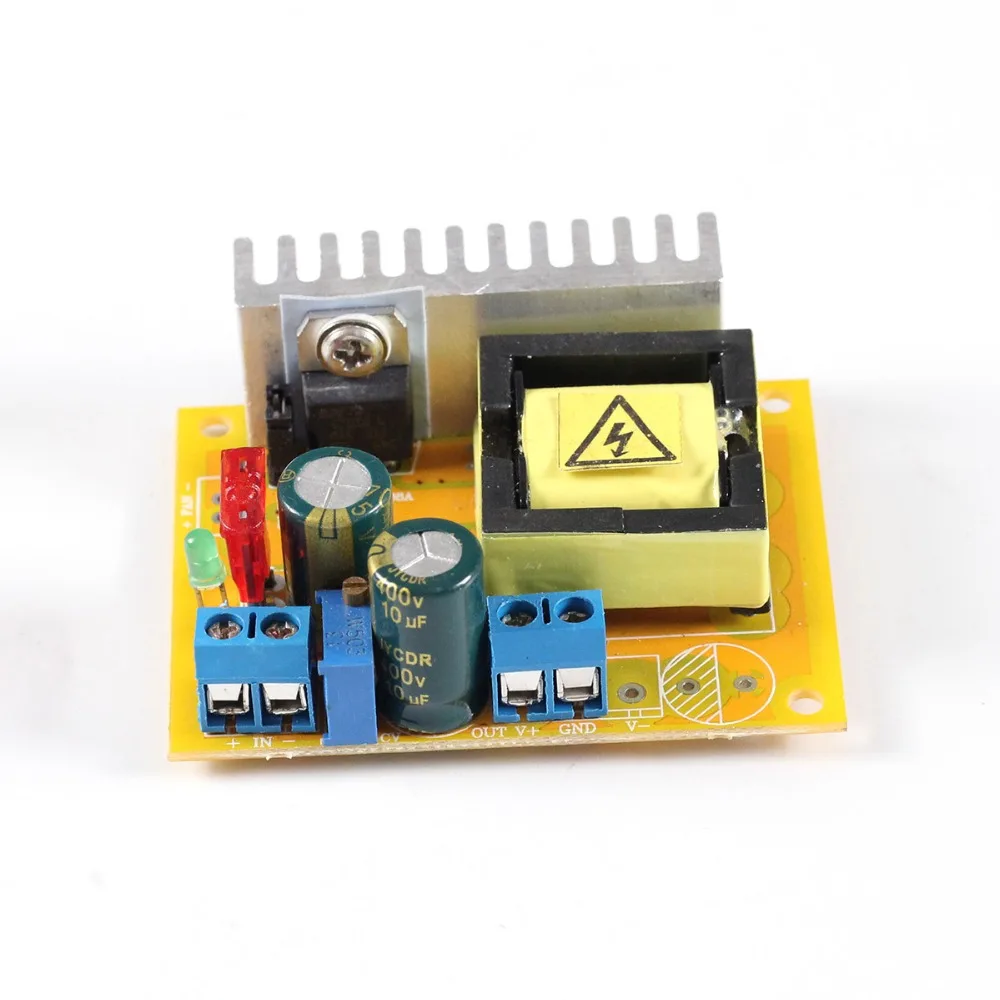

Monday Kids DC-DC 8-32V to 45-390V Step Up Power Supply Module High Voltage Boost Converter Board Constant Current Adjustable
$7.43
Availability:
In stock
SKU
EK269
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Supply Voltage: Input voltage: 8-32V input, the default is 10-32V input.
- Operating Temperature: -40 ~ 85 Celsius
- Dissipation Power: 40W
- Type: Voltage Regulator
- is_customized: Yes
- Model Number: High Voltage Boost Converter
- Application: Electronic Circuit
- Module Properties: Non-isolated step-up module
- Input Current: Max 5A
- Quiescent Current: 15mA
- Output Voltage: 45-390V Continuously Adjustable (Default Output 50V)
- Output Current: Max 0.2A
- Output Power: 40W (Peak 70W)
- Operating Frequency: 75KHz
- Conversion Efficiency: up to 88% (efficiency,input,output voltage, current, pressure-related)
- Module size: length 60mm wide 50mm high 22mm
- Short Circuit /Over Current Protection: Yes/Yes (Input current exceeds 4.5A, reducing the output voltage)
Special Note:
The module output is high voltage. It will be life-threatening on people and animals.Please pay attention to safety precautions.
Parameters:
1. Module Name: High Voltage boost module
2. Module Properties: non-isolated step-up module
3. Input voltage: 8-32V input, the default is 10-32V input.
4. Input Current: 5A (MAX)
5. Quiescent current: 15mA (12V-liter 50V, the output voltage, the higher the current will increase too quiet)
6. Output voltage: +45-390V continuously adjustable (default output + 50V)
7. Output Current: 0.2A MAX (with input, output pressure related,the higher the output voltage, output current is smaller)
8. Output Power: 40W (peak 70W)
9. Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
10. Operating frequency: 75KHz
11. Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
12. Short circuit protection: Yes.
13. Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
14. Overvoltage protection: There. (Output voltage exceeds 410V, lowering the output voltage)
15. Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
16. Installation: four 3mm screws
17. Wiring: free welding output terminals
To the capacitor charging time measured data:
470uF full to 390V time 2 seconds
1000uF full to 390V time 4 seconds
2200uF full to 390V time 8 seconds
4700uF filled to 390V time 18 seconds
Pay attention! The The output of this module is high pressure, people, animals will be life-threatening, please pay attention to the use of security precautions. We are not responsible for this.
Applications:
1. Capacitor charging,electromagnetic guns power supply.
2. The power supply for your electronic device, according to your system can set the output voltage value.
3. Pressure test power.
4. Hunting,eradication of mice.
- Unit Type: piece
- Package Weight: 0.059kg (0.13lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
