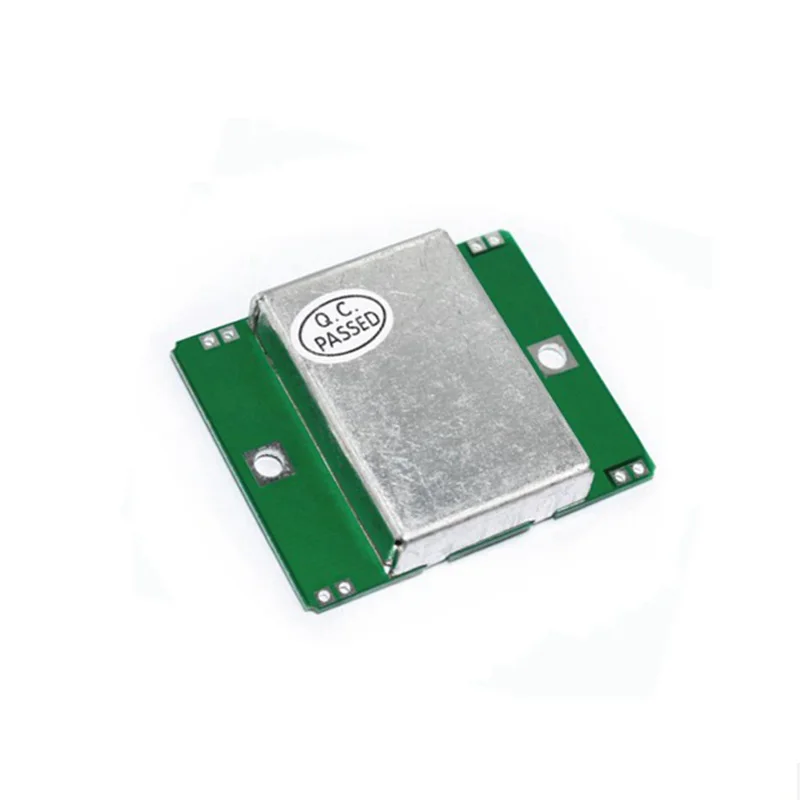

Monday Kids Microwave Doppler Radar Wireless Module Motion Sensor HB100, Microwave Motion Sensor, Motion Detector
$2.56
Availability:
In stock
SKU
RY-ES-378
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Application: Computer
- Supply Voltage: 5V
- Condition: New
- Model Number: HB100 Hall Sensor
- is_customized: Yes
- Type: Voltage Regulator
Feature
1 transmission frequency: 10.525 GHz
2 Frequency Setting Accuracy: 3MHz
3 Output power (minimum): 13dBm EIRP
4 Operating voltage: 5V ± 0.25V
5 Operating Current (CW): 60mA max., 37mA typical
6 harmonic emission: <-10dBm
7 Pulse mode:
8 average current (5% DC): 2mA typ.
9 Pulse Width (Min.): 5uSec
10 load cycles (Min.): 1%
Receiver:
1 Sensitivity (10dB S / N ratio) 3Hz to 80Hz band width:-86dBm
3Hz to 80Hz bandwidth of clutter 10uV
2 Antenna Gain: 8dBi
3 Vertical 3dB beamwidth: 36 degrees
4 horizontal 3dB beam width: 72 degrees
5 Weight: 8 grams
Package Including:
1 * Microwave Doppler Radar Wireless Module
- Unit Type: piece
- Package Weight: 0.025kg (0.06lb.)
- Package Size: 6cm x 4cm x 3cm (2.36in x 1.57in x 1.18in)
