Monday Kids Electronic DIY Kit MCU Computer Game Machine DIY Snake Electronic for Tetris/Snake/Plane/RacingDot Matrix Game Kit Electronica

$9.99
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Application: Computer
  • Operating Temperature: none
  • Model Number: CZL--YXJ01
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Supply Voltage: 5V-100mA
  • Product : MCU computer game machine
  • Power supply interface: Portable charger, power adapter, computer USB, battery box power suppl
  • Control mode: Large size button control
  • PCB material: Golden military grade FR4
  • Feature: diy electronic

1. Parameters:

No.

Parameter

Value

1

Product name

MCU computer game machine

2

Model

CZL--YXJ01

3

Voltage and current

5V-100mA

4

Power supply interface

Portable charger, power adapter, computer USB, battery box power supply

5

Control mode

Large size button control

6

PCB material

Golden military grade FR4

2. Features:

1>. With the dot matrix of 16*8.

2>. All copper mini USB, 3 bit mini digital tube

3>. Golden PCB looks more exquisite.

4>. STC12C5A60S2 high speed and high speed.

5>. Humanized keypad arrangement.

6>. 12mm big button, better feel.

7>. Corner treatment is better.

Please Note : The button color changes from yellow to black!

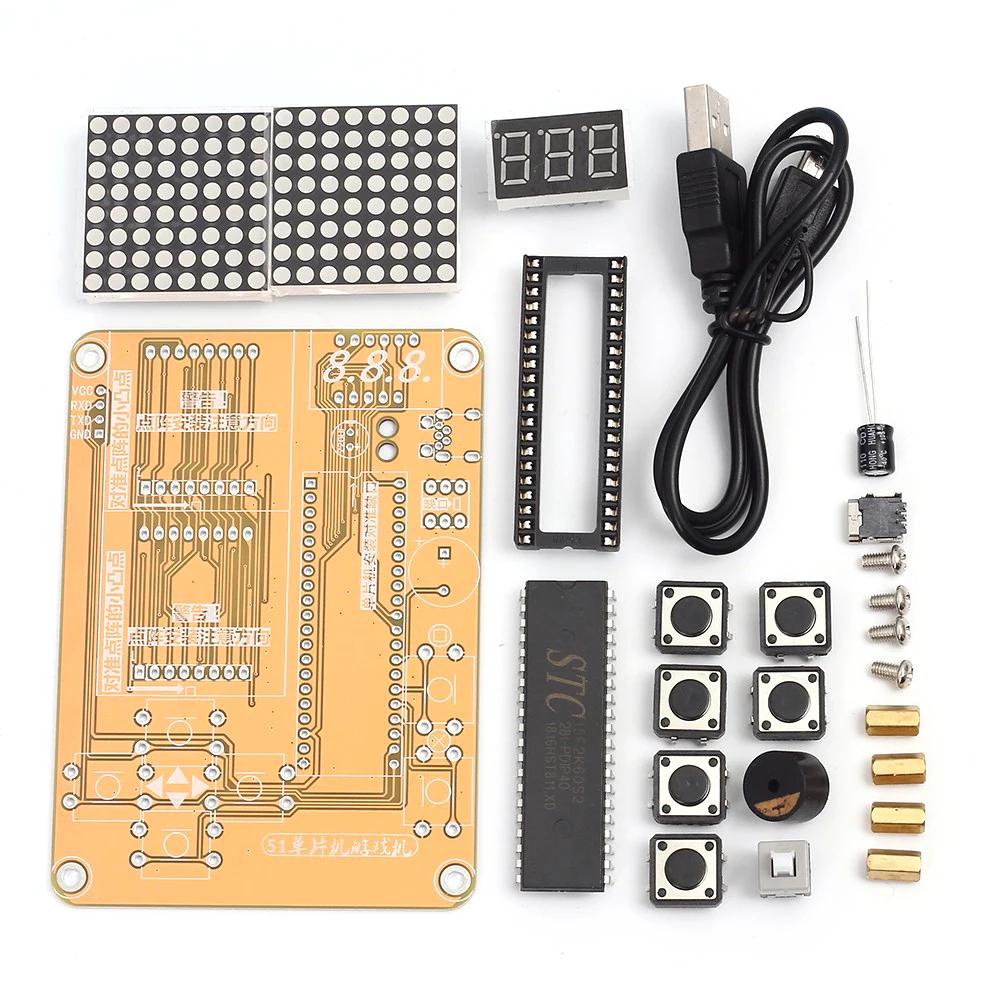

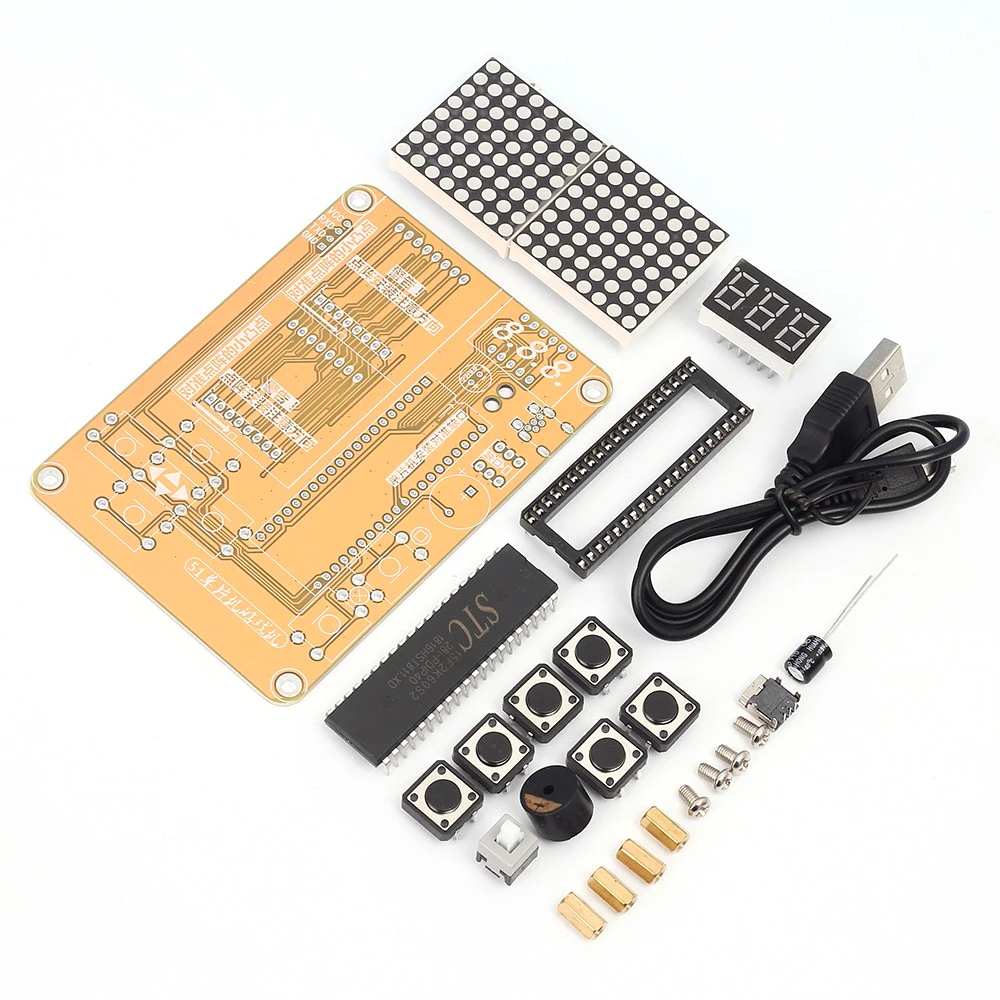

3. Components list:

No.

Name

Specs.

Packaging

Tag No.

Qty

Remark

1

Buzzer

12mm5V passive

BEEP-12MM

B1

1

In no particular direction

2

Electrolytic Capacitor

16V_220UF

RB_01_6.3X5

C2

1

Long pin is positive

3

Micro USB

USB_2PIN

USB-micro

J1

1

solder in accordance with the silk-screen

4

White Switch

SWITCH_2X2

KTF_8MM0

S1

1

solder in accordance with the silk-screen

5

Touch Switch

12x12

12x12

S2,S3,S4,S5,S6,S7,S8

6

solder in accordance with the silk-screen

6

Lattice

3x8

0.26

L1,L2

2

solder in accordance with the silk-screen

7

Nixie Tube

8x8

30mm

SEG1

1

solder in accordance with the silk-screen

8

Copper Cylinder

M3*12+6 single pass

4

Fittings

9

Bolt

M3x5

4

Fittings

10

Power line

Micro USB line

1

Fittings

11

PCB

CZL-YXJ01

1

Main part

12

IC Base

40p

DIP-40-W

1

solder in accordance with the silk-screen

13

SCM

STC15F2K60S2

U1

Insert it into IC Base

  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
