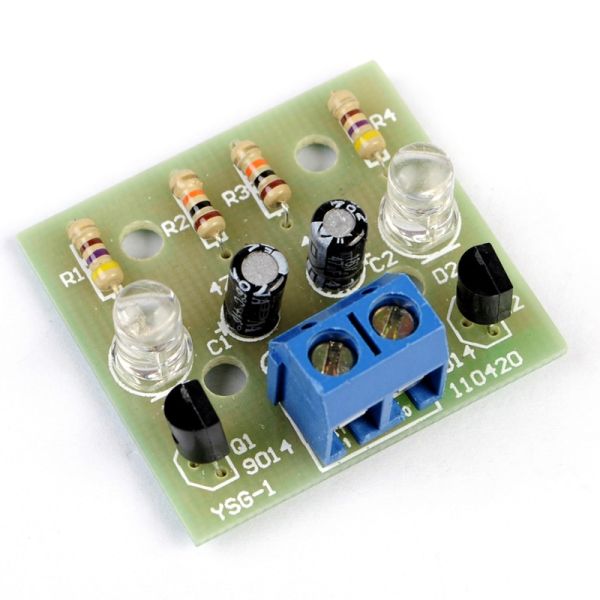

Monday Kids Simple LED Flash DIY Kits Circuit Electronics DIY Electronic Suite 1.2mm Parts for Arduino Flash LED Kit Electronic DIY Kit

Be the first to review this product

$0.96

Availability: In stock

SKU

EK465

Payment Security

We are PayPal Verified

PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).

Details

Brand Name: Monday Kids
Supply Voltage: 3v ~ 9v
Condition: New
Type: Logic ICs
Operating Temperature: -20 ~ 65 Celsius
Model Number: Flash LED Kit
Dissipation Power: none
is_customized: Yes
Application: Electronic Circut

This circuit is commonly called a Flashing LED or Blinking LED and has the technical name FLIP FLOP or ASTABLE MULTIVIBRATOR. It uses two transistors to alternately flash two LEDs and will operate from 3v to 9v.

1. Suite Features

Suite Name: Flashing / Blinking Light

Suite Type: YSG-1

Operating Voltage: 3~9V

Dimensions: 30*28mm

2.Operation Principle

There will be a slight difference between the gain (the ability to amplify) of the two transistors, Q1 and Q2 and one of them will turn on faster to start the circuit flashing. If Q1 turns on first, the voltage on the collector will be very near to 0v and D1 will illuminate. At the same time the positive lead of C1 will be at about 0v and the negative lead will also be about 0v. This will put 0v on the base of Q2 and Q2 will be turned off. This means LED D2 will not be illuminated.

C1 will gradually charge (in the opposite direction to its polarity) via 10k resistor R2 and when the base of Q2 see a voltage of about 0.65v, it will start to turn ON.

This will reduce the voltage on the collector of Q2 and make the positive lead of C2 drop. This will cause the negative lead of C2 to drop also and reduce the voltage on the base of Q1. This will start to turn off Q1 and the voltage on the collector will rise.

This will further increase the voltage on the base of Q2 and it will turn on more. This action is called REGENERATIVE ACTION as one transistor will turn off and cause the other to turn on. This occurs very quickly and the two transistors swap states. This means the second LED illuminates and the first LED is not illuminated. The flashing frequency depends on the value of C1, C2, R2 and R3.

3.Circuit Diagram

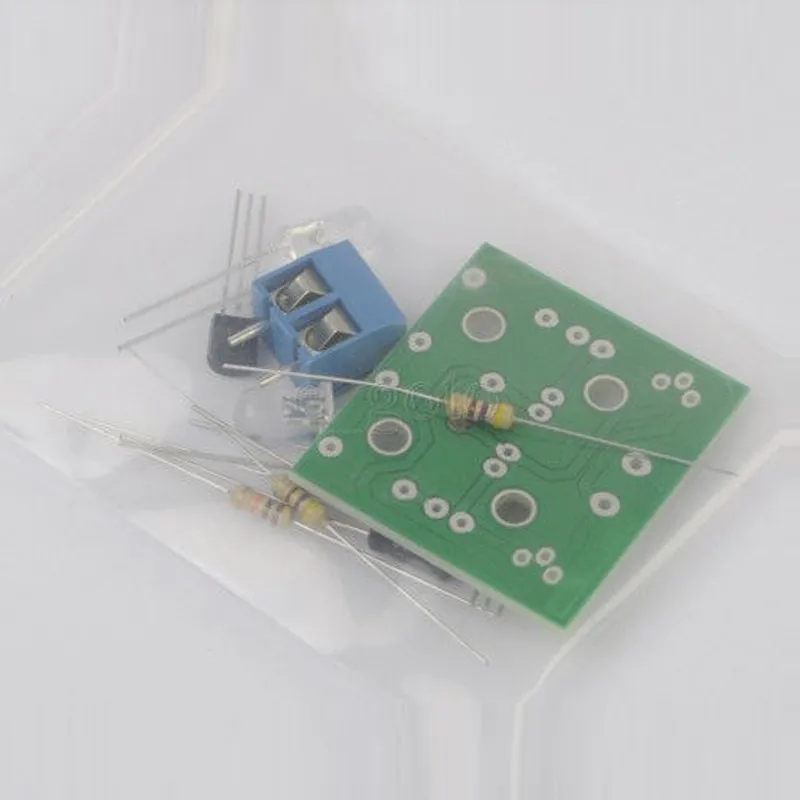

4.List of Components

Item Name	Specifications	Code	Qty
Resistor	470R	R1 R4	2
	10K	R2 R3	2
Capacitance	47uF/16V	C1 C2	2
LED	Ф5 Transparent Red	D1 D2	2
Transistor	9014	Q1 Q2	2
Cable Terminal	2P	J1	1
PCB	FR-4 28*30mm	1	1
