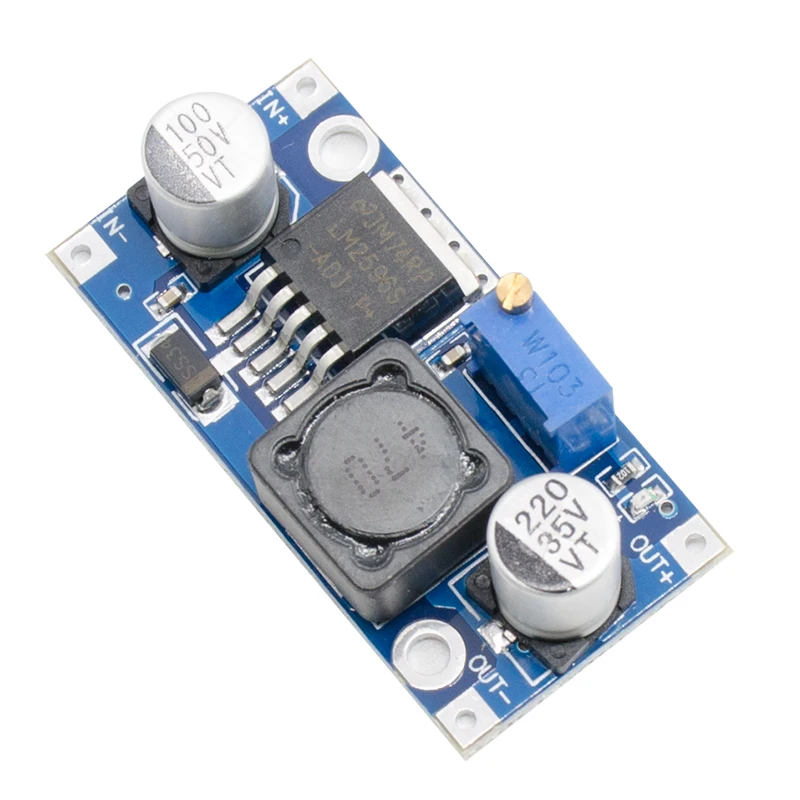

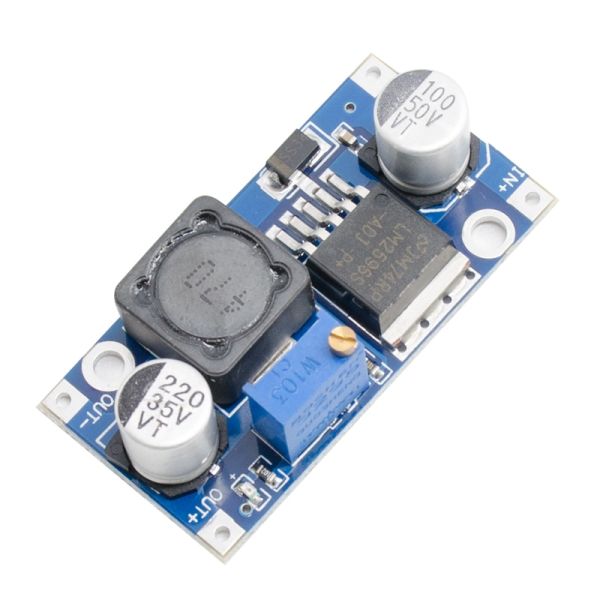

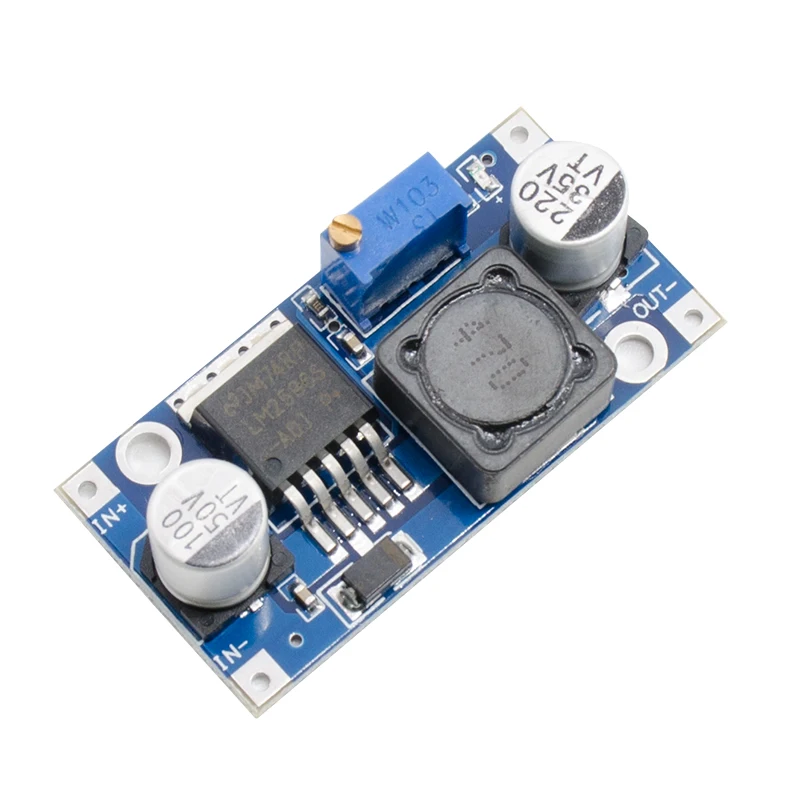

Monday Kids LM2596S DC-DC Step Down Adjustable Power Supply Module Power Converter Buck Module

$1.78
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Condition: New
  • Operating Temperature: -40-85 centigrade
  • Model Number: LM2596S DC-DC Module
  • Type: Voltage Regulator
  • Supply Voltage: 3.2-35V
  • is_customized: Yes

Product parameter:

  • Input voltage: 3.2V~40V

  • Output voltage: 1.25V~35V

  • Output current: 3A (max)

  • Conversion efficiency: 9 thousand and 200 (highest)

  • Output ripple: <30mV

  • Switching frequency; 65KHz

  • Operating temperature: -45 DEG C ~ +85 ℃

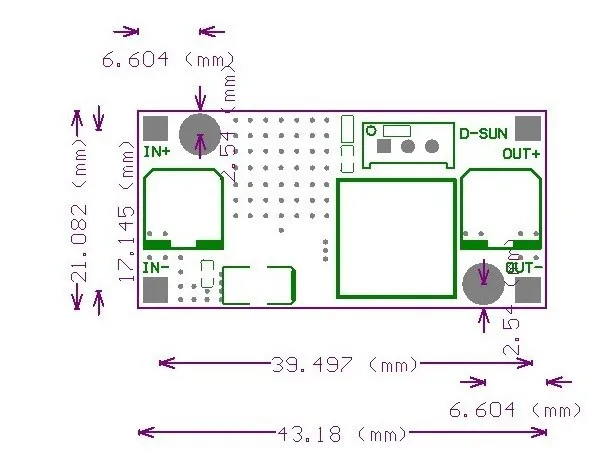

  • Size: 43mm * 21mm * 14mm

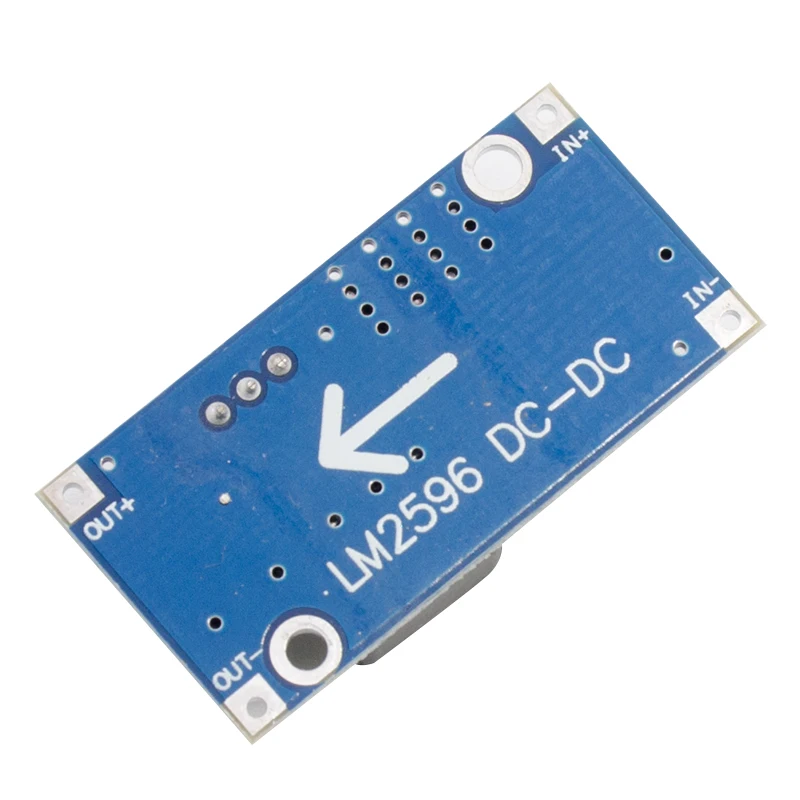

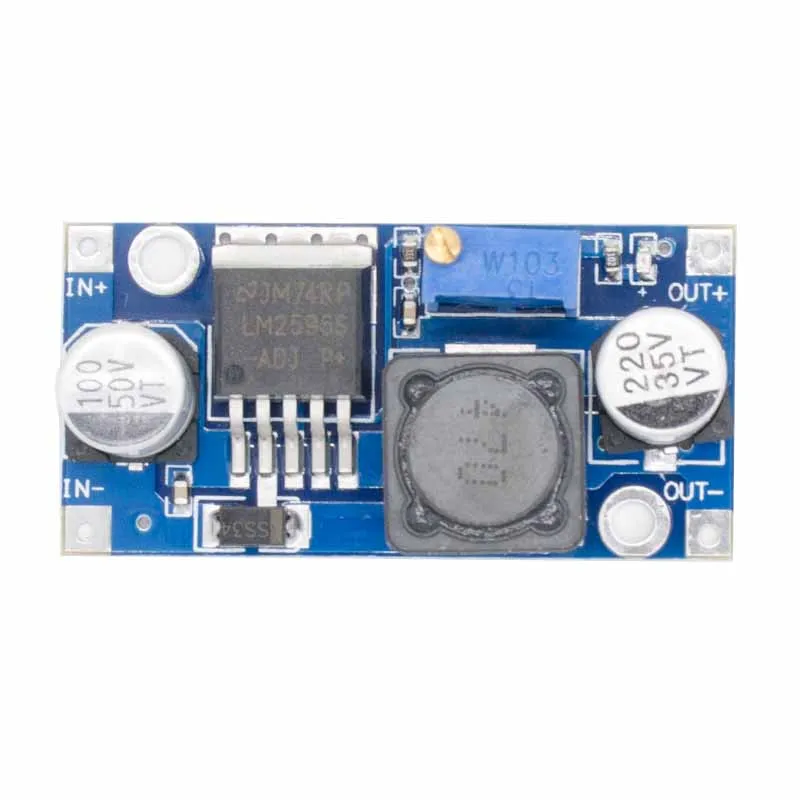

IN+ input positive IN- input negative electrode!

OUT+ output positive OUT- output negative pole

Input voltage range: DC 3.2V to 40V (input voltage must be more than 1.5V higher than the output voltage). Not boost)

Output voltage range: DC 1.25V to 35V, voltage continuous adjustable, high efficiency (maximum 9 thousand and 200), maximum output current of 3A.

Measured 12V input, 5V output current 1A load regulation rate is less than 100

Note: This is the buck module. The input voltage must be higher than the output voltage.

Output current is greater than 2.5A (or output power is greater than 10W), long time work, please add heat sink.

Package include:

1 * LM2596S DC-DC Module

XBee Shield
  • Unit Type: piece
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 12cm x 10cm x 3cm (4.72in x 3.94in x 1.18in)
