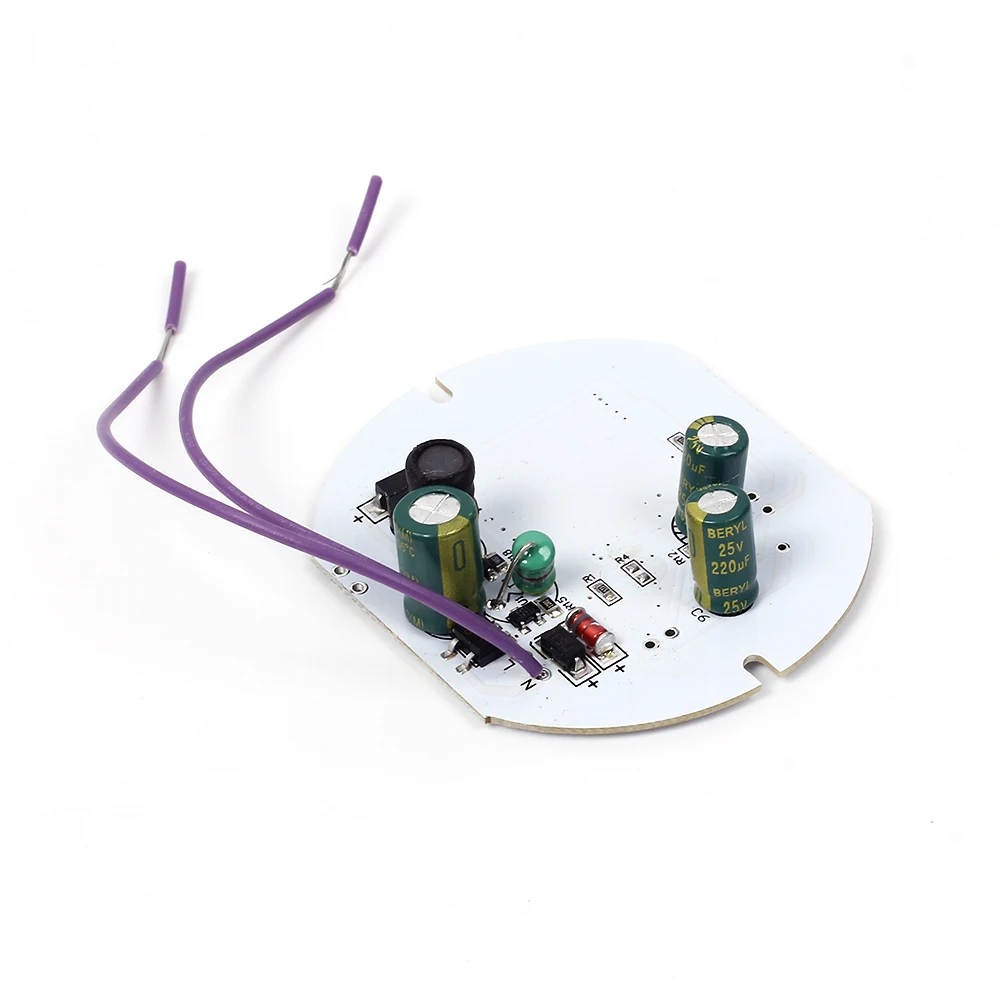

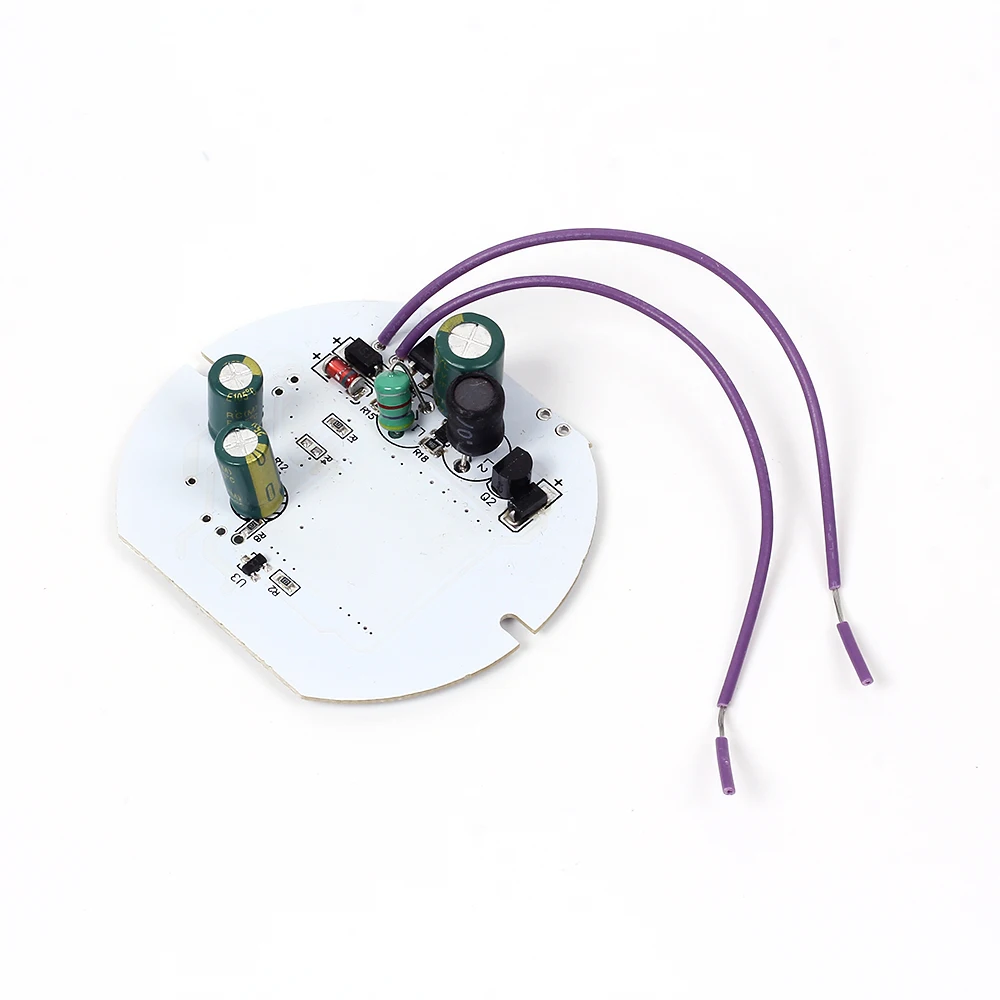

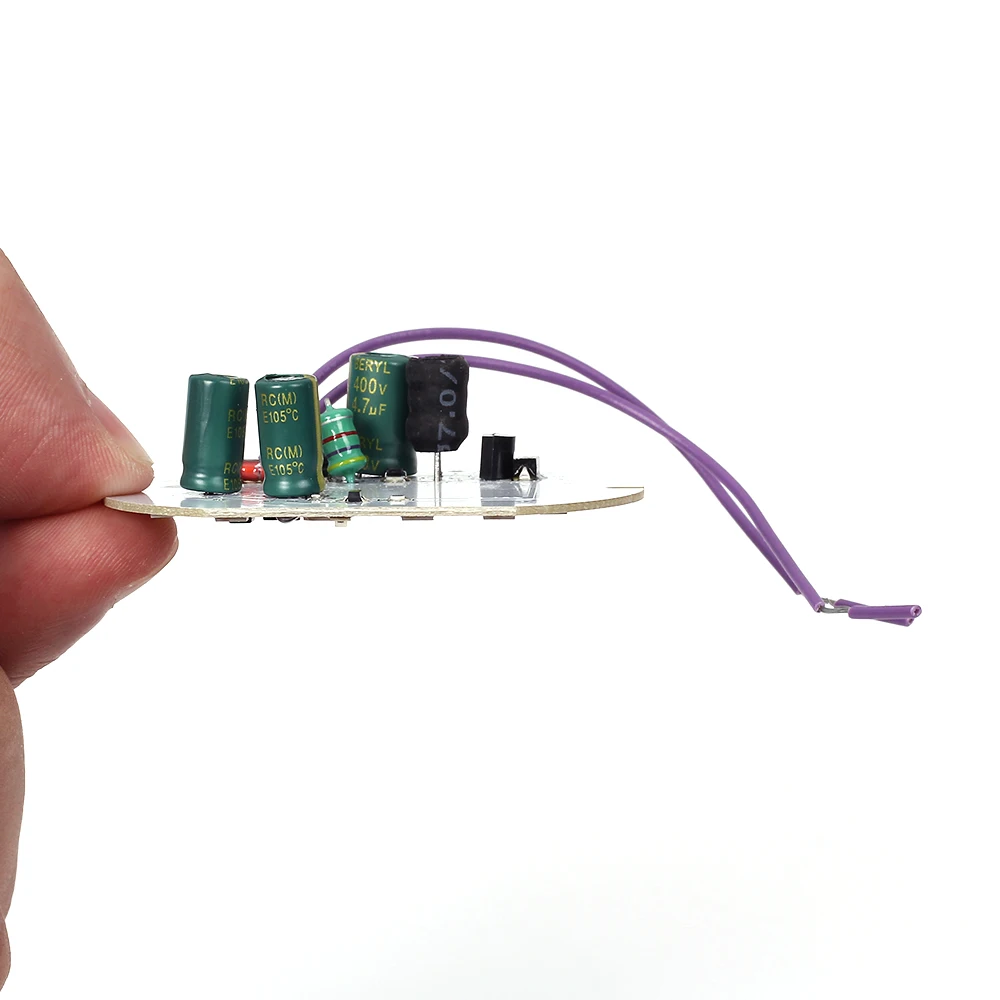

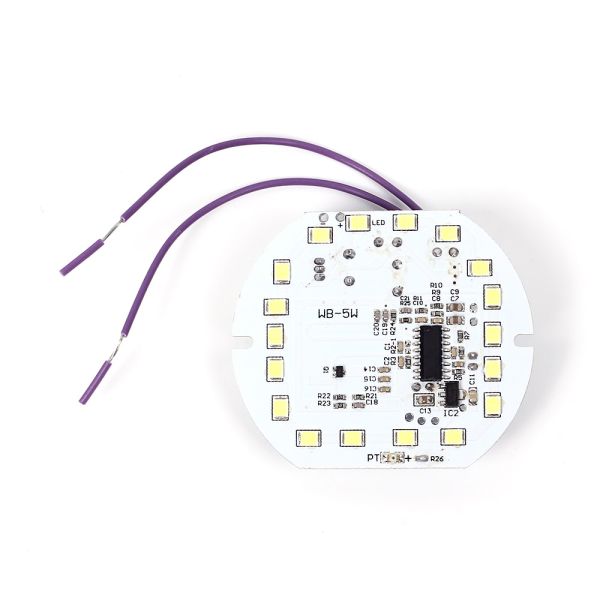

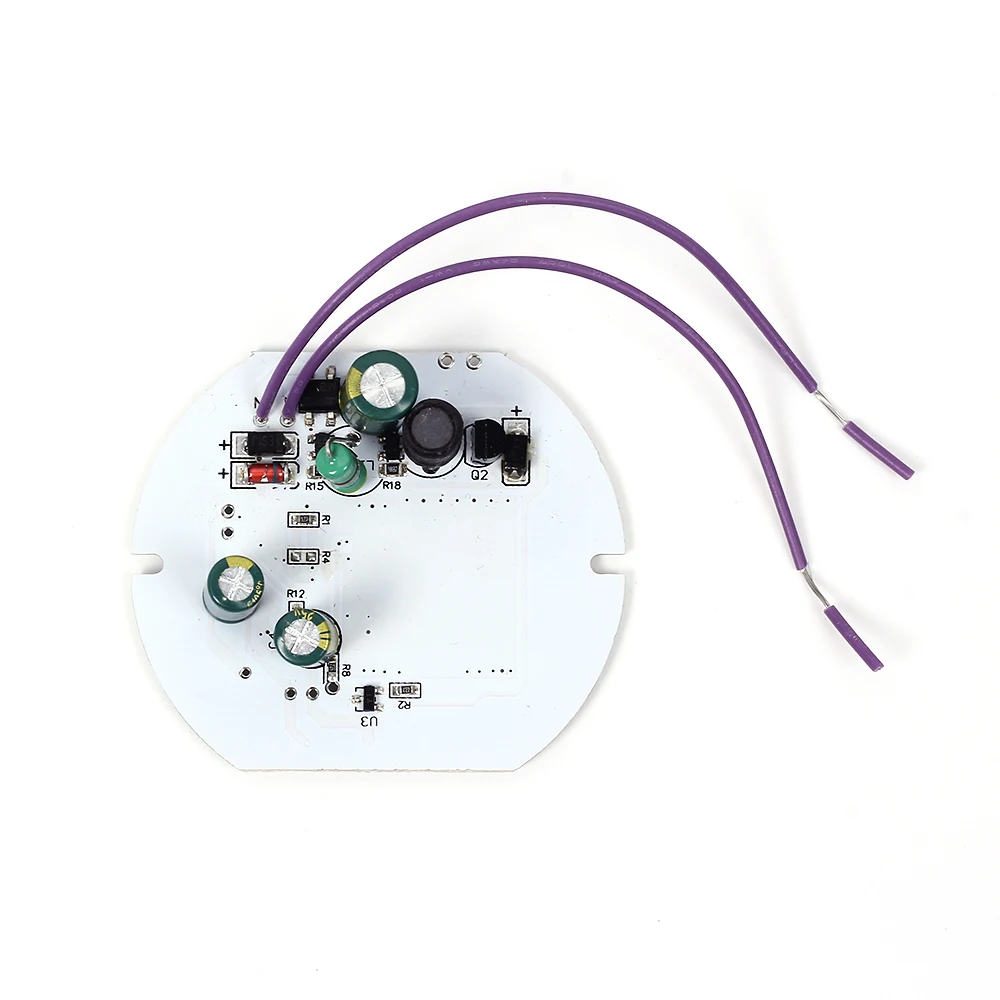

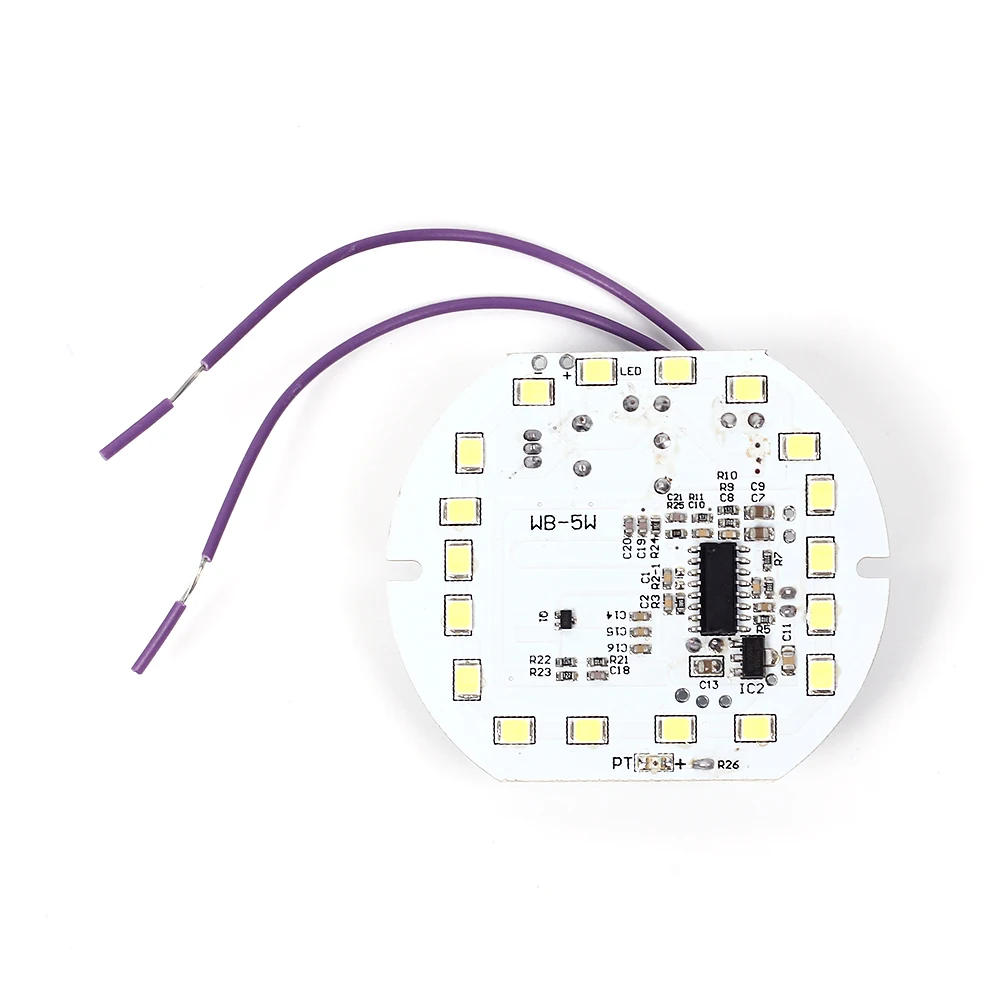

Monday Kids LED Microwave Radar Sensor Power Supply Module Microwave Radar Induction Switch Sensoring with LED Lamp

$1.85
In stock

Hurry up! Save . Sale ends in:

Days

Hrs

Mins

Sec

  • Brand Name: Monday Kids
  • Supply Voltage: 180-265V AC
  • Operating Temperature: -20~ +80 celsius
  • Model Number: Microwave Radar Switch
  • Condition: New
  • Type: Logic ICs
  • Dissipation Power: none
  • is_customized: Yes
  • Application: Electronic Circuit

Description:
It uses Doppler radar technology, with auto-sensing capabilities to control other product,High sensitivity, sensor distance, reliability, wide angle sensor,Wide supply voltage range and other characteristics. Widely used in lighting situations,anti-theft alarm situations.

Features:
1. microwave sensors using planar antenna and receiving echo.
2. The switch is active sensors.
3. The sensors emit a high-frequency electromagnetic waves and receives their echo.
4. The sensors detect changes within echo.
5. The sensors detect tiny movement in detect range.
6. Send signal to MCU and execution instruction.
7. Signals are likely to be detected through the door, glass and thin walls.
8. It will get best probe result if person or object when moving toward the sensor.
9. This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference

Parameter:
1. input voltage: 180-265VAC;
2. the output voltage: 50-140V;
3. the output current: 50-60MA;
4. power supply size: 40MM;
5. Power efficiency: 83%;
6. power factor: 0.6;
7. load power: 2-9W;
8. detection angle: 360° (the actual installation is reduced);
9. detection range: 3-15 meters, the default setting 7-8 meters (adjustable);
10. the time delay is adjustable :() The default settings 3S/30S;
11. power protection: over voltage, over temperature, over current, overload, short circuit protection;
12. power use: non-isolated power supply built-in sensors, using high-frequency microwave sensor control module;

Application:
1. Security
2. Intelligent Lighting
3. Body sensors toys
4. Industrial automation and control
5. Auto-sensing electrical equipment
6. Battery-powered automatic control

  • Unit Type: piece
  • Package Weight: 0.03kg (0.07lb.)
  • Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
