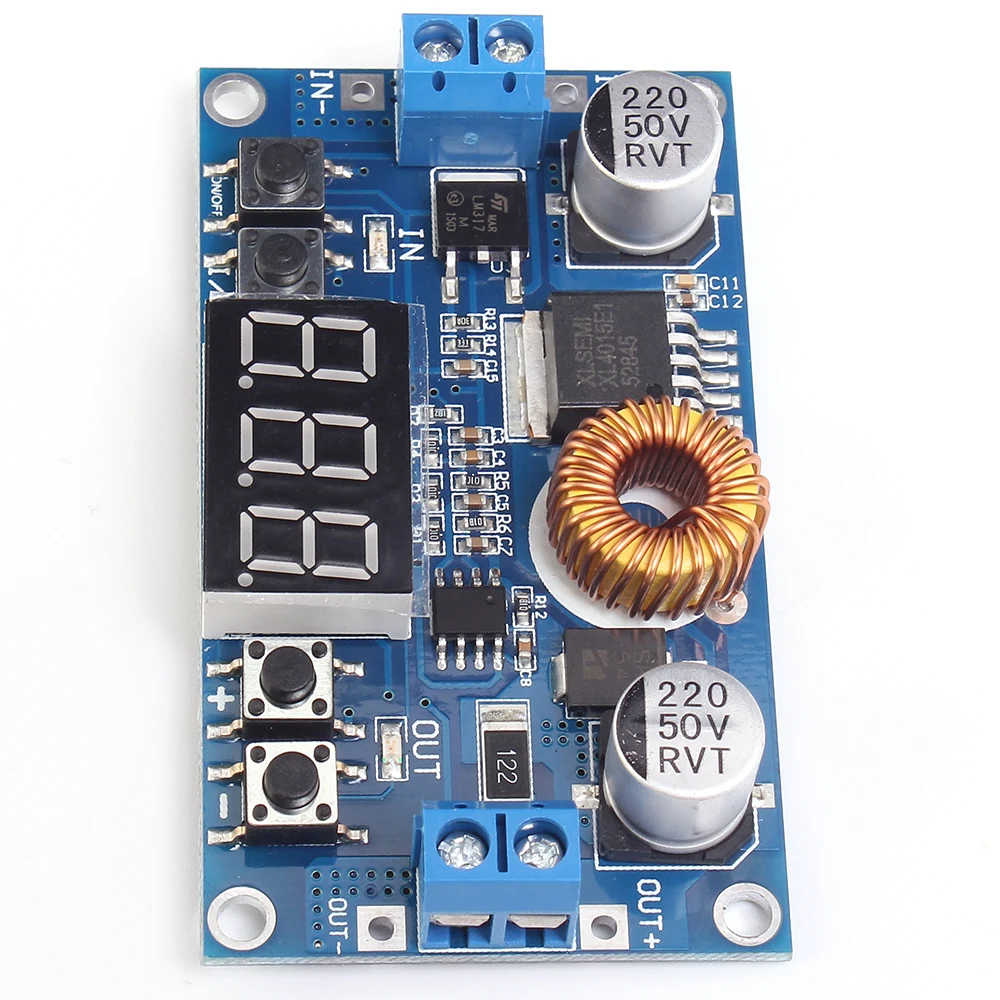

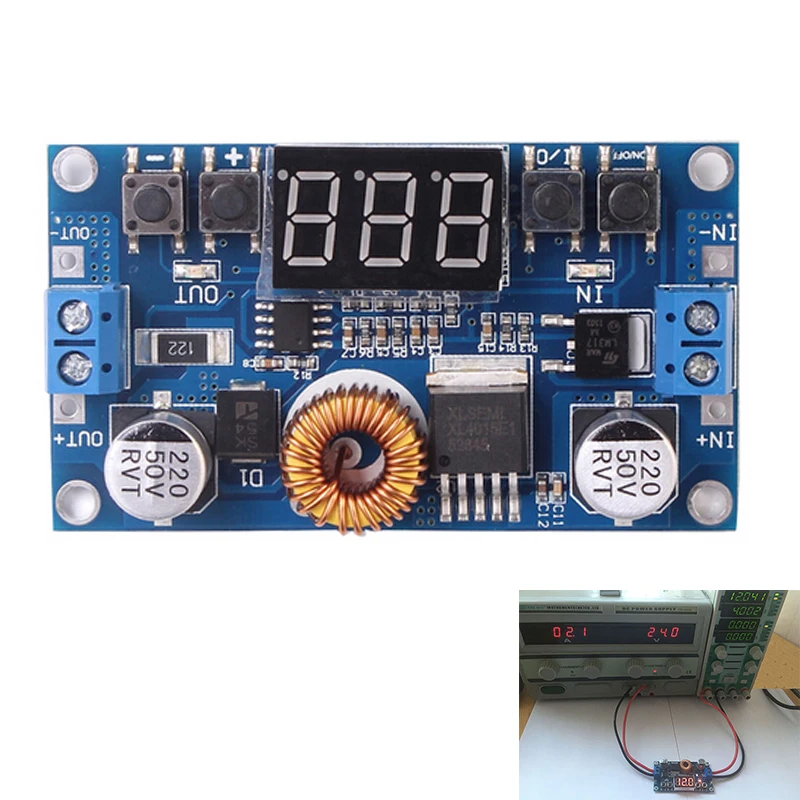

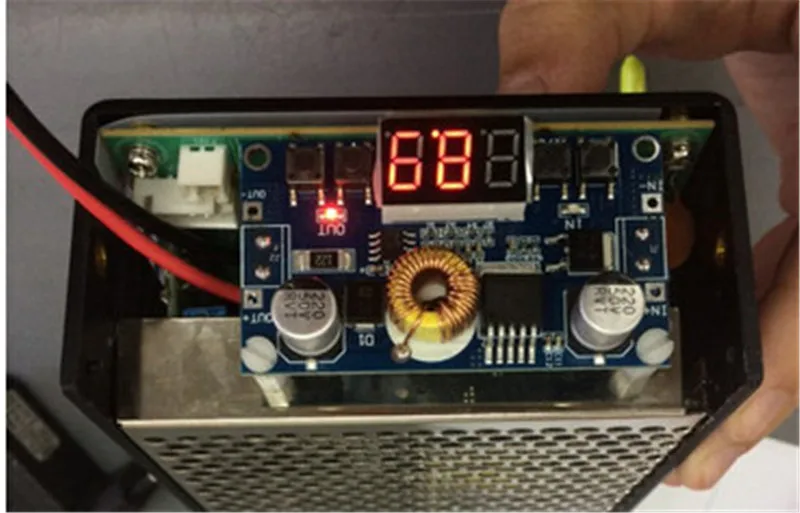

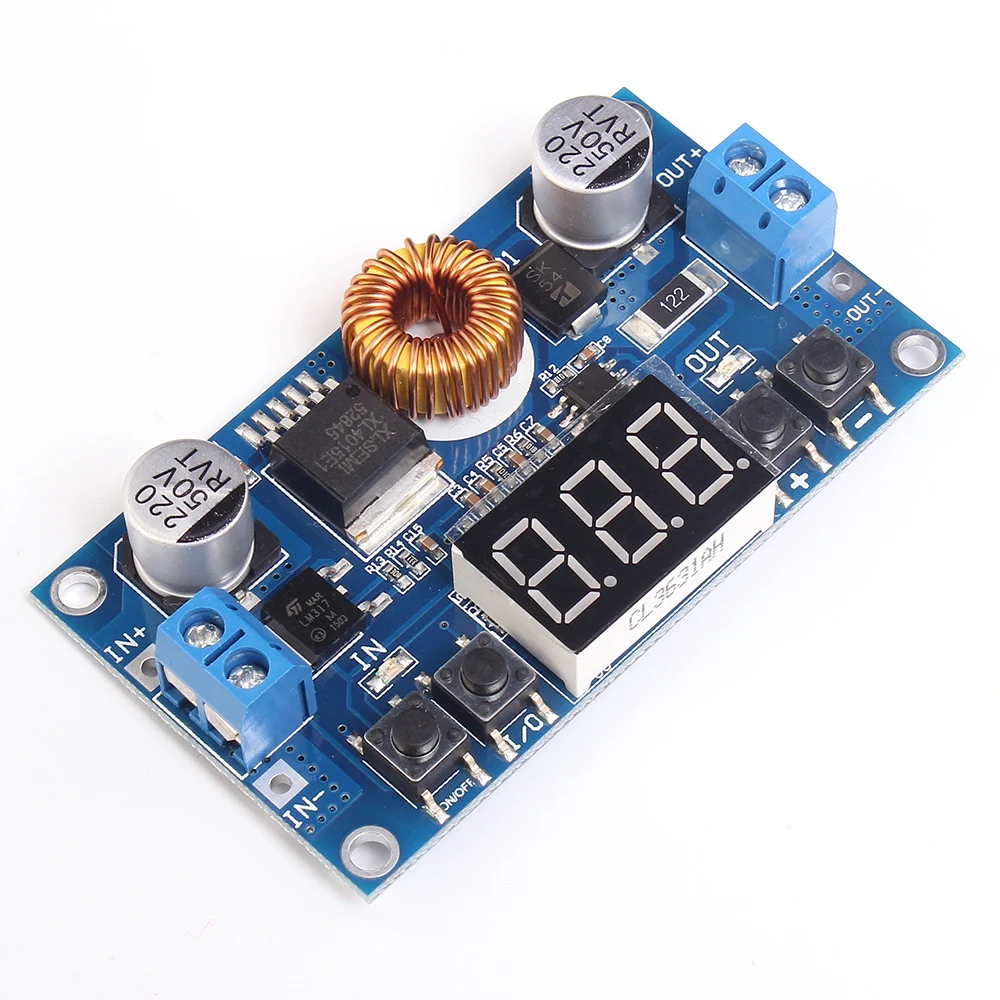

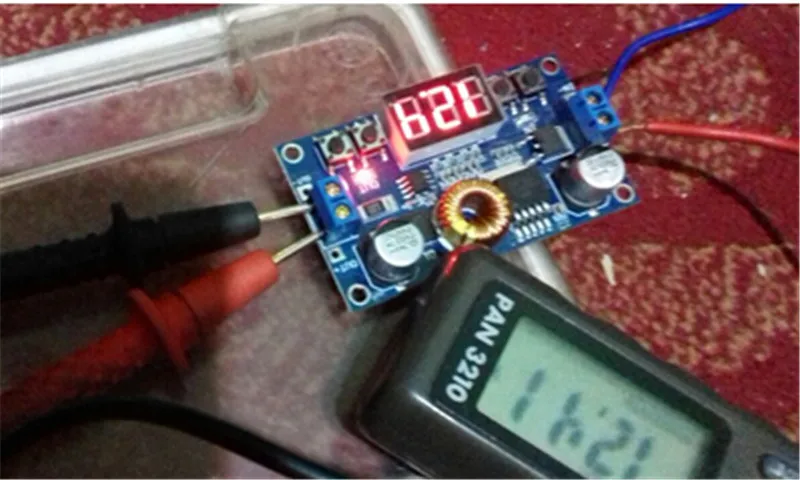

Monday Kids 5A 5-36V To 1.2V-32V Step Down Module DC-DC Adjustable Voltage Buck Converter Board 75W With Voltmeter Digital LED Display
Payment Security
We are PayPal Verified
PayPal is a secure and trusted payment processing service that allows you to shop online. PayPal can be used at mondaykids.com to purchase items by Credit Card (Visa, MasterCard, Discover, and American Express), Debit Card , or E-check (i.e. using your regular Bank Account).
- Brand Name: Monday Kids
- Condition: New
- Type: Logic ICs
- Dissipation Power: none
- Model Number: Step Down Power Module
- Operating Temperature: -30~85 celsius
- is_customized: Yes
- Supply Voltage: 5-36V
- Application: Step Down Power Module
- Output Voltage: 1.2-32V
- Output Current: 5A
|
Product Introduction:
1.Input Voltage:5-36V
2.Adjustable Output Voltage Range:1.2-32V
3.Output Current:5A
4.Output Power:75W
5.Conversion Efficiency:96%
6.With Thermal Protection And Short Circuit Protection

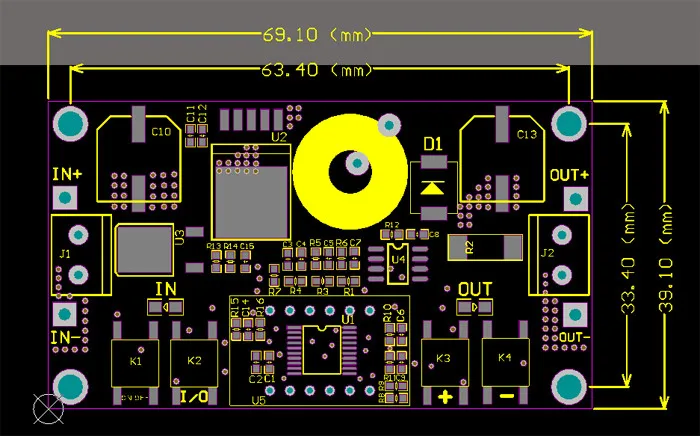

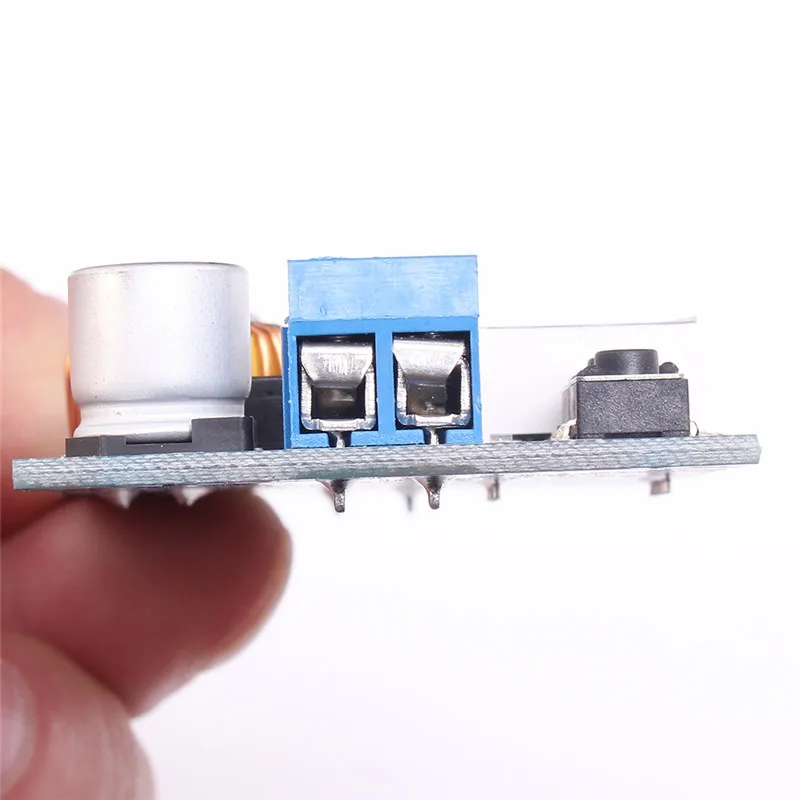

7.Size:69*39*18mm

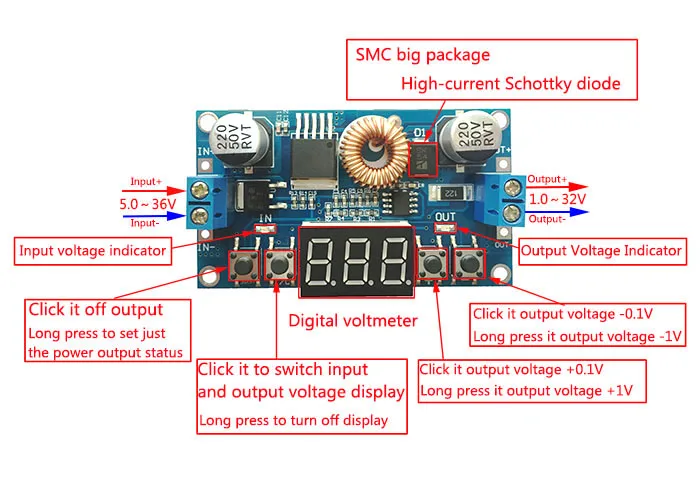

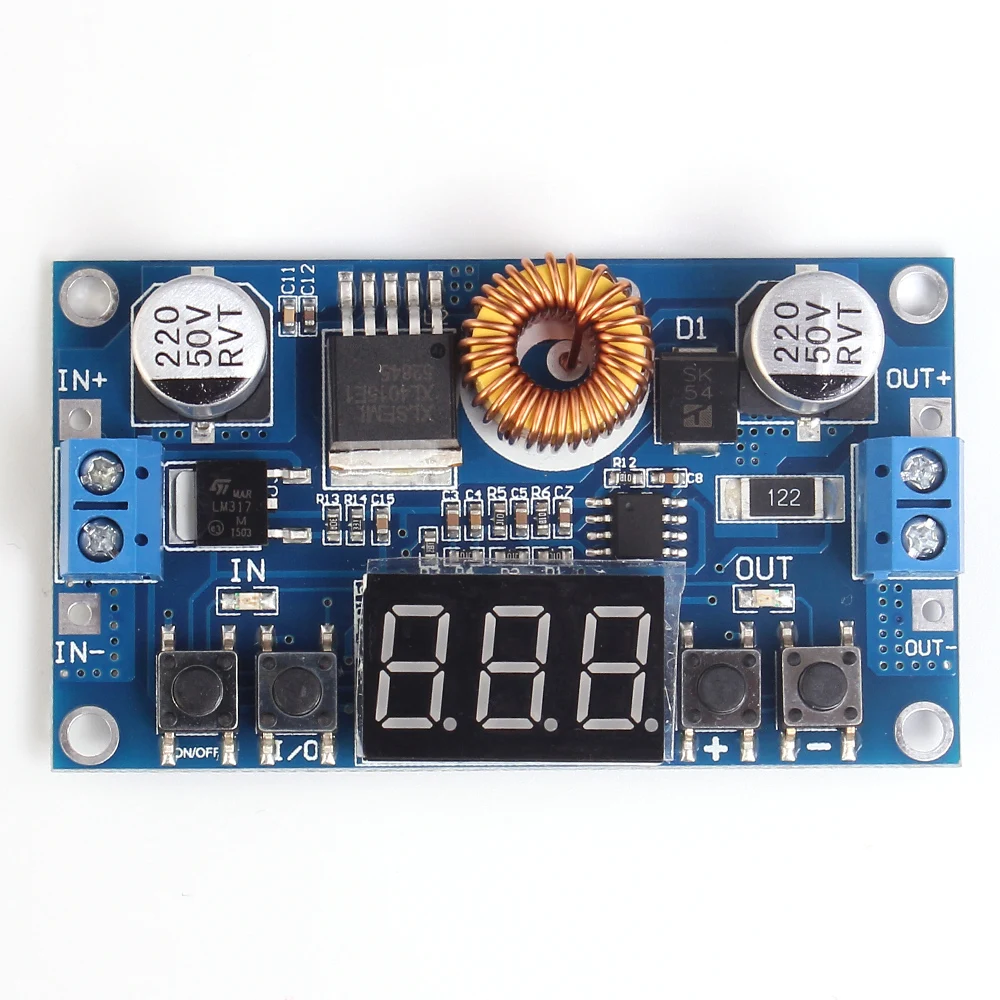

Key Introduction:
1.ON/OFF Key:short press button to turn off the output voltage,long press to set the default power output
2.I-O Key:short press to switch the display input and output voltage,long-press to close the digital tube
3."+" Key:touch the button output voltage rises 0.1V,long press increases 1V
4."-" Key:touch the button to reduce the output voltage 0.1V,long press to reduce 1V
- Unit Type: piece
- Package Weight: 0.036kg (0.08lb.)
- Package Size: 15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
